Except SENTRA

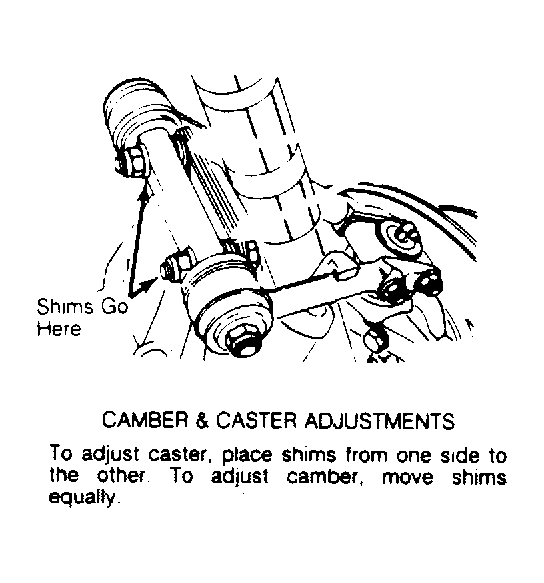

Fig 1: Camber and Caster adjustments. To adjust caster, place shims from one side to the other. To adjust camber, move shims equally.
G52234

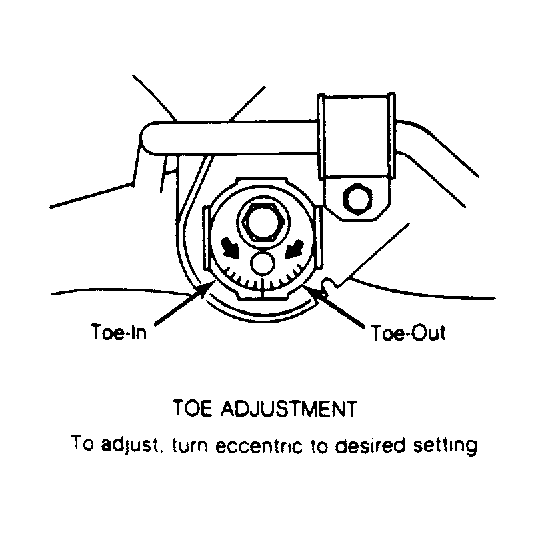

Fig 2: Toe adjustment (Except Pickup). To adjust, turn eccentric to desired setting.
G52243
