Alignment Procedures: SENTRA

NOTE: On Sentra, caster and kingpin inclination are preset at factory and cannot be adjusted.

If camber is not within specification, adjust by turning the adjusting pin see Fig 1 .

  1. Remove the adjusting pin. Adjusting pin is factory installed with the flat portion facing down.
  2. Install adjusting pin with the flat portion facing up.
  3. Turn the adjusting pin to adjust, Camber changes about 15' with each graduation of the adjusting pin. See Fig 2 .
  4. Tighten to the specified torque.

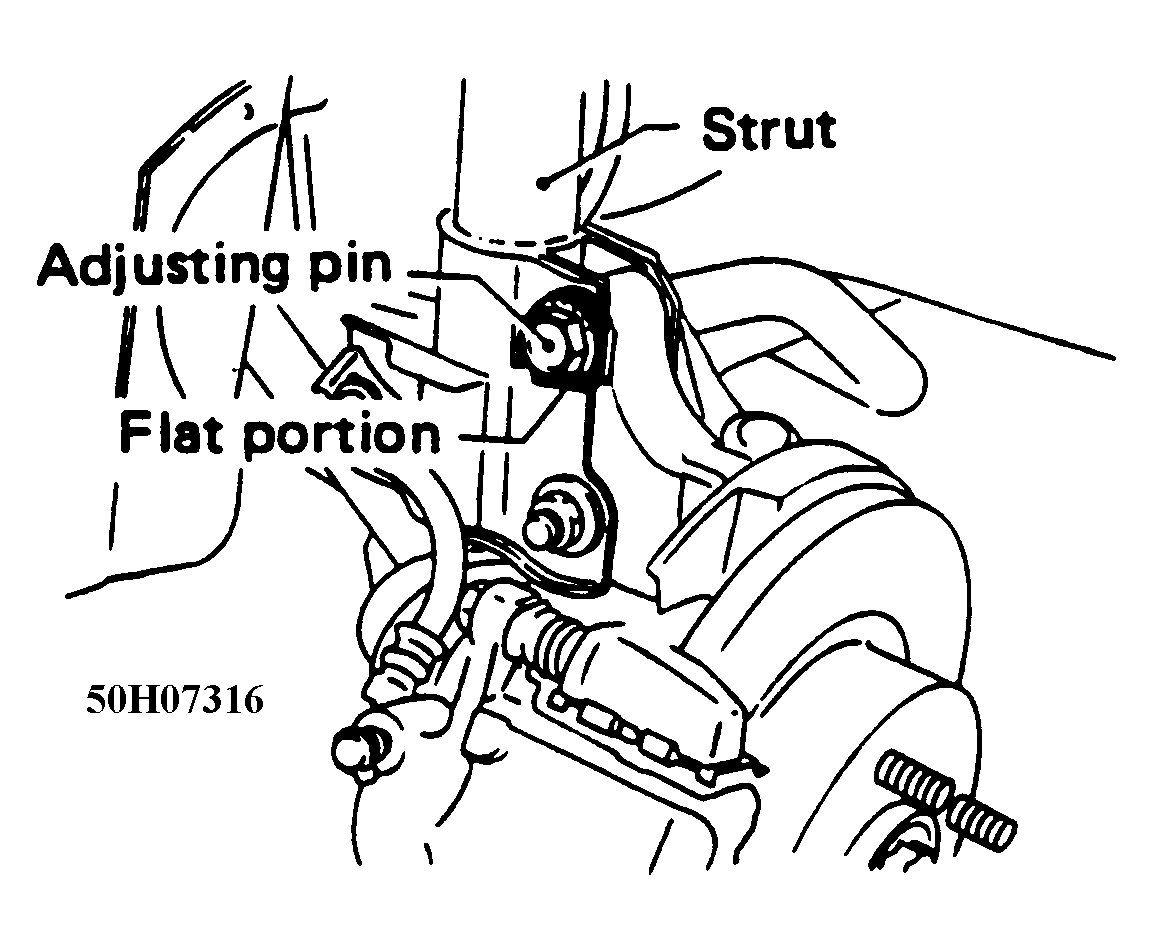

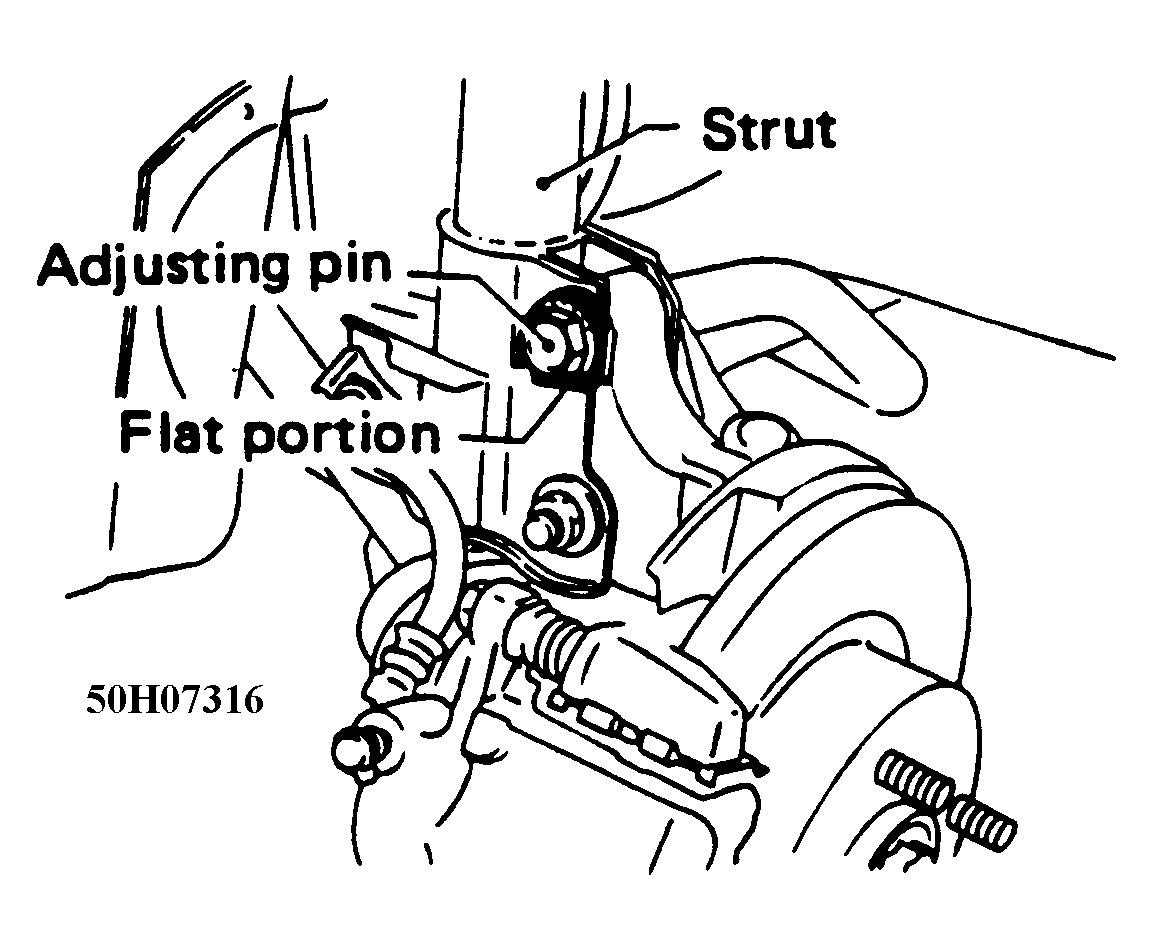

Fig 1: Adjusting Pin Location (Sentra)
G50H07316

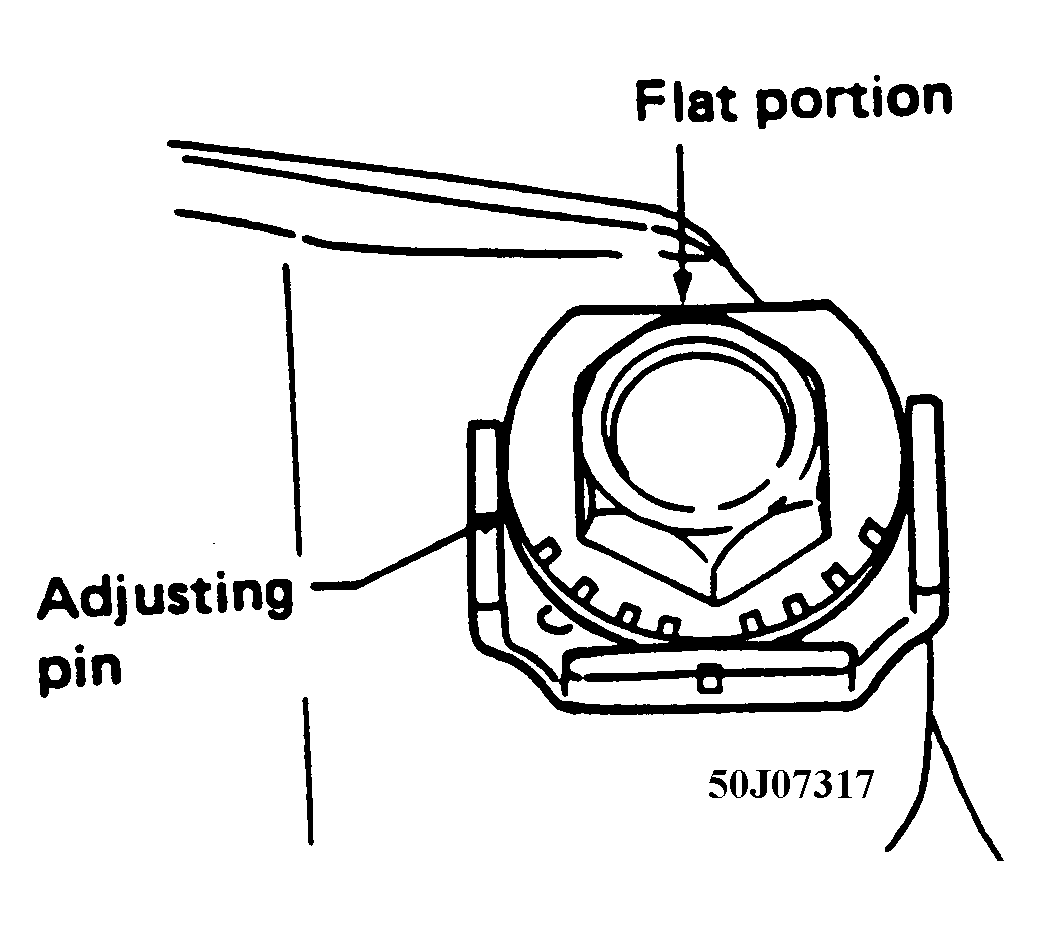

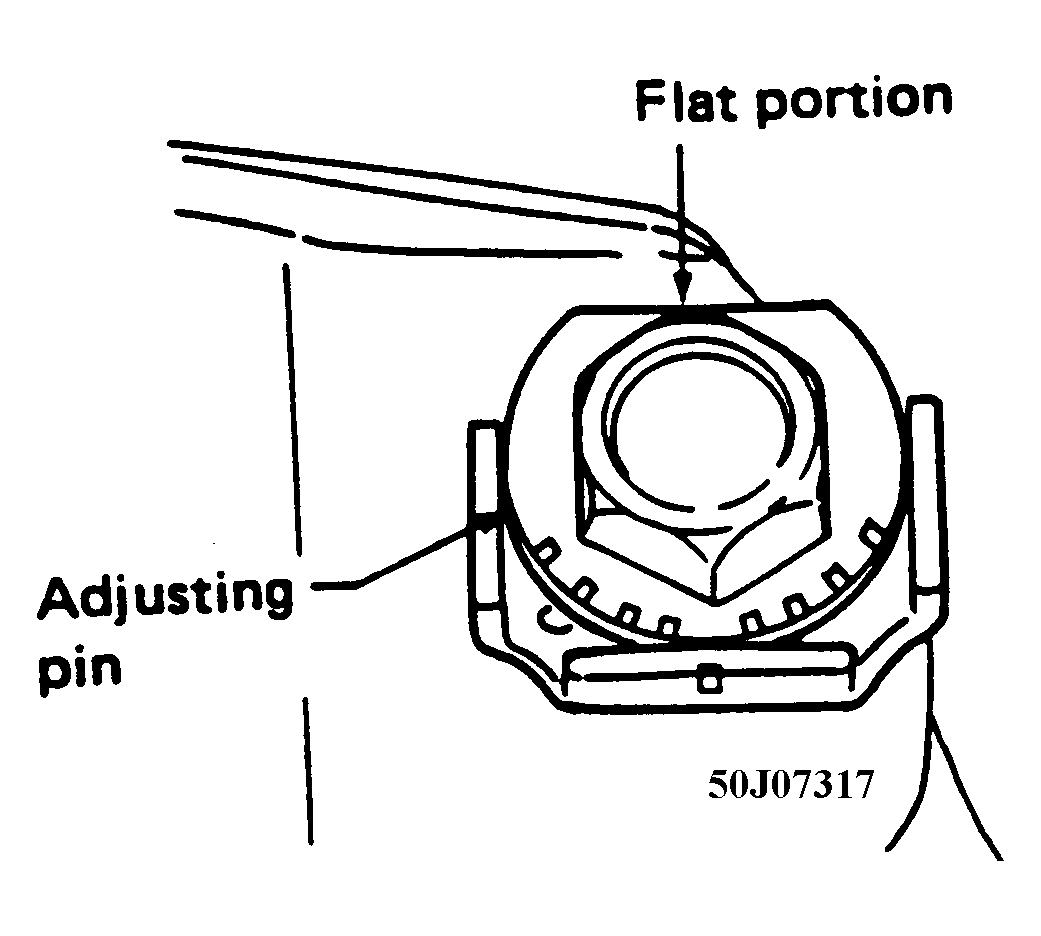

Fig 2: Camber Adjusting Pin Graduations (Sentra)
G50J07317
