BACKPRESSURE Transducer (BPT) Valve

Disconnect 2 vacuum hoses on BPT valve. Plug one of 2 ports. Apply .145 in. Hg vacuum to BPT valve and apply suction on other port to check for leakage. If leak is noticed, replace valve.

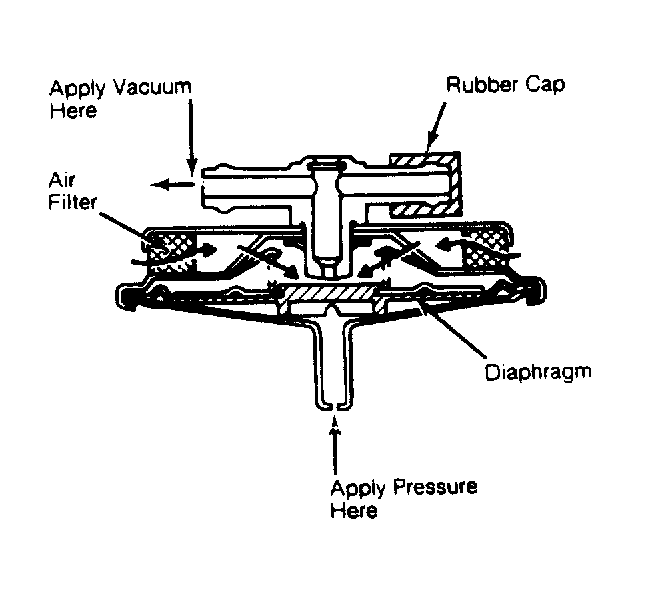

Fig 1: Backpressure Transducer (BPT) Valve
G67086Courtesy of NISSAN MOTOR CO., U.S.A.
