General Specifications & VIN Identification

1989 MODEL COVERAGE

Model Body Engine (1) ID Fuel System
Maxima J 3.0L (VG30E) H SFI (2)(3)
Pathfinder D 2.4L (Z24i) N TBI (2)
Pickup D 3.0L V6 (VG30i) H TBI (2)
Pathfinder D 2.4L (Z24i) N TBI (2)
Pickup D 3.0L V6 (VG30i) H TBI (2)
Pulsar NX XE N 1.6L (GA16i) G TBI (2)
Pulsar NX SE N 1.8L (CA18DE) C SFI (2)
Sentra B 1.6L (GA16i) G TBI (2)
Stanza T 2.0L (CA20E) H SFI (2)
240SX S 2.4L (KA24E) H SFI (2)
300ZX Z 3.0L (VG30E) H SFI (2)
300ZX Turbo Z 3.0L (VG30ET) C SFI (2)(3)
(1) Engine code is located on left side (4-cylinder) or right side (V6) of cylinder block, at cylinder head mating surface.
(2) Ignition system is Optical type. Timing is controlled by Electronic Control Unit (ECU).
(3) System utilizes a knock sensor for ignition detonation input to ECU.

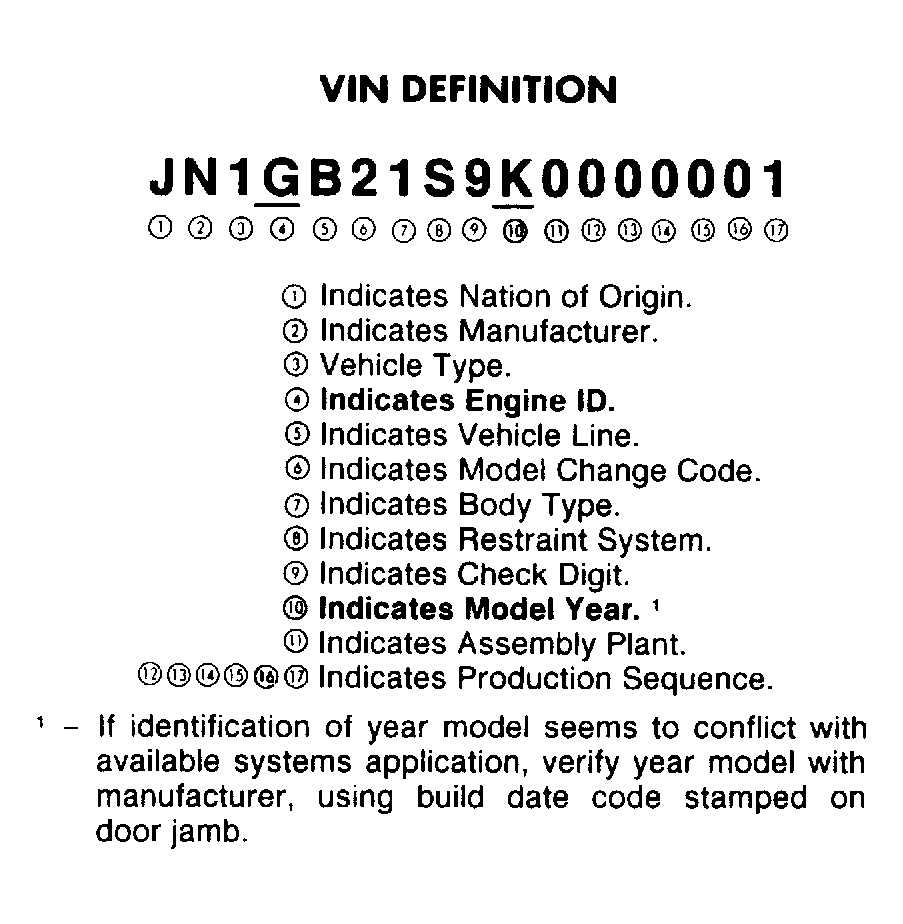

Fig 1: VIN Identification
G121807Courtesy of NISSAN MOTOR CO., U.S.A.
MODEL YEAR VIN CODE APPLICATION

VIN Code Model Year
H 1987
J 1988
K 1989
