Air Injection Valve
See
Fig 1
and
Figure
.

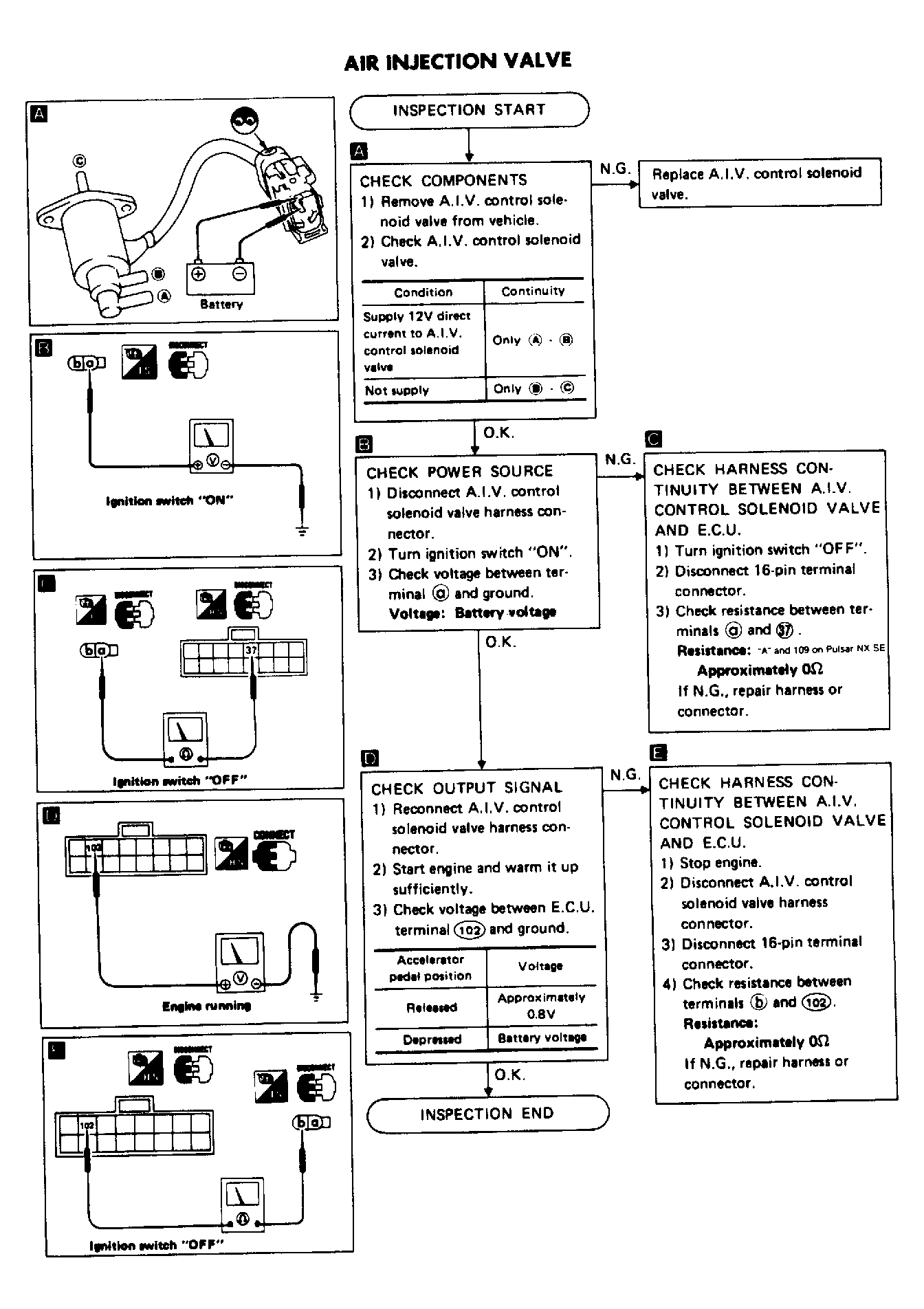

Fig 1: AIV & AIV Control Valve
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
