Control Units

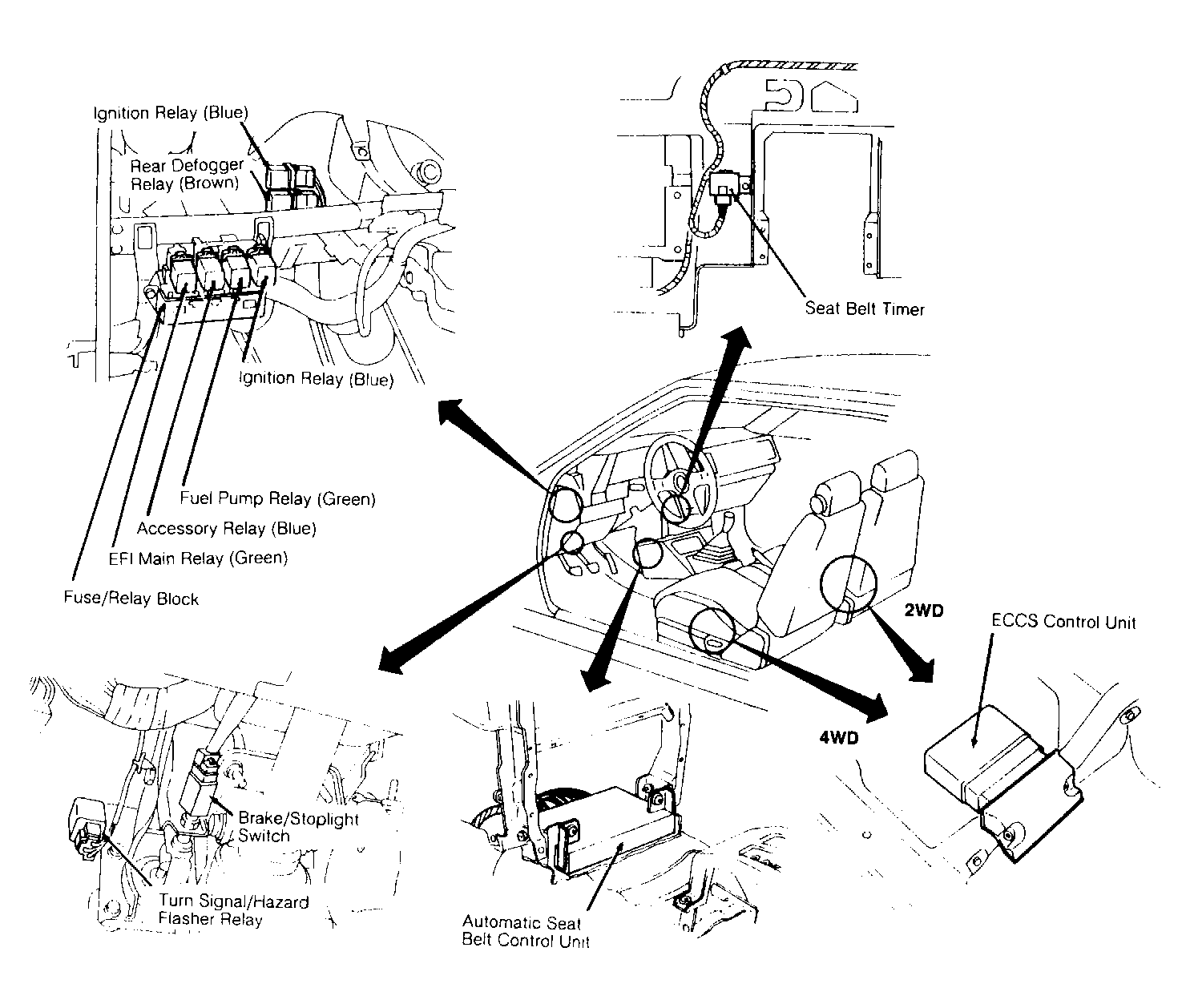

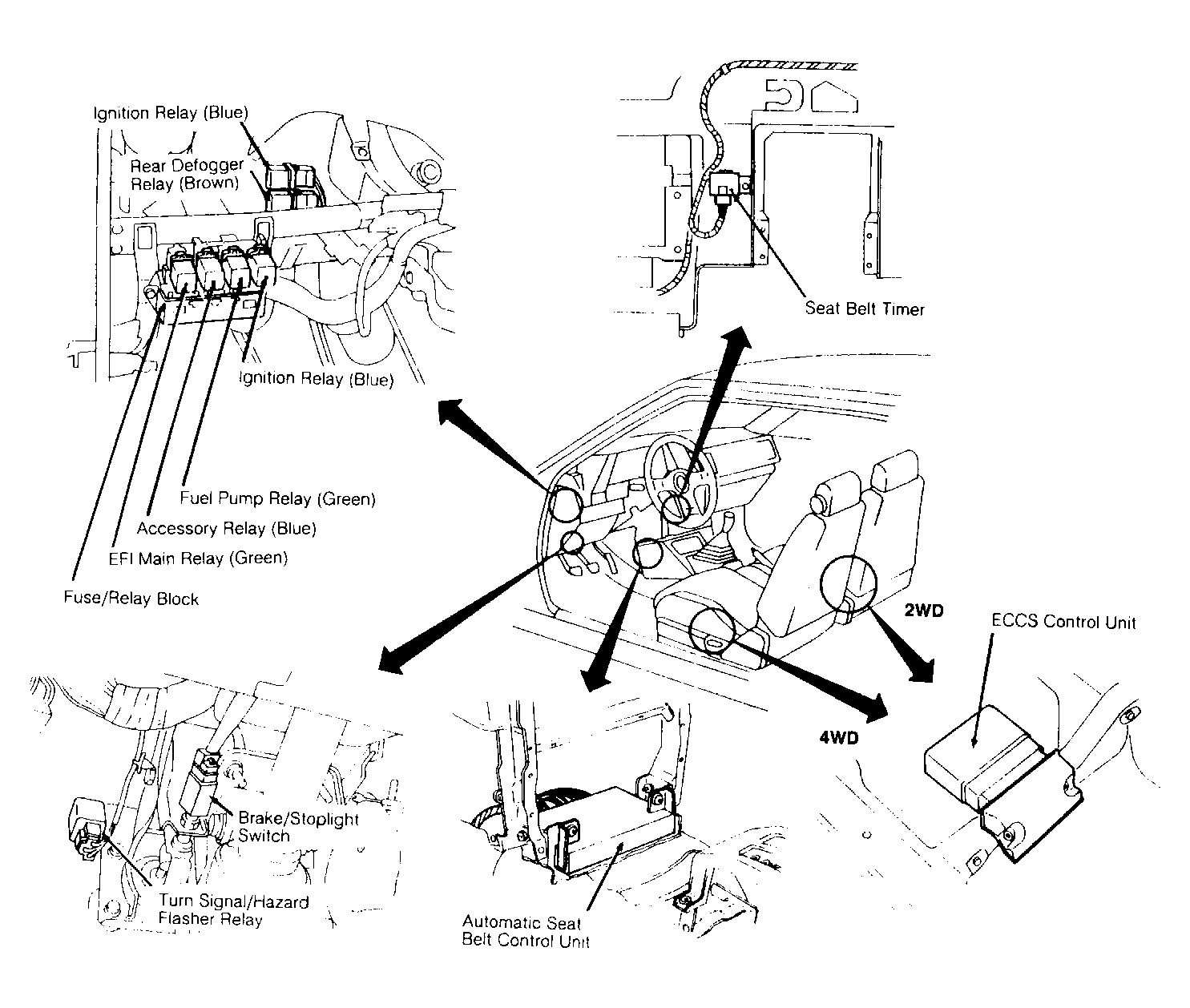

CONTROL UNITS LOCATION

Component Location
Automatic Seat Belt Control Unit Behind center console. See Figure .
ECCS Control Unit
2WD Under front passenger's seat. See Figure .
4WD Under front driver's seat. See Figure .
