Repair and Diagnosis: Electrical: Starter: Overhaul

To adjust end play, some starters are equipped with adjusting plates (shims) or washers. See Fig 1-6 . Adjusting washers and plates are available in various thicknesses. Correct end play is .004-.020" (.1-.5 mm).

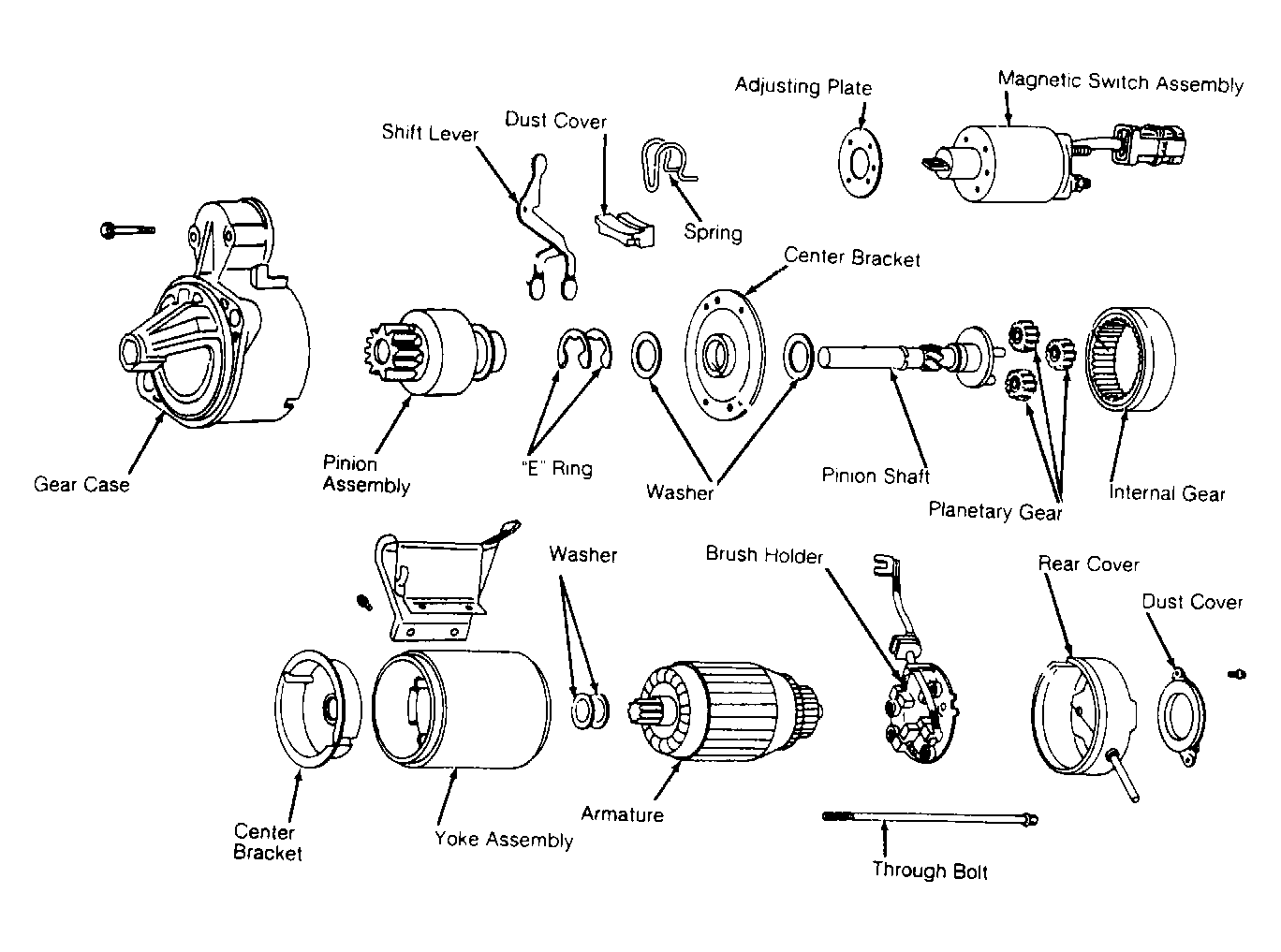

Fig 1: Exploded View of Starter M1T72085

Courtesy of NISSAN MOTOR CO., U.S.A.

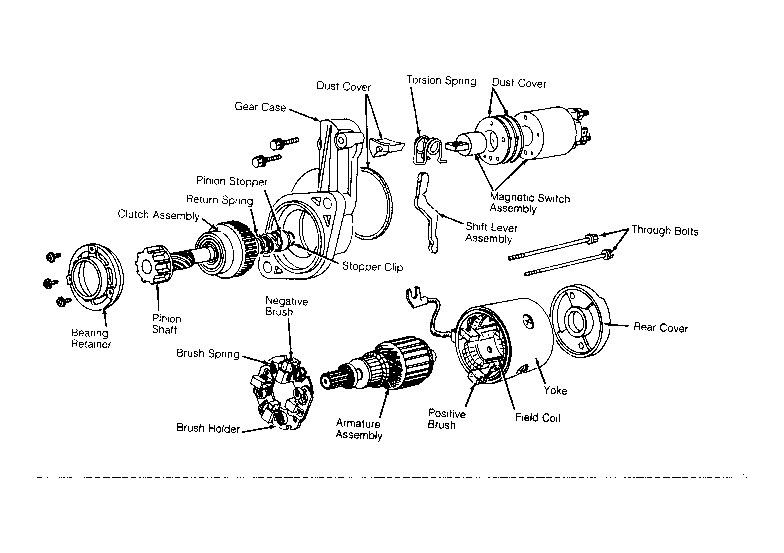

Fig 2: Exploded View of Starter S114-617A

Courtesy of NISSAN MOTOR CO., U.S.A.

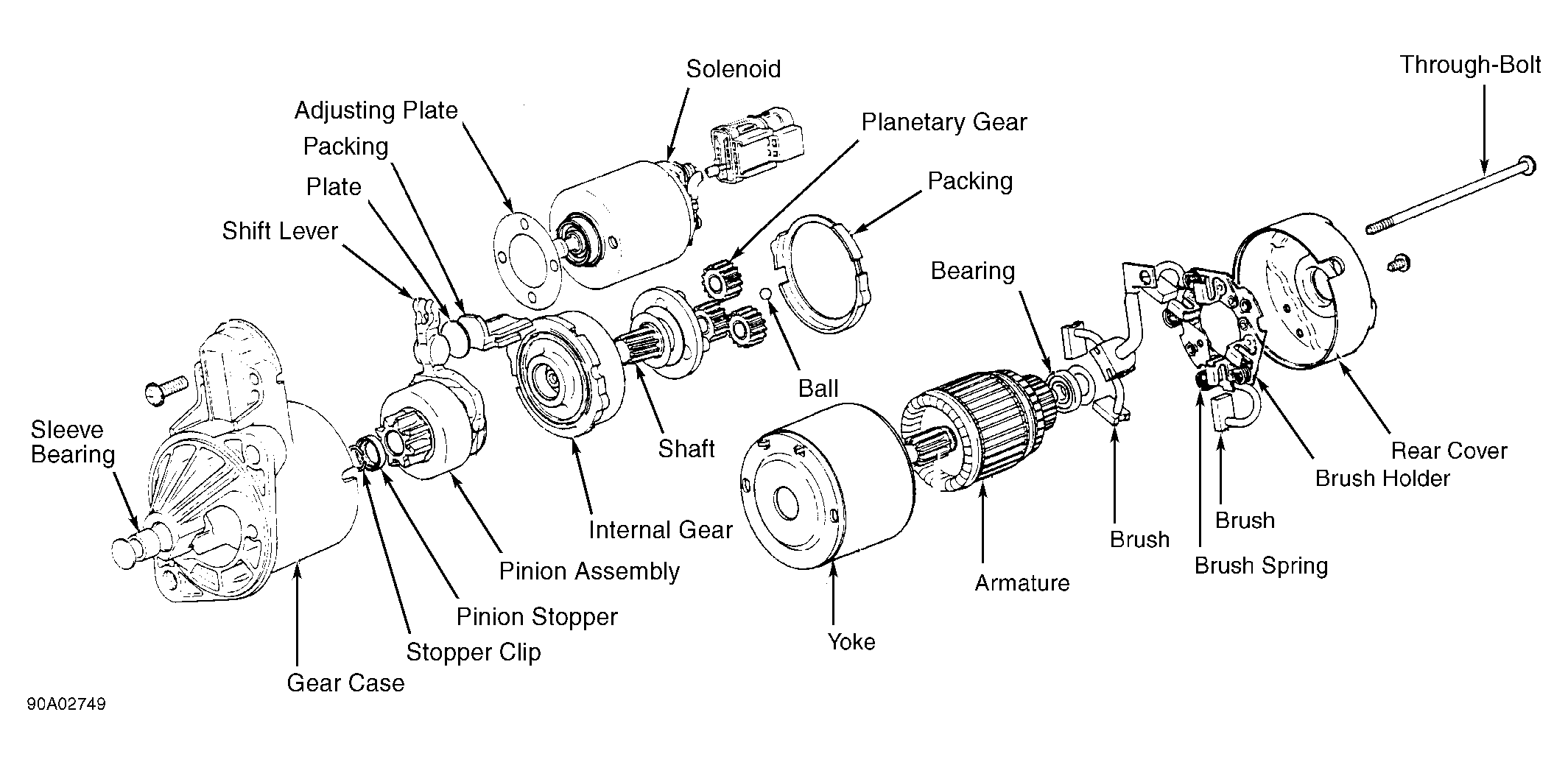

Fig 3: Exploded View of Starter M3T37782

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Exploded View of Starter M2T53882

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Exploded View of Starter S114-520B

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Exploded View of Starter S114-475A

Courtesy of NISSAN MOTOR CO., U.S.A.
