Air Injection Valve Chart

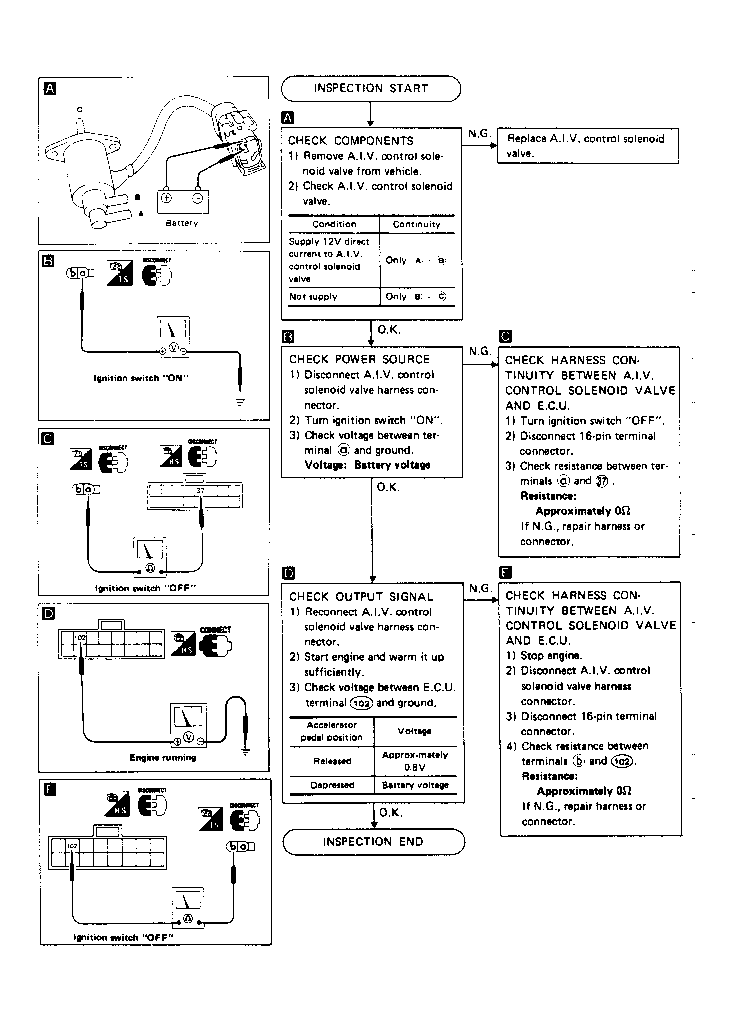

Fig 1: Air Injection Valve Diagnostic Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
