Mixture Heater Relay Chart

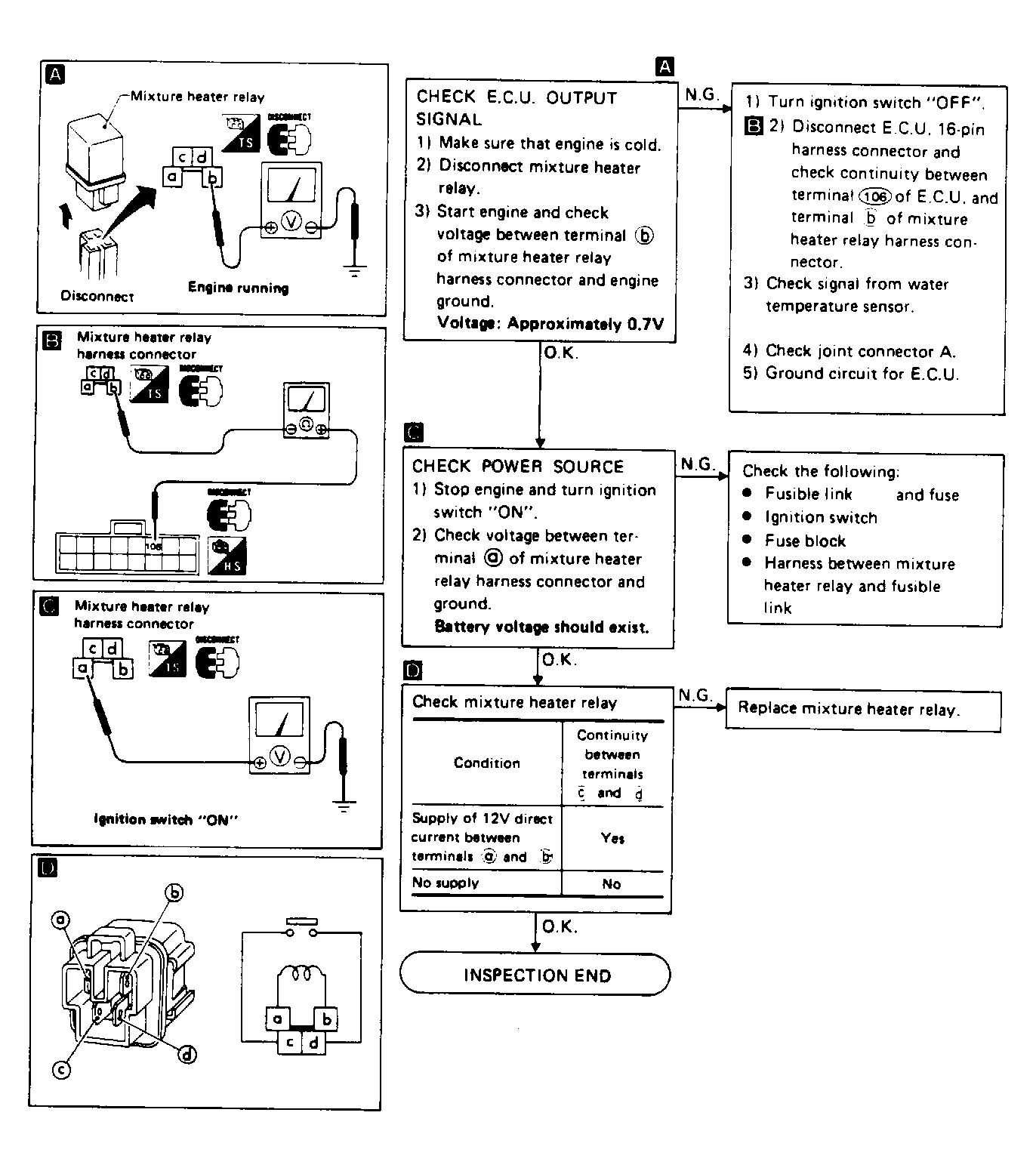

Fig 1: Mixture Heater Relay Diagnostic Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
