Retrieving Codes
- If trouble codes are stored in ECU memory, ANTI-LOCK warning light on dash will be illuminated. To retrieve trouble codes, find ABS ECU and observe LED. See Figure .
- If LED flashes, count the number of flashes. See Fig 1 . LED pauses for 5-10 seconds before repeating code. See ABS WARNING CODES TABLE. LED will only indicate ONE code at a time.
- After problem circuit has been repaired, any remaining code(s) will be displayed by LED.
ABS WARNING CODES
| Code | Circuit | Go To | ||
|---|---|---|---|---|

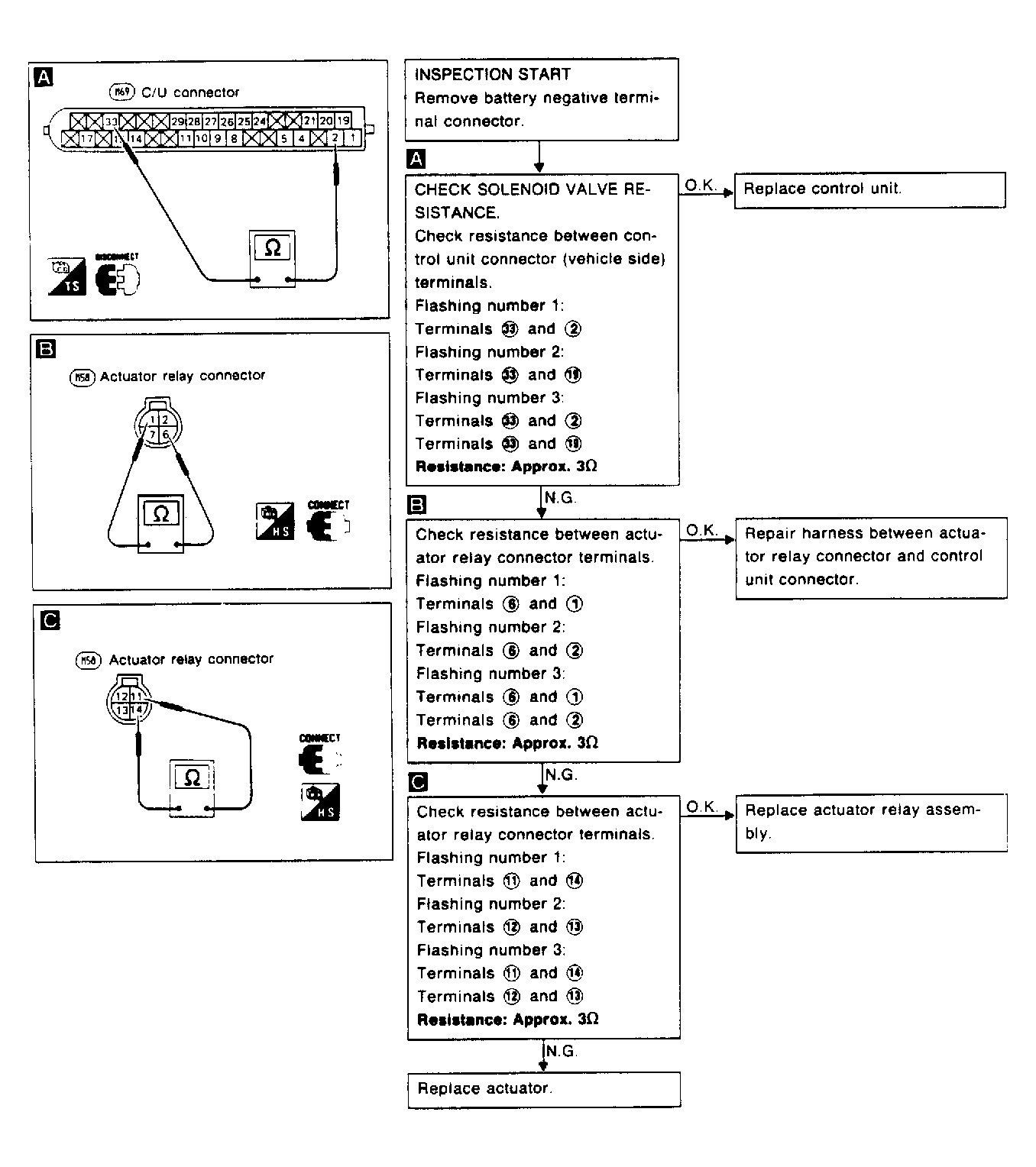

| 1 | L/F Actuator Solenoid | Figure | ||
| 2 | R/F Actuator Solenoid | Figure | ||
| 3 | Both Actuator Solenoids | Figure | ||

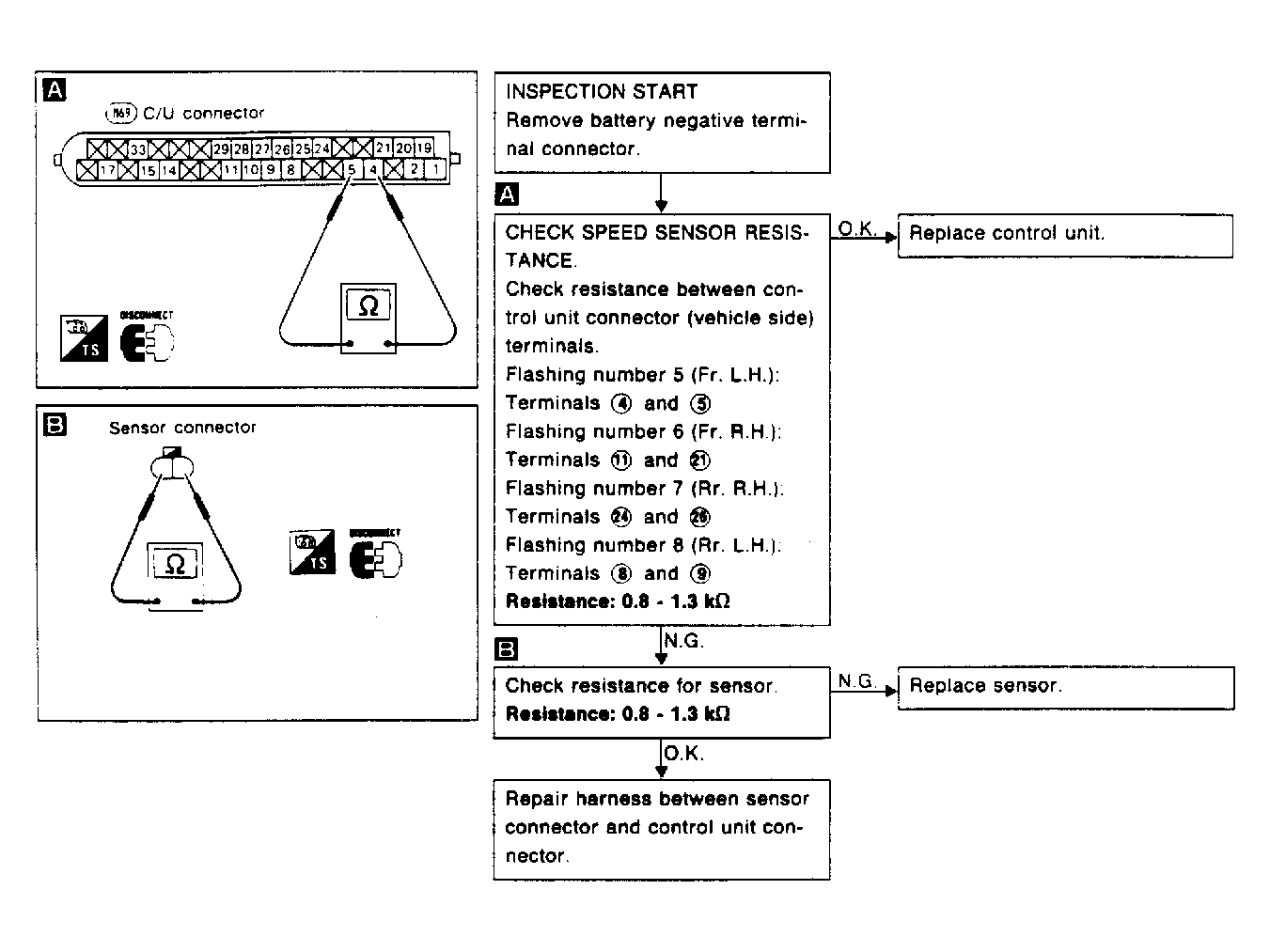

| 5 | L/F Speed Sensor | Figure | ||
| 6 | R/F Speed Sensor | Figure | ||
| 7 | R/R Speed Sensor | Figure | ||
| 8 | L/R Speed Sensor | Figure | ||

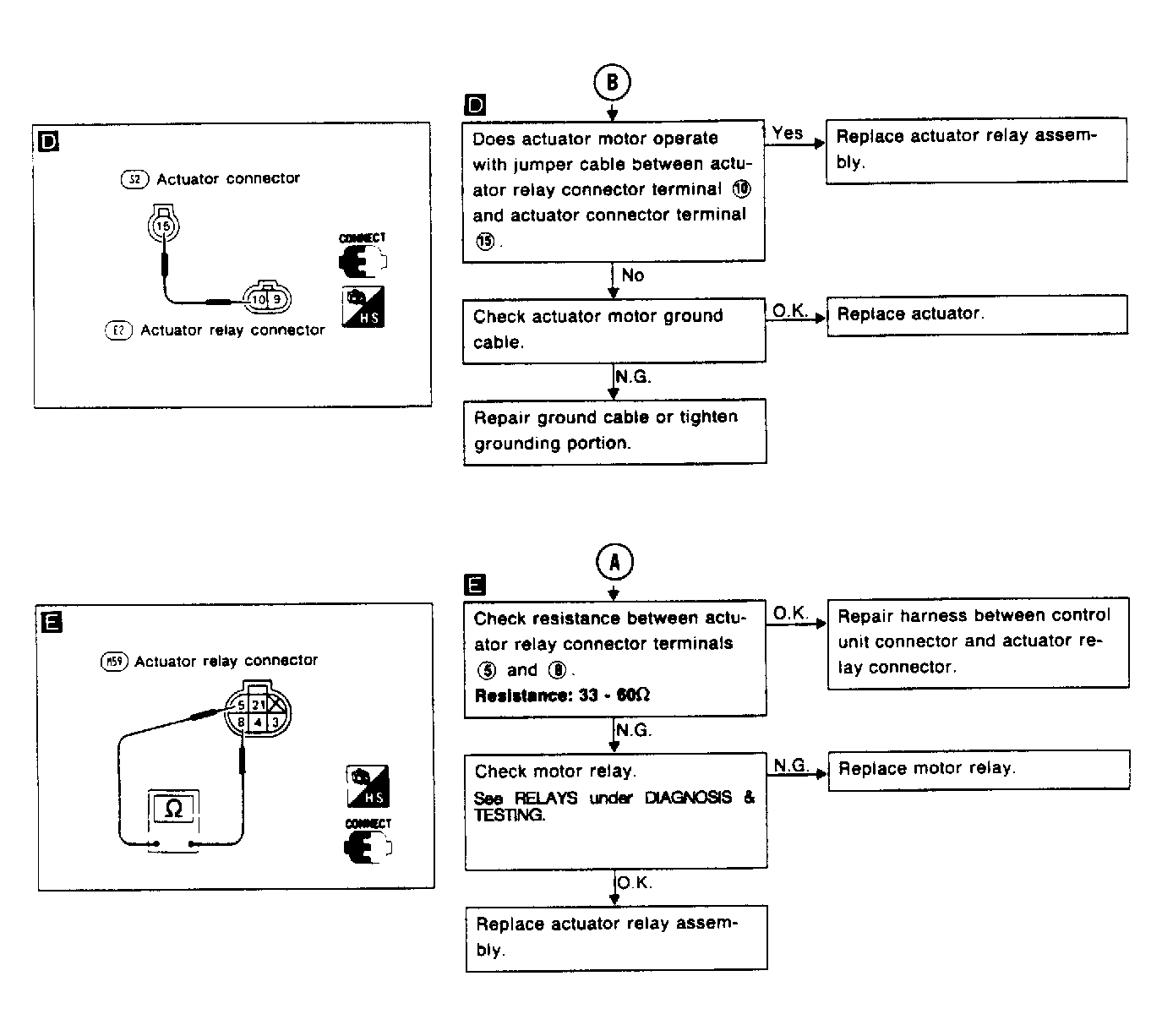

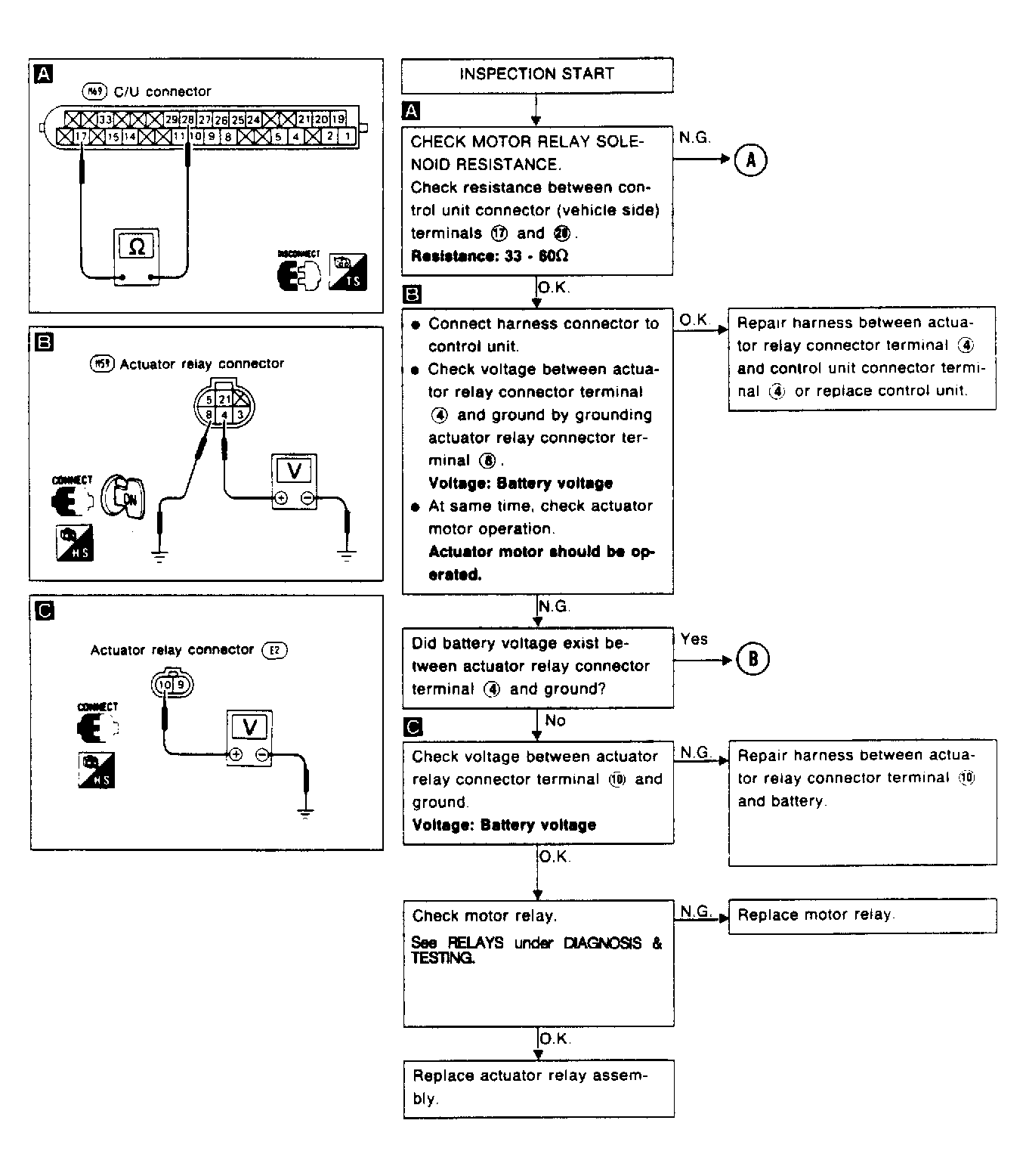

| 9 | Actuator Motor/Motor Relay | Figure & Figure | ||

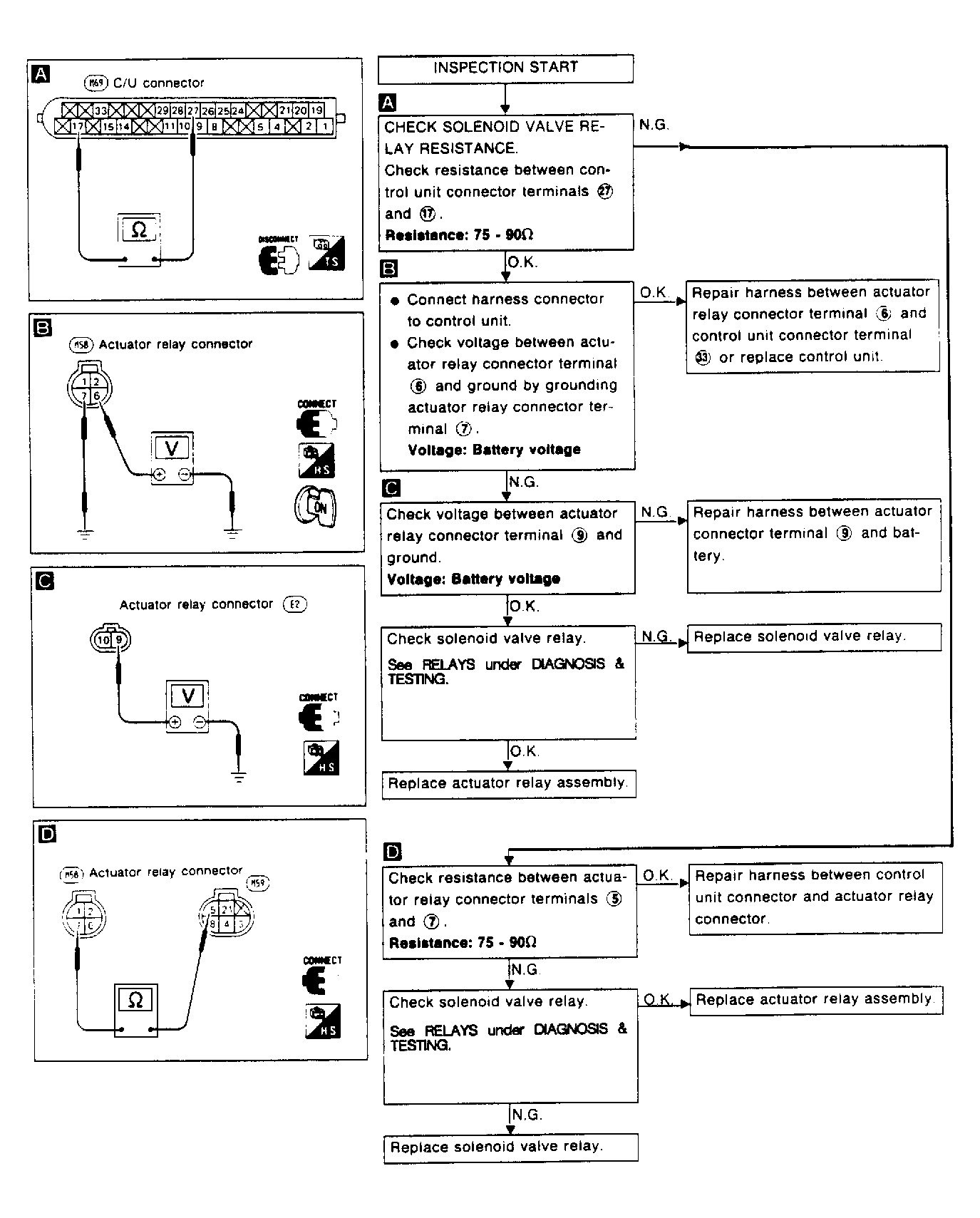

| 10 | Solenoid Valve Relay | Figure | ||
| 15 | Sensor Rotor | Figure | ||
