NX & SENTRA

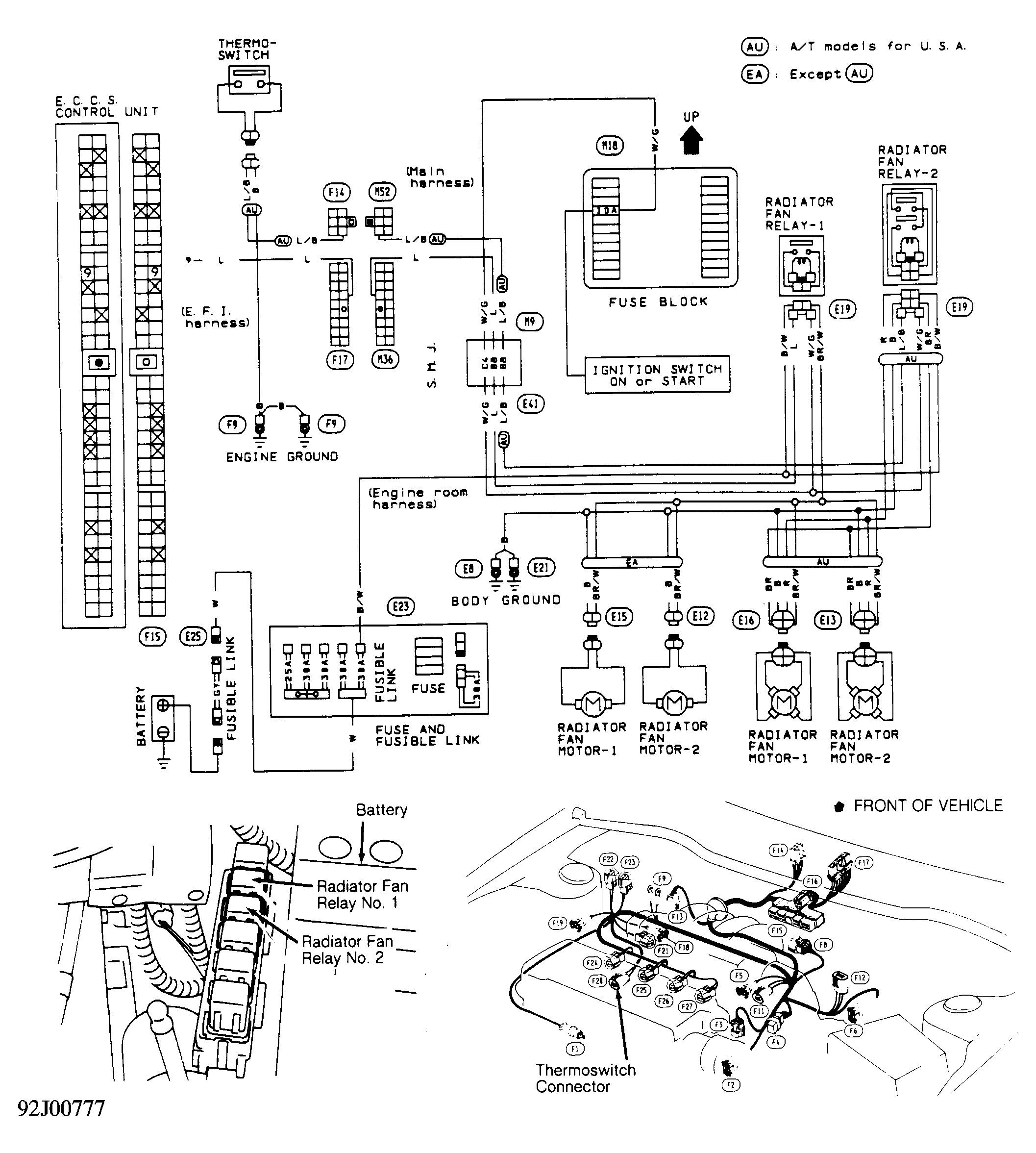

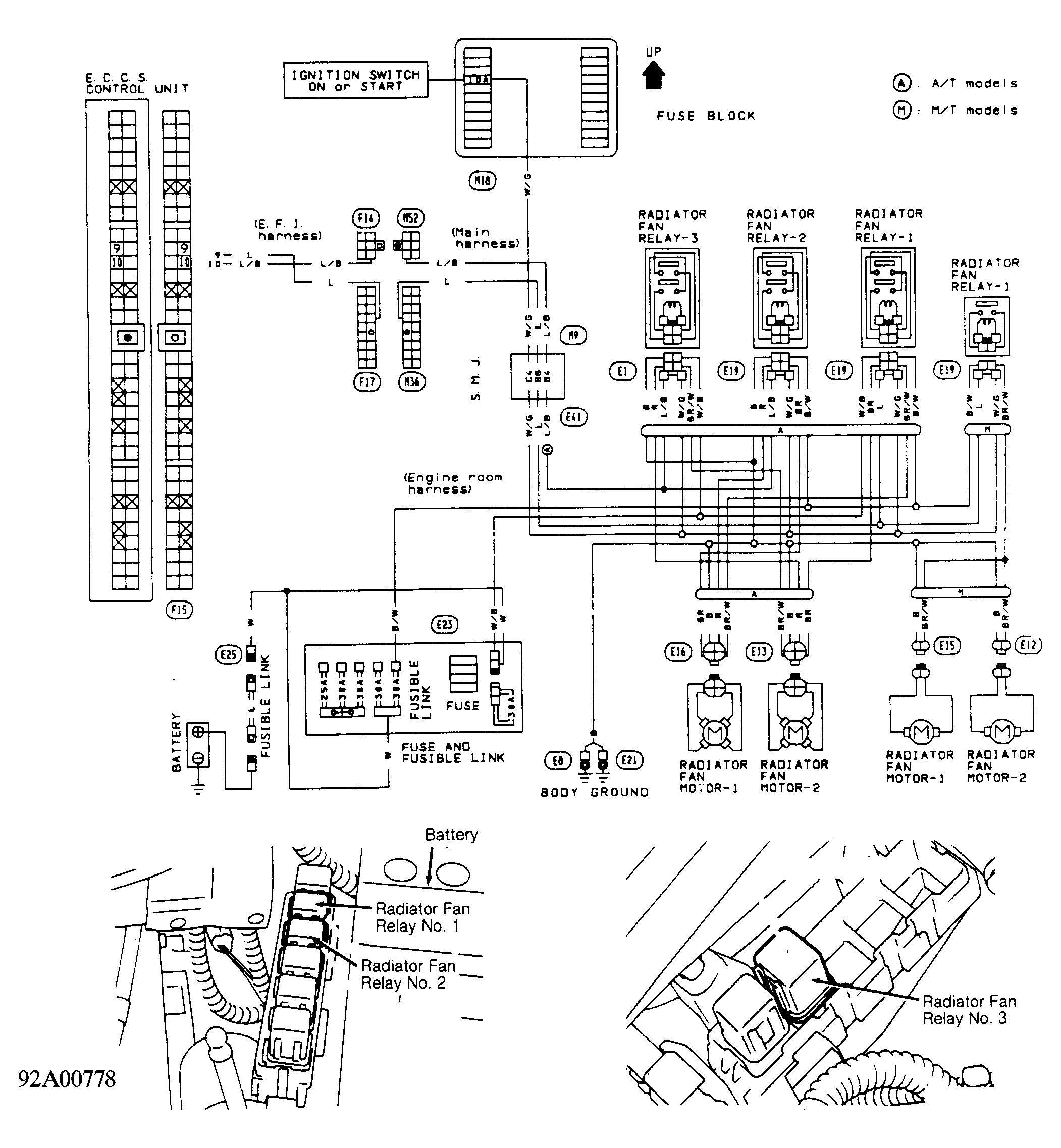

Warm engine to operating temperature. Cooling fan should come on. If equipped with A/C, engage A/C clutch using A/C switch in passenger compartment. Condenser cooling fan should come on. If fans do not function as described, check power supplies, grounds, relays, radiator fan switches and motors. If no faults are found, check component wiring. See Figure and Figure .
