Valve Timing Control (VTC) Diagnostic Chart

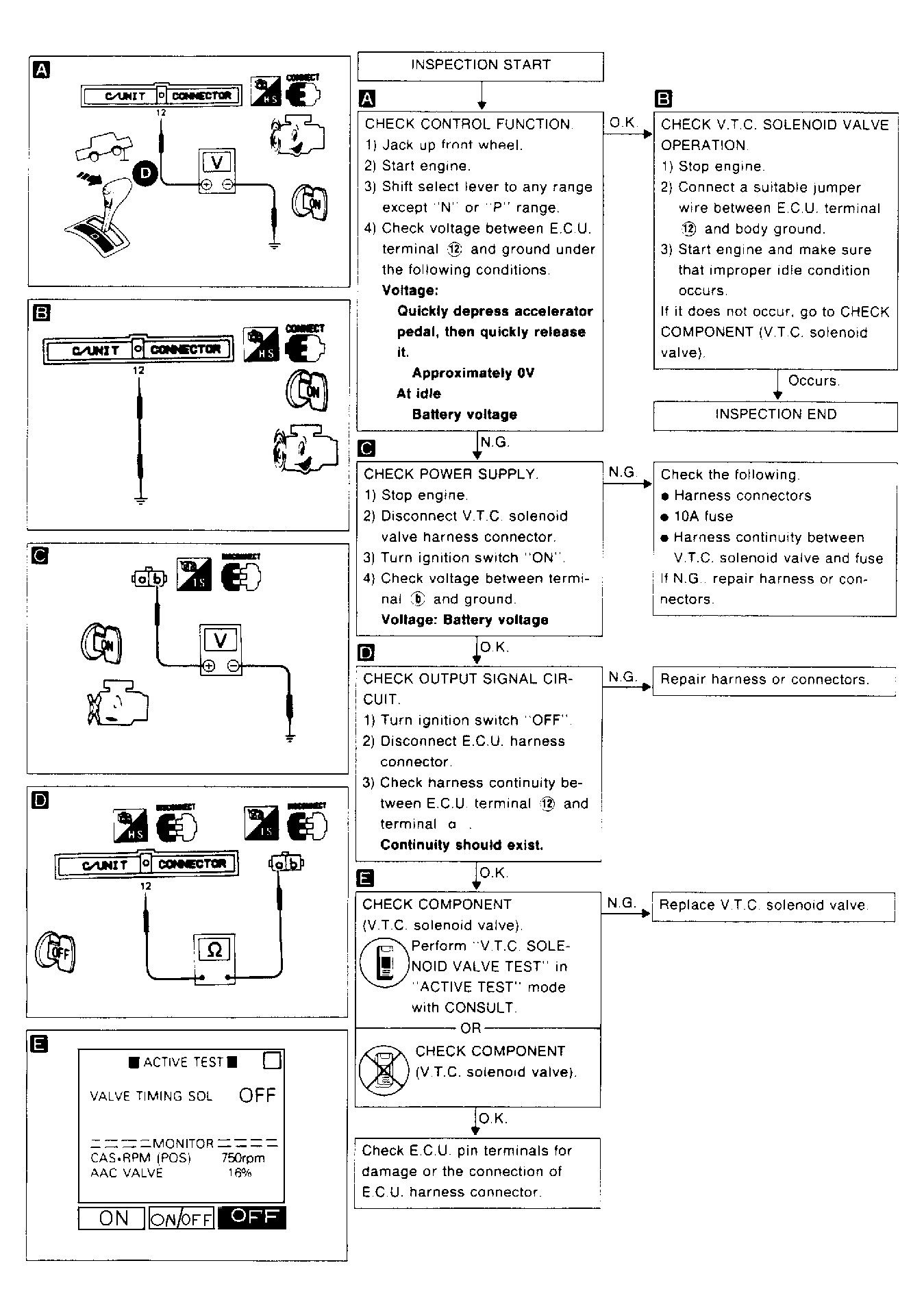

Fig 1: Valve Timing Control (VTC) Diagnostic Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
