Camber, Caster & Toe-In Adjustment

NOTE: For camber, caster and toe-in adjustment, see Fig 1-Fig 7 . Illustrations given show typical adjustment points.

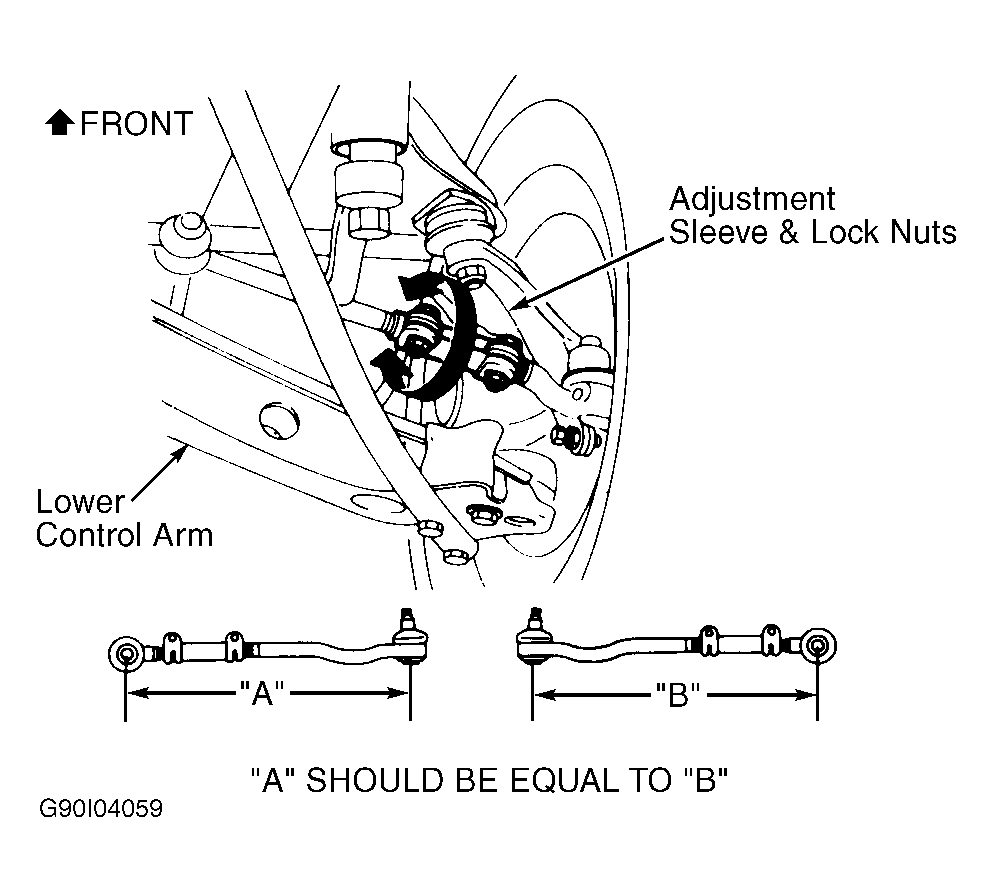

Fig 1: Adjusting Front Toe-In (except Pathfinder & Pickup) Courtesy of Nissan Motor Co., U.S.A.

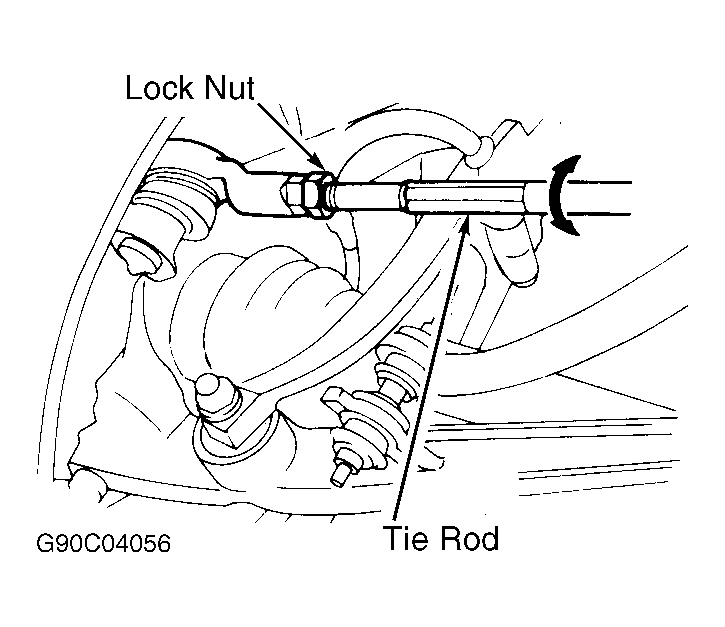

Fig 2: Adjusting Front Toe-In (Pathfinder & Pickup) Courtesy of Nissan Motor Co., U.S.A.

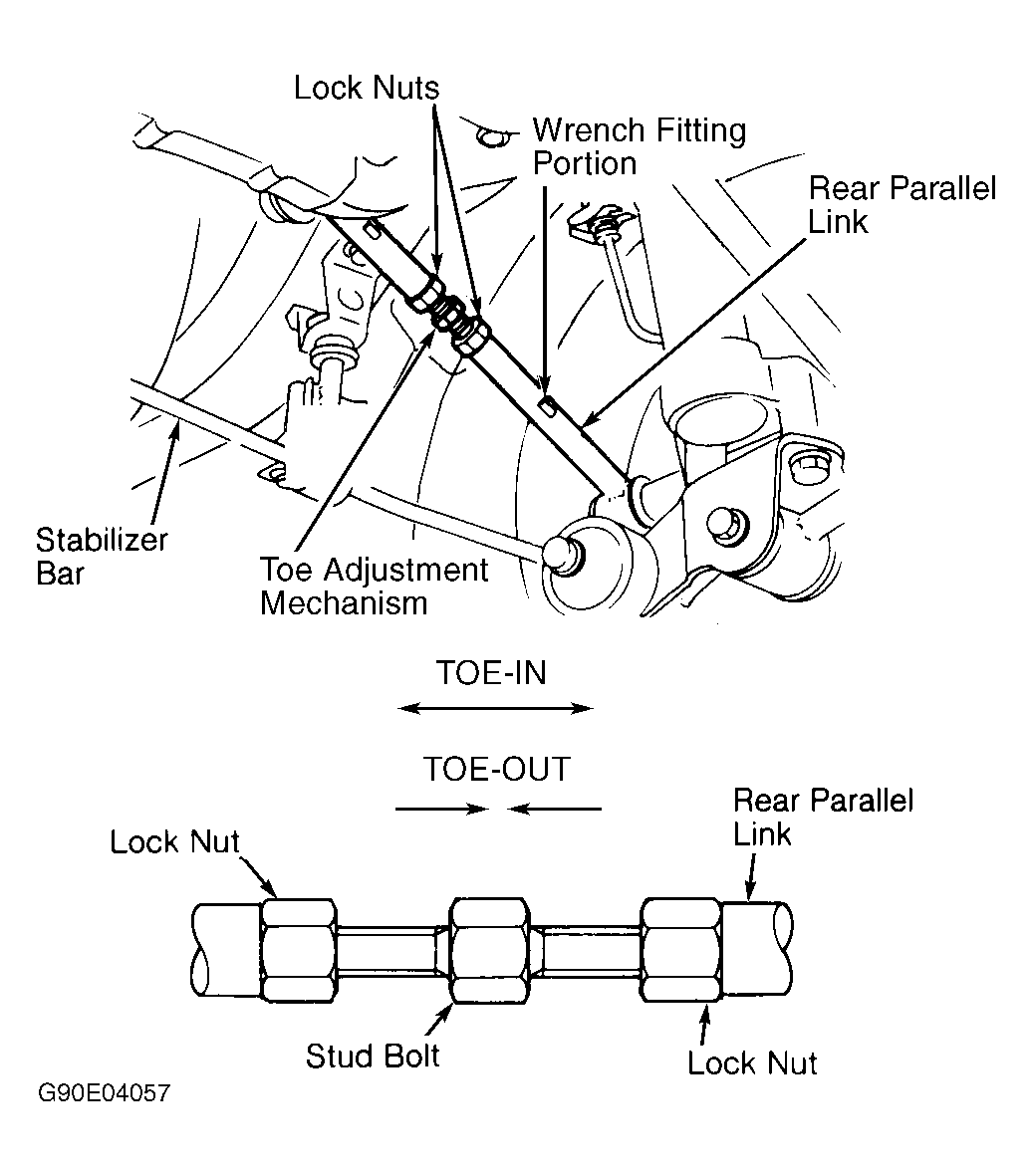

Fig 3: Adjusting Rear Toe-In (Maxima & Stanza) Courtesy of Nissan Motor Co., U.S.A.

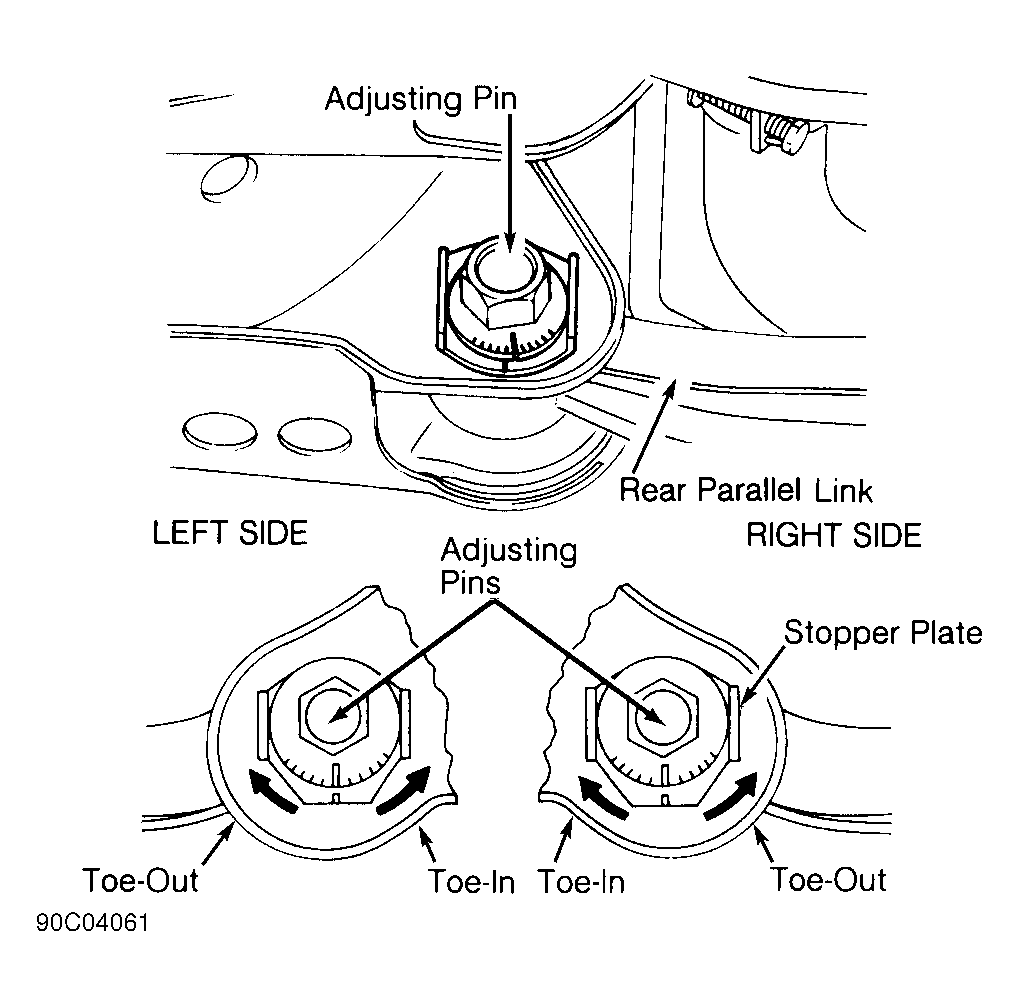

Fig 4: Adjusting Rear Toe-In (NX & Sentra) Courtesy of Nissan Motor Co., U.S.A.

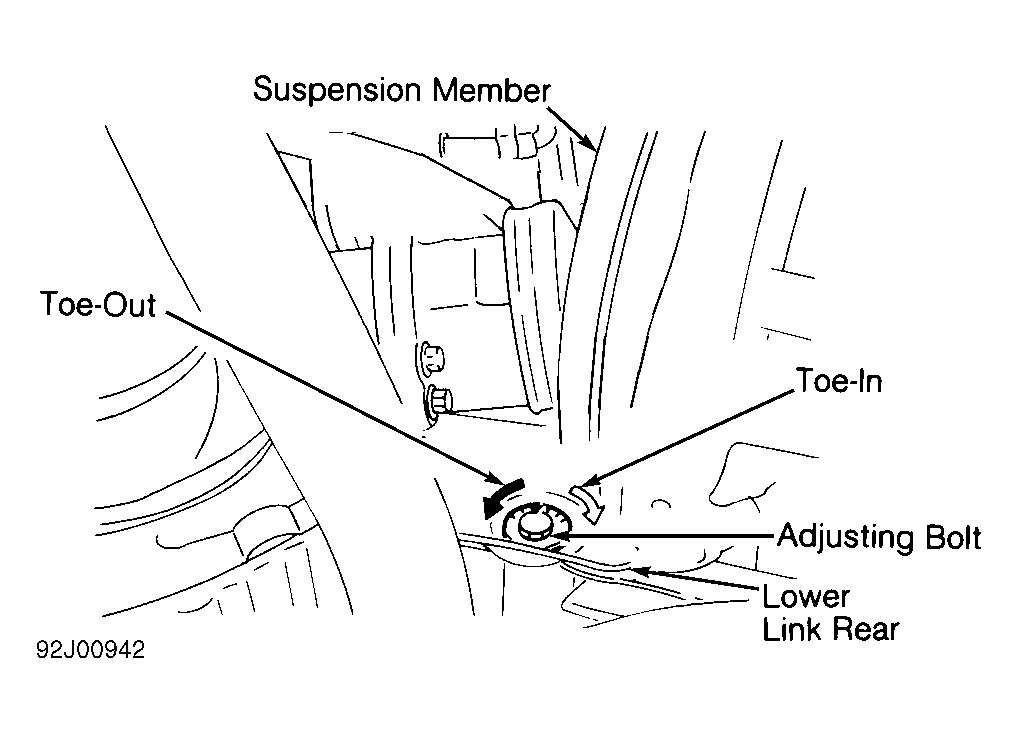

Fig 5: Adjusting Rear Toe-In (240SX) Courtesy of Nissan Motor Co., U.S.A.

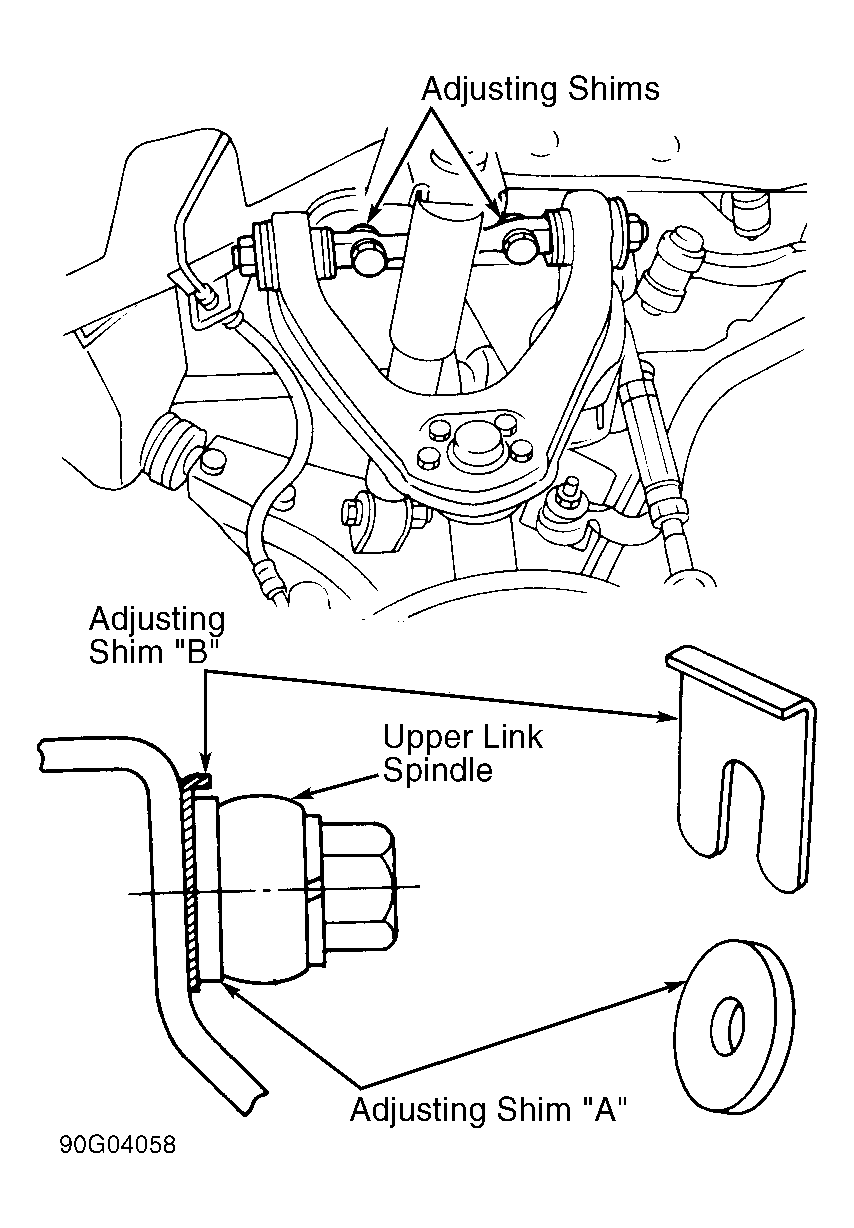

Fig 6: Adjusting Front Caster & Camber (Pathfinder & Pickup) Courtesy of Nissan Motor Co., U.S.A.

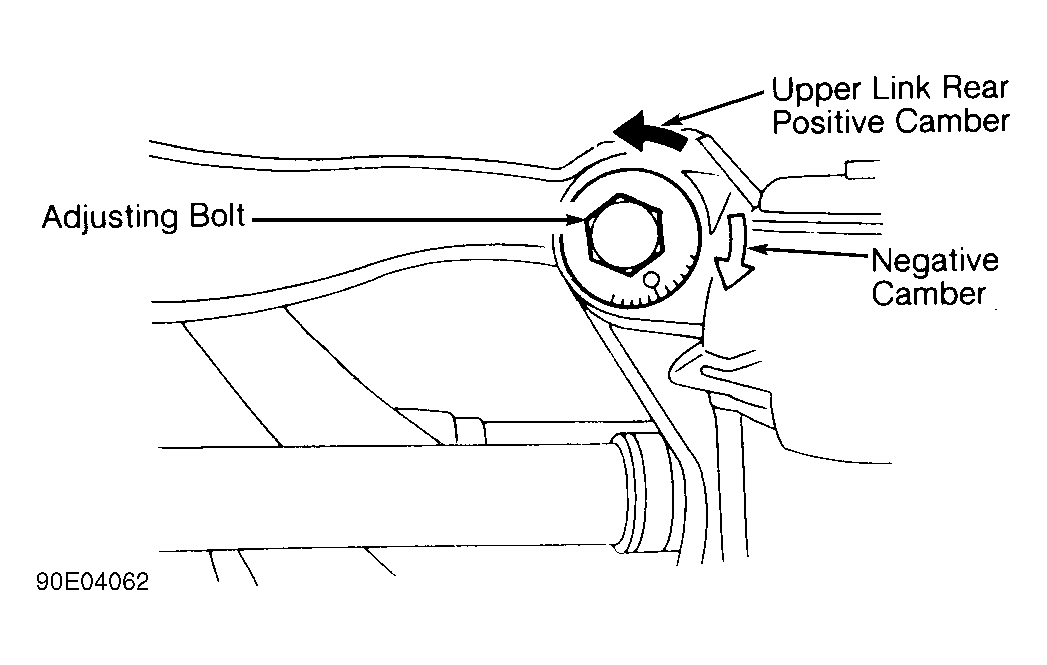

Fig 7: Adjusting Rear Camber (240SX) Courtesy of Nissan Motor Co., U.S.A.
