Retrieving Codes

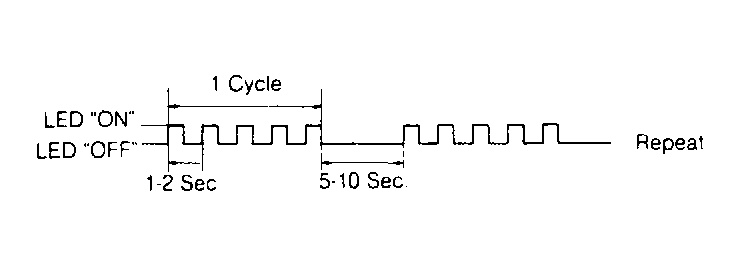

If codes are stored in ECU memory, ANTI-LOCK warning light on instrument cluster will come on. To retrieve codes, observe LED on ECU. See Figure . Count number of flashes. LED pauses for 5-10 seconds before repeating code. See Fig 1 . See ABS WARNING CODE DIRECTORY table. LED displays only one code at a time. After problem circuit has been repaired, LED will display any remaining codes.
ABS WARNING CODE DIRECTORY
| Code | Circuit | Figure | ||
|---|---|---|---|---|
| 1 | L/F Actuator Solenoid | Figure | ||
| 2 | R/F Actuator Solenoid | Figure | ||
| 3 | Both Actuator Solenoids | Figure | ||

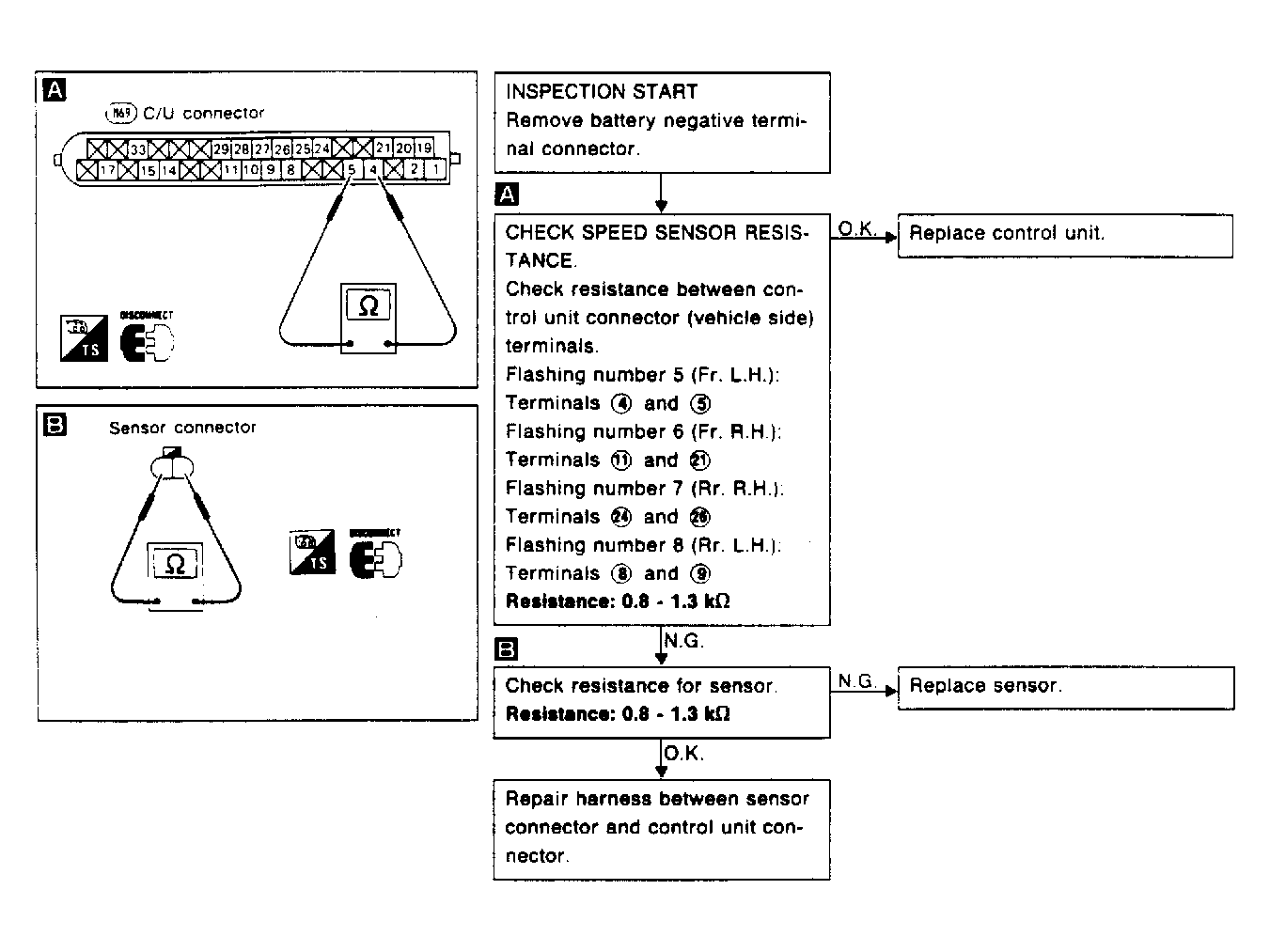

| 5 | L/F Speed Sensor | Figure | ||
| 6 | R/F Speed Sensor | Figure | ||
| 7 | R/R Speed Sensor | Figure | ||
| 8 | L/R Speed Sensor | Figure | ||
| 9 | Actuator Motor/Motor Relay | Figure and Figure | ||
| 10 | Solenoid Valve Relay | Figure | ||
| 15 | Sensor Rotor | Figure | ||
| 16 | Control Unit | (1) | ||
|
||||
