Code 9

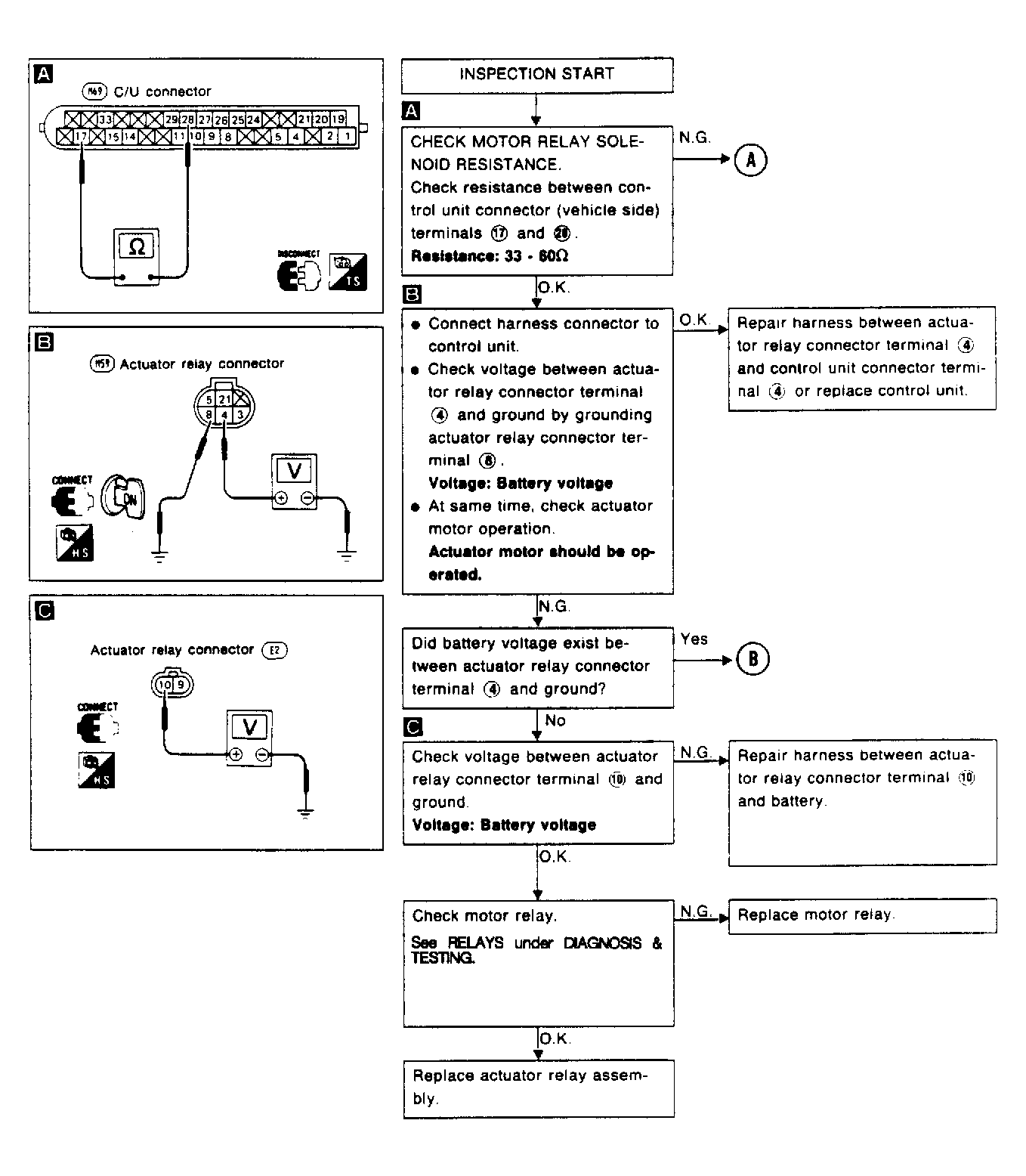

Fig 1: Code No. 9 (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

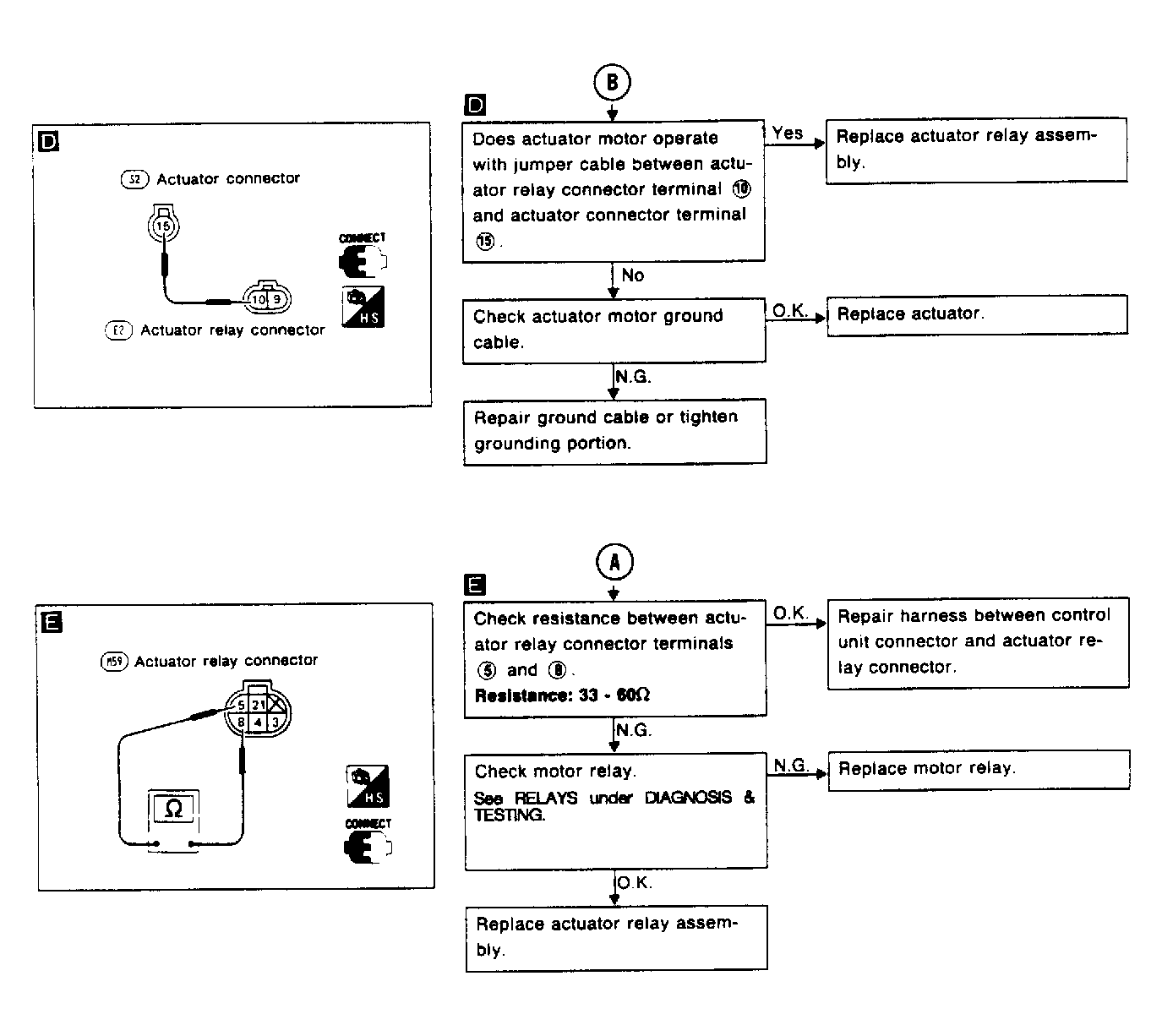

Fig 2: Code No. 9 (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
