Main Power Supply

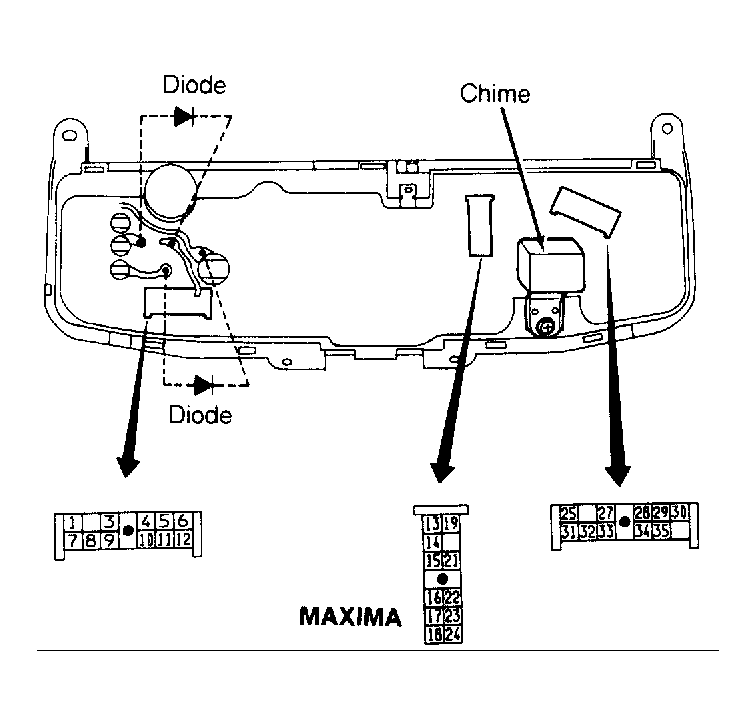

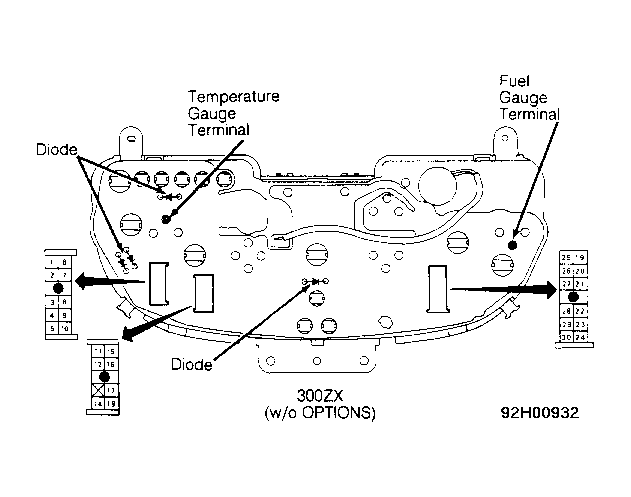

Remove instrument cluster. Turn ignition on. Check voltage between ground and specified terminal of instrument cluster connector. See MAIN POWER SUPPLY TEST TERMINALS table. See Figure-Figure . If battery voltage is not present, check for blown fuse, open fusible link, open in wiring harness, faulty ignition relay and/or faulty ignition switch.
MAIN POWER SUPPLY TEST TERMINALS
| Application | Terminal No. | |
|---|---|---|
| Maxima | 25 | |
| NX & Sentra | ||
| With Tachometer | 12 | |
| Without Tachometer | 17 | |
| Pathfinder & Pickup | ||
| With Voltmeter | 2 | |
| Without Voltmeter | 29 | |
| Stanza | 25 | |
| 240SX | ||
| With Analog Speedometer | 24 | |
| With Electronic Speedometer | 17 | |
| 300ZX | ||
| With Options | 29 | |
| Without Options | 24 | |
