Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - System/Component Tests
>>
Diagnostic Charts
>>
Auxiliary Air Control (AAC) Chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Auxiliary Air Control (AAC) Chart

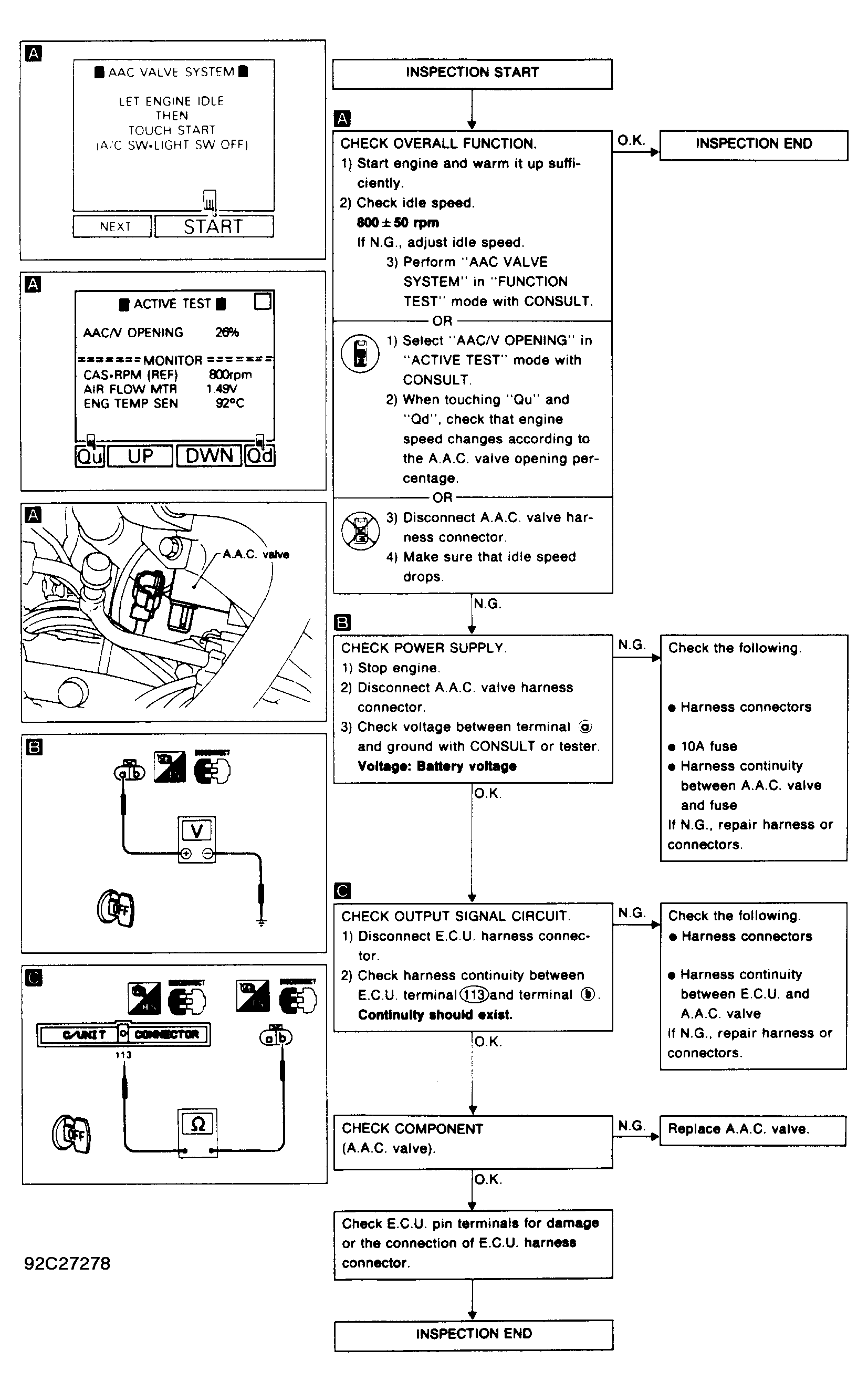

Fig 1: Auxiliary Air Control (AAC) Flow Chart (1.6L)
Courtesy of NISSAN MOTOR CO., U.S.A.

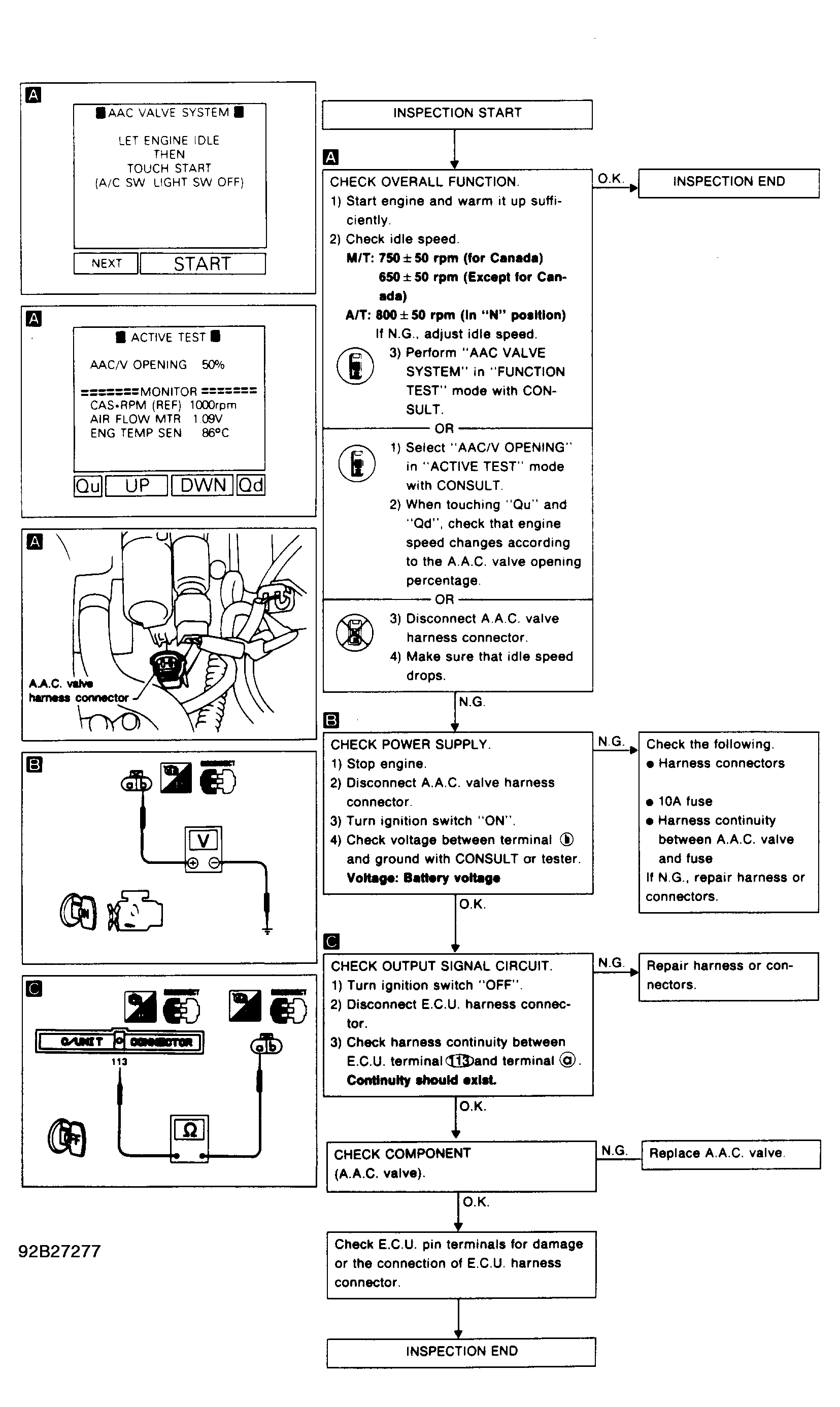

Fig 2: Auxiliary Air Control (AAC) Flow Chart (2.0L)
Courtesy of NISSAN MOTOR CO., U.S.A.

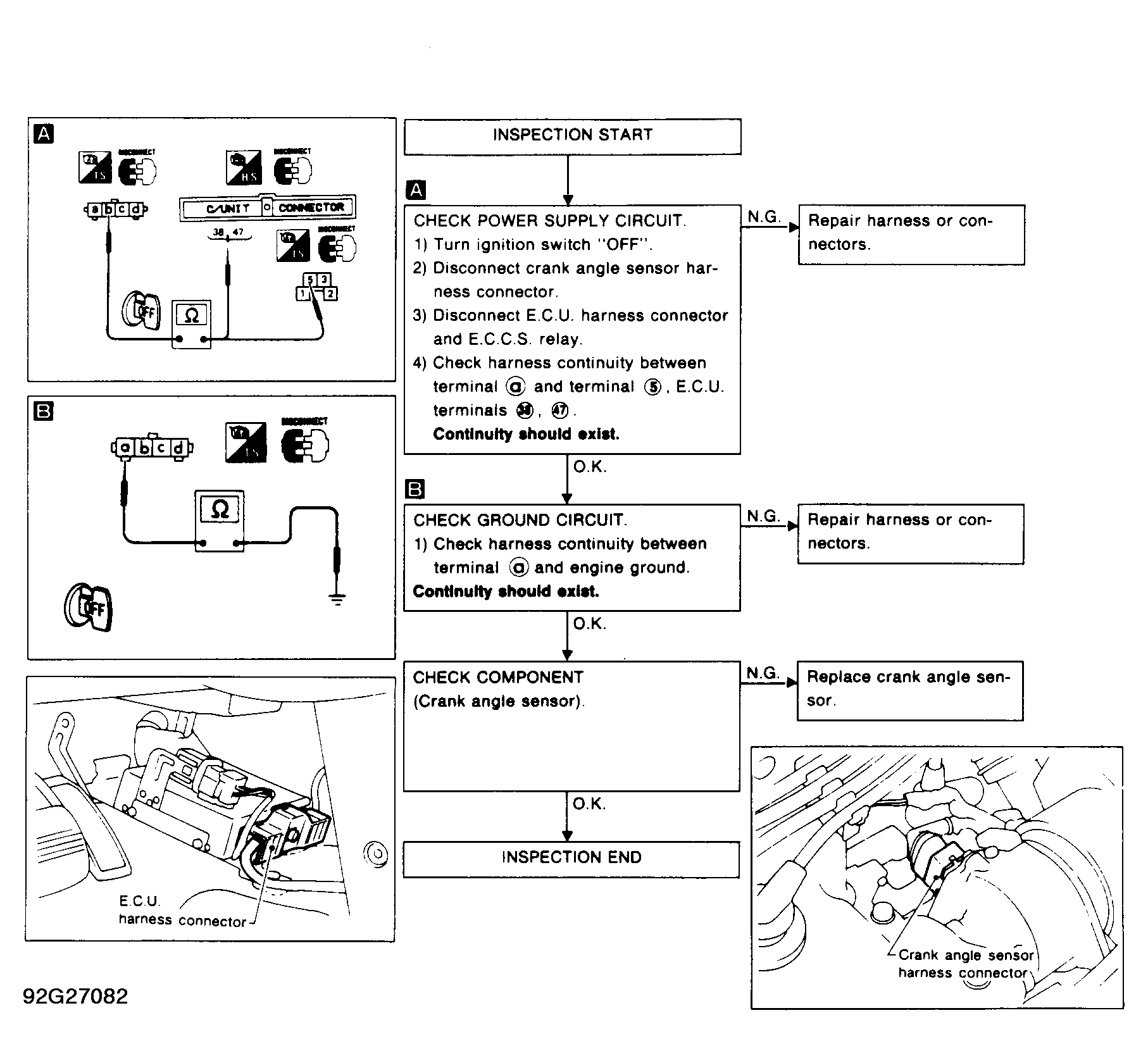

Fig 3: Crank Angle Sensor Flow Chart (1.6L)
Courtesy of NISSAN MOTOR CO., U.S.A.
