Valve Timing Control (VTC) Diagnostic Chart

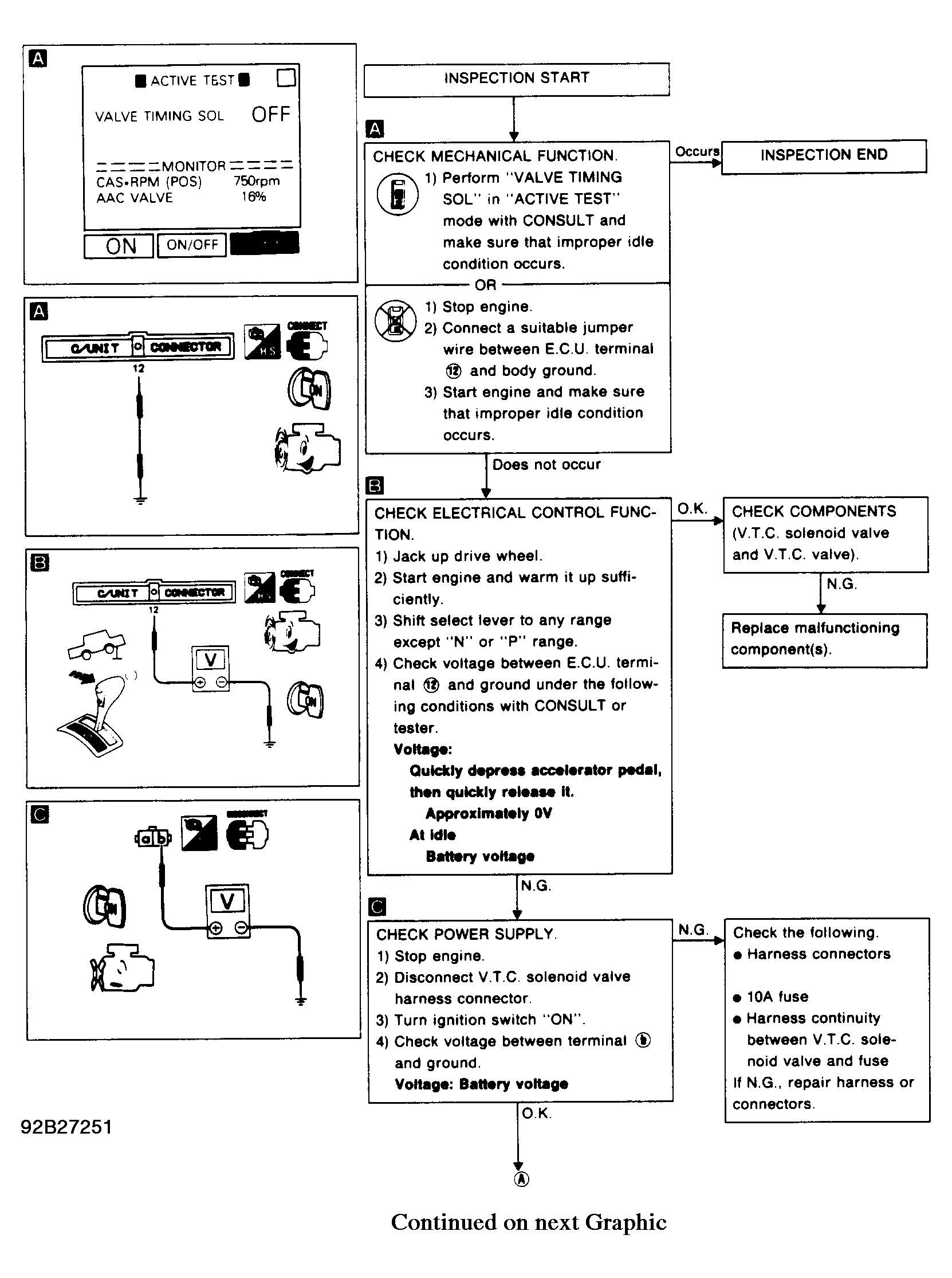

Fig 1: Valve Timing Control (VTC) Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

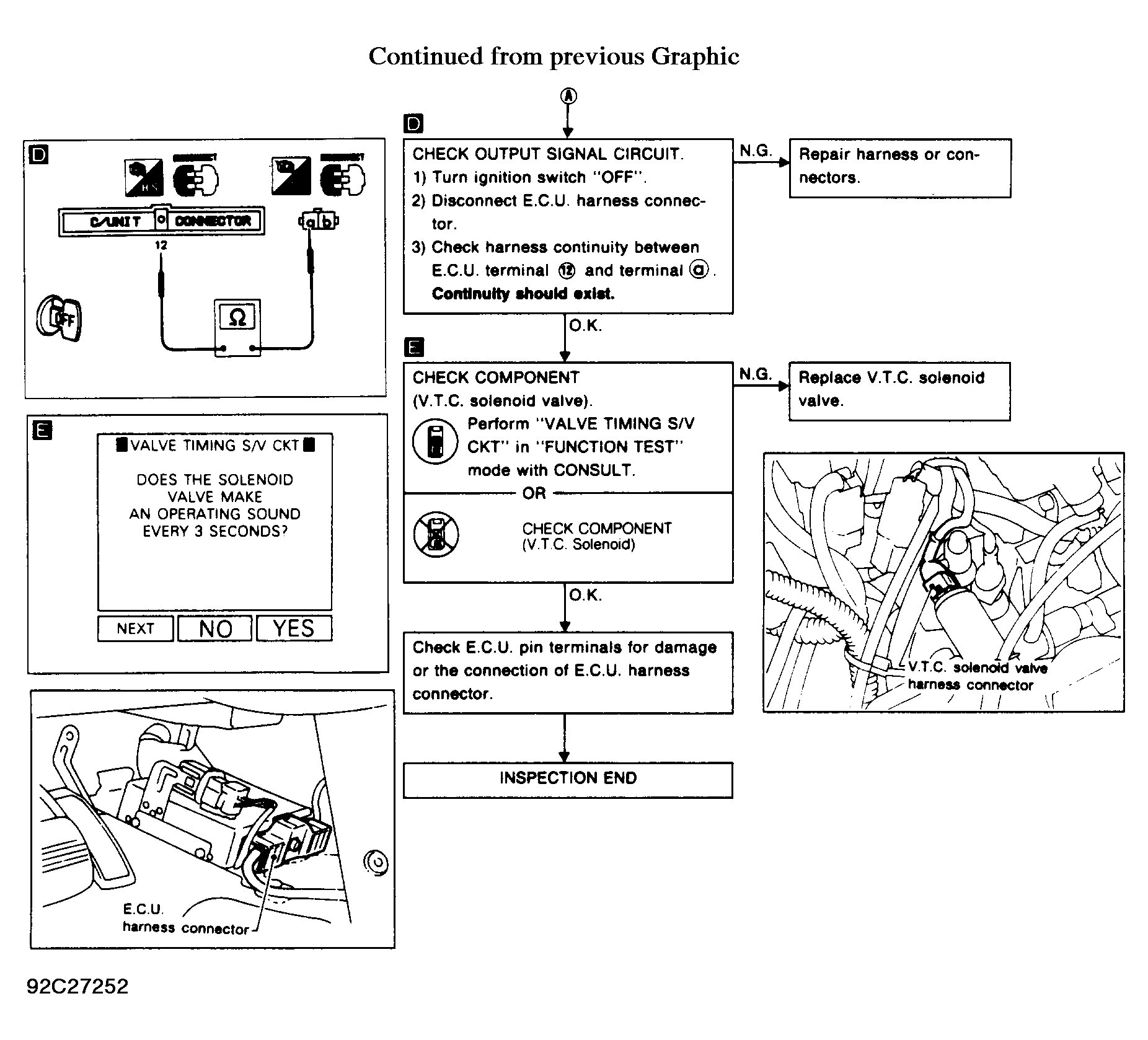

Fig 2: Valve Timing Control (VTC) Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
