Code 33 - Oxygen Sensor (1.6L)

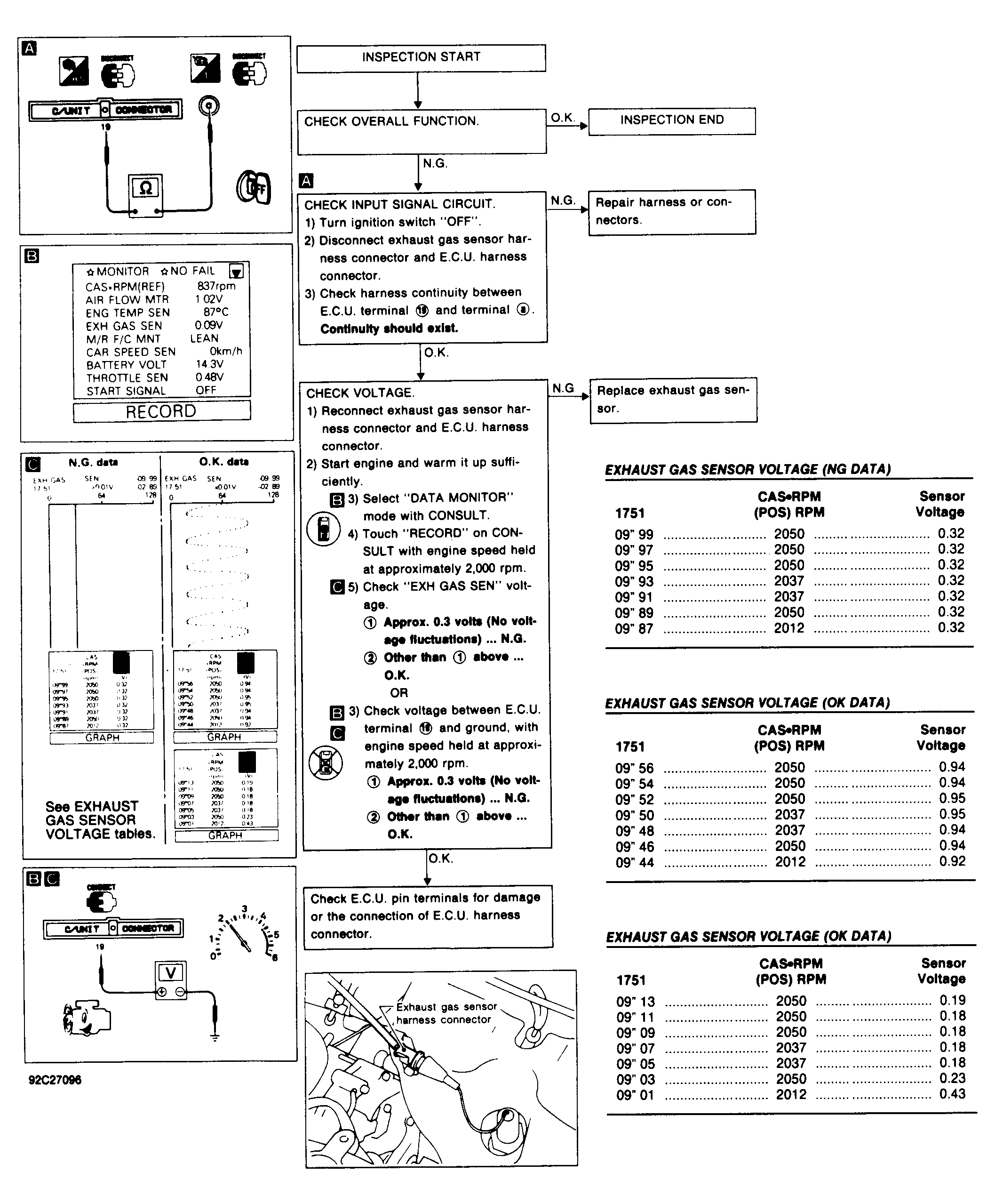

Fig 1: Code 33 - Oxygen Sensor (1.6L)

G92C27096

Courtesy of NISSAN MOTOR CO., U.S.A.

EXHAUST GAS SENSOR VOLTAGE (NG DATA) (1.6L)

CAS*RPM 1751	Sensor (POS) RPM	Voltage
09" 99	2050	0.32
09" 97	2050	0.32
09" 95	2050	0.32
09" 93	2037	0.32
09" 91	2037	0.32
09" 89	2050	0.32
09" 87	2012	0.32

EXHAUST GAS SENSOR VOLTAGE (OK DATA) (1.6L)

CAS*RPM 1751	Sensor (POS) RPM	Voltage
09" 56	2050	0.94
09" 54	2050	0.94
09" 52	2050	0.95
09" 50	2037	0.95
09" 48	2037	0.94
09" 46	2050	0.94
09" 44	2012	0.92

EXHAUST GAS SENSOR VOLTAGE (OK DATA) (1.6L)

CAS*RPM 1751	Sensor (POS) RPM	Voltage
09" 13	2050	0.19
09" 11	2050	0.18
09" 09	2050	0.18
09" 07	2037	0.18
09" 05	2037	0.18
09" 03	2050	0.23
09" 01	2012	0.43
