Publication date: 1996-05-22Reference number: NTB96-039
CONSULT UE950 PROGRAM CARD PROCEDURE CHANGES
TECHNICAL SERVICE BULLETIN
Reference Number(s): NTB96-039, Date of Issue:
May 22, 1996
CONSULT UE950 PROGRAM CARD PROCEDURE CHANGES
Model(s): All Nissan CONSULT compatible vehicles Classification: T & E96-005
Bulletin No.: NTB96-039
Date: May 22, 1996
NOTE:
This is a Tool & Equipment Bulletin.
SERVICE INFORMATION
It is necessary to perform two procedure changes when using the UE950 Program Card. The first is a change in the Freeze Frame data screen when performing emissions diagnosis. The second change is necessary when erasing a system to enable loading of a different system into CONSULT memory. Both procedural changes are described below.
SERVICE PROCEDURE
FREEZE FRAME DATA CHANGE WHEN PERFORMING EMISSIONS DIAGNOSIS
During emission system diagnosis using CONSULT and the UE90 Program Card, "Freeze Frame" information for items "PURG CONT/V & S/V" and "PURG VOLUME CONT/V" are incorrectly labeled when displayed and/or printed. The following table provides the corrected information.
FREEZE FRAME DATA CHANGE INFORMATION
| Applied Vehicles | Malfunction Item | Self DiagnosisResults ScreenLabel/Printout | Incorrect Freeze Frame Data Screen Label/Printout | Correct Freeze Frame Data Screen Label/Printout |
|---|---|---|---|---|
| 1995 Maxima | PURAG VOLUMECONT/V | PURG VOLUME CONT/V (P0443) | PURG CONT/V & SV (P0443) | PURG VOLUME CONT/V (P0443) |
| 1996 - Allmodels | PURAG CONT/V& SV | PURG CONT/V & SV (P0443) | PURG VOLUME CONT/V (P0443) | PURG CONT/V & SV (P0443) |
ERASING ONE SYSTEM & LOADING A DIFFERENT SYSTEM INTO CONSULT MEMORY
- When using CONSULT with the UE950 Program Card and there is a need to erase a system to make more memory space available to load a new system, selecting "ENGINE" to erase will cause a error message to appear. The unit will ask to install a UE941 S Program Card that DOES NOT exist. To avoid this error message from occurring, DO NOT select "ENGINE" as the system to erase.

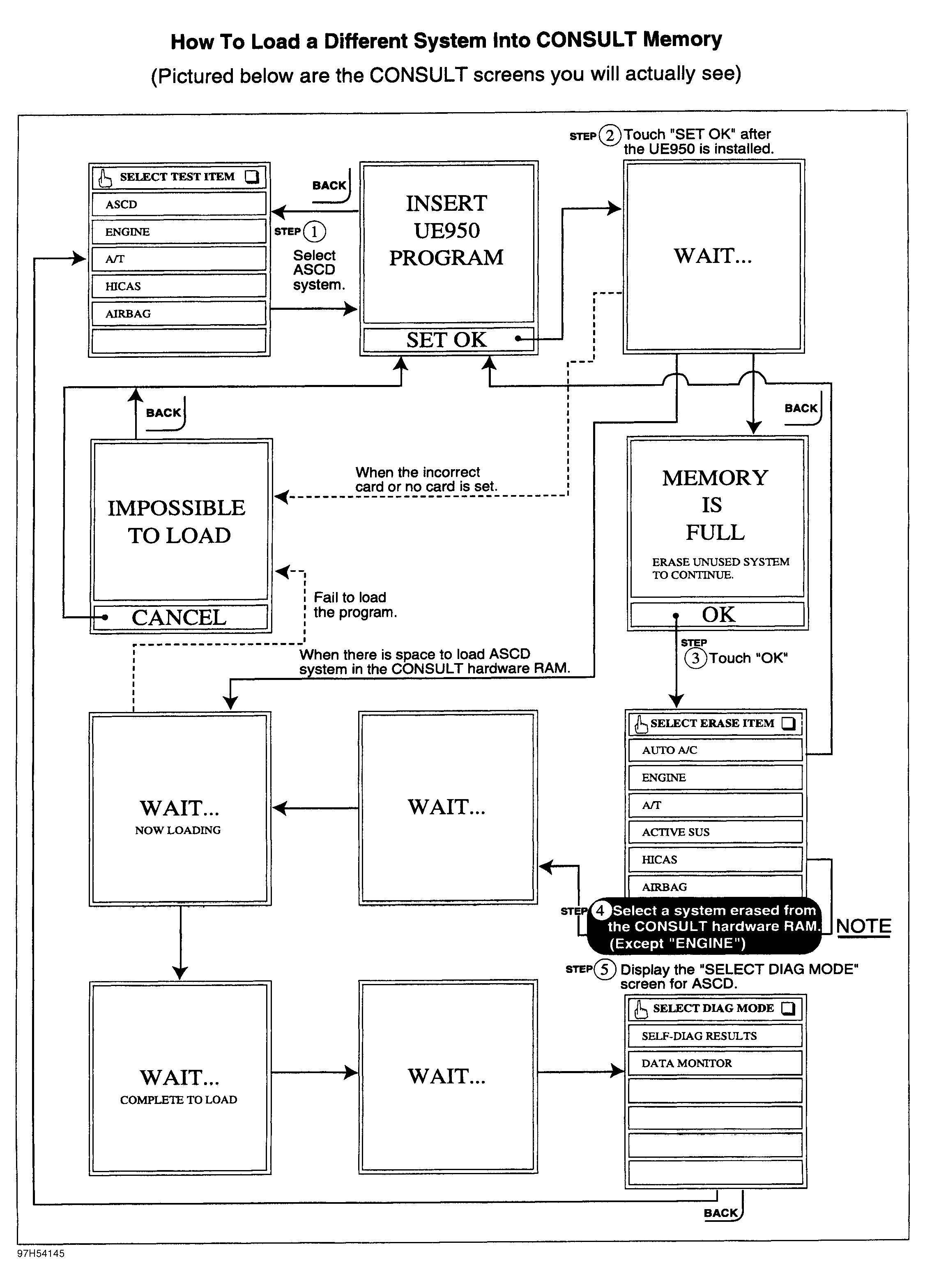

- To make memory space available, select any of the other systems displayed. Refer to the CONSULT system instruction change in Fig 1 . Please pay special attention to Step 4.
