ELECTRONIC CONTROL MODULE IDENTIFICATION

TECHNICAL SERVICE BULLETIN

Reference Number(s): NTB93-167, Date of Issue: November 16, 1993

ELECTRONINC CONTROL MODULE IDENTIFICATION

Model(s): 1975-93 Nissan Vehicles w/Electronic Control Module

Section: Engine Fuel

Classification: EF & EC93-013

Bulletin No.: NTB93-167

Date: November 16, 1993

APPLIED MODELS

1975-78 Nissan 280Z (S30)

1977-80 Nissan 810

1979-83 Nissan 280ZX (HLS130)

1980-83 Nissan 200SX (S110)

1981-83 Nissan 280ZX Turbo (HLS130)

1981-84 Nissan Maxima (910)

1983.5 Nissan Pulsar Turbo (KN12)

1984-86 Nissan Stanza (T11)

1984-88 Nissan 200SX (S12)

1984-89 Nissan 300ZX (Z31)

1984-89 Nissan 300ZX Turbo (Z31)

1985-88 Nissan Maxima (U11)

1986-88 Nissan Stanza Wagon (M10)

1987-88 Nissan Van (GC22)

1990 Nissan Van (GC22)

1987-89 Nissan Stanza (T12)

1987-90 Nissan Pulsar (KN13)

1987-90 Nissan Sentra (B12)

1987-93 Nissan Pathfinder (WD21)

1987-93 Nissan Truck (D21)

1989-93 Nissan Maxima (J30)

1989-93 Nissan 240SX (S13)

1990-93 Nissan 300ZX (Z32)

1990 Nissan Axxess (M11)

1990-92 Nissan Stanza (U12)

1990-93 Nissan 300ZX Turbo (Z32)

1991-93 Nissan NX 2000 (G,HB13)

1991-93 Nissan Sentra (B13)

1991-93 Nissan NX 1600 (G,HB13)

1993 Nissan Altima (U13)

SERVICE INFORMATION

This bulletin contains a chart that lists the ECM Vendor serial number and cross-references to a Nissan part number. This chart is intended to be used as a reference guide to determine that a vehicle has the correct ECM installed in it. The parts catalog along with the VIN number and Date of Manufacture should be used to determine the correct part number when ordering a new ECM.

An ECM with a part number with 2371M-*****RE is a replacement ECM and should have the same programming as the original. If a vehicle has an ECM with a part number containing "M" and "RE", disregard the "M" and "RE" when using this chart.

On any CONSULT compatable vehicle the ECM part number can be accessed through the CONSULT connector using CONSULT. All other vehicles have a decal that has the vendor part number on the ECM cover.

PARTS INFORMATION

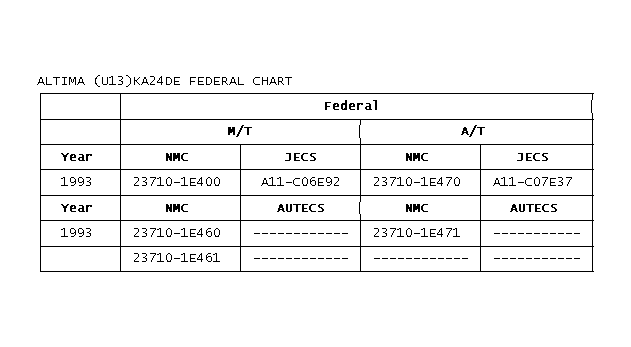

Fig 1: ALTIMA (U13)KA24DE FEDERAL CHART

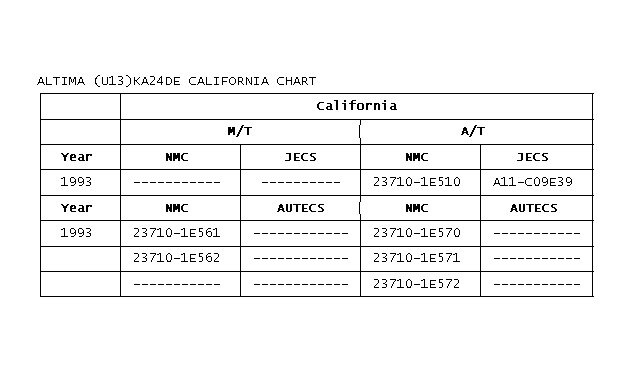

Fig 2: ALTIMA (U13)KA24DE CALIFORNIA CHART

Fig 3: AXXESS (M11) KA24E (2WD) FEDERAL CHART

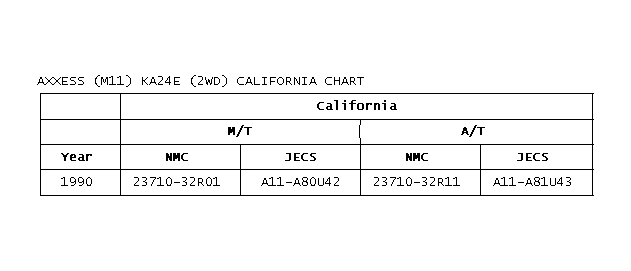

Fig 4: AXXESS (M11) KA24E (2WD) CALIFORNIA CHART

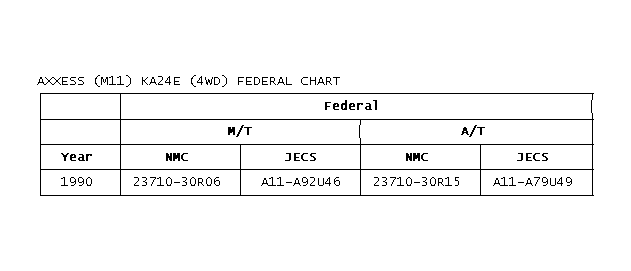

Fig 5: AXXESS (M11) KA24E (4WD) FEDERAL CHART

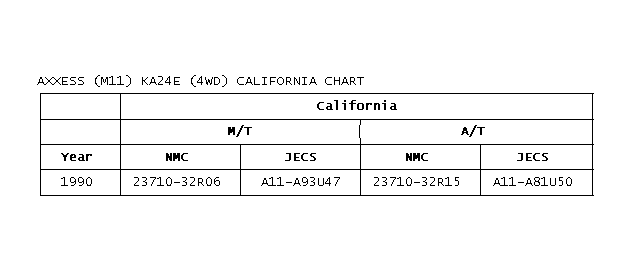

Fig 6: AXXESS (M11) KA24E (4WD) CALIFORNIA CHART

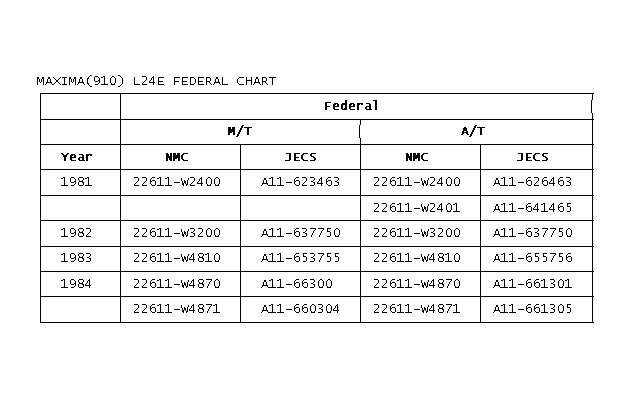

Fig 7: MAXIMA(910) L24E FEDERAL CHART

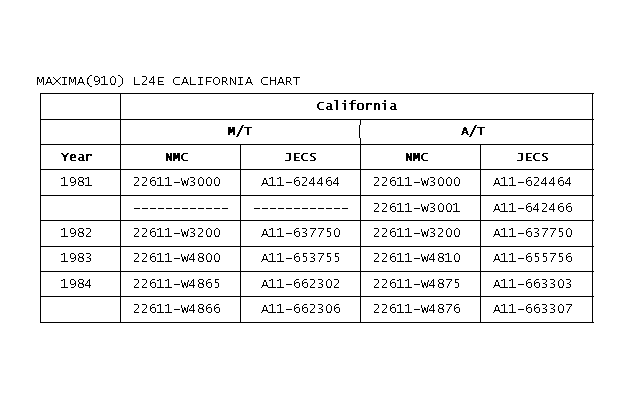

Fig 8: MAXIMA(910) L24E CALIFORNIA CHART

Fig 9: MAXIMA (U11) VG30E FEDERAL CHART

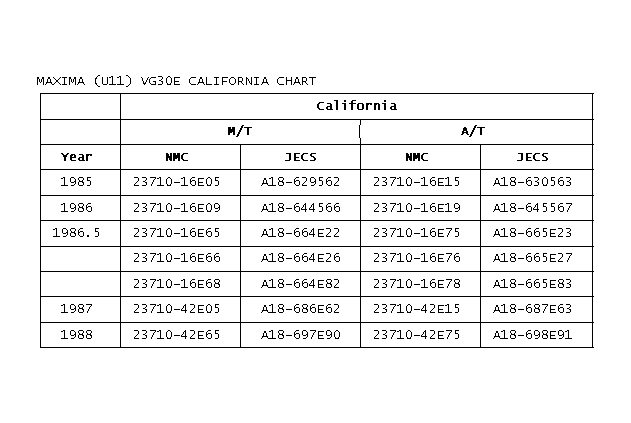

Fig 10: MAXIMA (U11) VG30E CALIFORNIA CHART

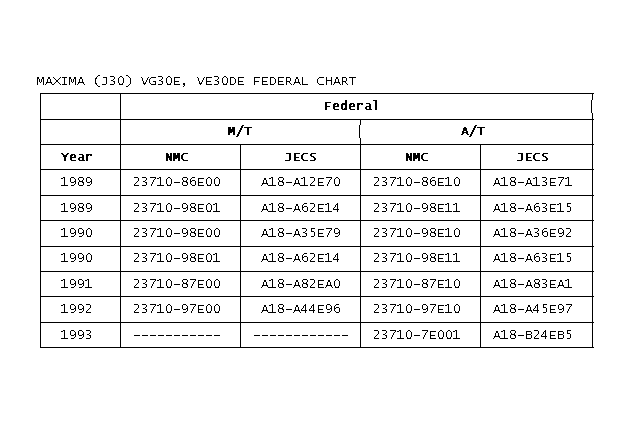

Fig 11: MAXIMA (J30) VG30E, VE30DE FEDERAL CHART

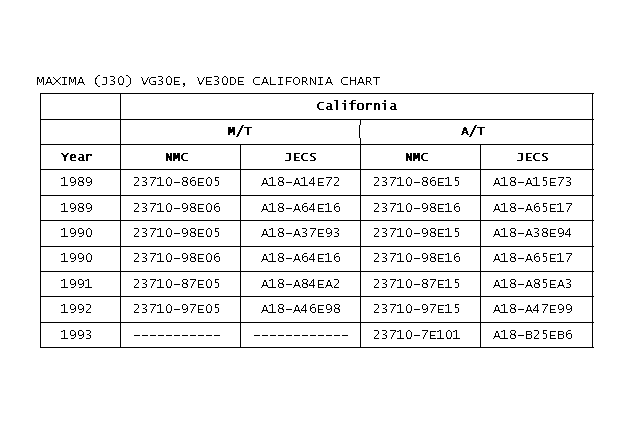

Fig 12: MAXIMA (J30) VG30E, VE30DE CALIFORNIA CHART

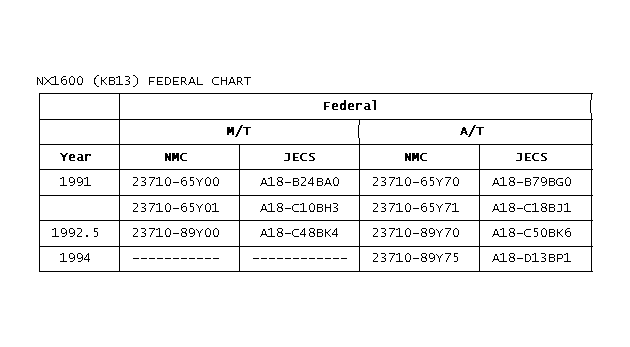

Fig 13: NX1600 (KB13) FEDERAL CHART

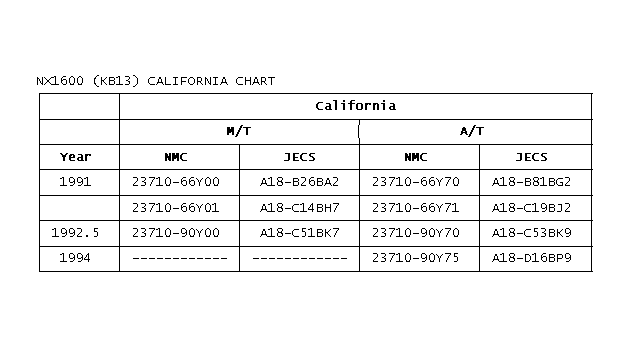

Fig 14: NX1600 (KB13) CALIFORNIA CHART

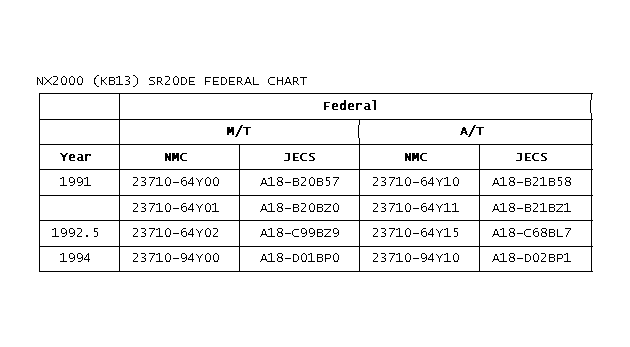

Fig 15: NX2000 (KB13) SR20DE FEDERAL CHART

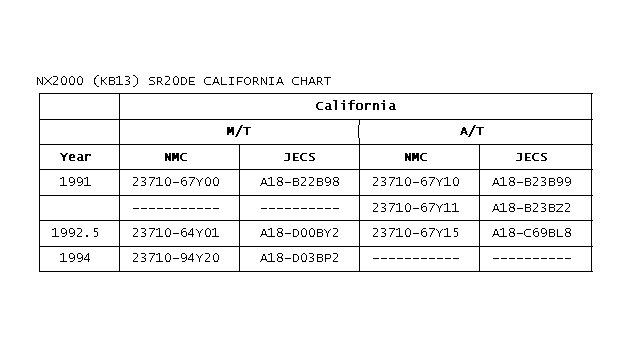

Fig 16: NX2000 (KB13) SR20DE CALIFORNIA CHART

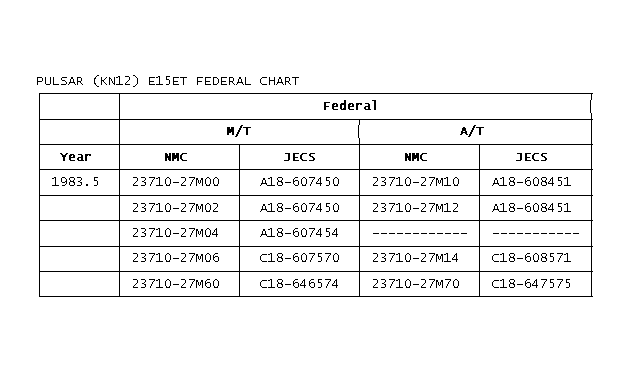

Fig 17: PULSAR (KN12) E15ET FEDERAL CHART

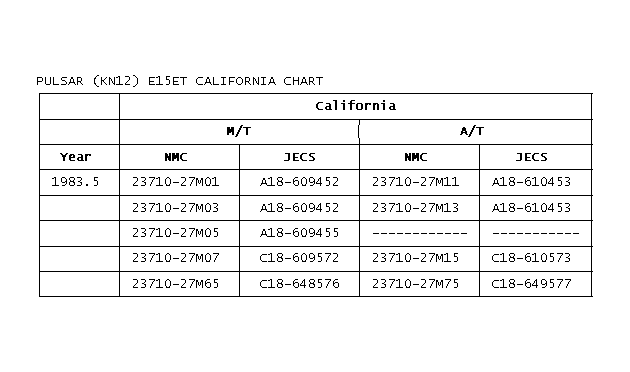

Fig 18: PULSAR (KN12) E15ET CALIFORNIA CHART

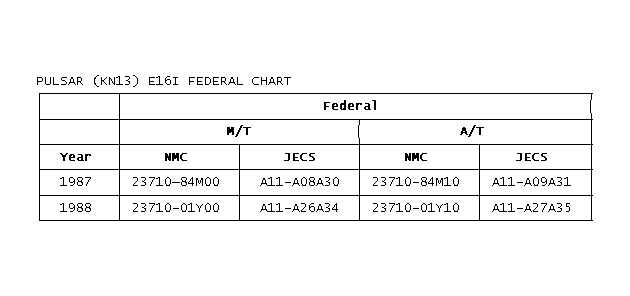

Fig 19: PULSAR (KN13) E16I FEDERAL CHART

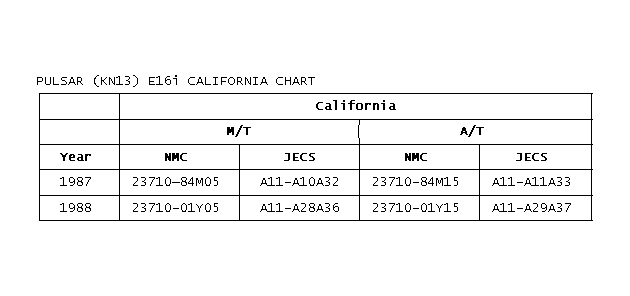

Fig 20: PULSAR (KN13) E16i CALIFORNIA CHART

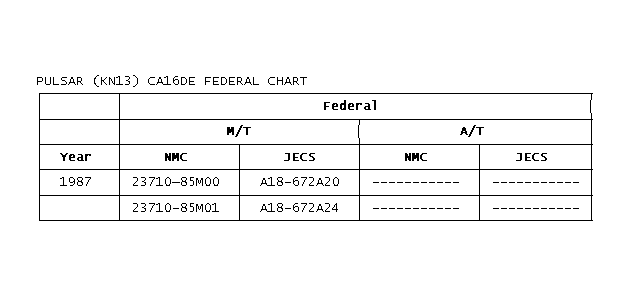

Fig 21: PULSAR (KN13) CA16DE FEDERAL CHART

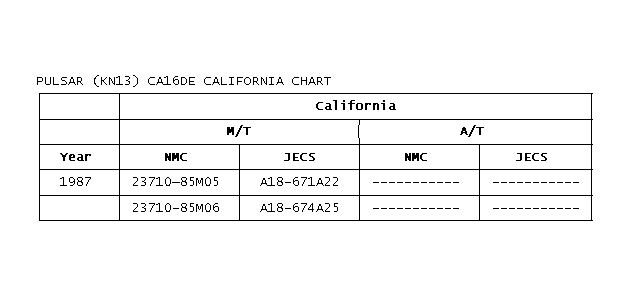

Fig 22: PULSAR (KN13) CA16DE CALIFORNIA CHART

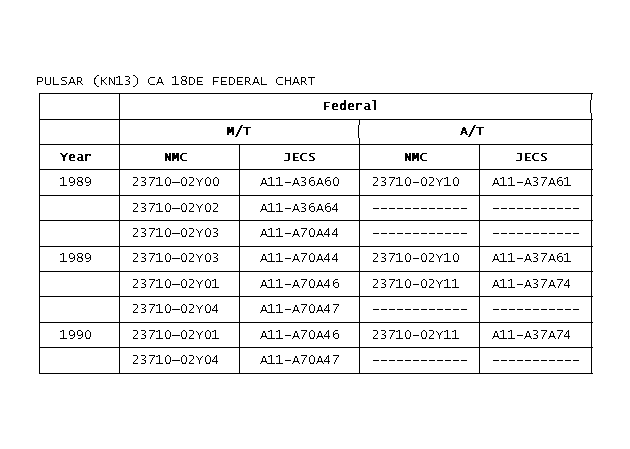

Fig 23: PULSAR (KN13) CA 18DE FEDERAL CHART

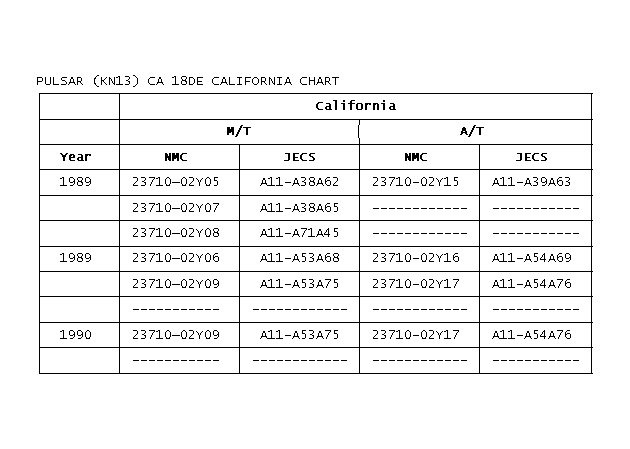

Fig 24: PULSAR (KN13) CA 18DE CALIFORNIA CHART

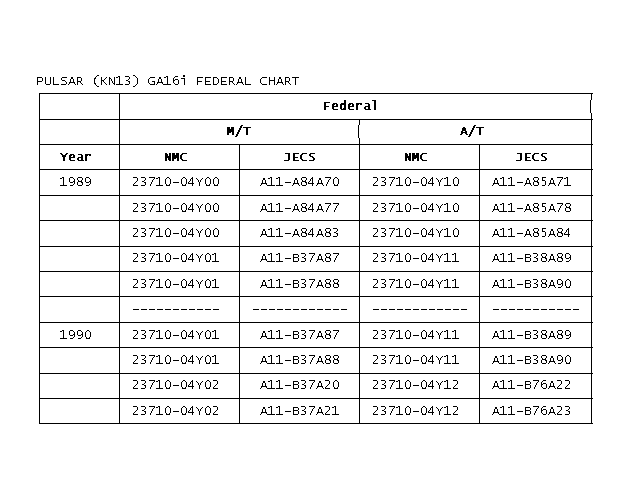

Fig 25: PULSAR (KN13) GA16i FEDERAL CHART

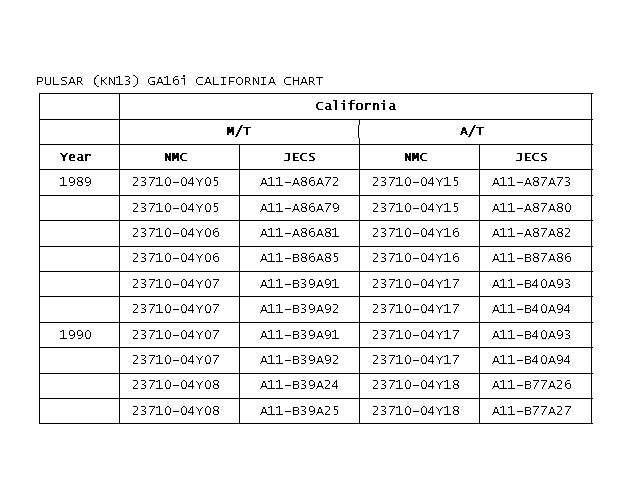

Fig 26: PULSAR (KN13) GA16i CALIFORNIA CHART

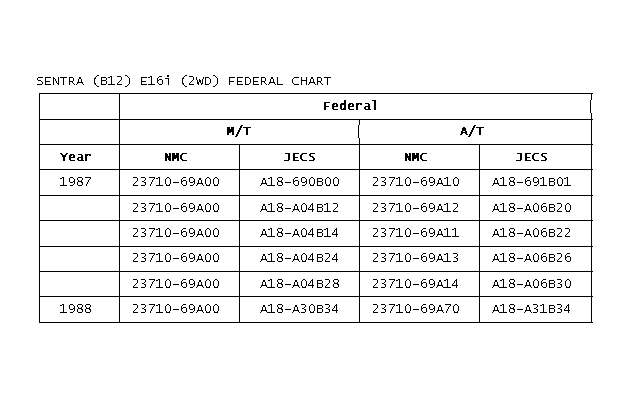

Fig 27: SENTRA (B12) E16i (2WD) FEDERAL CHART

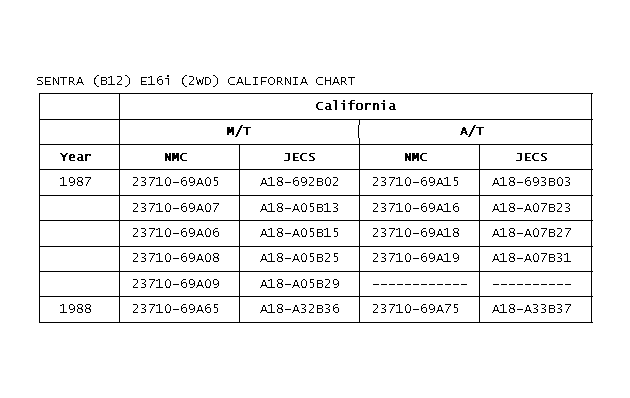

Fig 28: SENTRA (B12) E16i (2WD) CALIFORNIA CHART

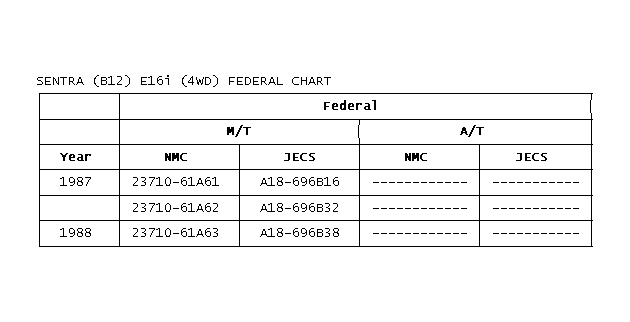

Fig 29: SENTRA (B12) E16i (4WD) FEDERAL CHART

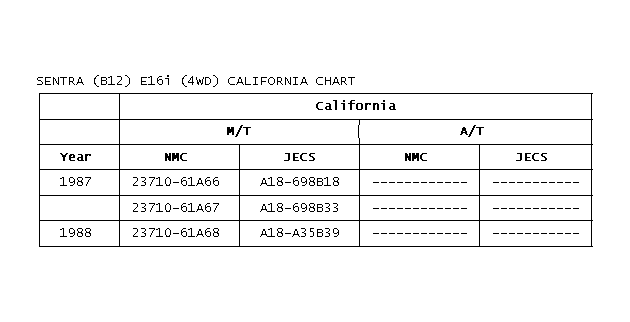

Fig 30: SENTRA (B12) E16i (4WD) CALIFORNIA CHART

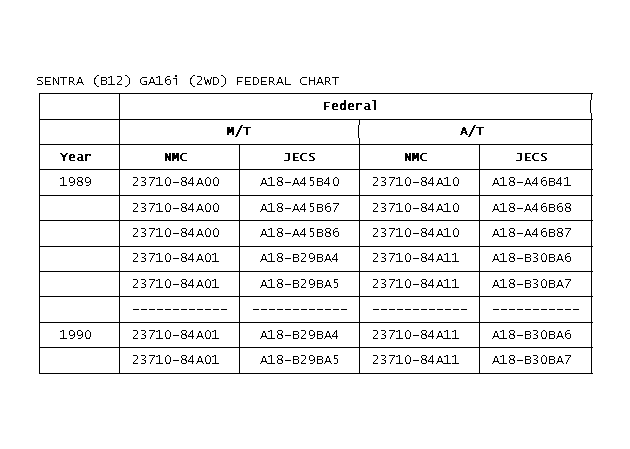

Fig 31: SENTRA (B12) GA16i (2WD) FEDERAL CHART

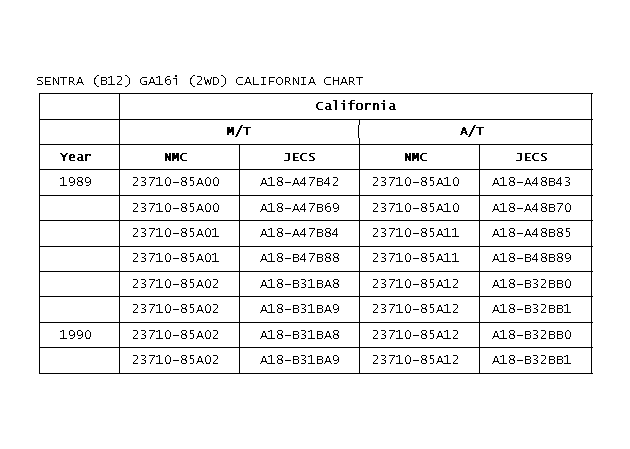

Fig 32: SENTRA (B12) GA16i (2WD) CALIFORNIA CHART

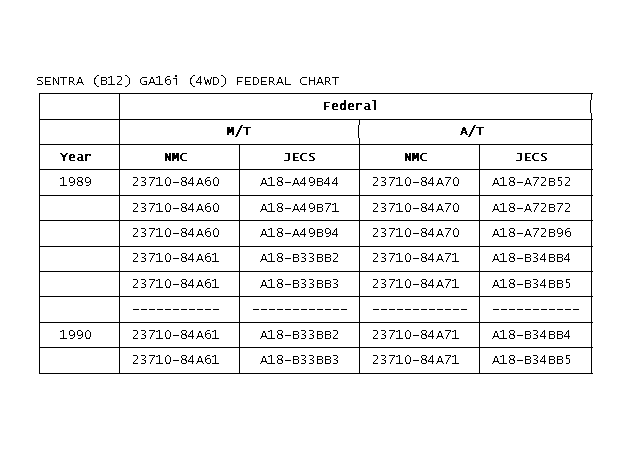

Fig 33: SENTRA (B12) GA16i (4WD) FEDERAL CHART

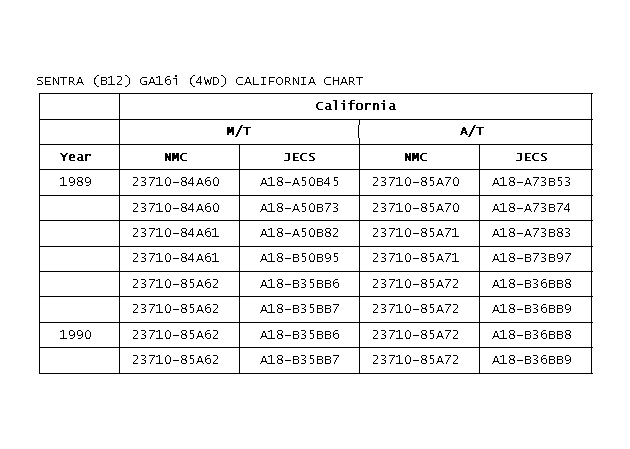

Fig 34: SENTRA (B12) GA16i (4WD) CALIFORNIA CHART

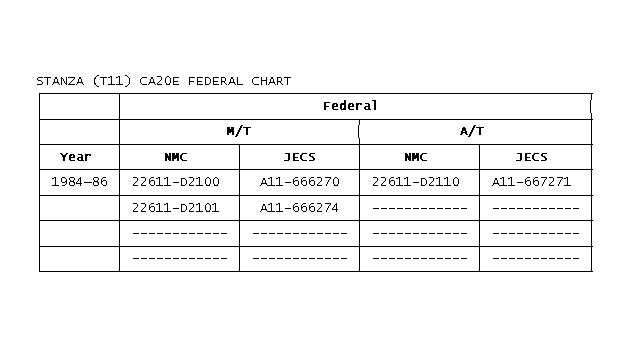

Fig 35: STANZA (T11) CA20E FEDERAL CHART

Fig 36: STANZA (T11) CA20E CALIFORNIA CHART

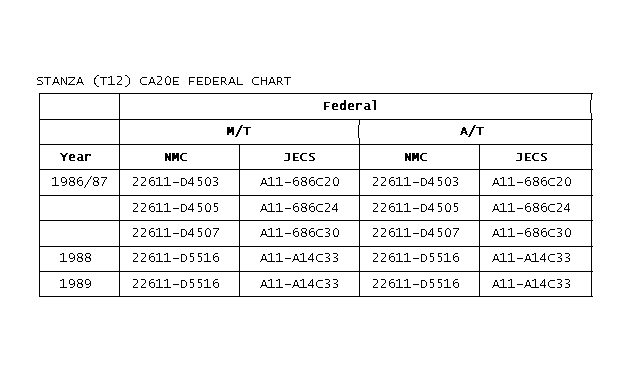

Fig 37: STANZA (T12) CA20E FEDERAL CHART

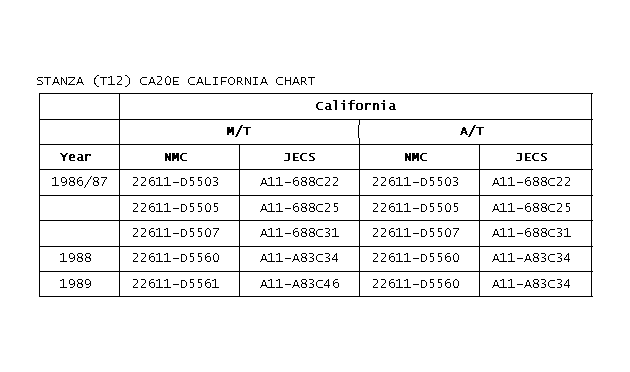

Fig 38: STANZA (T12) CA20E CALIFORNIA CHART

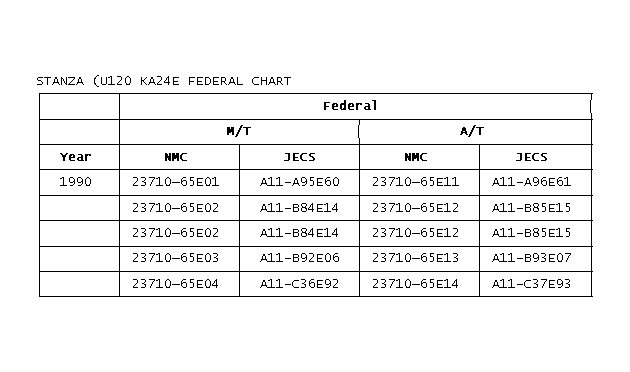

Fig 39: STANZA (U120 KA24E FEDERAL CHART

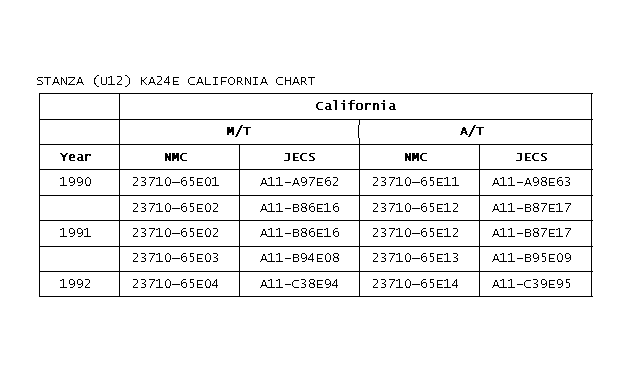

Fig 40: STANZA (U12) KA24E CALIFORNIA CHART

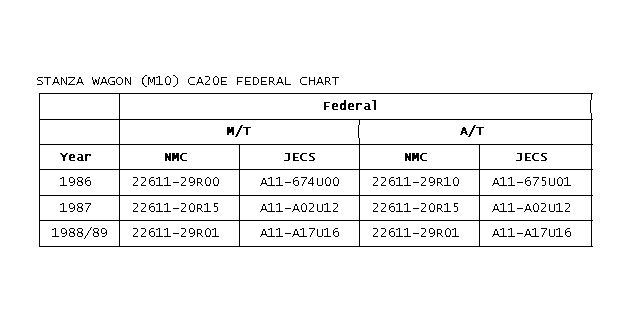

Fig 41: STANZA WAGON (M10) CA20E FEDERAL CHART

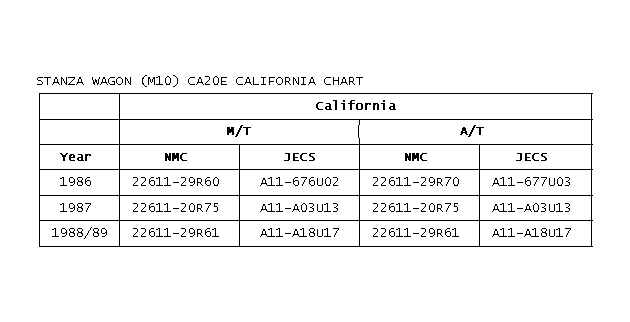

Fig 42: STANZA WAGON (M10) CA20E CALIFORNIA CHART

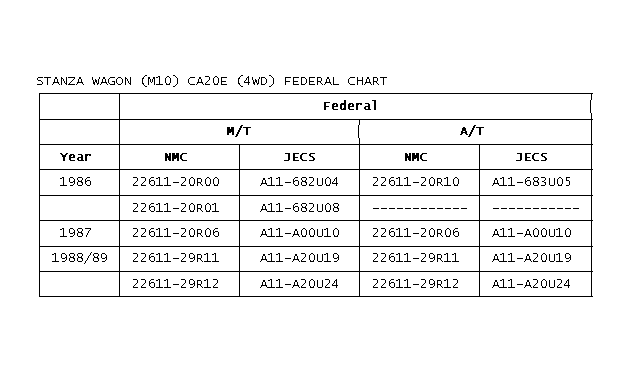

Fig 43: STANZA WAGON (M10) CA20E (4WD) FEDERAL CHART

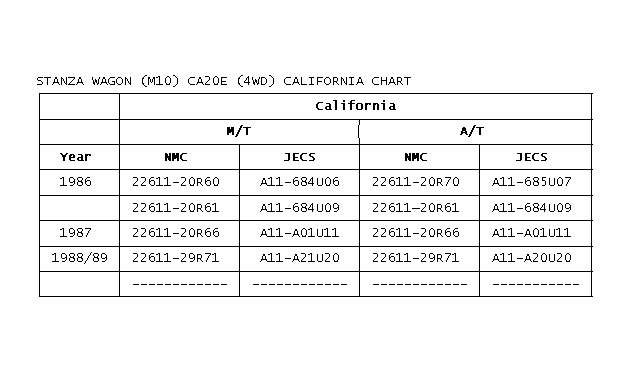

Fig 44: STANZA WAGON (M10) CA20E (4WD) CALIFORNIA CHART

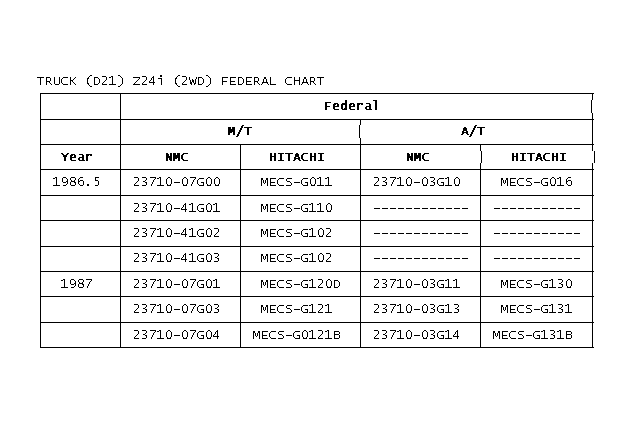

Fig 45: TRUCK (D21) Z24i (2WD) FEDERAL CHART

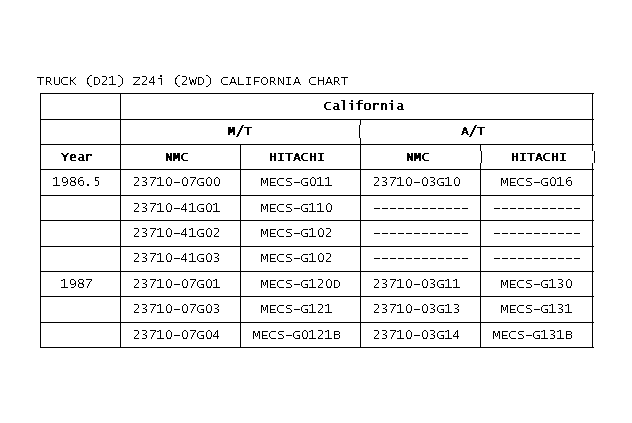

Fig 46: TRUCK (D21) Z24i (2WD) CALIFORNIA CHART

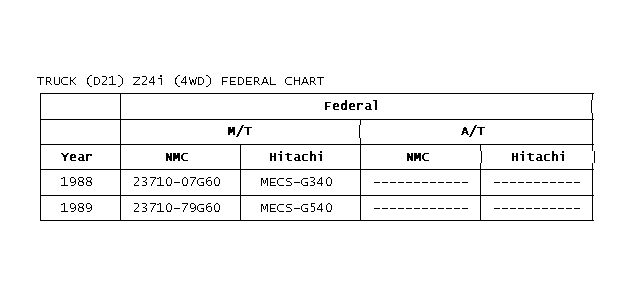

Fig 47: TRUCK (D21) Z24i (4WD) FEDERAL CHART

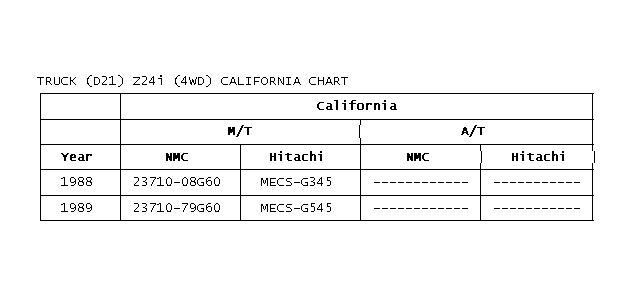

Fig 48: TRUCK (D21) Z24i (4WD) CALIFORNIA CHART

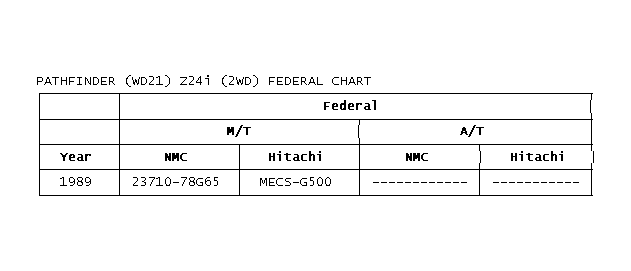

Fig 49: PATHFINDER (WD21) Z24i (2WD) FEDERAL CHART

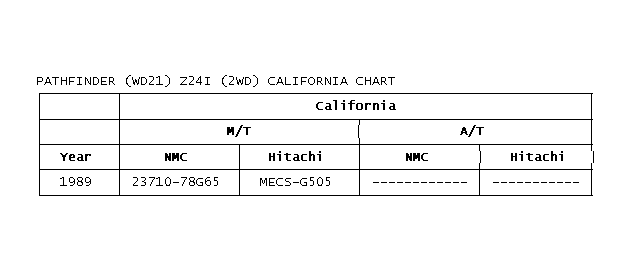

Fig 50: PATHFINDER (WD21) Z24I (2WD) CALIFORNIA CHART

Fig 51: TRUCK/PATHFINDER (D21/WD21) VG30I FEDERAL CHART

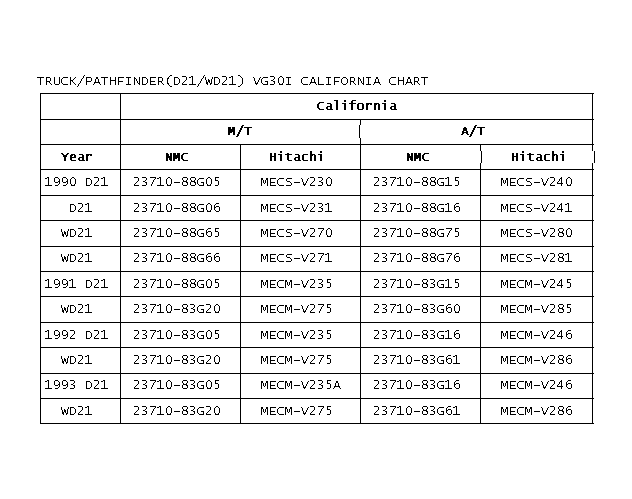

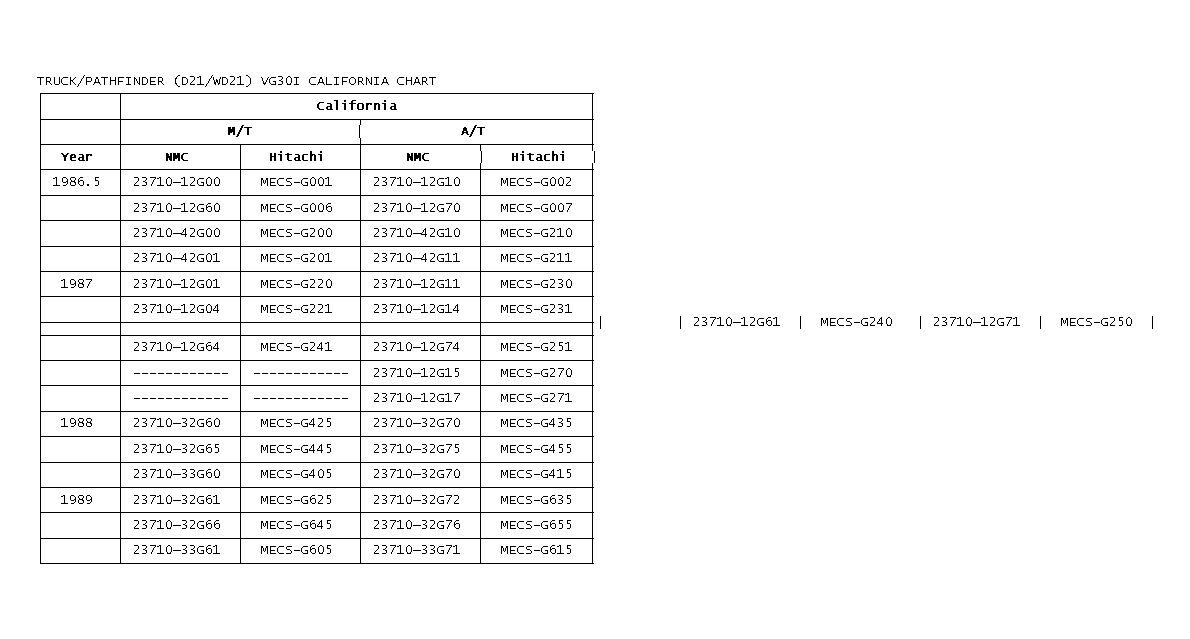

Fig 52: TRUCK/PATHFINDER (D21/WD21) VG30I CALIFORNIA CHART

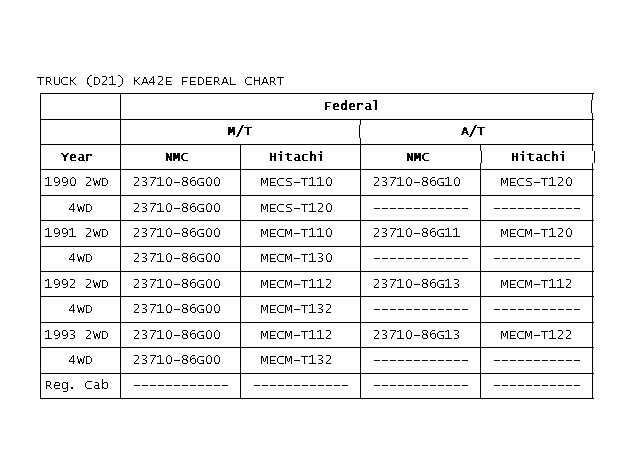

Fig 53: TRUCK (D21) KA42E FEDERAL CHART

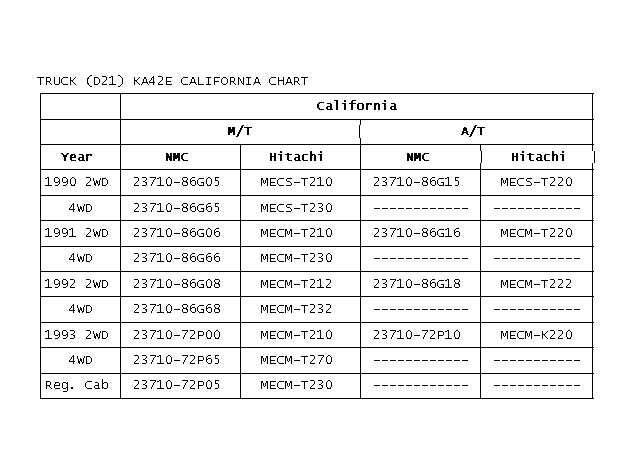

Fig 54: TRUCK (D21) KA42E CALIFORNIA CHART

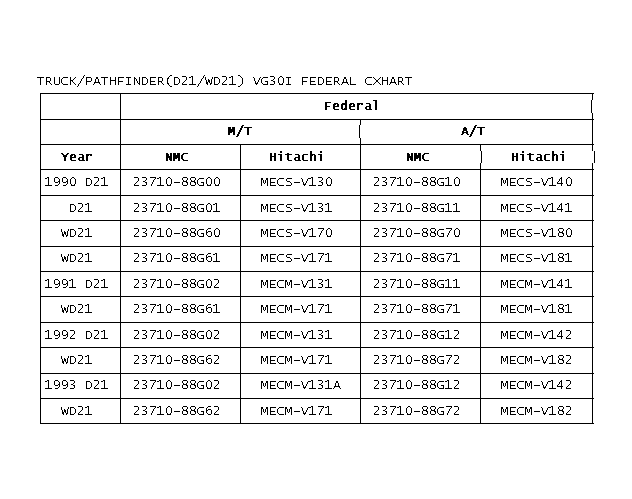

Fig 55: TRUCK/PATHFINDER(D21/WD21) VG30I FEDERAL CXHART

Fig 56: TRUCK/PATHFINDER(D21/WD21) VG30I CALIFORNIA CHART

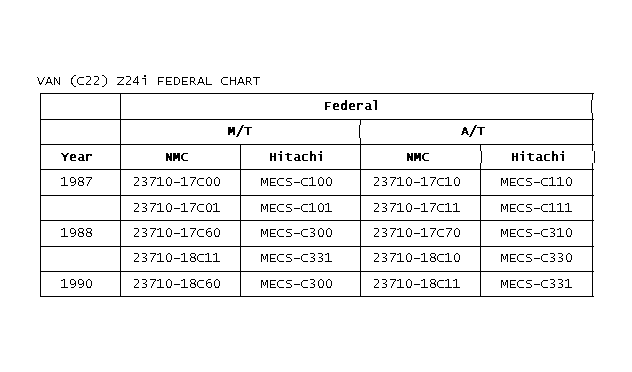

Fig 57: VAN (C22) Z24i FEDERAL CHART

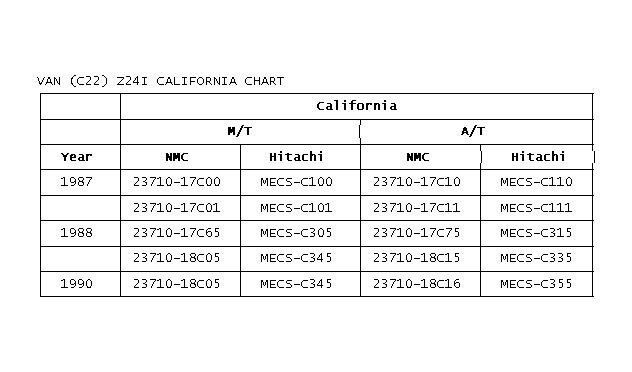

Fig 58: VAN (C22) Z24I CALIFORNIA CHART

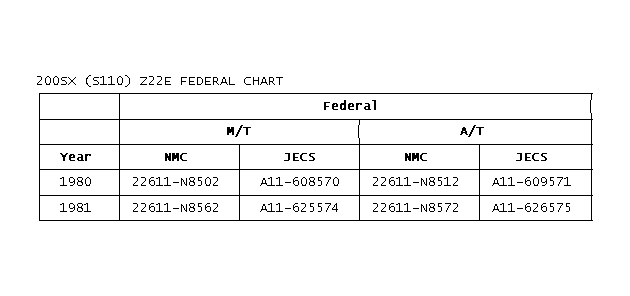

Fig 59: 200SX (S110) Z22E FEDERAL CHART

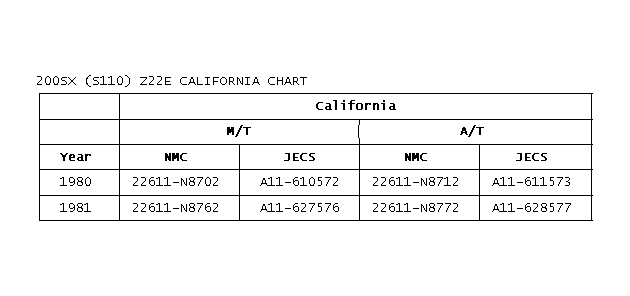

Fig 60: 200SX (S110) Z22E CALIFORNIA CHART

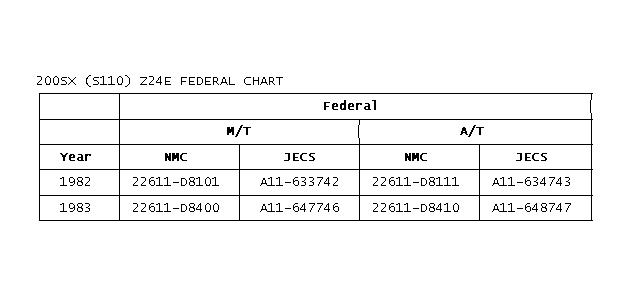

Fig 61: 200SX (S110) Z24E FEDERAL CHART

Fig 62: 200SX (S110) Z24E CALIFORNIA CHART

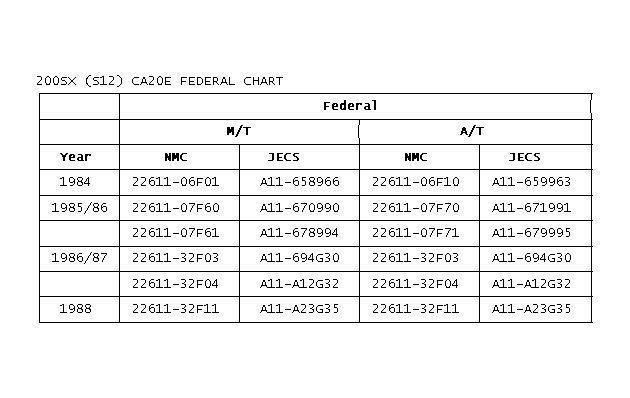

Fig 63: 200SX (S12) CA20E FEDERAL CHART

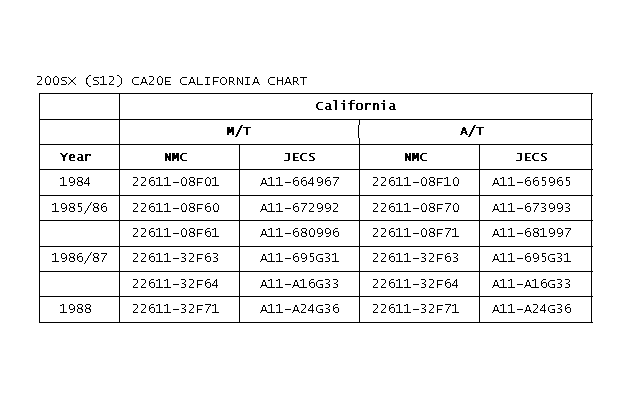

Fig 64: 200SX (S12) CA20E CALIFORNIA CHART

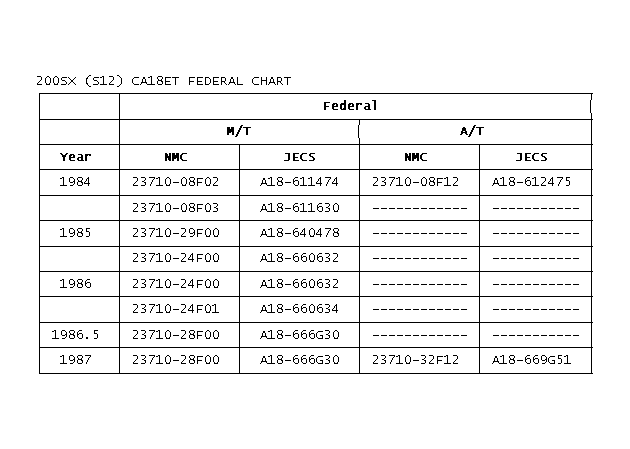

Fig 65: 200SX (S12) CA18ET FEDERAL CHART

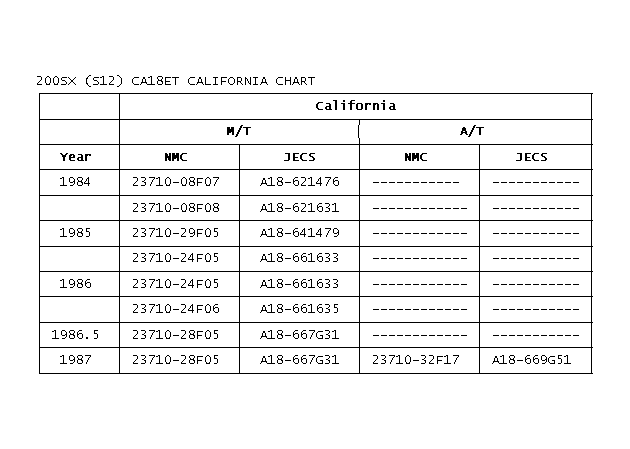

Fig 66: 200SX (S12) CA18ET CALIFORNIA CHART

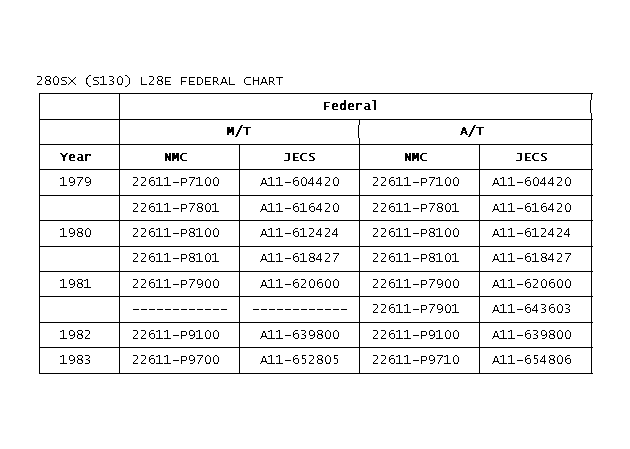

Fig 67: 280SX (S130) L28E FEDERAL CHART

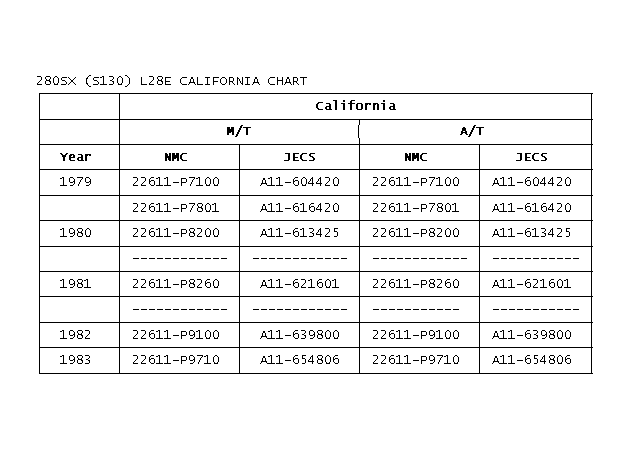

Fig 68: 280SX (S130) L28E CALIFORNIA CHART

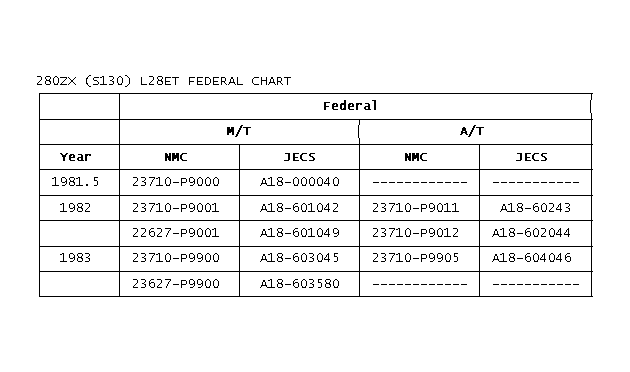

Fig 69: 280ZX (S130) L28ET FEDERAL CHART

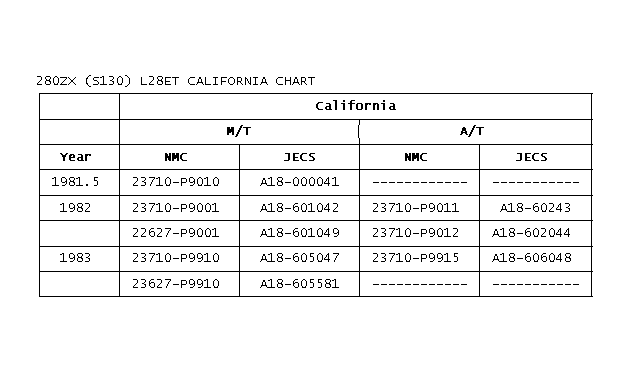

Fig 70: 280ZX (S130) L28ET CALIFORNIA CHART

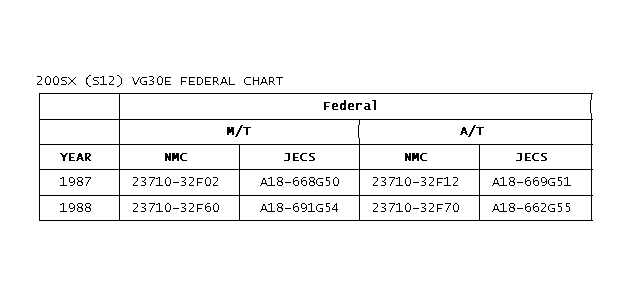

Fig 71: 200SX (S12) VG30E FEDERAL CHART

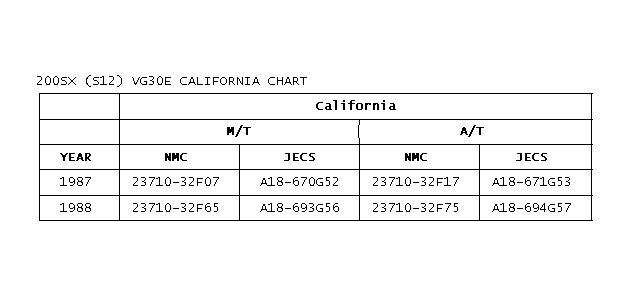

Fig 72: 200SX (S12) VG30E CALIFORNIA CHART

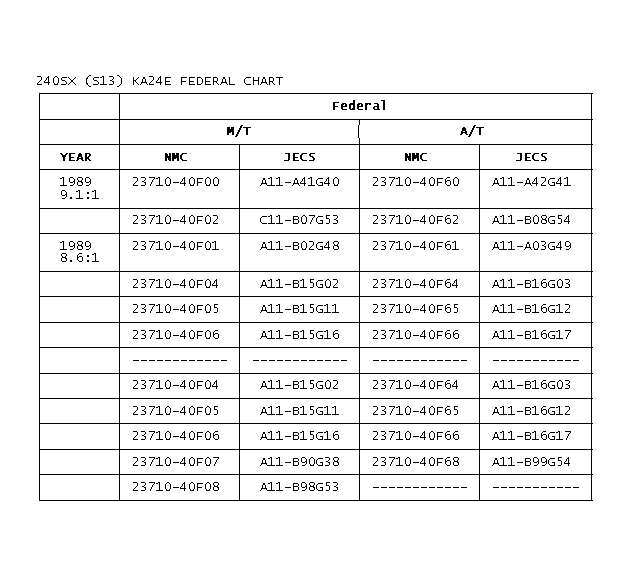

Fig 73: 240SX (S13) KA24E FEDERAL CHART

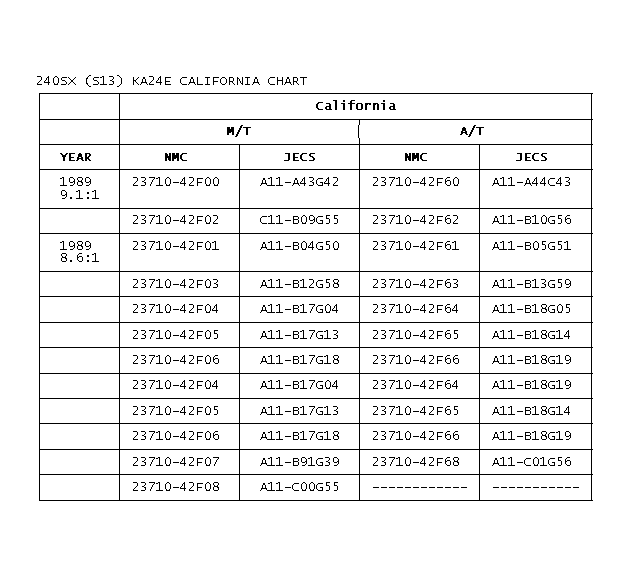

Fig 74: 240SX (S13) KA24E CALIFORNIA CHART

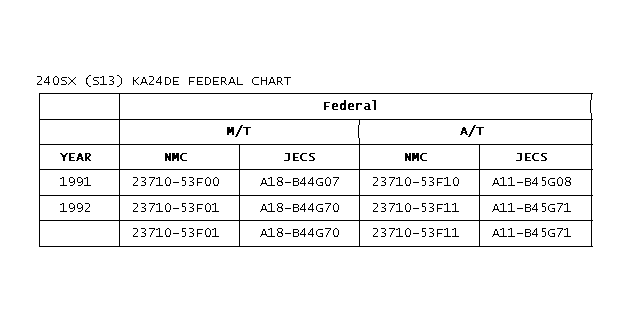

Fig 75: 240SX (S13) KA24DE FEDERAL CHART

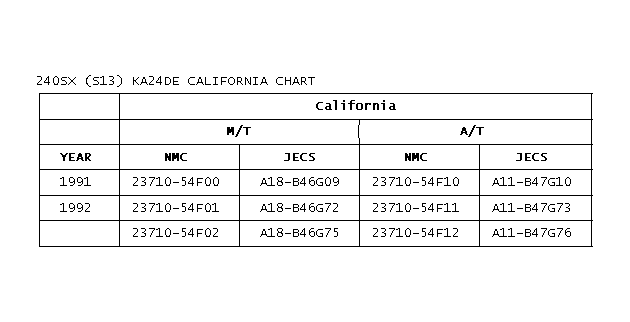

Fig 76: 240SX (S13) KA24DE CALIFORNIA CHART

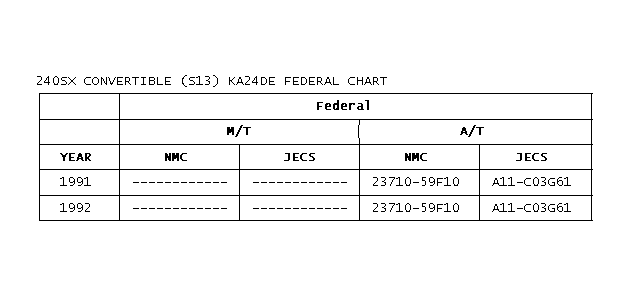

Fig 77: 240SX CONVERTIBLE (S13) KA24DE FEDERAL CHART

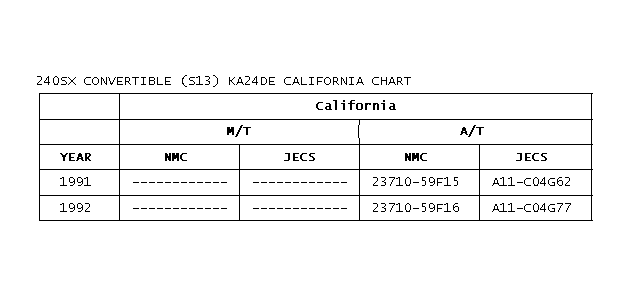

Fig 78: 240SX CONVERTIBLE (S13) KA24DE CALIFORNIA CHART

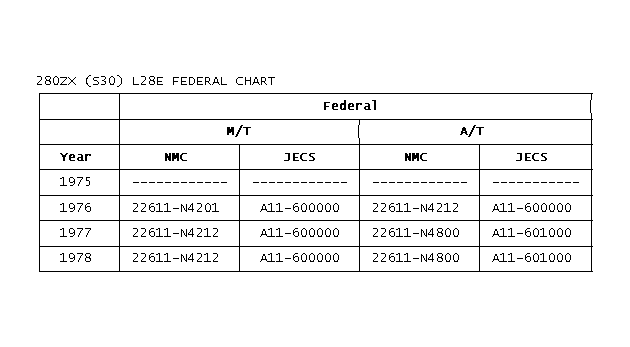

Fig 79: 280ZX (S30) L28E FEDERAL CHART

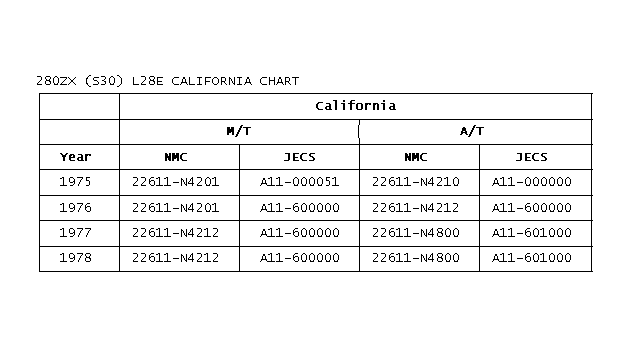

Fig 80: 280ZX (S30) L28E CALIFORNIA CHART

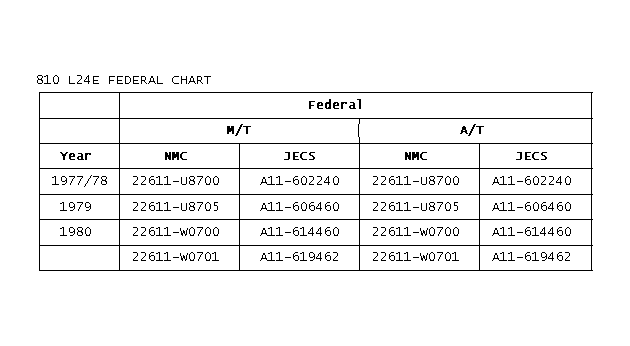

Fig 81: 810 L24E FEDERAL CHART

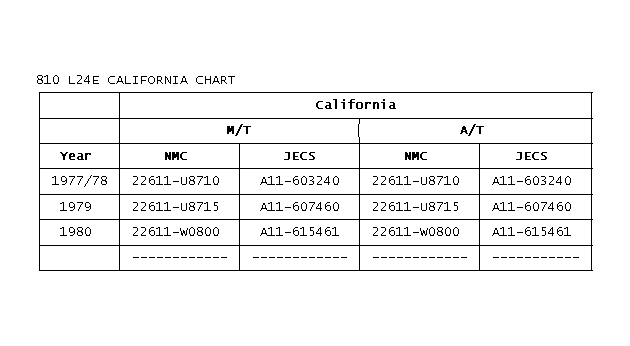

Fig 82: 810 L24E CALIFORNIA CHART

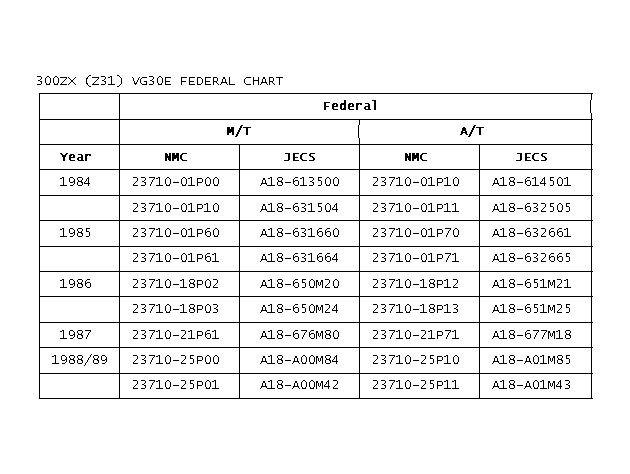

Fig 83: 300ZX (Z31) VG30E FEDERAL CHART

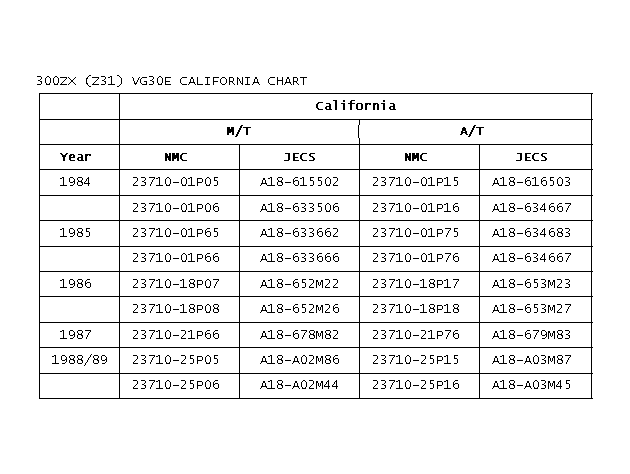

Fig 84: 300ZX (Z31) VG30E CALIFORNIA CHART

Fig 85: 300ZX (Z31) VG30ET FEDERAL CHART

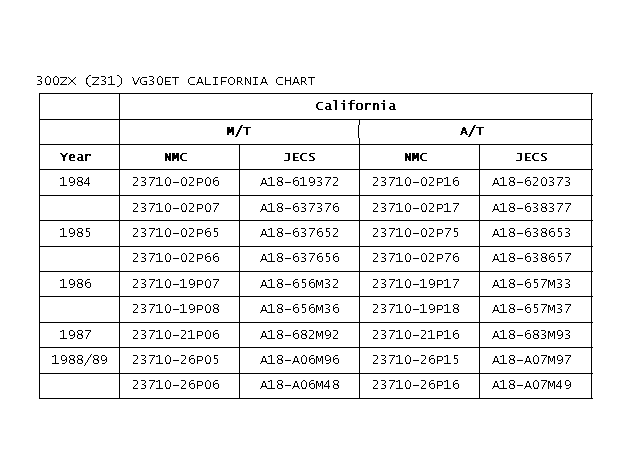

Fig 86: 300ZX (Z31) VG30ET CALIFORNIA CHART

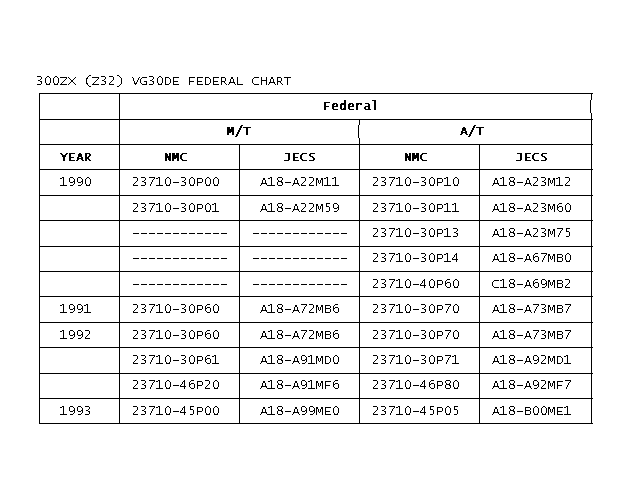

Fig 87: 300ZX (Z32) VG30DE FEDERAL CHART

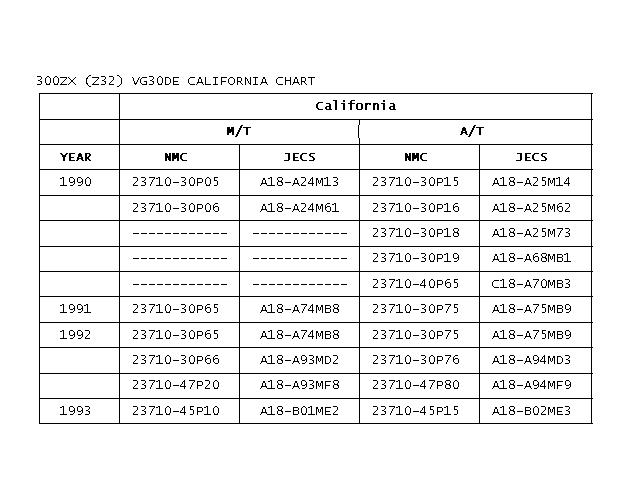

Fig 88: 300ZX (Z32) VG30DE CALIFORNIA CHART

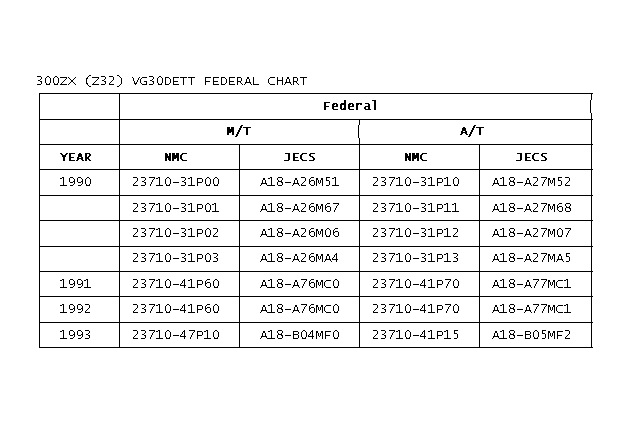

Fig 89: 300ZX (Z32) VG30DETT FEDERAL CHART

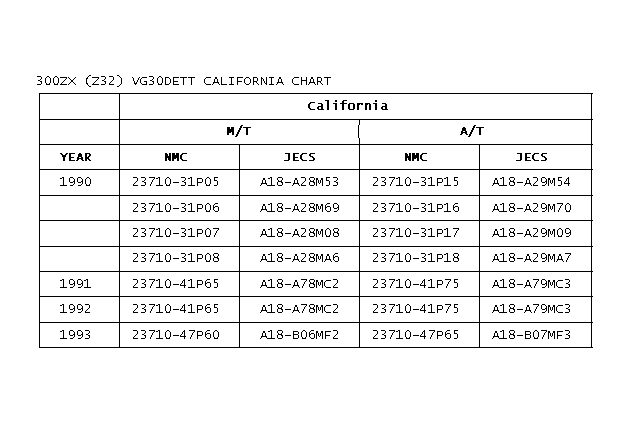

Fig 90: 300ZX (Z32) VG30DETT CALIFORNIA CHART
