Engine Lubrication System: Notes

Crankshaft-driven oil pump provides pressurized lubrication for engine oiling. See Fig 1 .

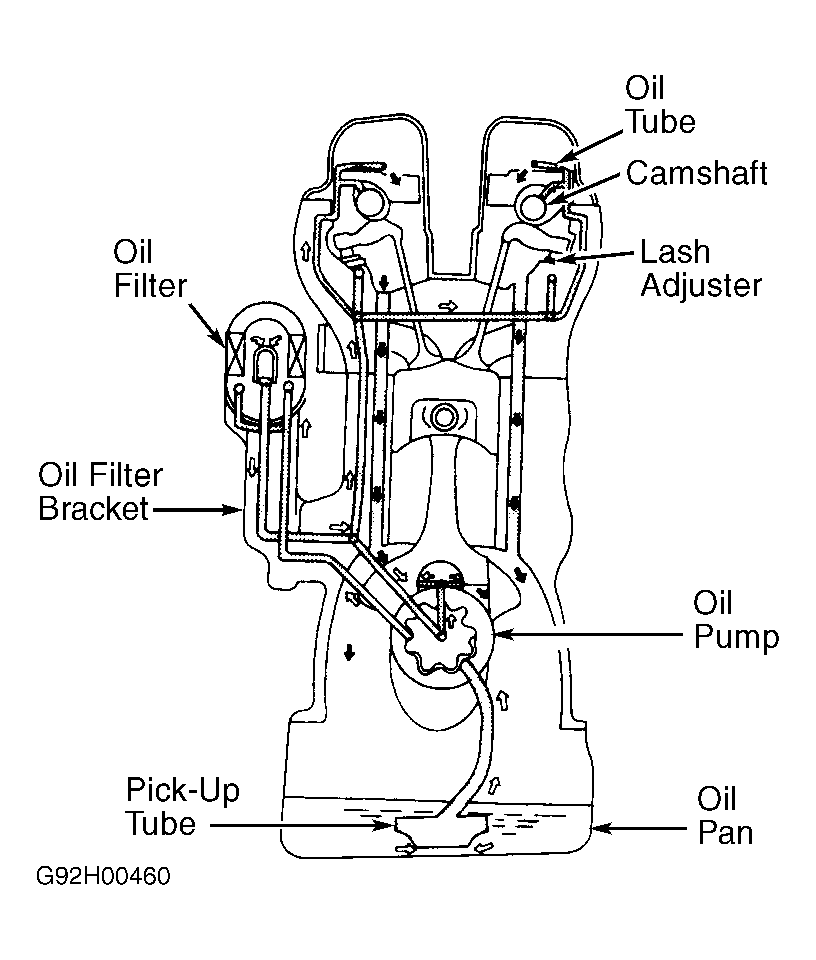

Fig 1: Engine Oil Circuit
G92H00460Courtesy of NISSAN MOTOR CO., U.S.A.
