Trouble Shooting Charts

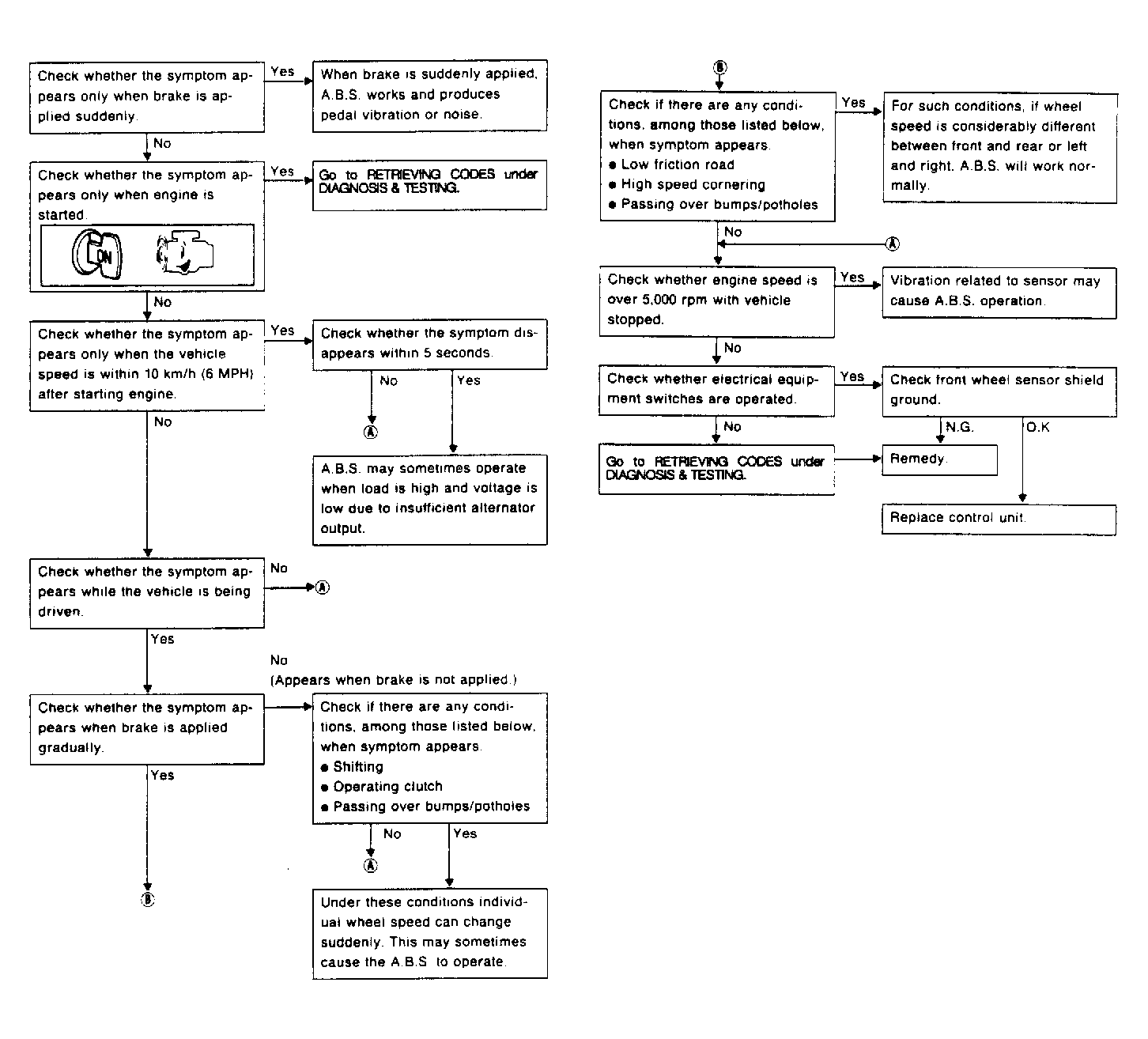

Fig 1: Diagnostic Procedure No. 1 - Pedal Vibration/Noise

Courtesy of NISSAN MOTOR CO., U.S.A.

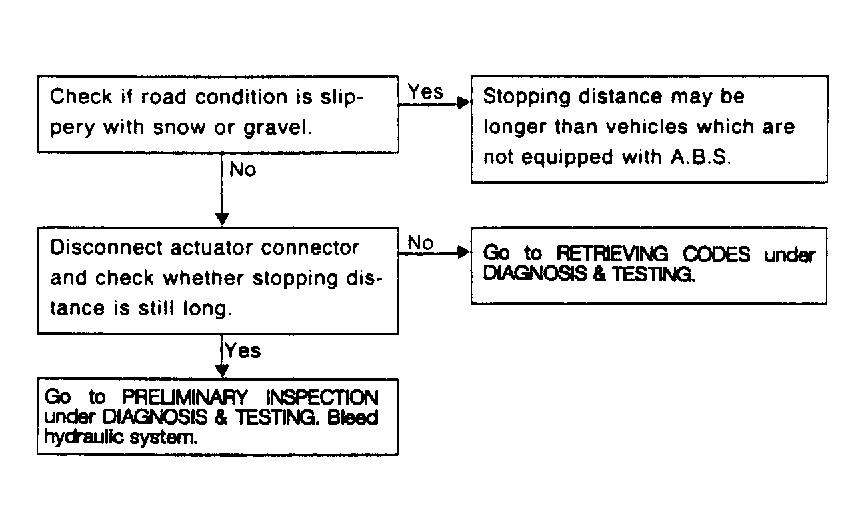

Fig 2: Diagnostic Procedure No. 2 - Long Stopping Distance

Courtesy of NISSAN MOTOR CO., U.S.A.

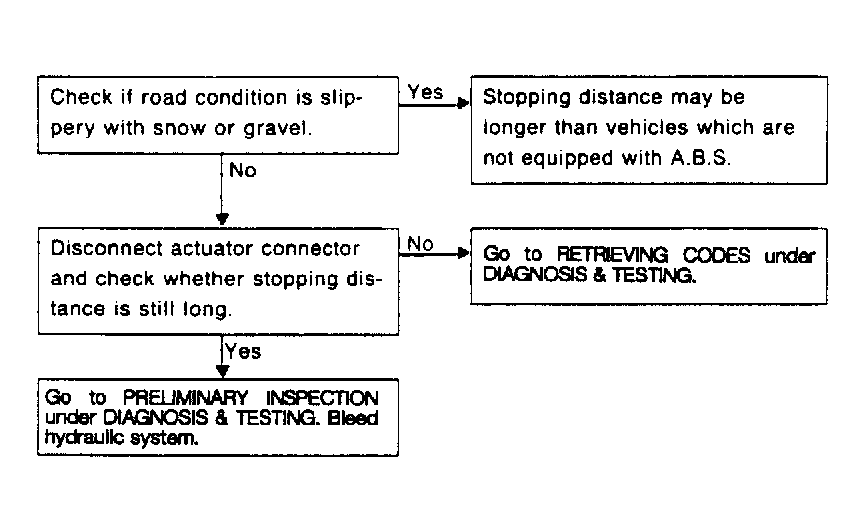

Fig 3: Diagnostic Procedure No. 3 - Abnormal Pedal Action

Courtesy of NISSAN MOTOR CO., U.S.A.

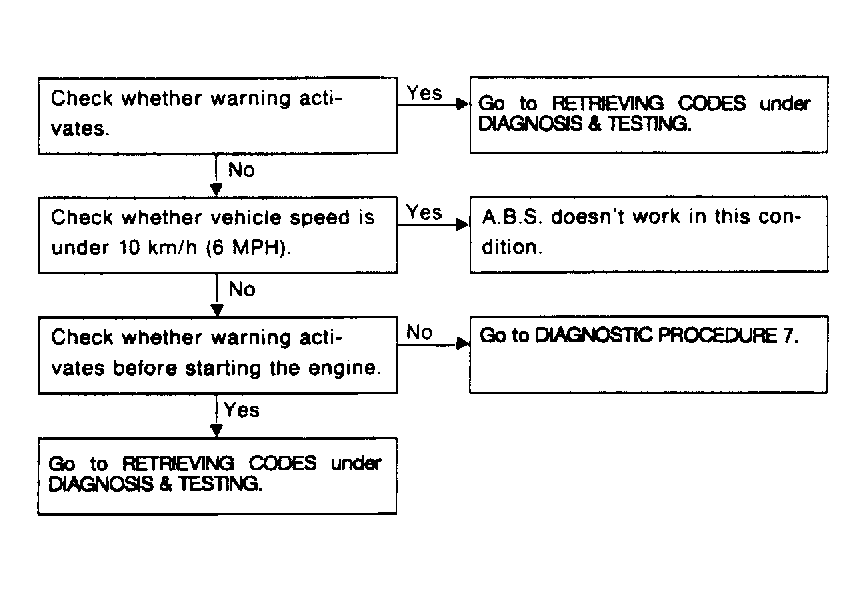

Fig 4: Diagnostic Procedure No. 4 - ABS Does Not Work

Courtesy of NISSAN MOTOR CO., U.S.A.

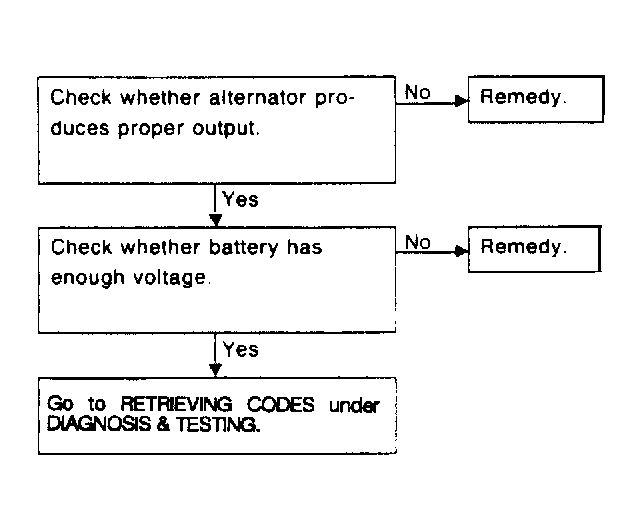

Fig 5: Diagnostic Procedure No. 5 - ABS Works, But ANTI-LOCK Warning Light Comes On

Courtesy of NISSAN MOTOR CO., U.S.A.

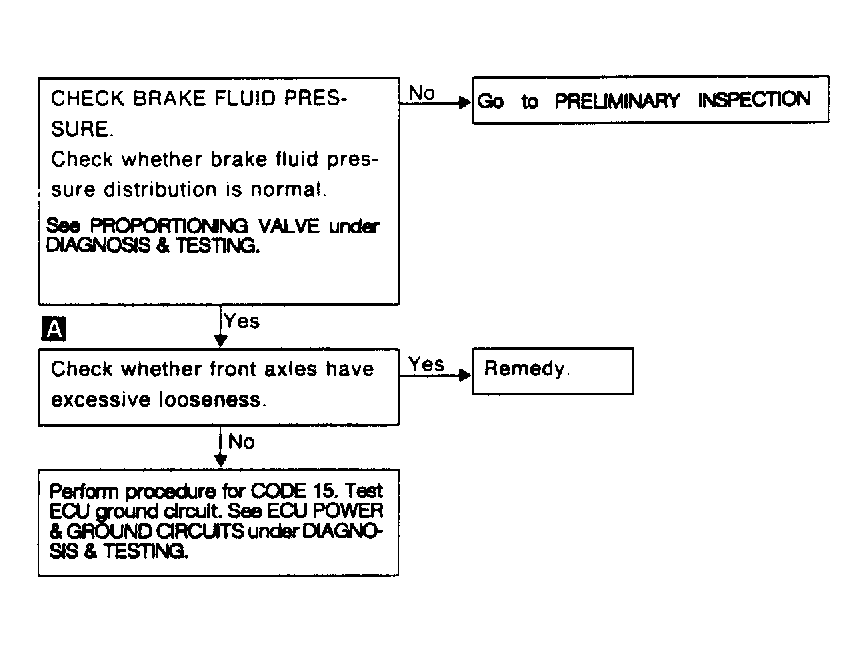

Fig 6: Diagnostic Procedure No. 6 - ABS Works Frequently

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Diagnostic Procedure No. 7 - ANTI-LOCK Warning Light Does Not Come On

Courtesy of NISSAN MOTOR CO., U.S.A.
