Inhibitor Switch Test (2.0L)
- Disconnect and inspect inhibitor switch 8-pin and 2-pin harness connectors for pushed-out, bent, damaged or corroded terminals. Repair connector(s) as necessary. Connectors are located on side of transmission. Check continuity across terminals of inhibitor switch 2-pin connector. Continuity should exist ONLY in Park and Neutral. If continuity exists in any other position, replace inhibitor switch.

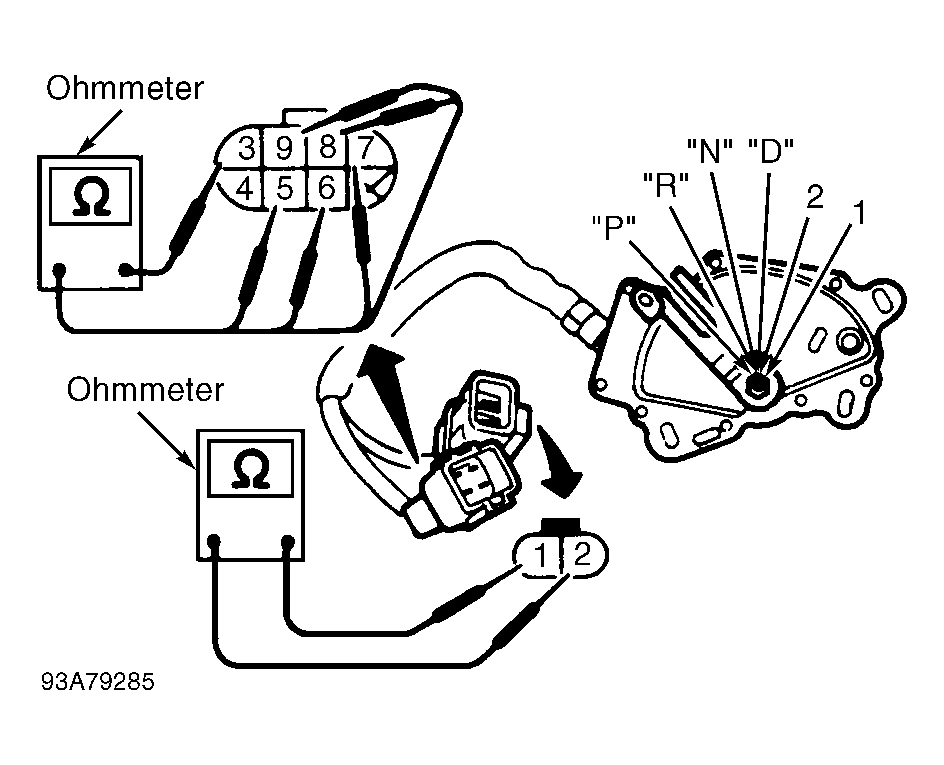

- Using INHIBITOR SWITCH CONTINUITY (2.0L) table, place shift lever in indicated position. Check continuity between terminals of inhibitor switch 8-pin connector listed in table. See Fig 1 . If switch does not function as indicated, replace switch.
INHIBITOR SWITCH CONTINUITY (2.0L)
| Lever Position | Terminals No. |
|---|---|
| "P" | 3 & 4 |
| "R" | 3 & 5 |
| "N" | 3 & 6 |
| "D" | 3 & 7 |
| "2" | 3 & 8 |
| "1" | 3 & 9 |
