Check Input Signal Circuit

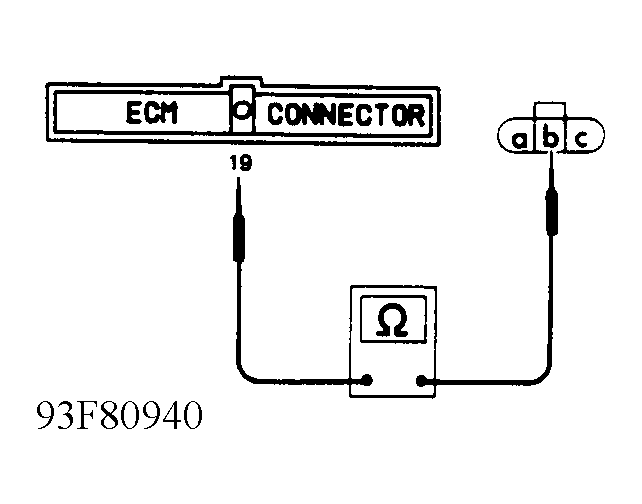

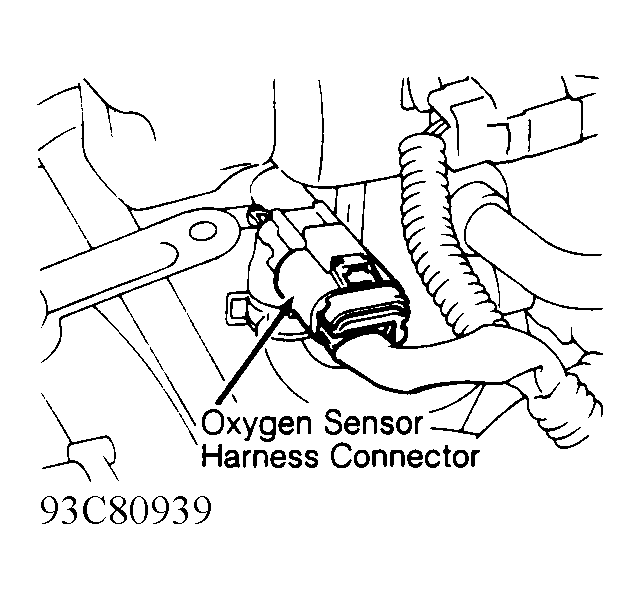

Turn ignition off. Disconnect ECM. See Figure . Disconnect oxygen sensor harness connector. See Figure . Check continuity between oxygen sensor wiring harness connector terminal "b" and ECM connector terminal No. 19. See Figure and Figure . If continuity is present, go to next step. If continuity is not present, repair harness or connectors as necessary.
