Check Input Signal Circuit

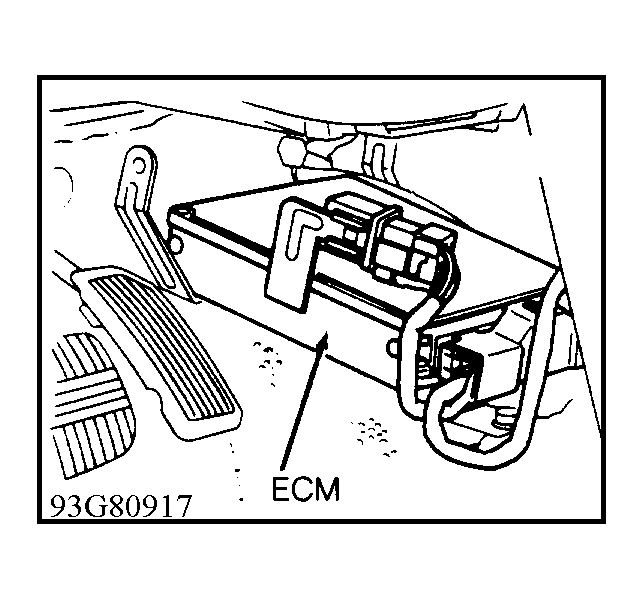

Turn ignition off. Disconnect ECM. See Figure . Disconnect knock sensor. See Figure . Check continuity between wiring harness connector terminal "b" (White wire) and ECM terminal No. 27 (White wire). See Figure and Figure . If continuity is present, go to next step. If continuity is not present, repair harness or connectors as necessary.
