Repair and Diagnosis: Transmission: Clutches: Description

Clutch assembly is a single disc type with a diaphragm spring pressure plate. Sentra uses a mechanical control system consisting of clutch cable, release lever and release bearing. See Fig 1 and Fig 2 .

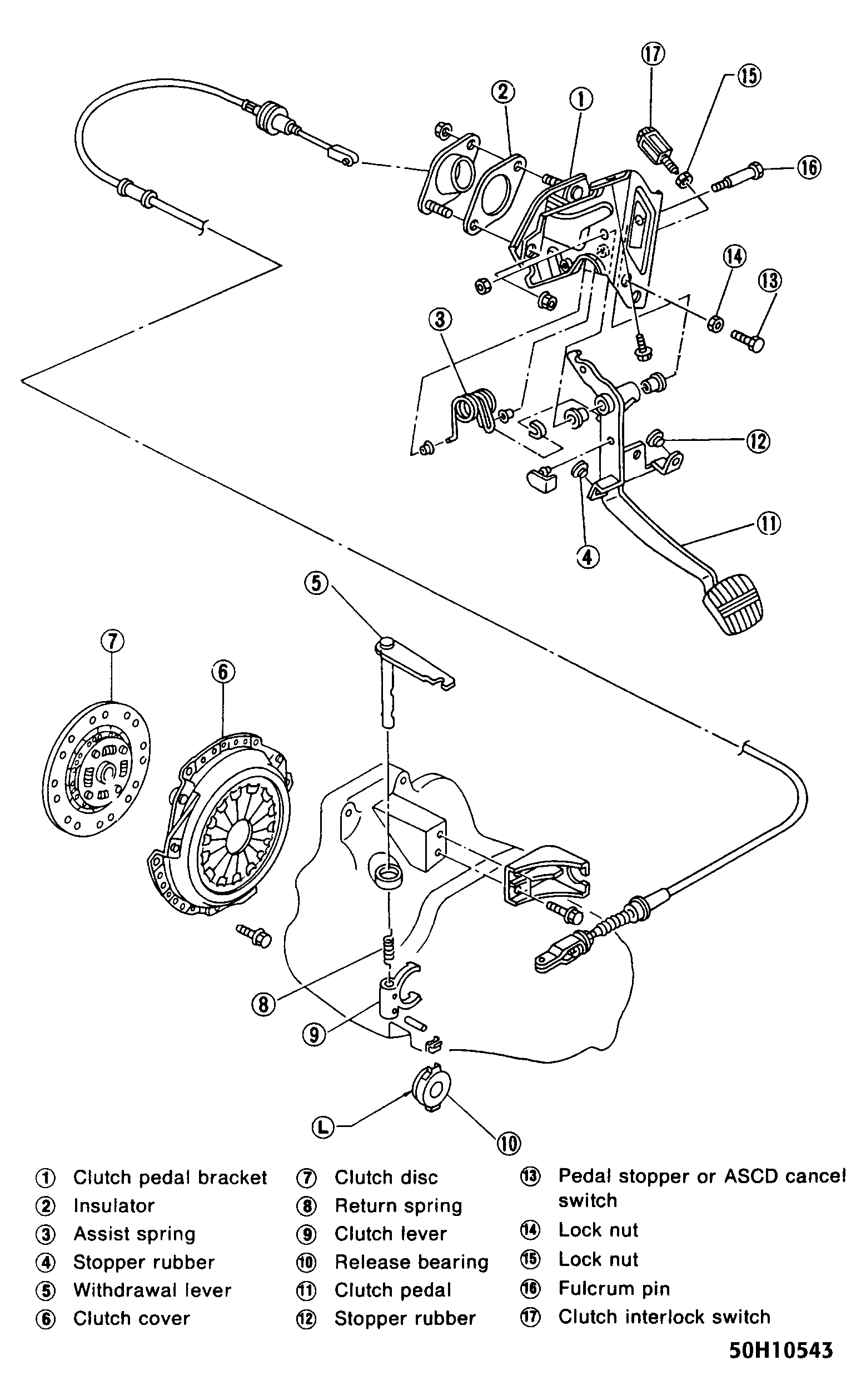

Fig 1: Exploded View Of Clutch Assembly

Courtesy of NISSAN MOTOR CO., U.S.A.

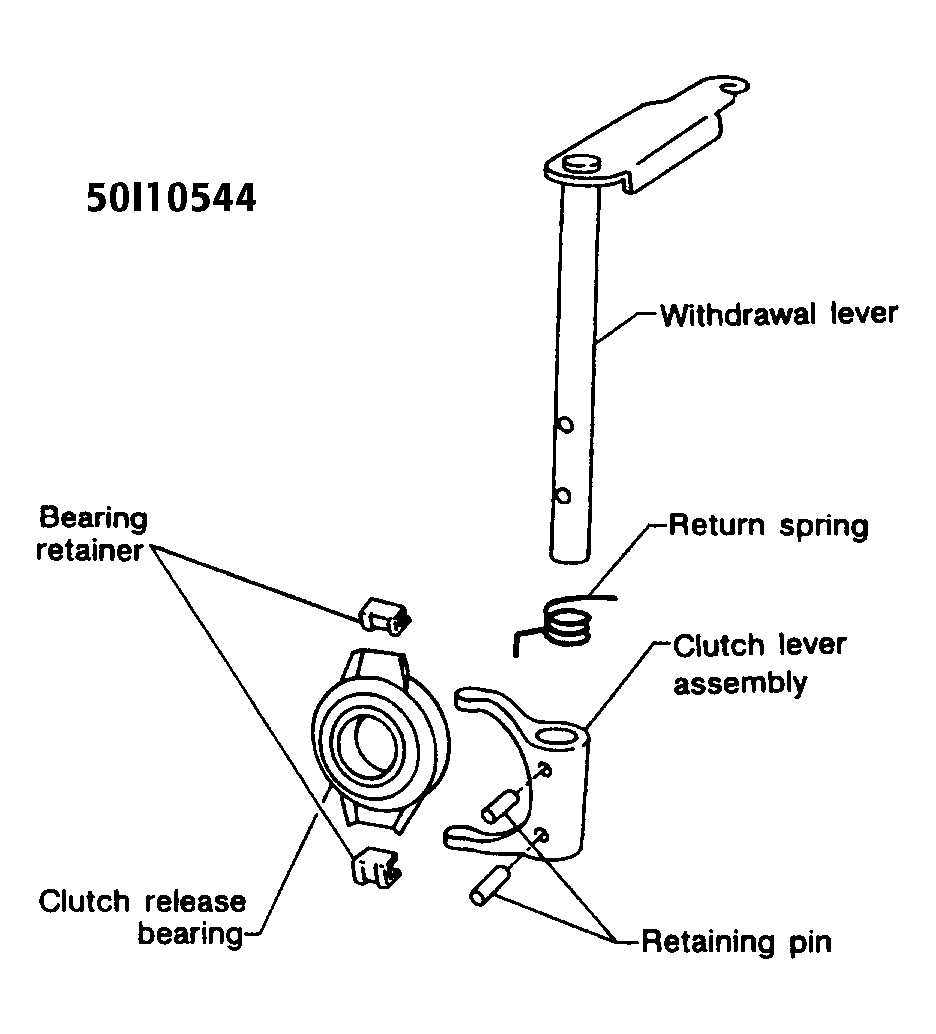

Fig 2: Exploded View Of Clutch Release Mechanism

Courtesy of NISSAN MOTOR CO., U.S.A.
