Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

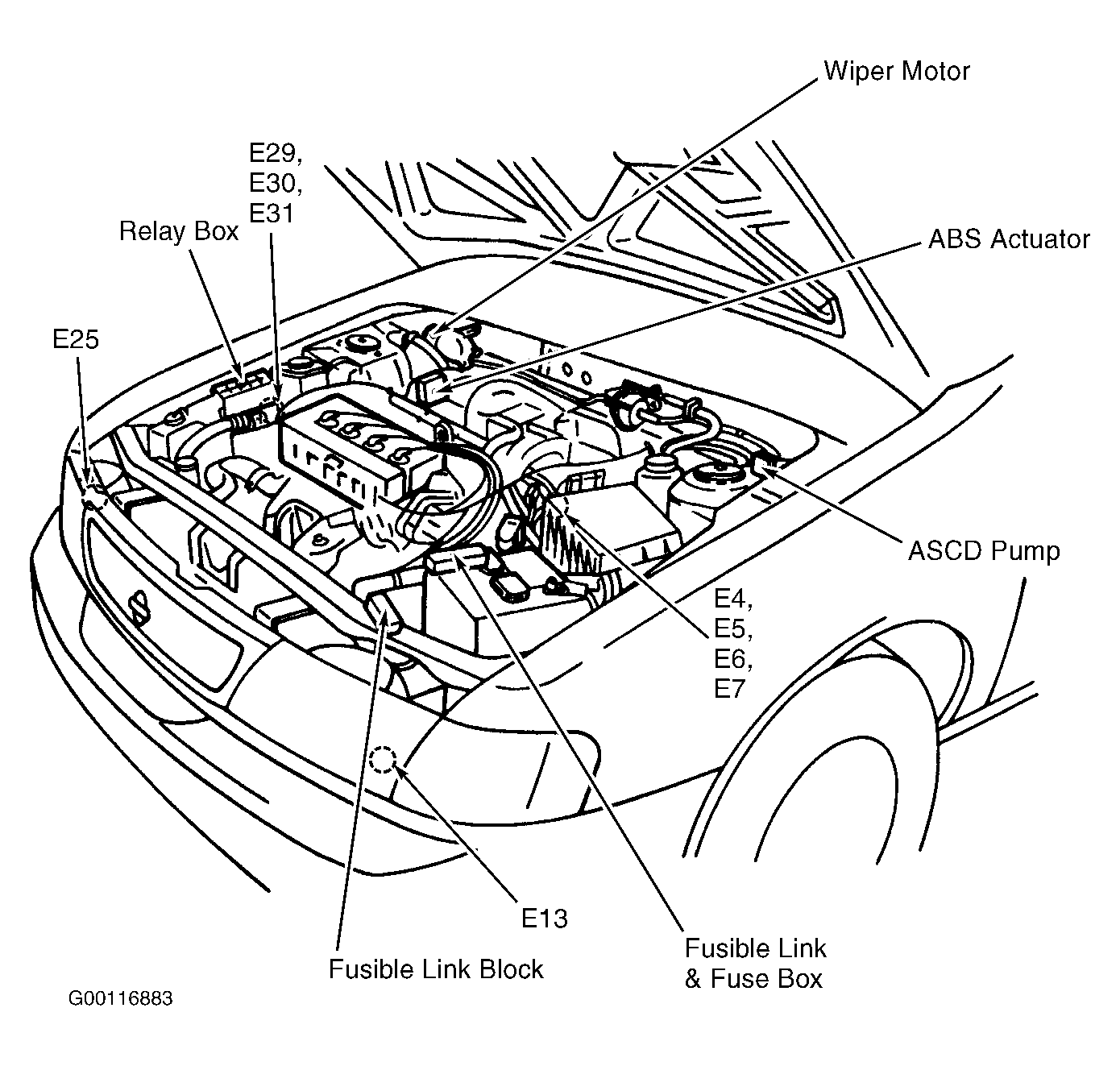

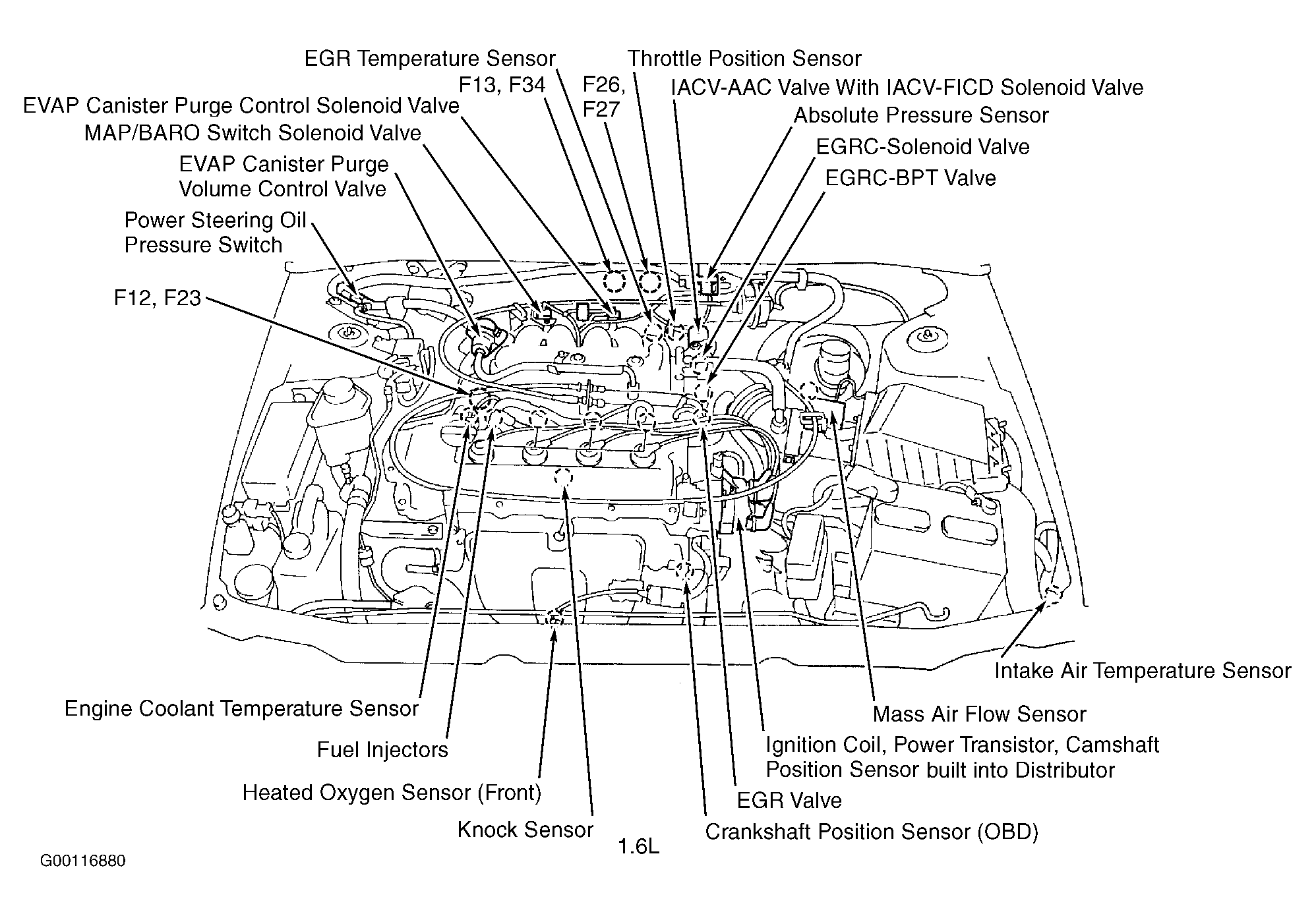

Fig 1: Engine Compartment (1.6L)

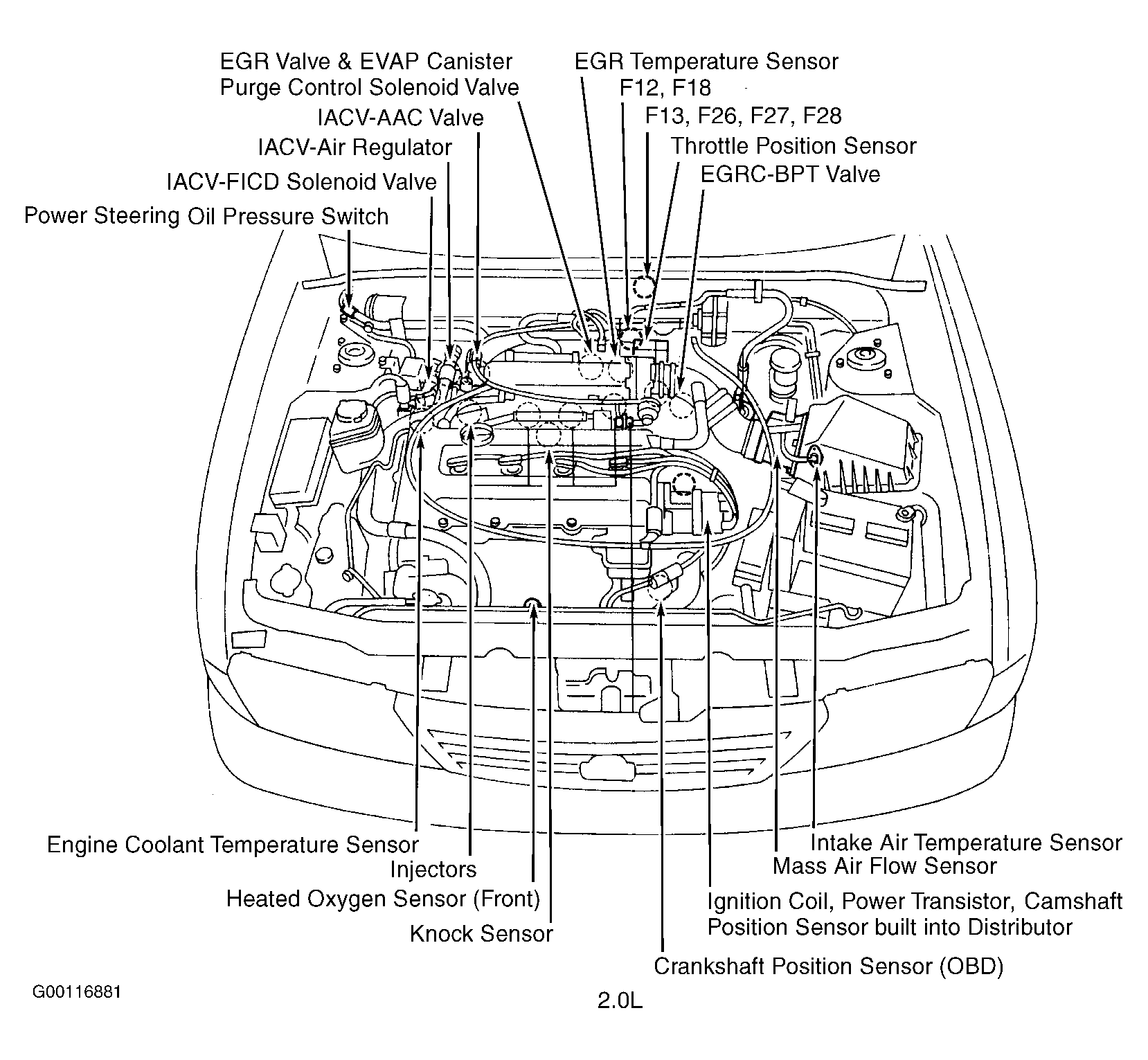

Fig 2: Engine Compartment (2.0L)

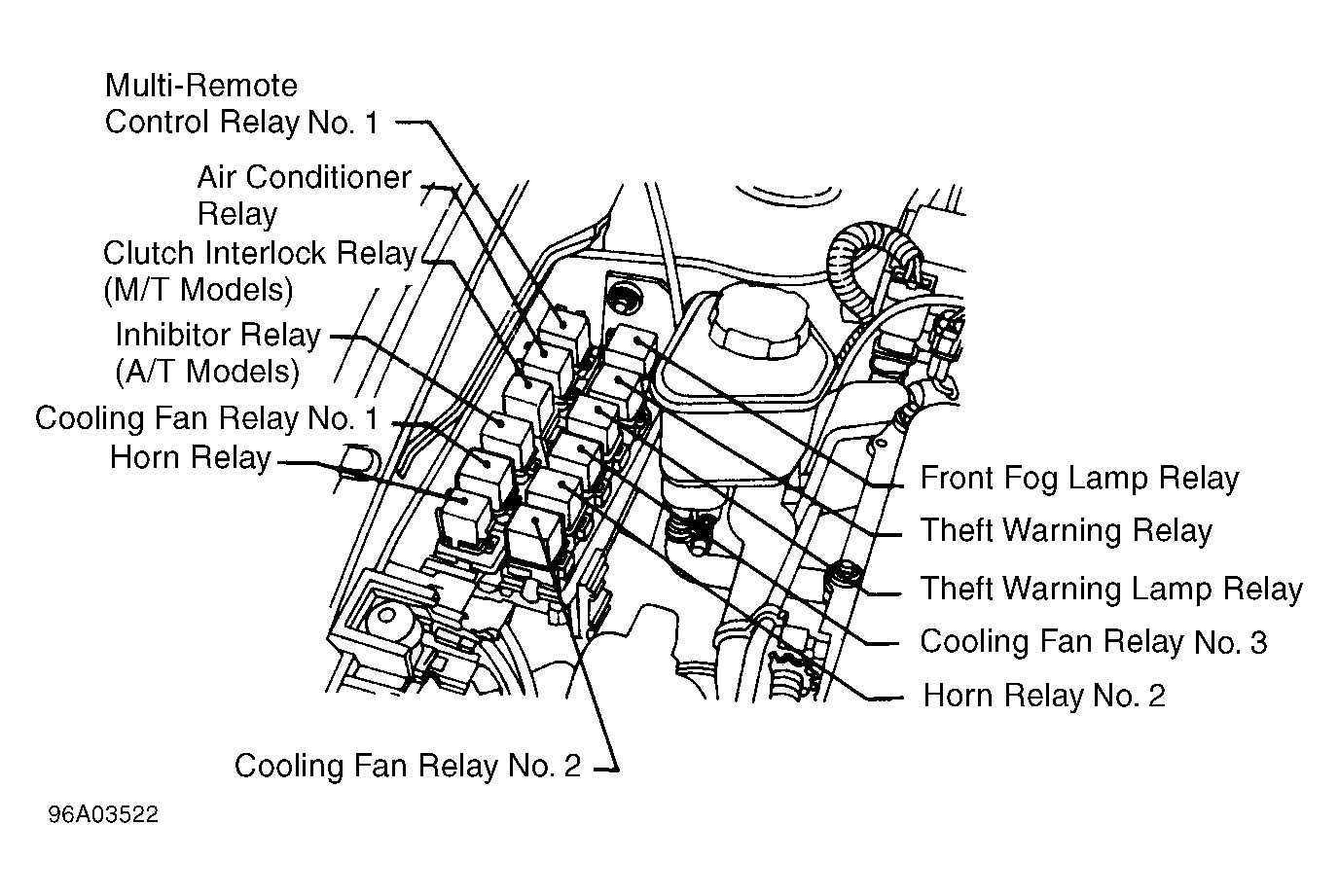

Fig 3: Relay Box

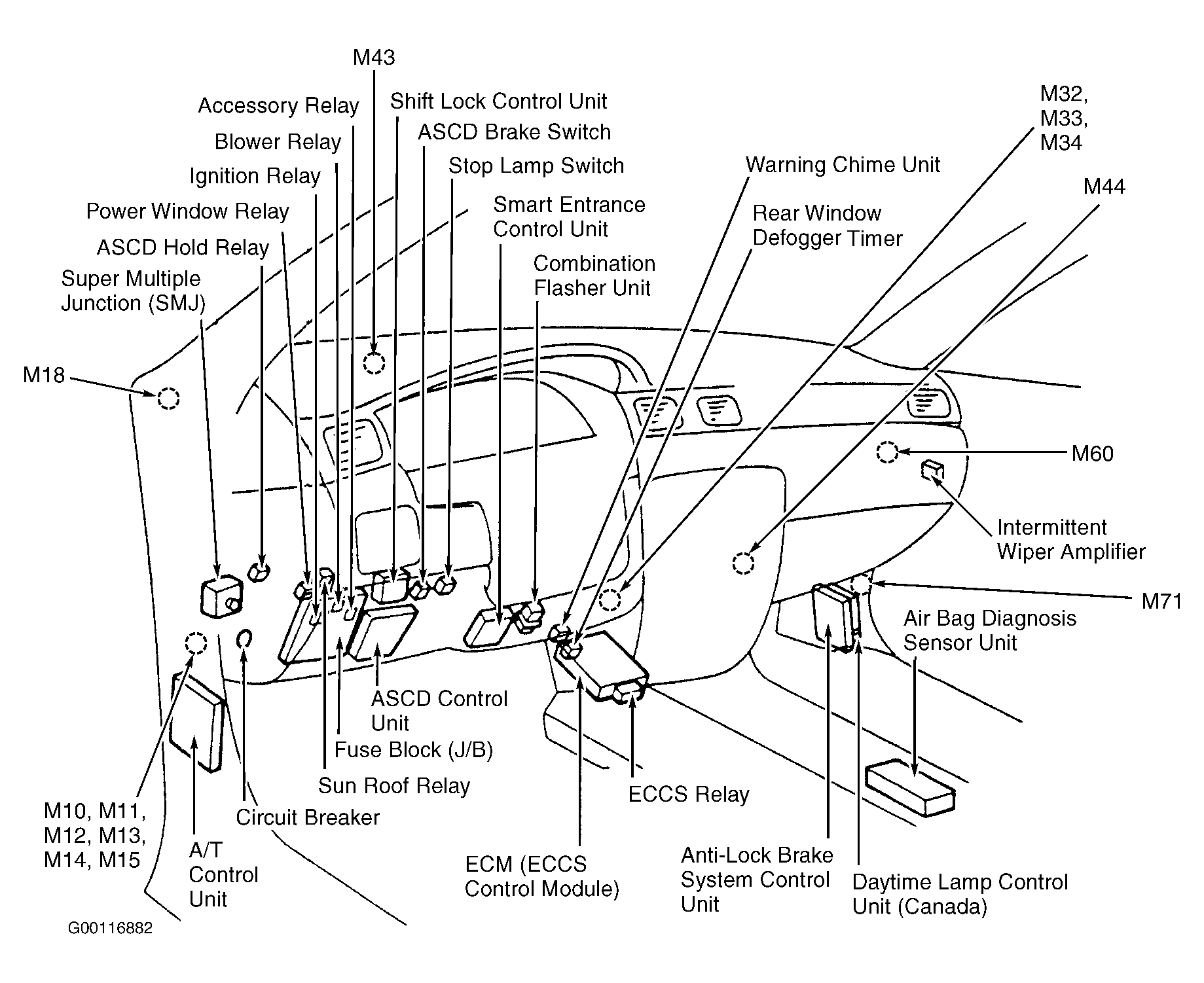

Fig 4: Dash

Fig 5: Engine Compartment

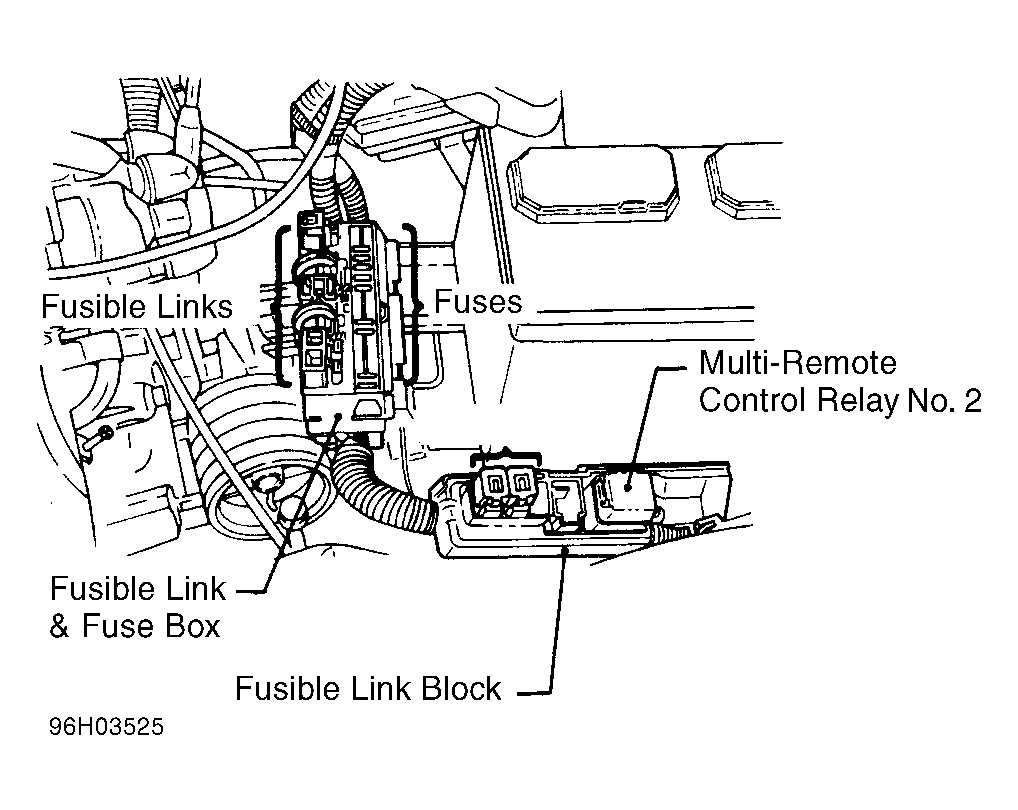

Fig 6: Fuse & Fusible Link Box
