Firing Order & Distributor Rotation

NOTE: For firing order and distributor rotation, see Fig 1.

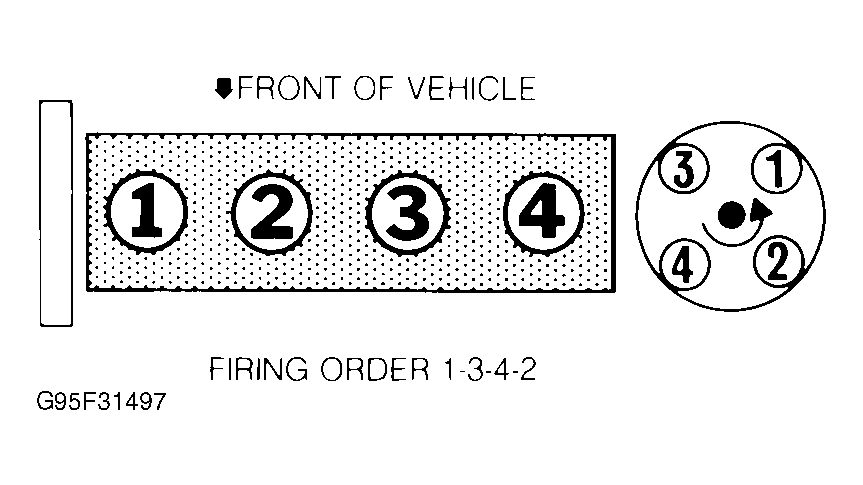

Fig 1: Identifying Firing Order & Distributor Rotation
G95F31497
