Component Location

The following illustrations are provided to assist in locating components for which removal and installation procedures are not provided. See Fig 1 .

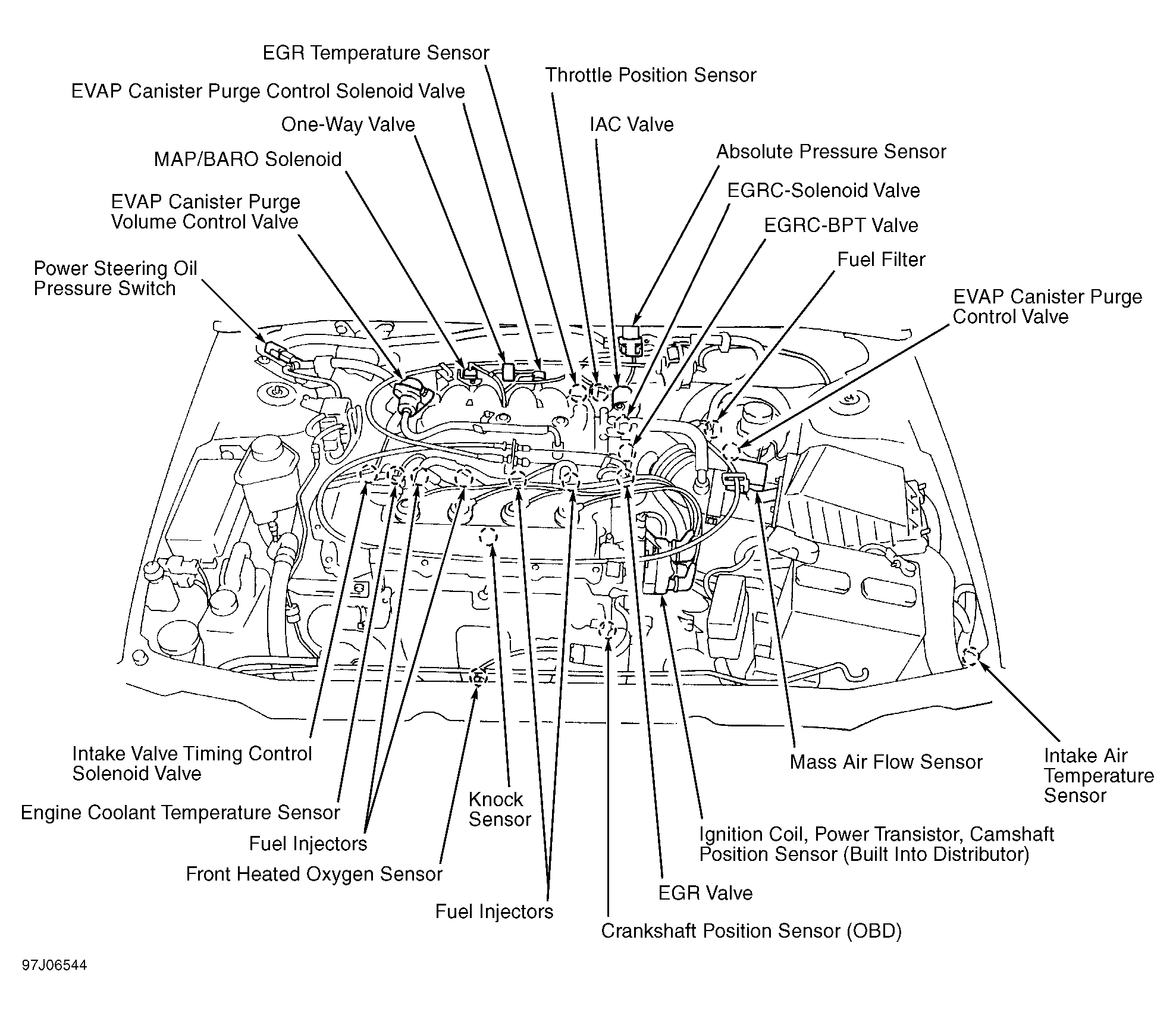

Fig 1: Locating Engine Control System Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
