Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| ABS Relay Unit | On right front strut tower. |

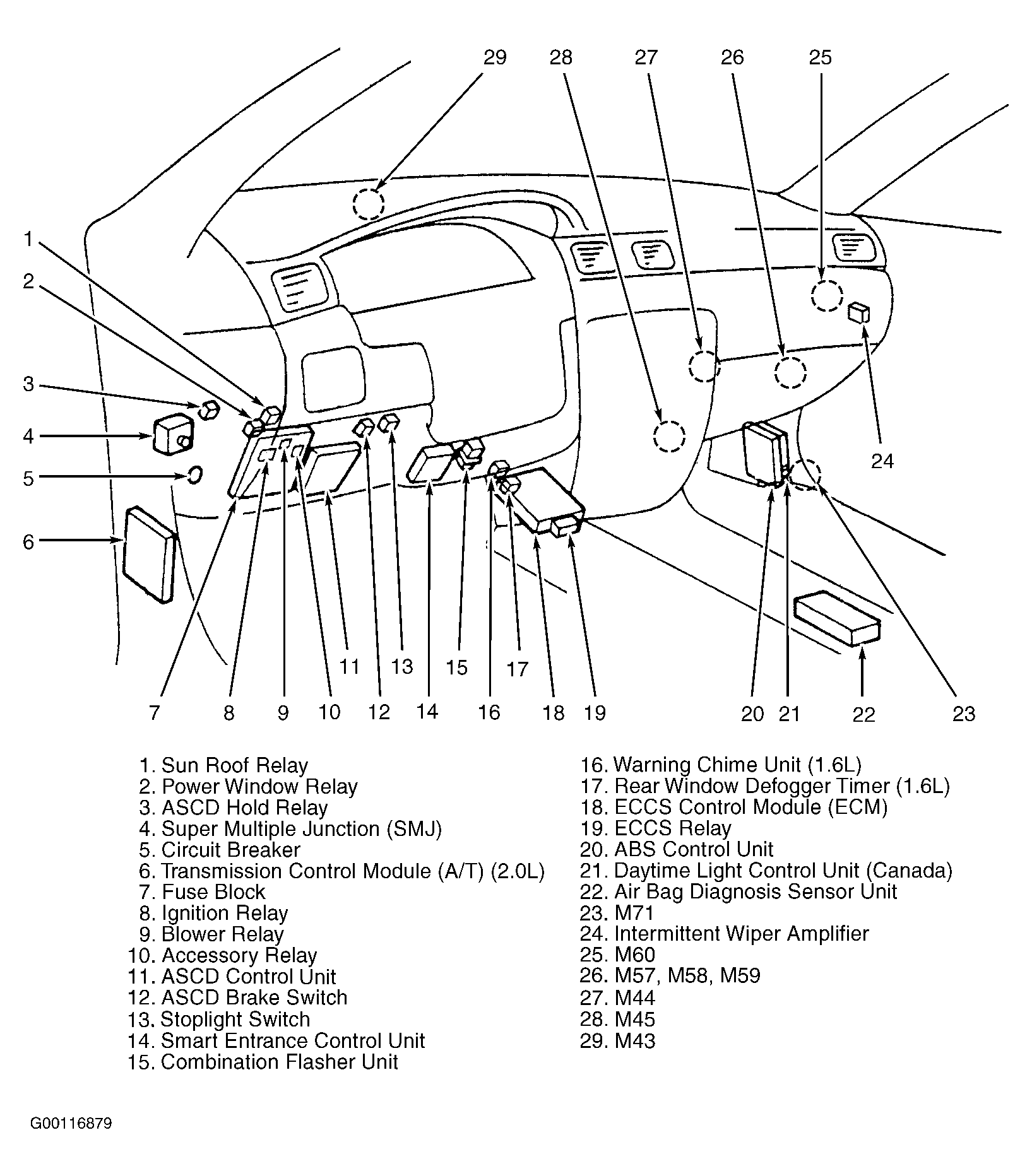

| Circuit Breaker | Behind dash, left of fuse block. See Figure . |

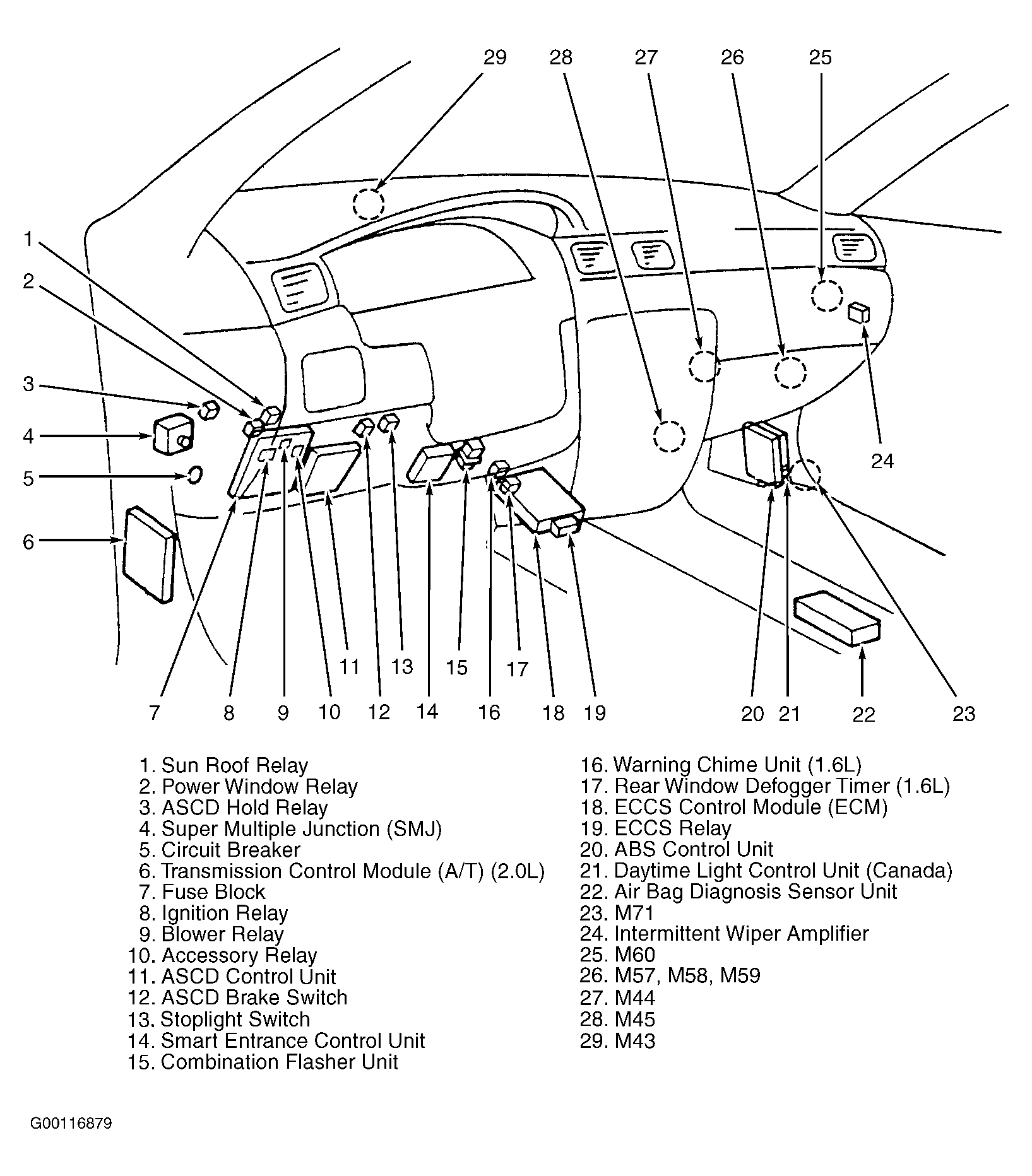

| Fuse Block | Behind dash, left of steering column. See Figure . |

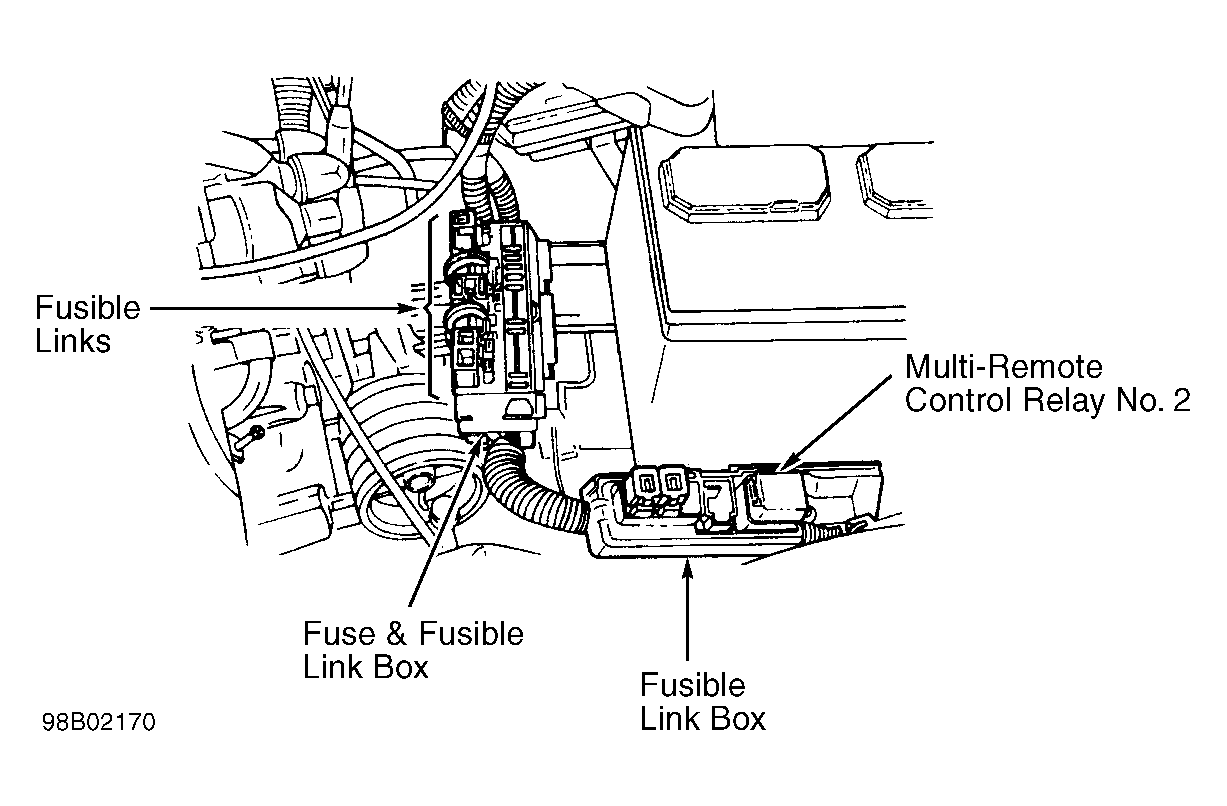

| Fuse & Fusible Link Box | Left front of engine compartment, next to battery. See Figure . |
| Fusible Link Box | Left front of engine compartment, front of battery. See Figure . |
| Fusible Links | In fusible link box & fuse & fusible link box. See Figure . |
| Relay Box | Right side of engine compartment. See Figure . |
