Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

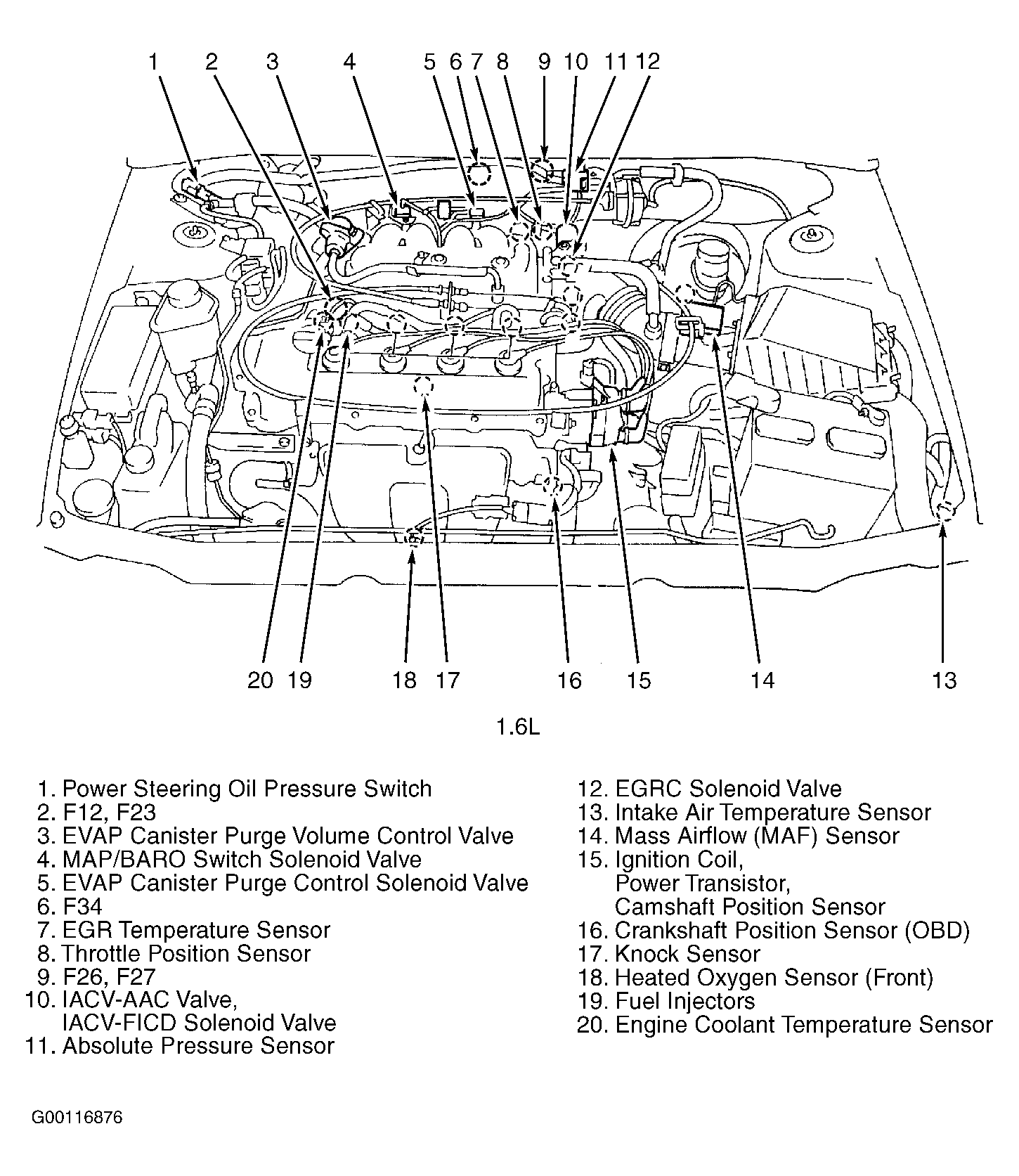

Fig 1: Engine Compartment (1.6L)

Fig 2: Fuse & Fusible Link Box

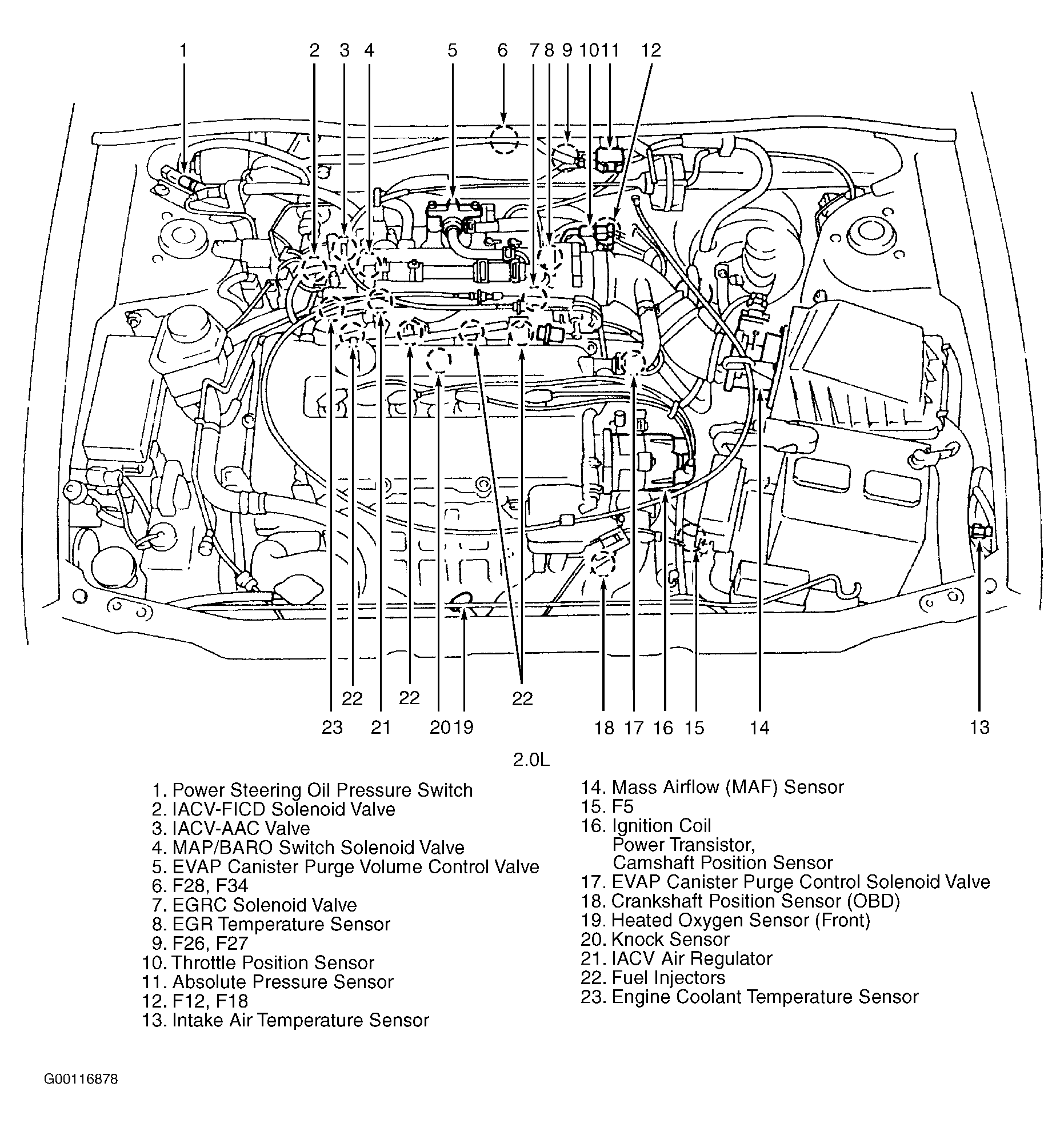

Fig 3: Engine Compartment (2.0L)

Fig 4: Engine Compartment

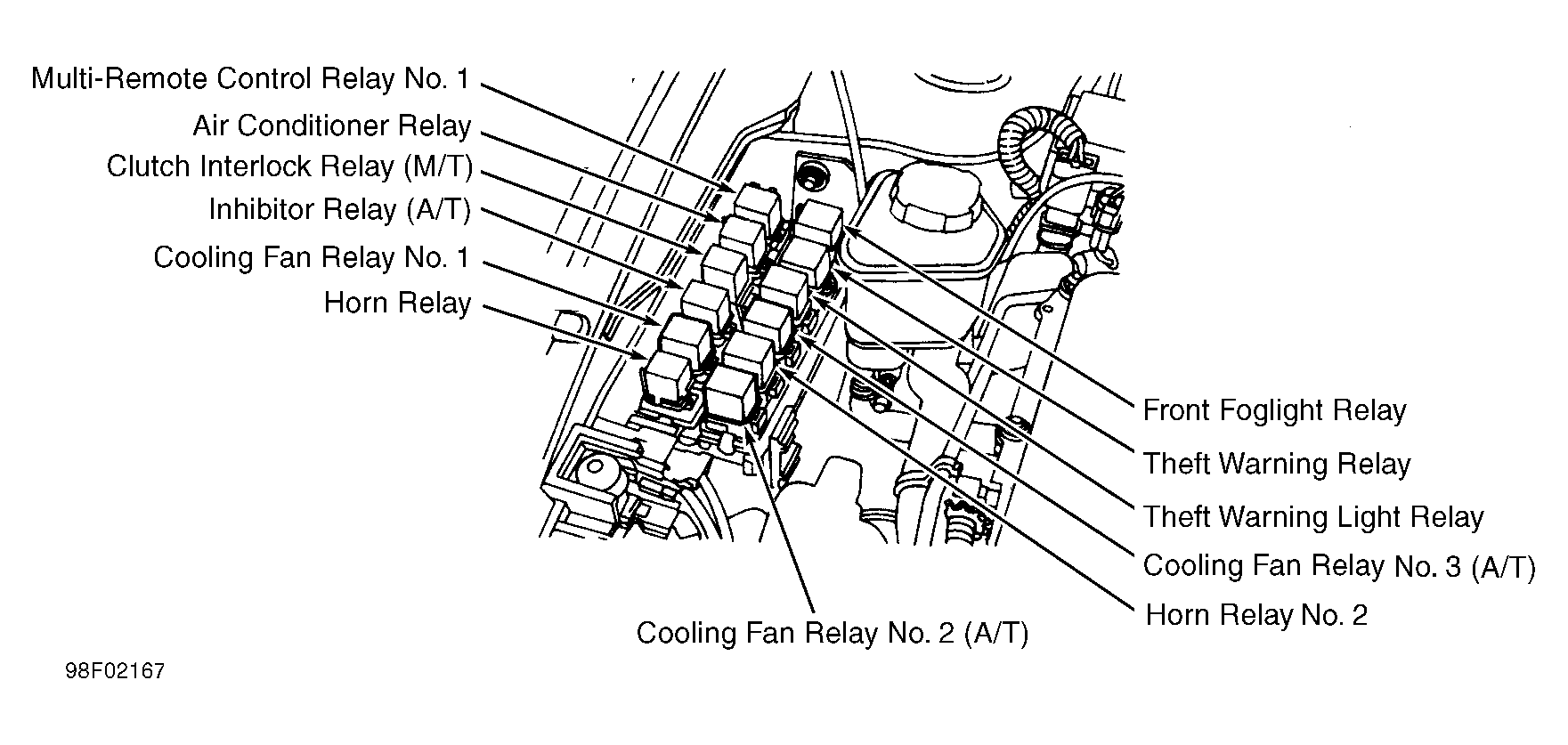

Fig 5: Relay Box

Fig 6: Dash
