Electrical Component Locator: Connectors
CONNECTORS
| Component | Component Location |
|---|---|
| A1 (Gray, 3-Pin) | Right side of engine compartment. |
| A2 (Gray, 1-Pin) | Right side of engine compartment. |
| A3 (Gray, 1-Pin) | Right side of engine compartment. |
| B1 (White, 6-Pin) | Behind left side of dash. |
| B2 (White, 10-Pin) | Behind left side of dash. |
| B3 (White, 16-Pin) | Behind left side of dash. |
| B4 (White, 20-Pin) | Behind left side of dash. |
| B19 (White, 16-Pin) | Left side of luggage compartment. |
| B23 (White, 8-Pin) | Right "B" pillar. |
| B24 (White, 8-Pin) | Left "B" pillar. |
| B105 (White, 8-Pin) | Right kick panel. |
| B111 (White, 16-Pin) | Right kick panel. |
| D1 (White, 12-Pin) | Left "A" pillar. |
| D2 (White, 16-Pin) | Left "A" pillar. |
| D9 (White, 8-Pin) | Right "A" pillar. |
| D10 (White, 12-Pin) | Right "A" pillar. |
| D18 (White, 8-Pin) | Right "B" pillar. |
| D22 (White, 8-Pin) | Left "B" pillar. |
| E4 (White, 1-Pin) | Left side of engine compartment. See Figure . |
| E5 (Gray, 6-Pin) | Left side of engine compartment. |
| E6 (Gray, 4-Pin) | Left side of engine compartment. See Figure . |
| E7 (Gray, 8-Pin) | Left side of engine compartment. See Figure . |
| E29 (Gray, 1-Pin) | Right side of engine compartment. |
| E30 (Gray, 3-Pin) | Right side of engine compartment. |
| E31 (Gray, 1-Pin) | Right side of engine compartment. |
| E202 (1.6L) (White, 2-Pin) | Top of transmission. |
| E202 (2.0L) (Gray, 1-Pin) | Top of transmission. |
| E203 (Gray, 8-Pin) | Top of transmission. |
| E211 (1.6L) (Gray, 4-Pin) | Top of transmission. |
| E211 (2.0L) (Gray, 6-Pin) | Top of transmission. |
| E213 (Gray, 5-Pin) | Top of transmission. |
| F5 (Gray, 5-Pin) | Left front of engine compartment. See Figure . |
| F21 (Gray, 8-Pin) | Top of engine. |

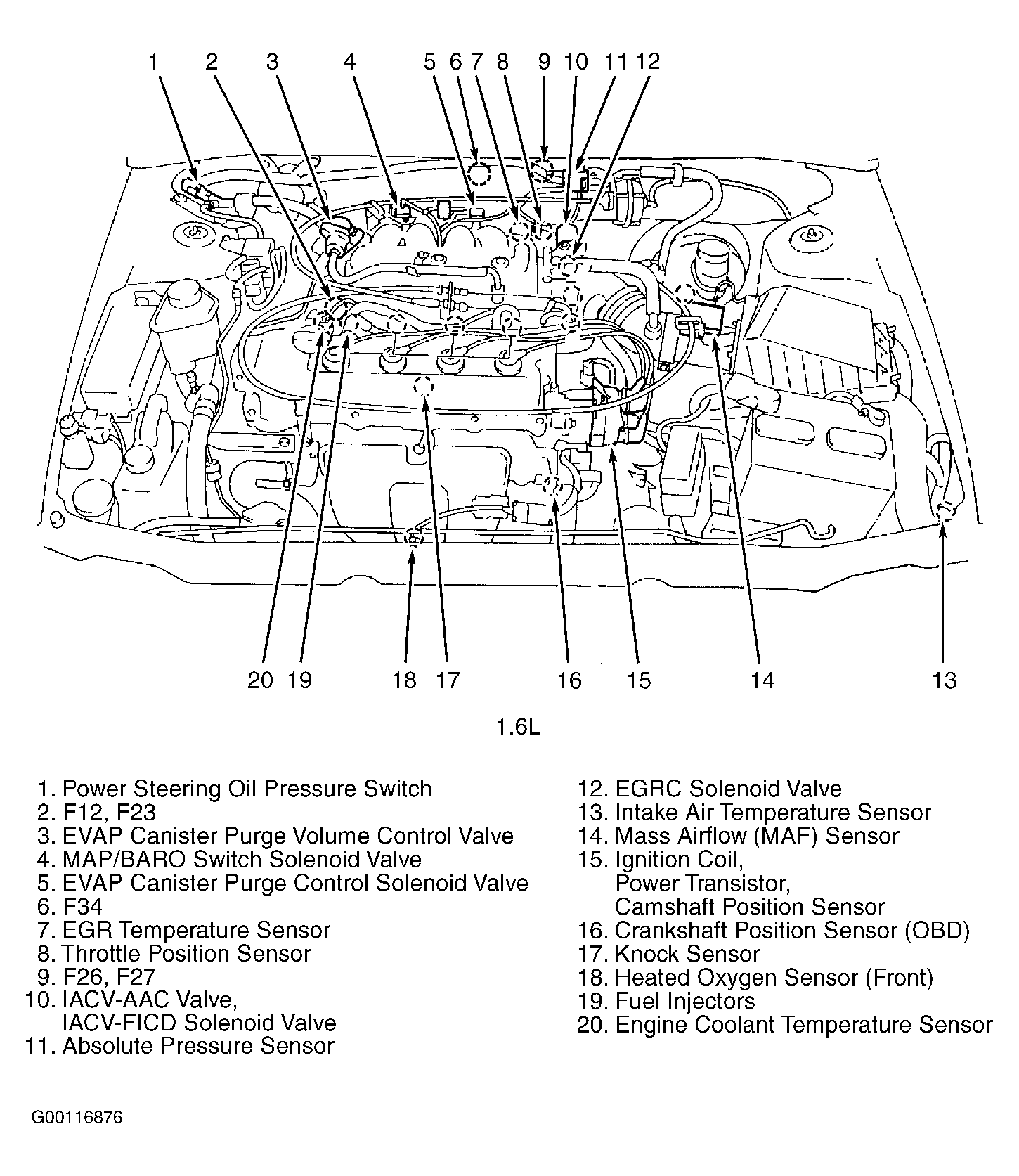

| F26 (1.6L) (White, 8-Pin) | Rear of engine compartment. See Figure . |
| F26 (2.0L) (White, 8-Pin) | Rear of engine compartment. See Figure . |
| F27 (1.6L) (White, 20-Pin) | Rear of engine compartment. See Figure . |
| F27 (2.0L) (White, 20-Pin) | Rear of engine compartment. See Figure . |
| F28 (White, 16-Pin) | Rear of engine compartment. See Figure . |
| F34 (1.6L) (White, 20-Pin) | Rear of engine compartment. See Figure . |
| F34 (2.0L) (White, 20-Pin) | Rear of engine compartment. See Figure . |
| F51 (Gray, 8-Pin) | Top of engine. |
| M10 (White, 12-Pin) | Left kick panel. |
| M11 (White, 16-Pin) | Left kick panel. |
| M12 (White, 20-Pin) | Behind left end of dash. |
| M13 (White, 10-Pin) | Behind left end of dash. |
| M14 (White, 6-Pin) | Behind left end of dash. |
| M15 (White, 16-Pin) | Behind left end of dash. |
| M18 (White, 4-Pin) | Left "A" pillar. |
| M32 (White, 12-Pin) | Below dash, right of steering column. |
| M33 (White, 20-Pin) | Below dash, right of steering column. |
| M34 (White, 8-Pin) | Below dash, right of steering column. |
| M45 (White, 20-Pin) | Behind center of dash. See Figure . |
| M46 (White, 16-Pin) | Behind center of dash. |
| M57 (White, 8-Pin) | Right kick panel. See Figure . |
| M58 (White, 12-Pin) | Right kick panel. See Figure . |
| M59 (White, 8-Pin) | Right kick panel. See Figure . |
| M71 (White, 16-Pin) | Right kick panel. See Figure . |
| R1 (White, 4-Pin) | Left "A" pillar. |
| T1 (White, 16-Pin) | Left side of luggage compartment. |
| Z1 (White, 12-Pin) | Behind center of dash. |
