Electrical Component Locator: Miscellaneous
MISCELLANEOUS
| Component | Component Location |
|---|---|
| Data Link Connector (DLC) (CONSULT) | Behind dash, next to fuse block. |
| Data Link Connector (DLC) (GST) | Under left dash panel, near fuse box cover. |
| Diode (Brake Warning) | Behind left center of dash, taped to harness. |
| Diode (Overdrive Cancel) (1.6L) | Behind left side of glove box, taped to harness. |
| Diode (Trunk Light) | Behind left kick panel, taped to harness. |
| Distributor (1.6L) | On rear of engine. |
| Distributor (2.0L) | On rear of engine. |
| Dropping Resistor (A/T) (2.0L) | On left front of engine compartment. |
| Dropping Resistor (Fuel Pump) (2.0L) | At right rear corner of trunk. |
| Fan Resistor | Behind right side of dash, near blower motor. |
| Ignition Coil (1.6L) | In distributor. See Figure . |

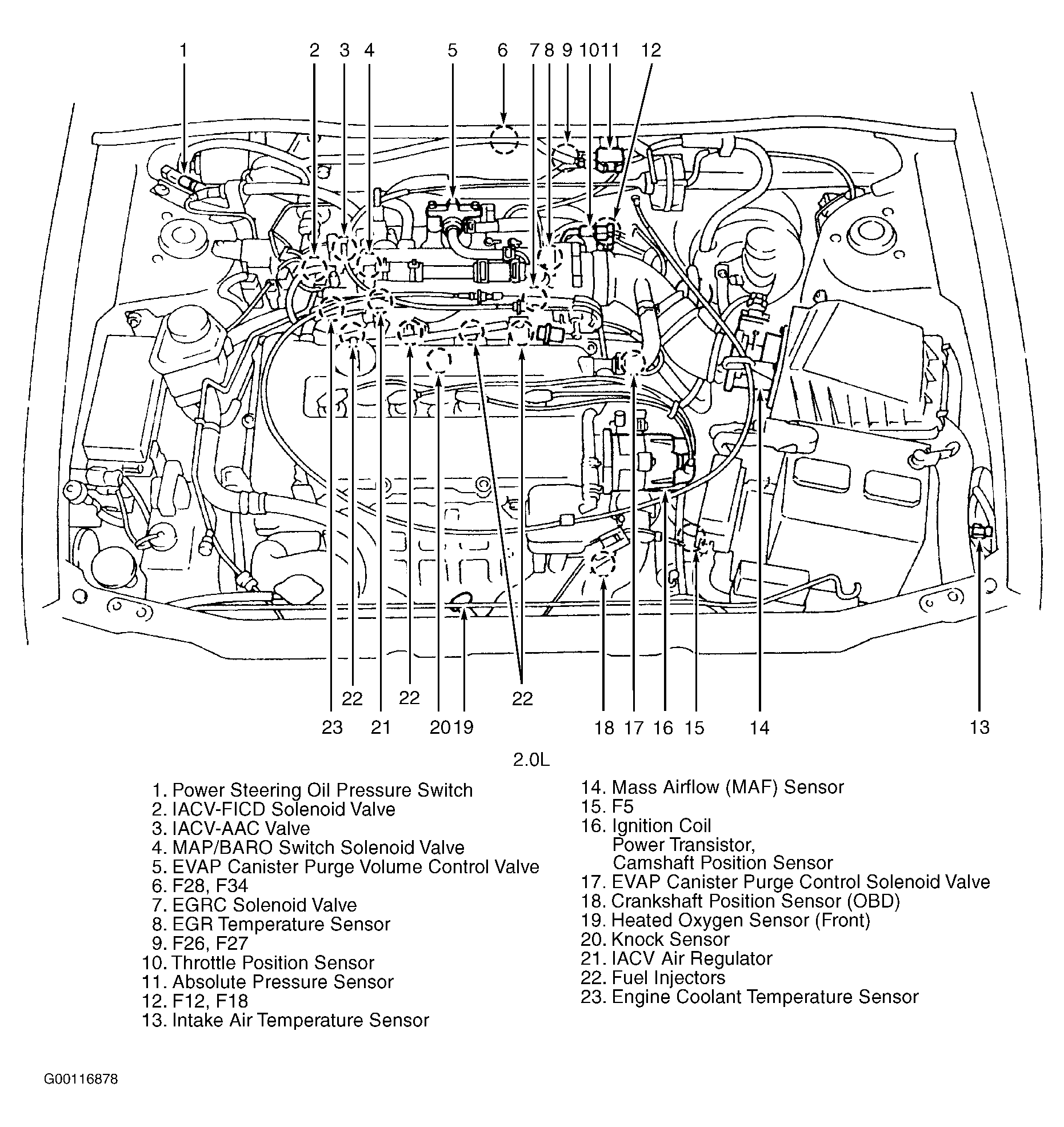

| Ignition Coil (2.0L) | In distributor. See Figure . |
| Joint Connector No. 1 | Behind center of dash, taped to harness. |
| Joint Connector No. 2 | Behind center of dash, taped to harness. |
| Joint Connector No. 3 (1.6L) | Above left kick panel, taped to harness. |
| Power Transistor (1.6L) | In distributor. See Figure . |
| Power Transistor (2.0L) | In distributor. See Figure . |
| Resistor (Ignition) | On rear of engine, near distributor. |
| Super Multiple Junction (SMJ) | Behind dash, left of steering column. See Figure . |
