Steering Linkage: Components

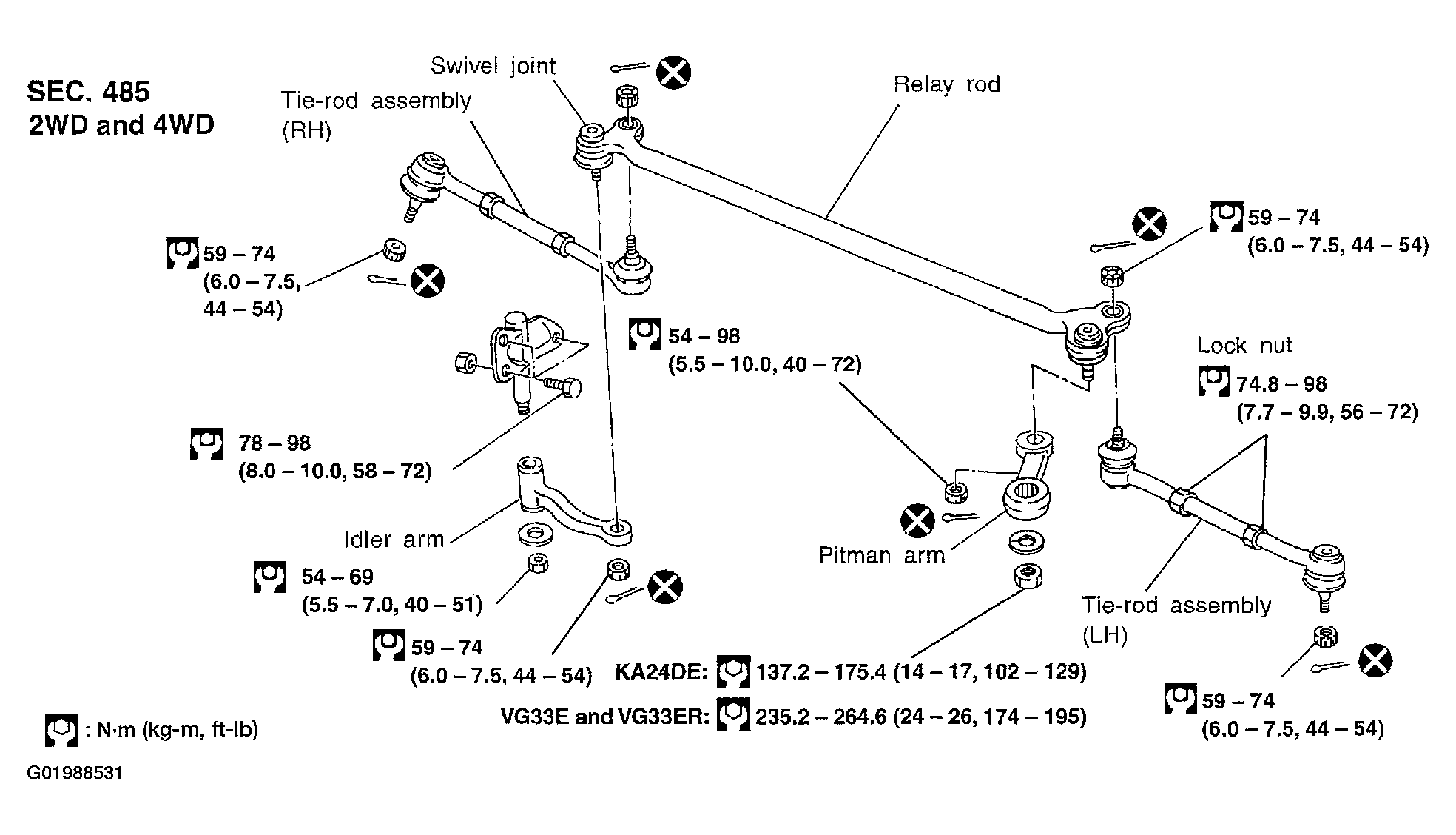

Fig 1: Identifying Steering Linkage Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
