Component Locations

COMPONENT LOCATIONS

Component	Location
Body Ground B106	Behind Right Back Seat Finisher, See Fig 1
Body Ground B127	Behind Right Lower Pillar Garnish, See Fig 2
Body Ground M9	Behind Left Side Of Dash, See Fig 3
Body Ground M25	Behind Left Side Of Dash, Next To Fuse Block (J/B), See Fig 4
Body Ground M87	Under Hood, On Motor, Next To Intake Unit, See Fig 5
Circuit Breaker	Behind Left Side Of Dash. See Fig 6
Fuse Block (J/B)	Behind Left Side Of Dash, See Fig 7
Fuse & Fusible Link Box	Under Hood, In Front Of Left Strut Pillar, See Fig 8
Main Power Window & Door Lock/Unlock Switch	On Front Left Door Arm Rest, See Fig 9
Power Window Relay	Behind Left Side Of Dash, See Fig 10
Smart Entrance Control Unit	Behind Left Side Of Dash, See Fig 11

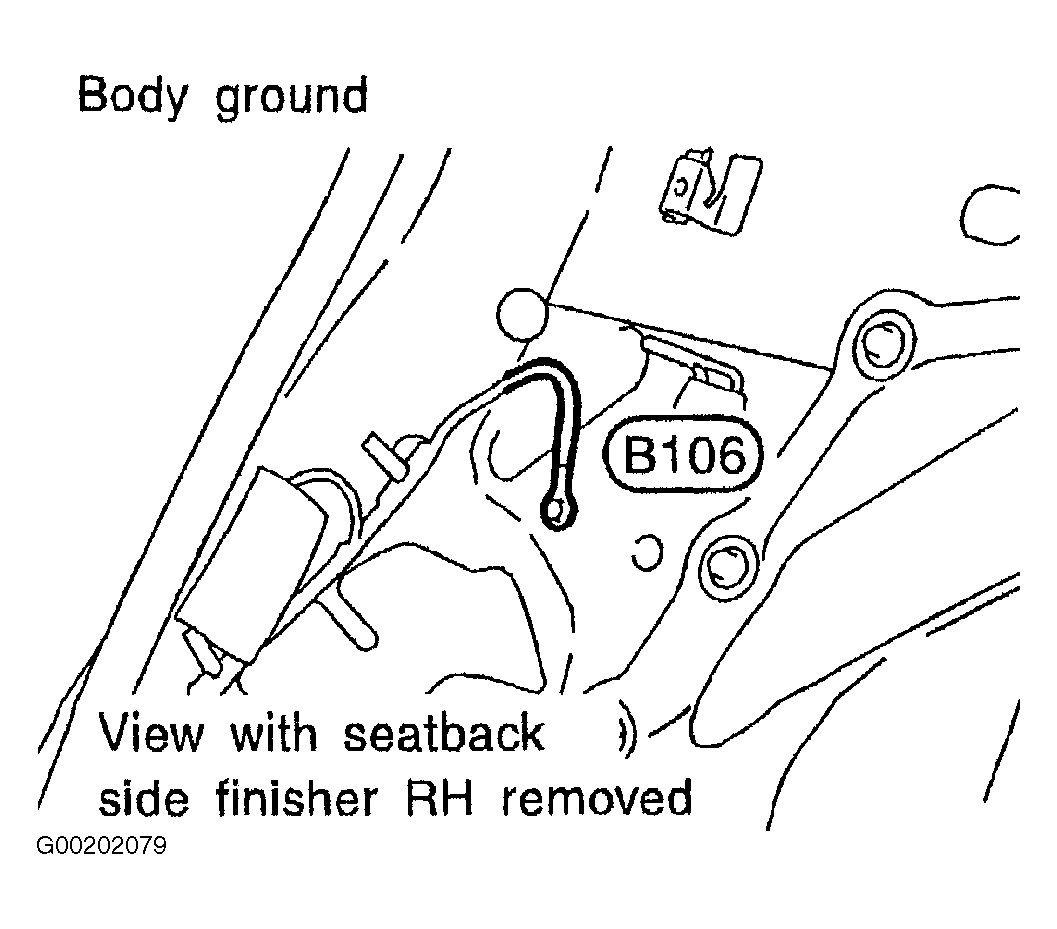

Fig 1: Locating Body Ground B106

G00202079

Courtesy of NISSAN MOTOR CO., U.S.A.

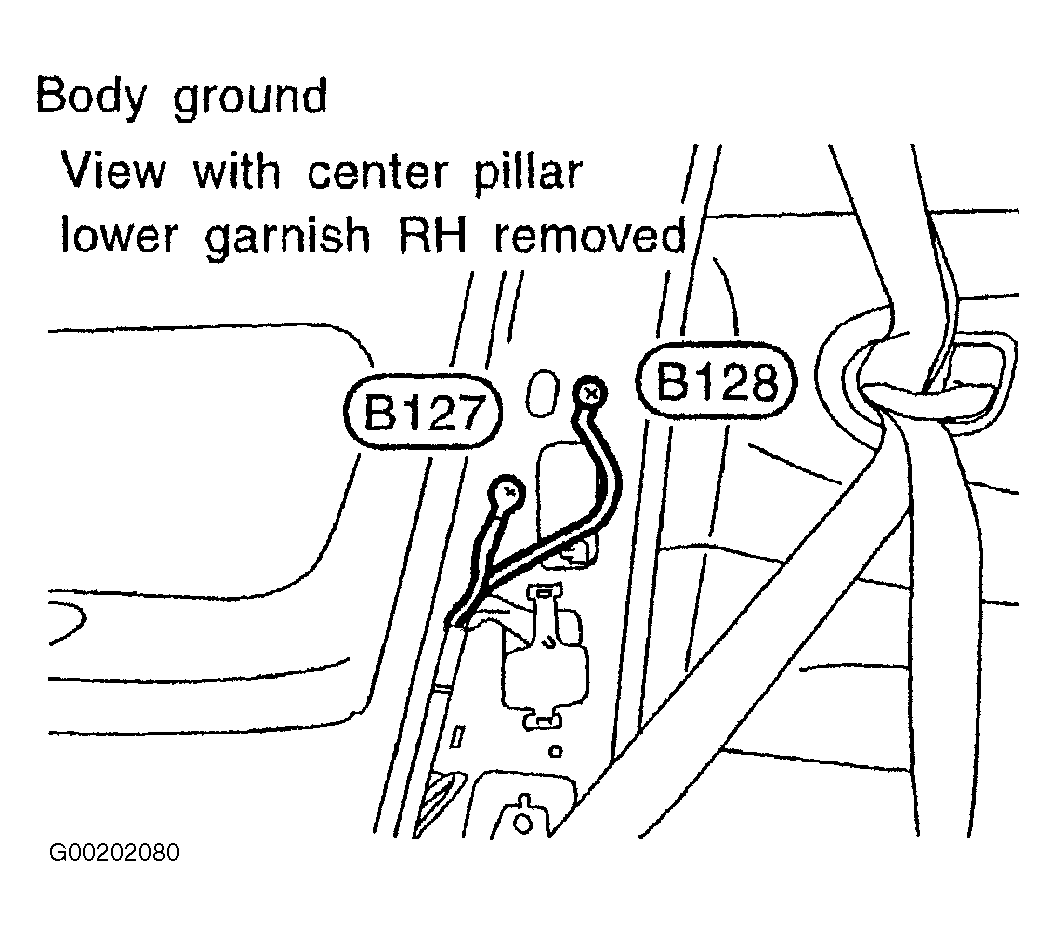

Fig 2: Locating Body Ground B127

G00202080

Courtesy of NISSAN MOTOR CO., U.S.A.

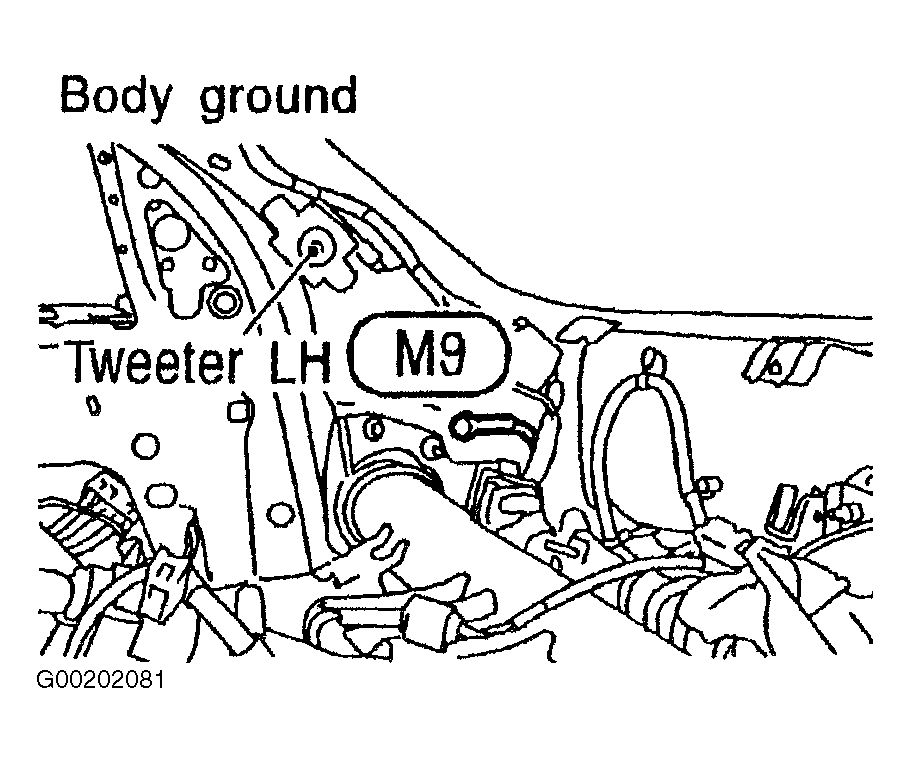

Fig 3: Locating Body Ground M9

G00202081

Courtesy of NISSAN MOTOR CO., U.S.A.

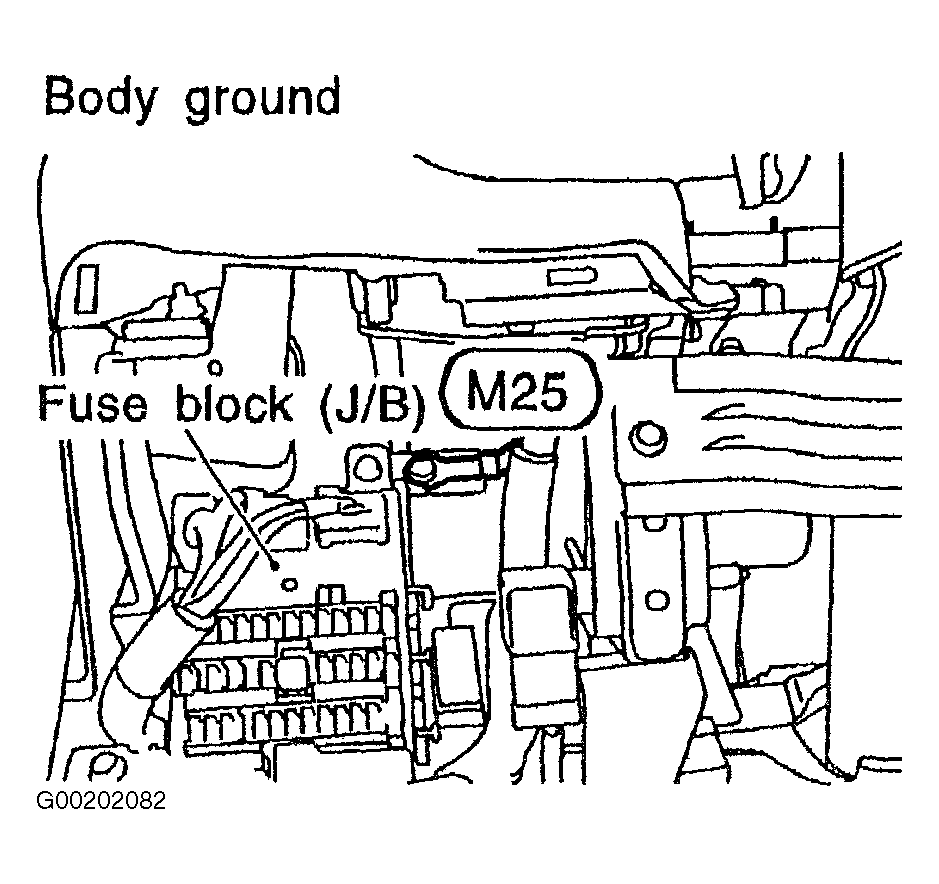

Fig 4: Locating Body Ground M25

G00202082

Courtesy of NISSAN MOTOR CO., U.S.A.

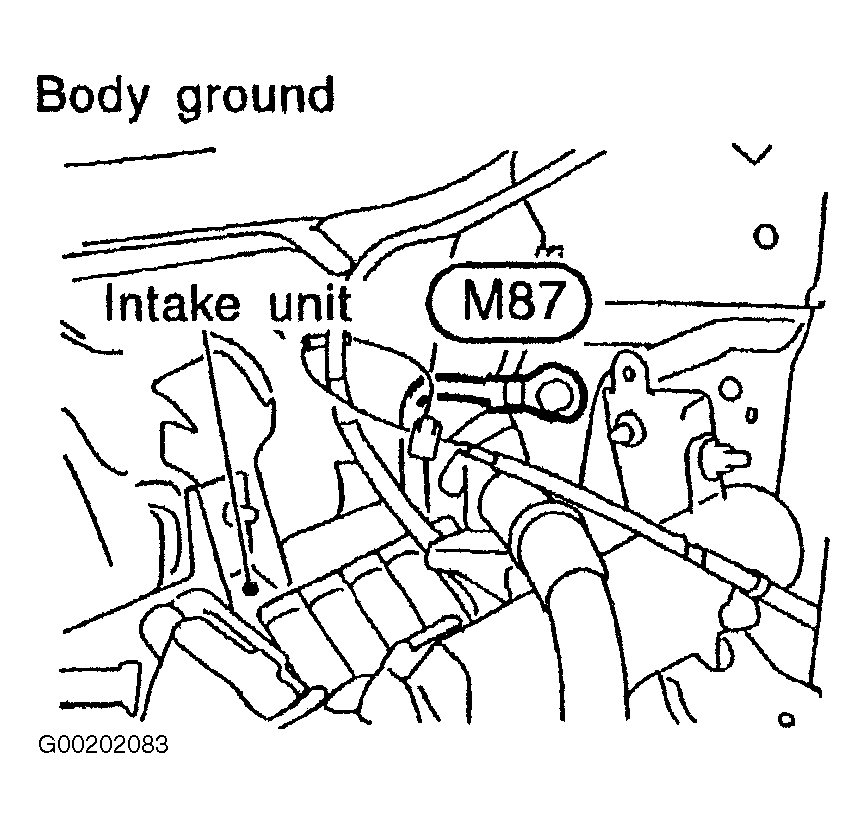

Fig 5: Locating Body Ground M87

G00202083

Courtesy of NISSAN MOTOR CO., U.S.A.

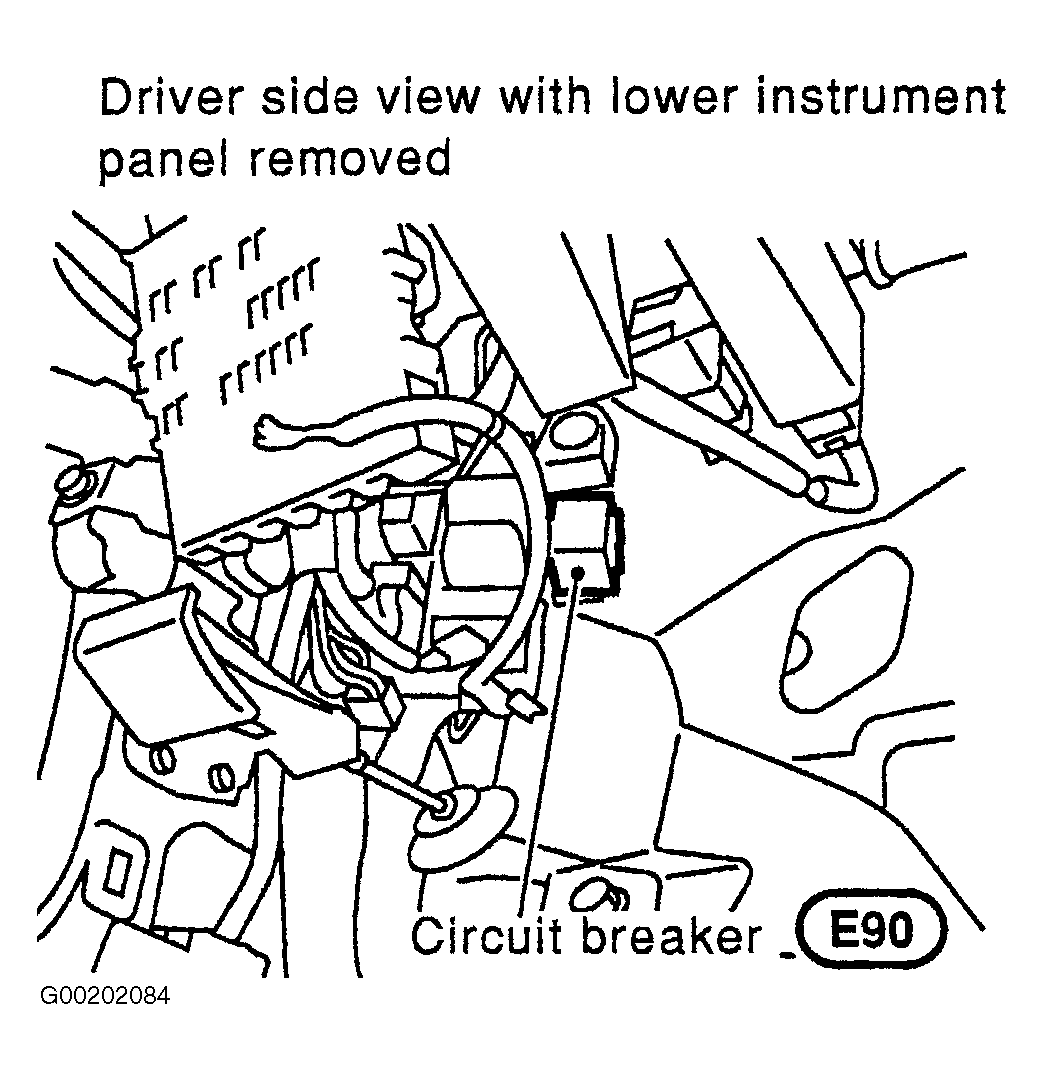

Fig 6: Locating Circuit Breaker

G00202084

Courtesy of NISSAN MOTOR CO., U.S.A.

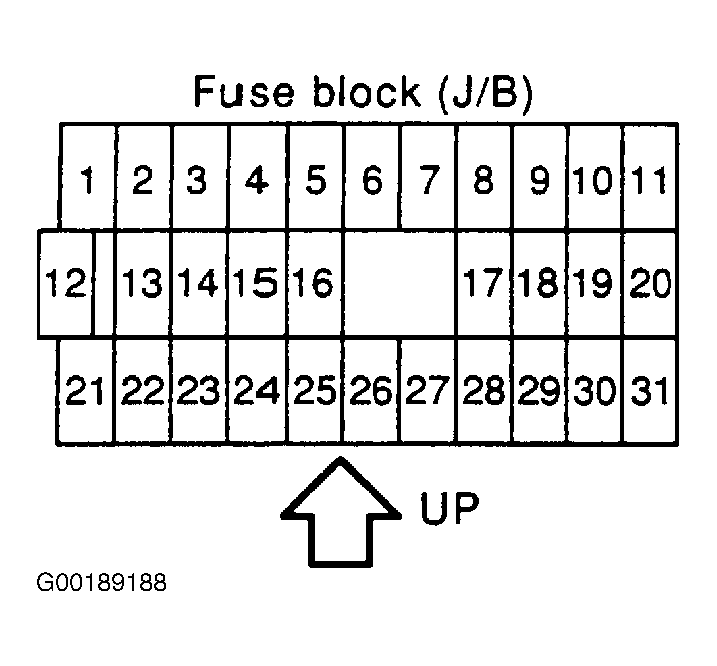

Fig 7: Identifying Fuse Block (J/B) Fuse Locations

G00189188

Courtesy of NISSAN MOTOR CO., U.S.A.

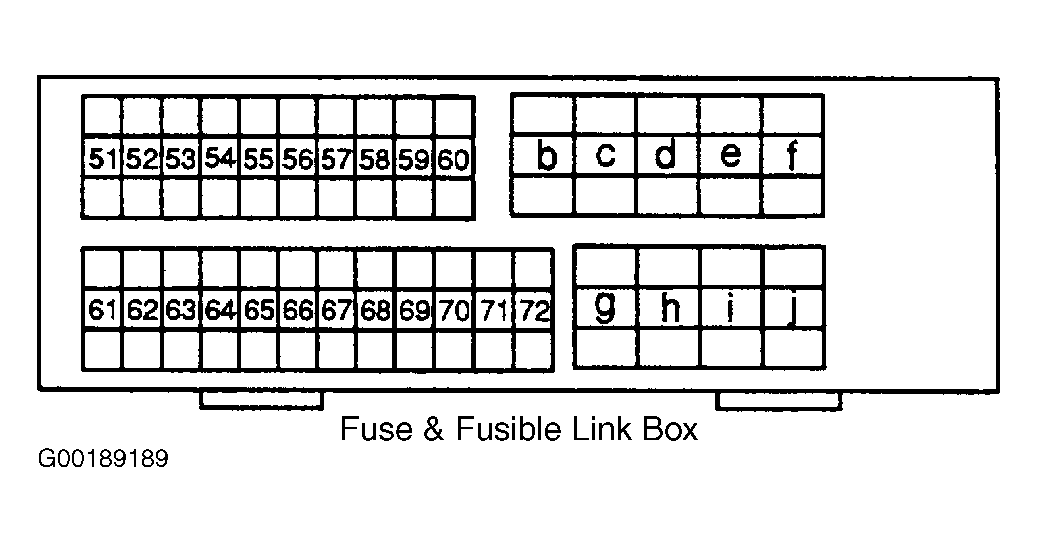

Fig 8: Identifying Fuse & Fusible Link Box Fuse & Fusible Link Locations

G00189189

Courtesy of NISSAN MOTOR CO., U.S.A.

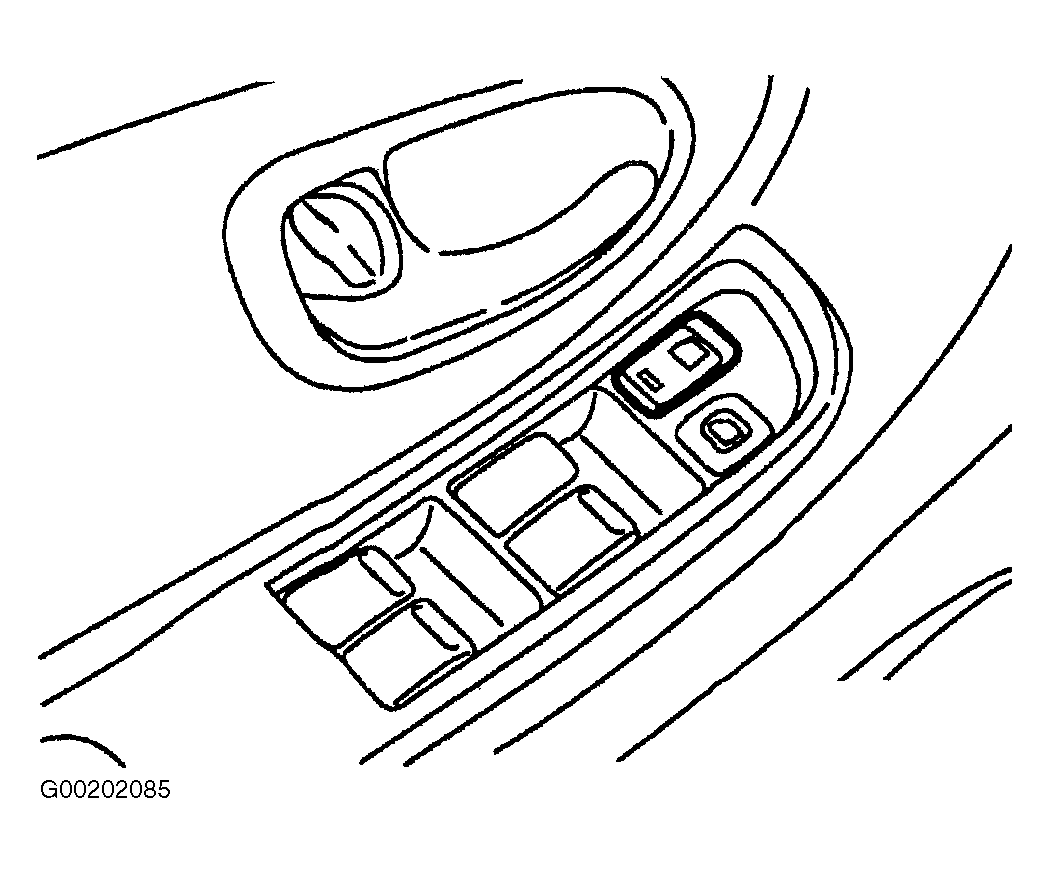

Fig 9: Locating Main Power Switch Window

G00202085

Courtesy of NISSAN MOTOR CO., U.S.A.

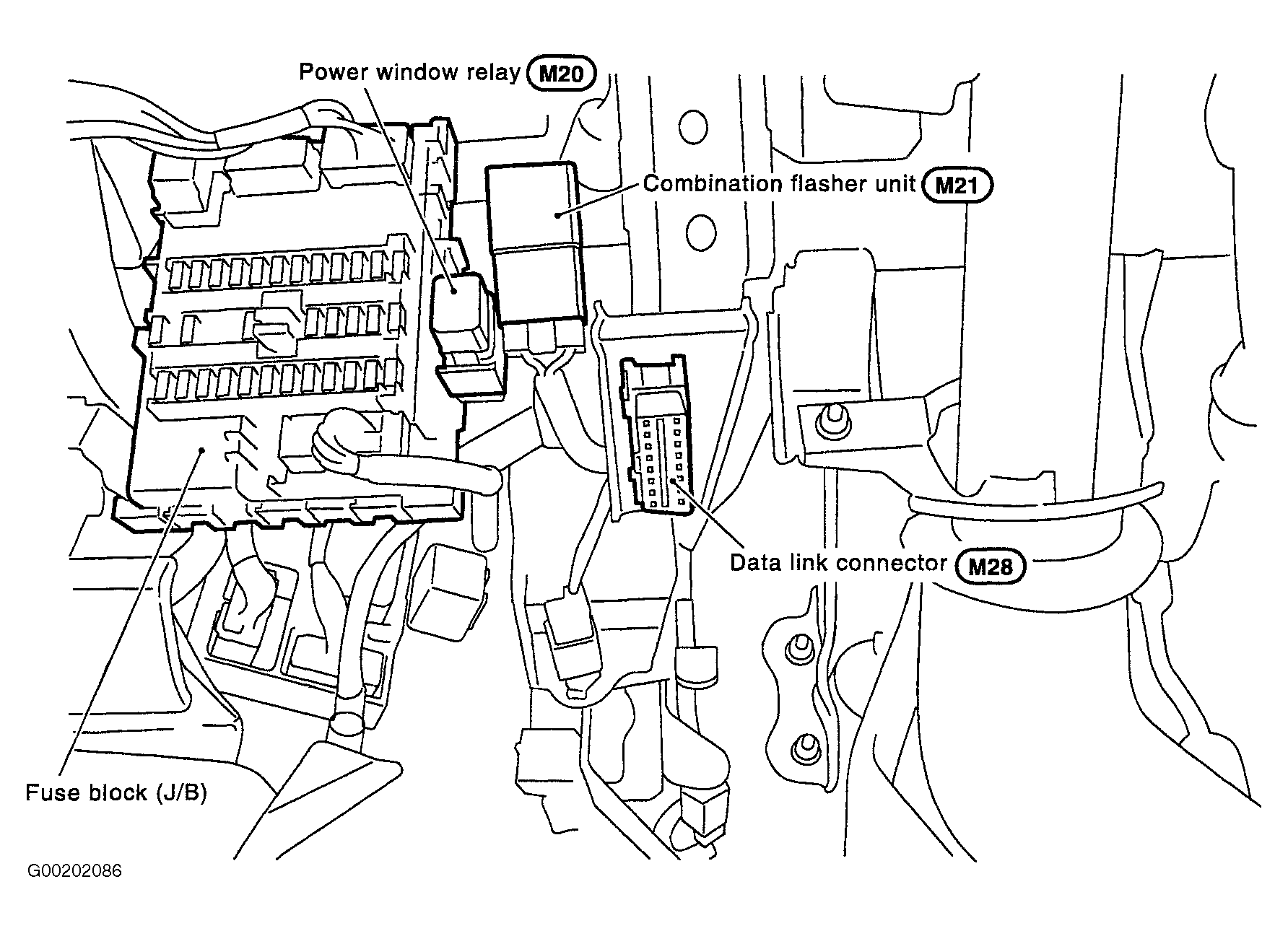

Fig 10: Locating Power Window Relay

G00202086

Courtesy of NISSAN MOTOR CO., U.S.A.

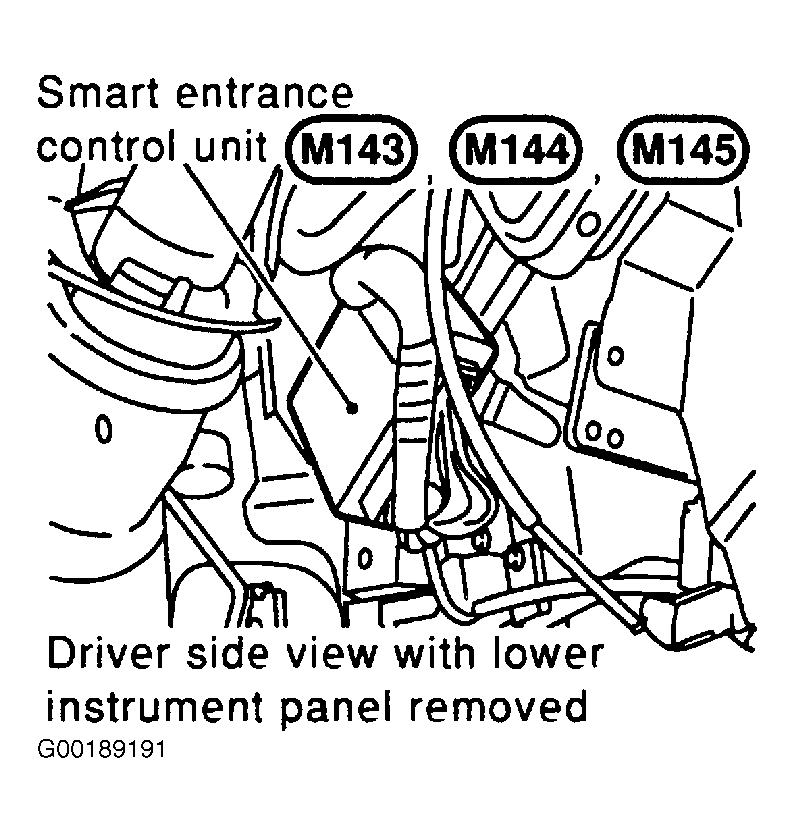

Fig 11: Locating Smart Entrance Control Unit

G00189191

Courtesy of NISSAN MOTOR CO., U.S.A.
