Encoder & Limit Switch Check

NOTE: For wiring diagrams, see WIRING DIAGRAMS .

NOTE: For front door glass limit reset, see FRONT DOOR GLASS LIMIT SWITCH RESET .

For encoder and limit switch check, see Fig 1 -Fig 9 .

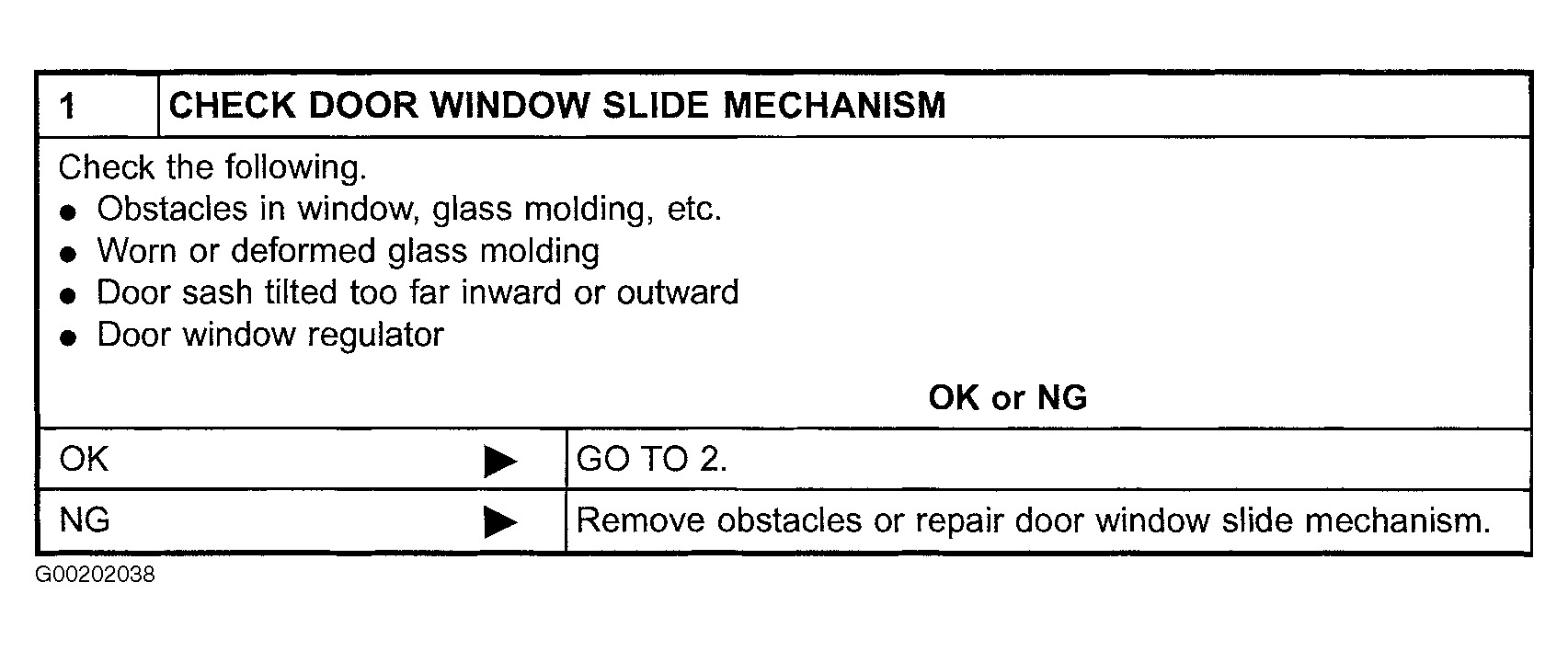

Fig 1: Identifying Encoder & Limit Switch Check, Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

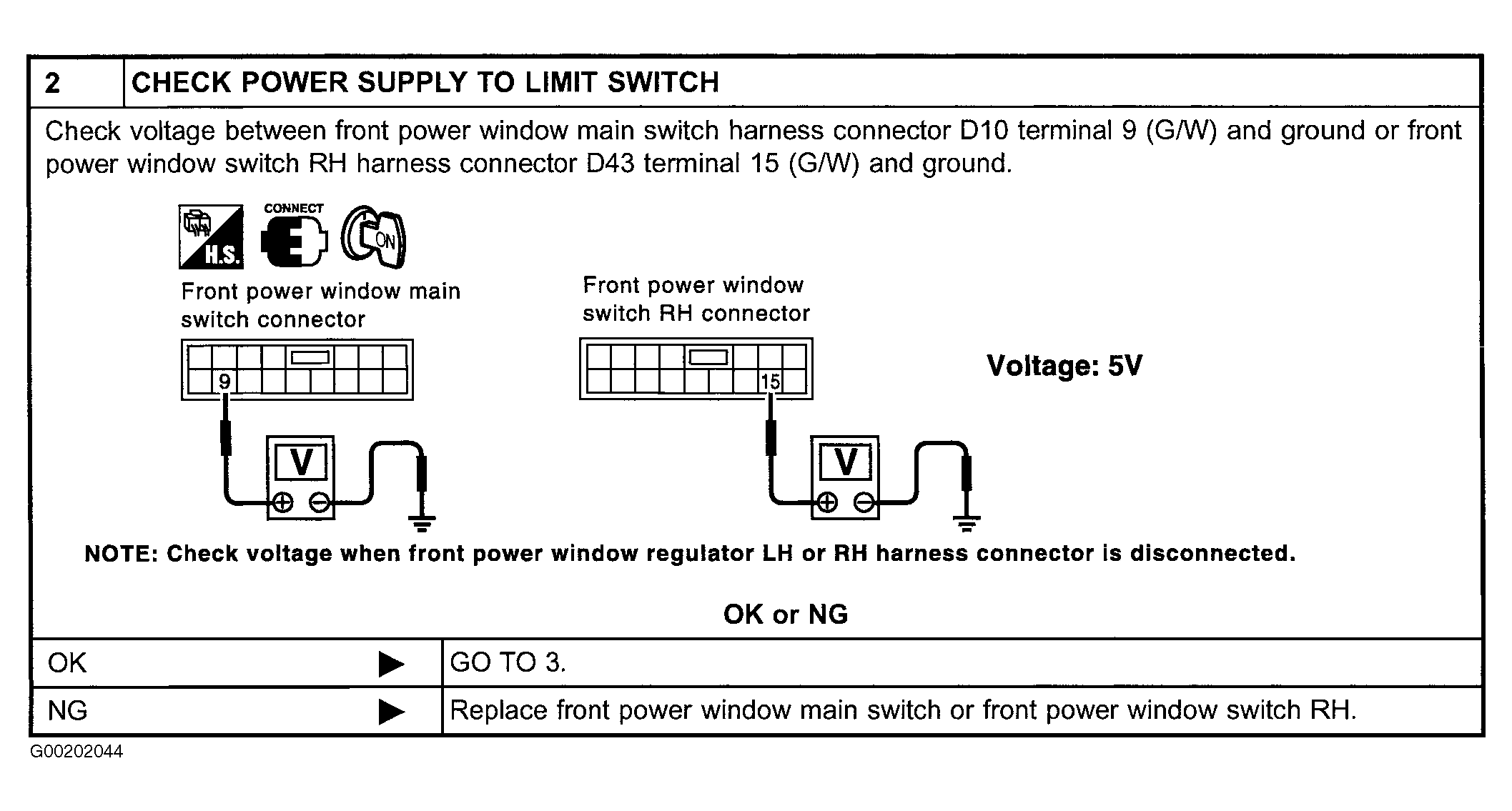

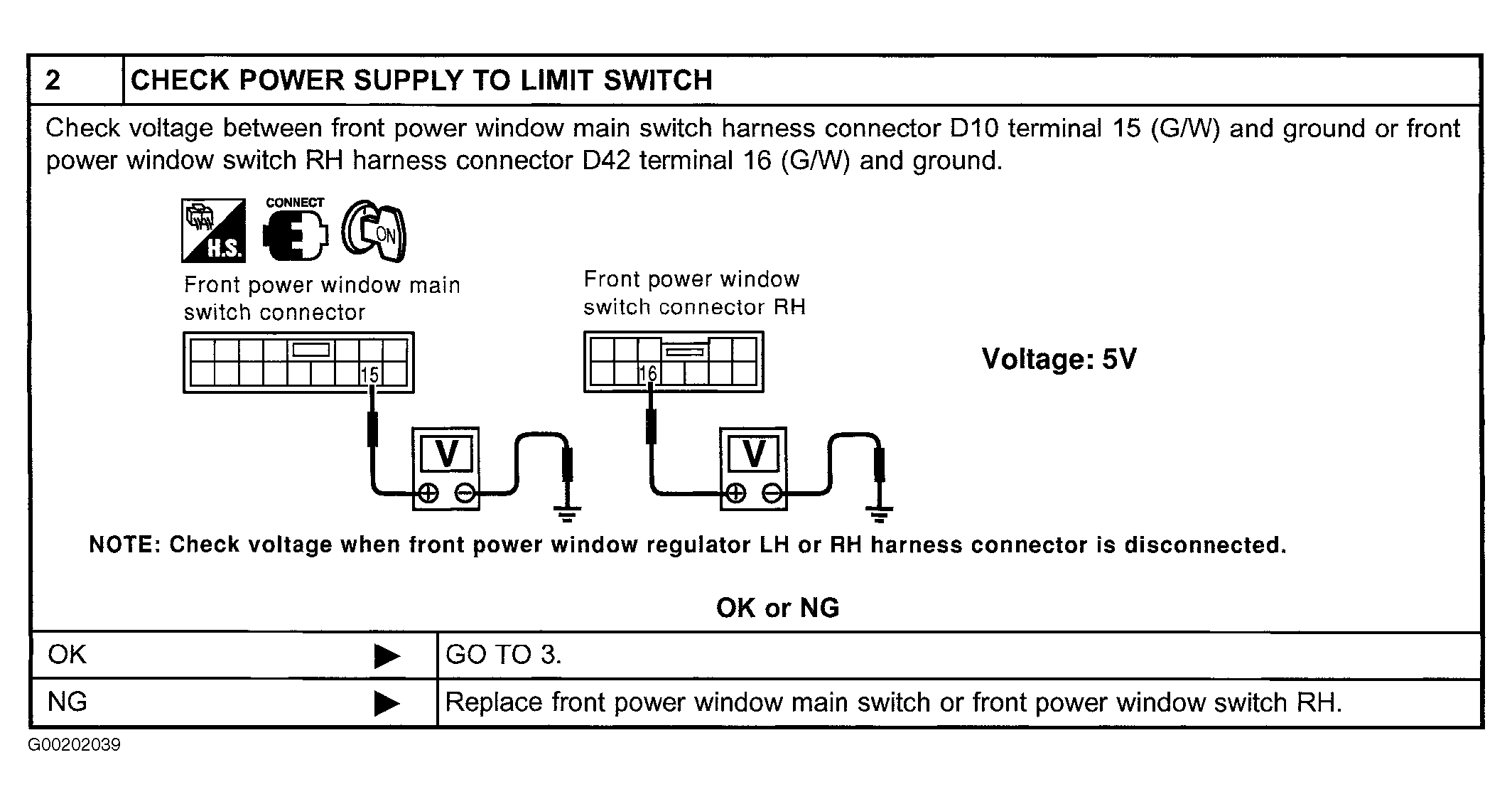

Fig 2: Identifying Encoder & Limit Switch Check, Step 2 (2002 Model)

Courtesy of NISSAN MOTOR CO., U.S.A.

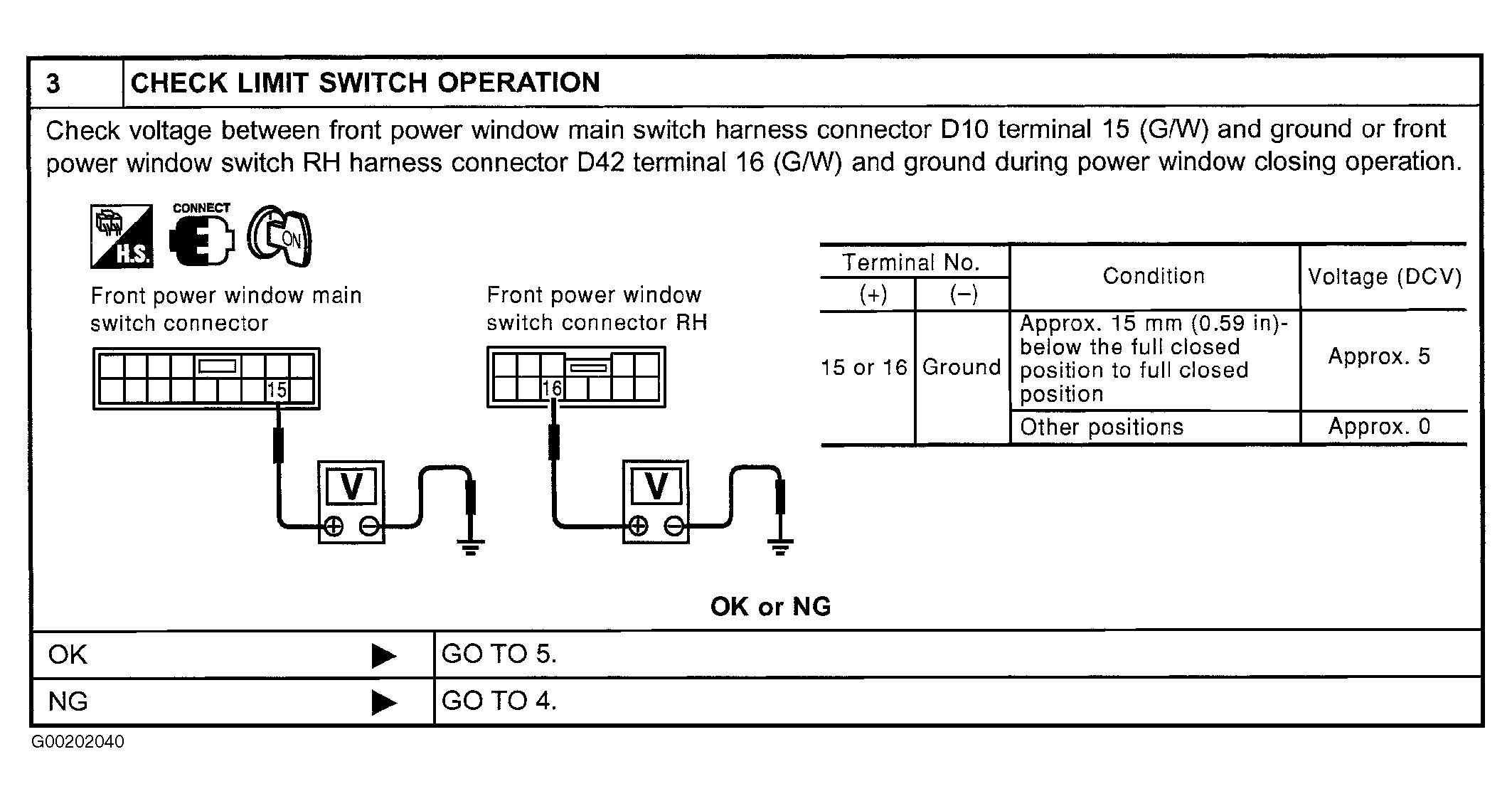

Fig 3: Identifying Encoder & Limit Switch Check, Step 2 (2003 Model)

Courtesy of NISSAN MOTOR CO., U.S.A.

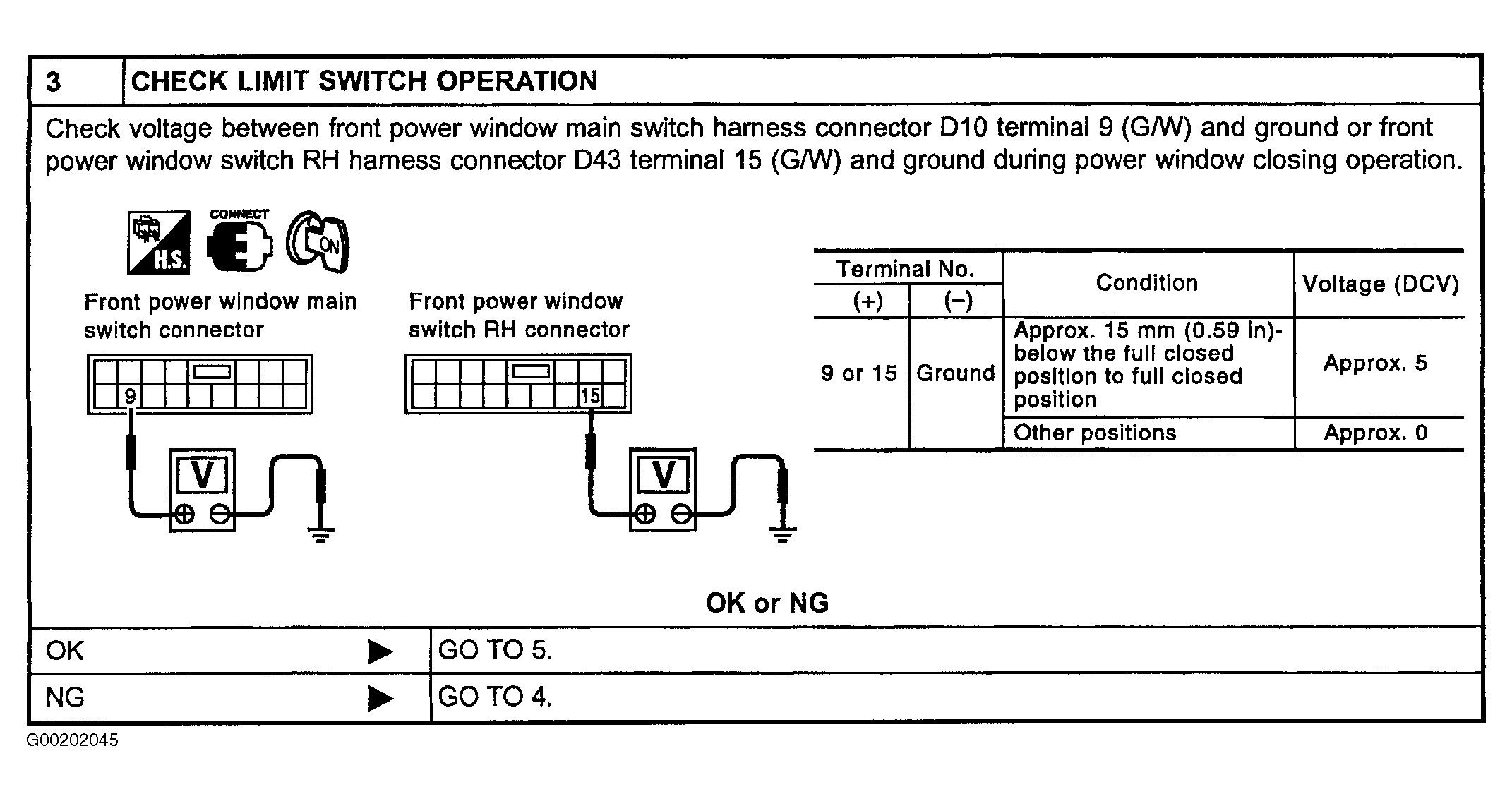

Fig 4: Identifying Encoder & Limit Switch Check, Step 3 (2002 Model)

Courtesy of NISSAN MOTOR CO., U.S.A.

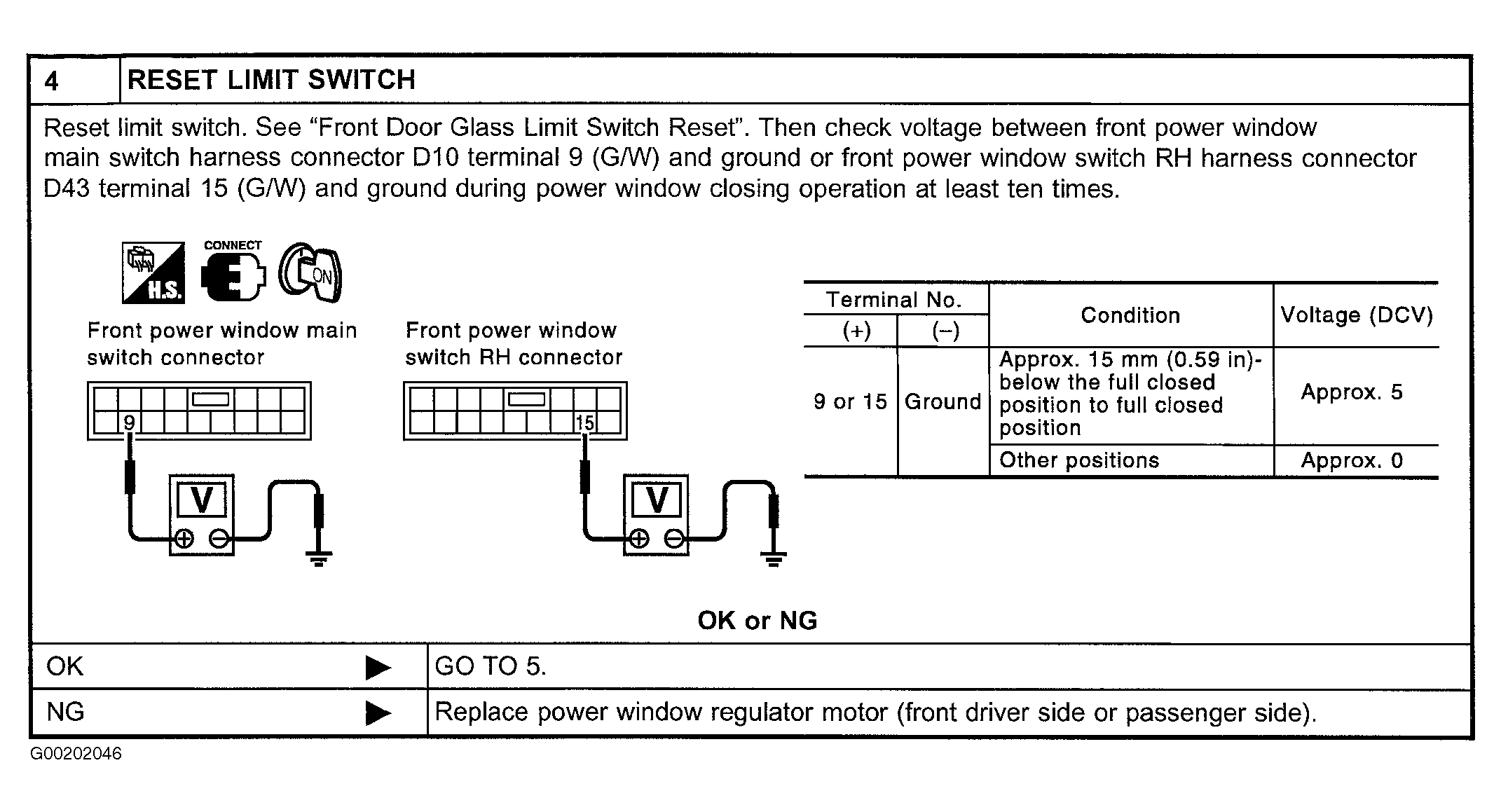

Fig 5: Identifying Encoder & Limit Switch Check, Step 3 (2003 Model)

Courtesy of NISSAN MOTOR CO., U.S.A.

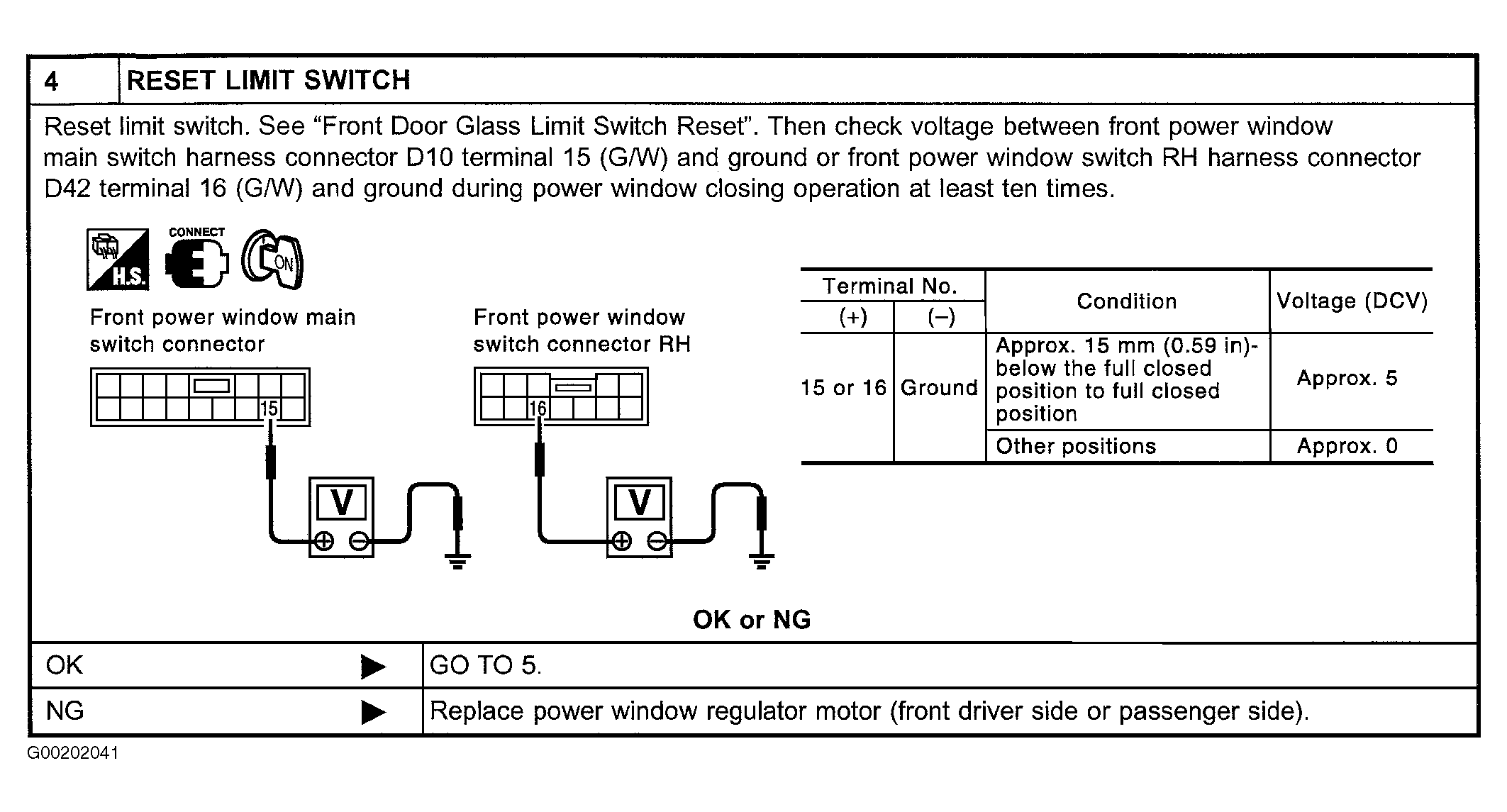

Fig 6: Identifying Encoder & Limit Switch Check, Step 4 (2002 Model)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Encoder & Limit Switch Check, Step 4 (2003 Model)

Courtesy of NISSAN MOTOR CO., U.S.A.

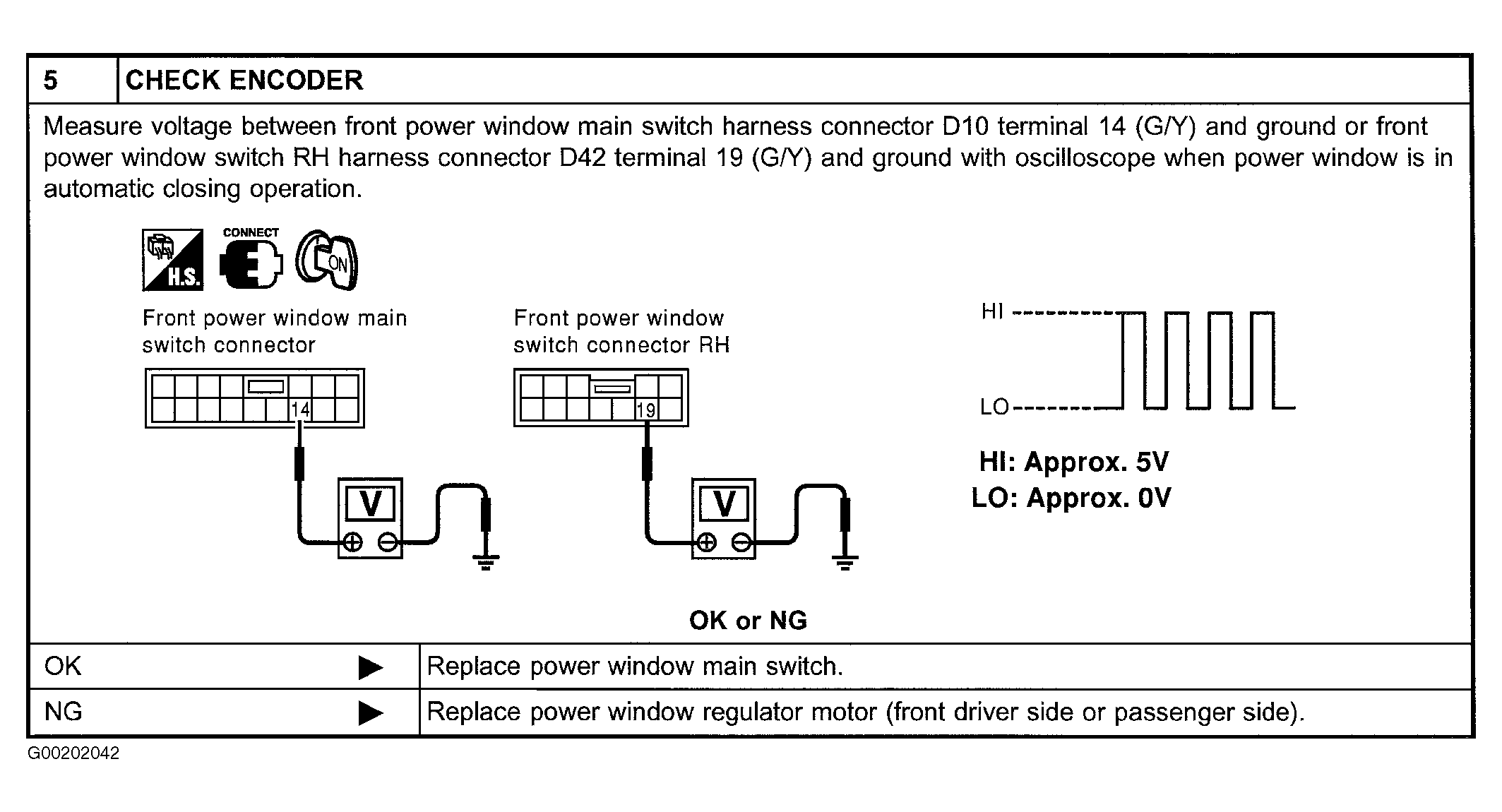

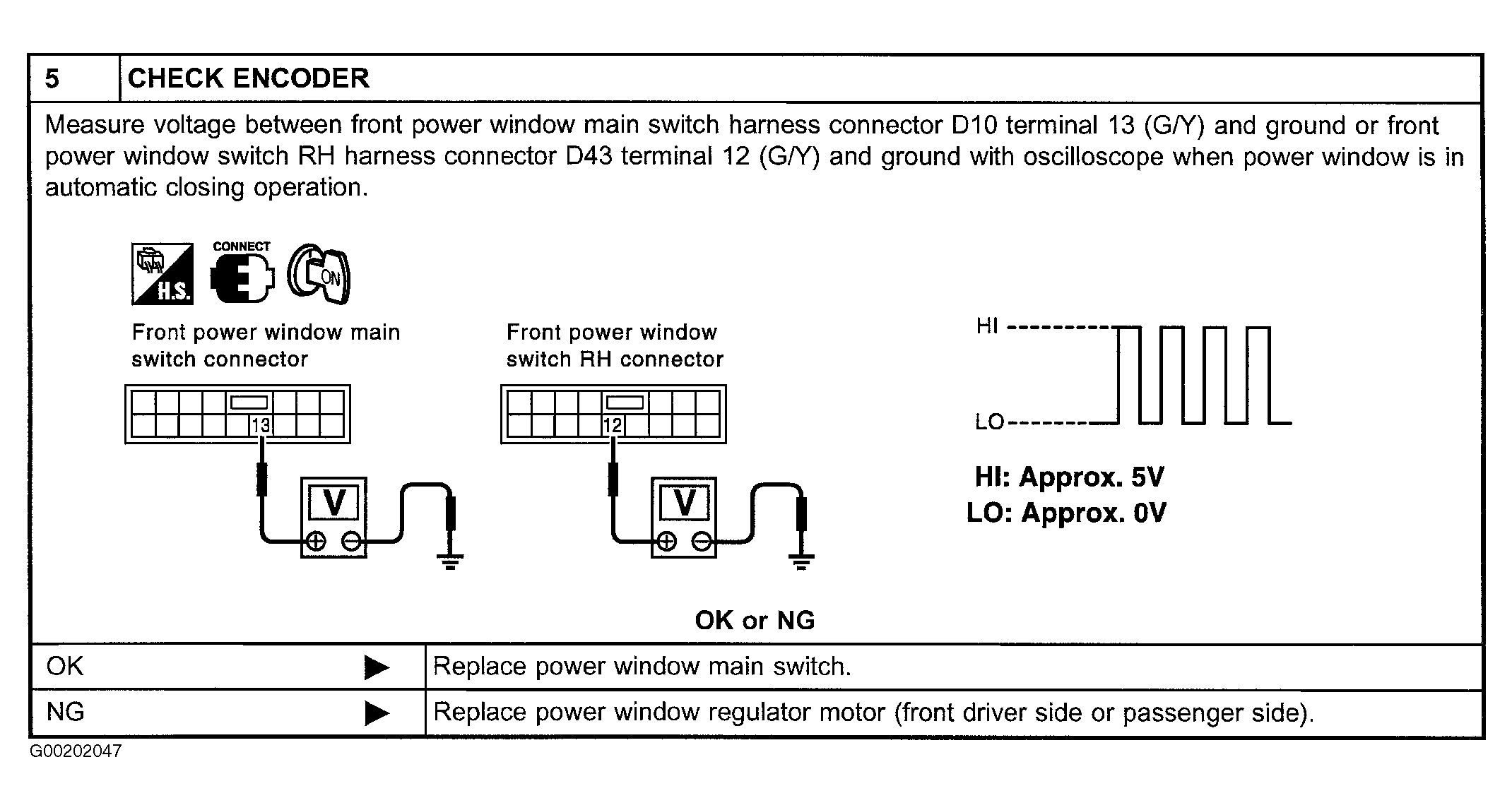

Fig 8: Identifying Encoder & Limit Switch Check, Step 5 (2002 Model)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Encoder & Limit Switch Check, Step 5 (2003 Model)

Courtesy of NISSAN MOTOR CO., U.S.A.
