System Tests: Notes

NOTE: For wiring diagrams, see WIRING DIAGRAMS .

NOTE: For Smart Entrance Control Unit, see SMART ENTRANCE CONTROL UNIT - FRONTIER article.

NOTE: For encoder and limit switch check, see ENCODER & LIMIT SWITCH CHECK .

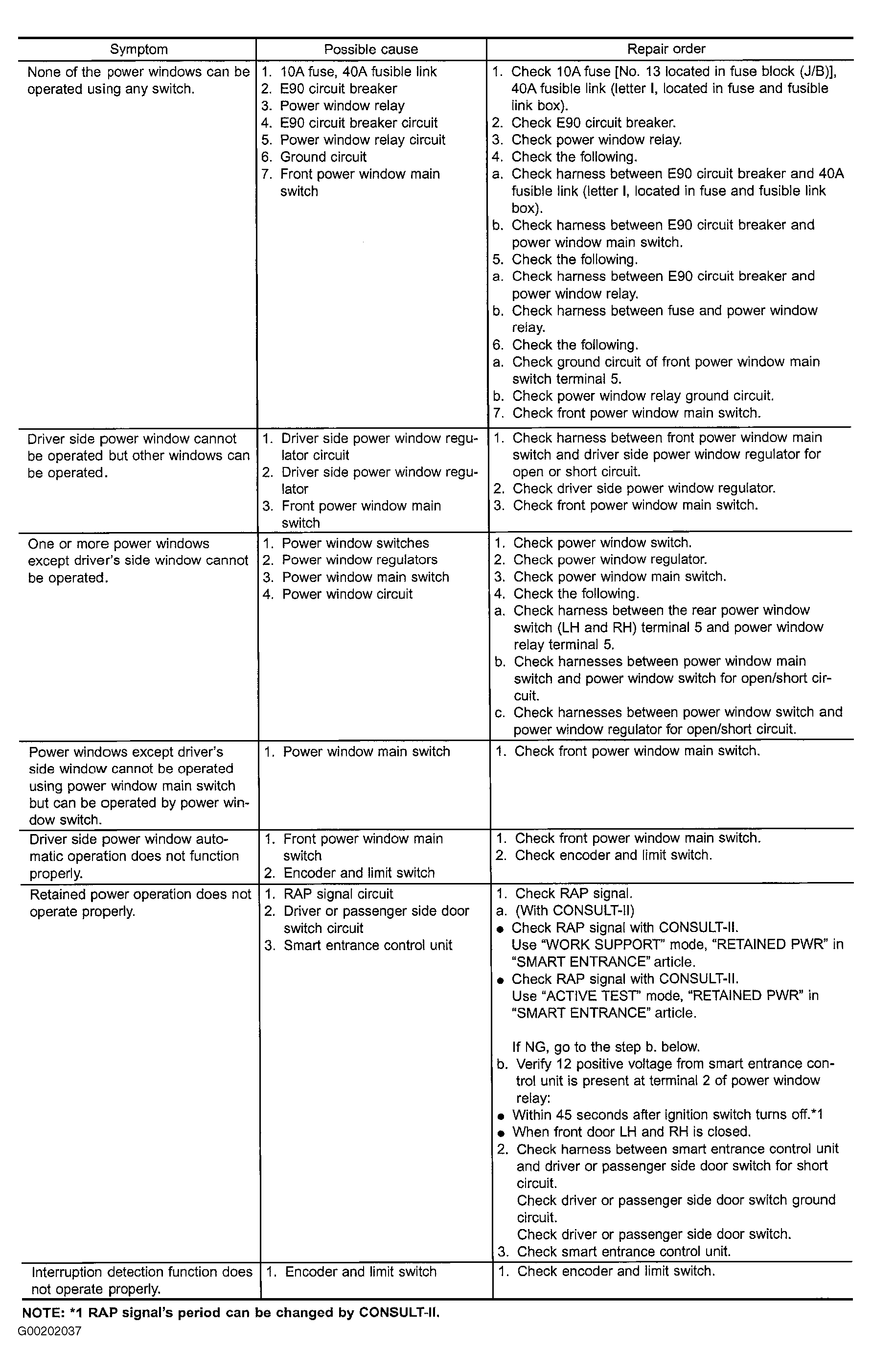

Fig 1: Identifying Symptom Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
