Model With Vehicle Dynamic Control (VDC) System

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Master cylinder cannot be disassembled. Remove reservoir only when absolutely necessary. DO NOT reuse grommets. See Fig 1.

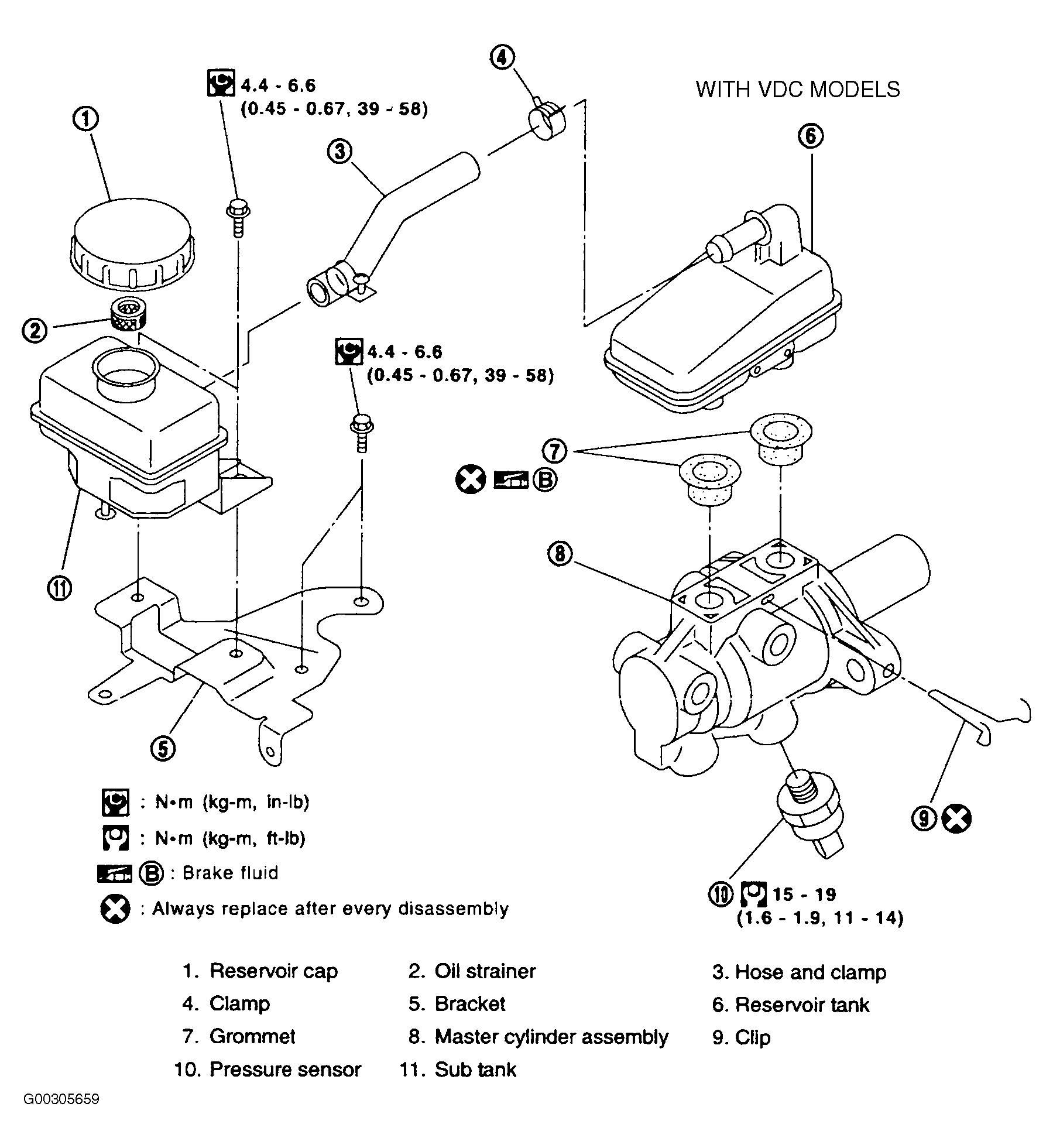

Fig 1: Exploded View Of Brake Master Cylinder Components (With VDC Model)

Courtesy of NISSAN MOTOR CO., U.S.A.
