Ignition Signal Circuits: Pathfinder

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Nissan Xterra, 2003 Nissan Sentra, 2003 Nissan Pathfinder, 2003 Nissan Murano, and 2003 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

For ignition signal circuit system and component testing, see Fig 1-Fig 10 . For diagnosis of ECM power supply circuit, see POWER & GROUND CIRCUITS (PATHFINDER) . For intermittent problem, see INTERMITTENTS in TROUBLE SHOOTING - NO CODES article.

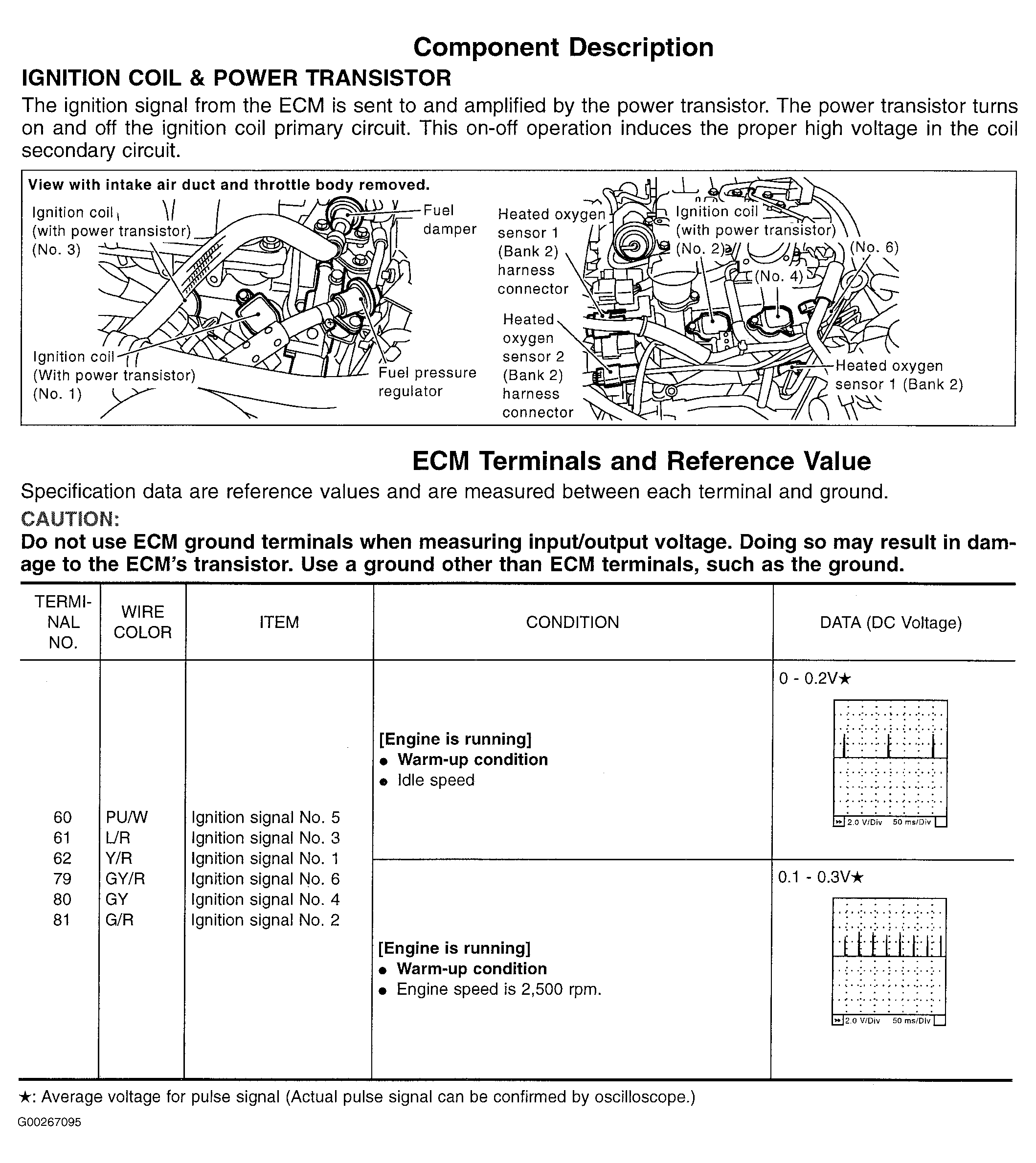

Fig 1: Ignition Signal Circuit System & Component Testing Procedure (Pathfinder - 1 Of 10)

G00267095

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Ignition Signal Circuit System & Component Testing Procedure (Pathfinder - - 2 Of 10)

G00267096

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Ignition Signal Circuit System & Component Testing Procedure (Pathfinder - 3 Of 10)

G00267097

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Ignition Signal Circuit System & Component Testing Procedure (Pathfinder - 4 Of 10)

G00267098

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Ignition Signal Circuit System & Component Testing Procedure (Pathfinder - 5 Of 10)

G00267099

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Ignition Signal Circuit System & Component Testing Procedure (Pathfinder - 6 Of 10)

G00267100

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Ignition Signal Circuit System & Component Testing Procedure (Pathfinder - 7 Of 10)

G00267101

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Ignition Signal Circuit System & Component Testing Procedure (Pathfinder - 8 Of 10)

G00272717

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Ignition Signal Circuit System & Component Testing Procedure (Pathfinder - 9 Of 10)

G00272718

Courtesy of NISSAN MOTOR CO., U.S.A.

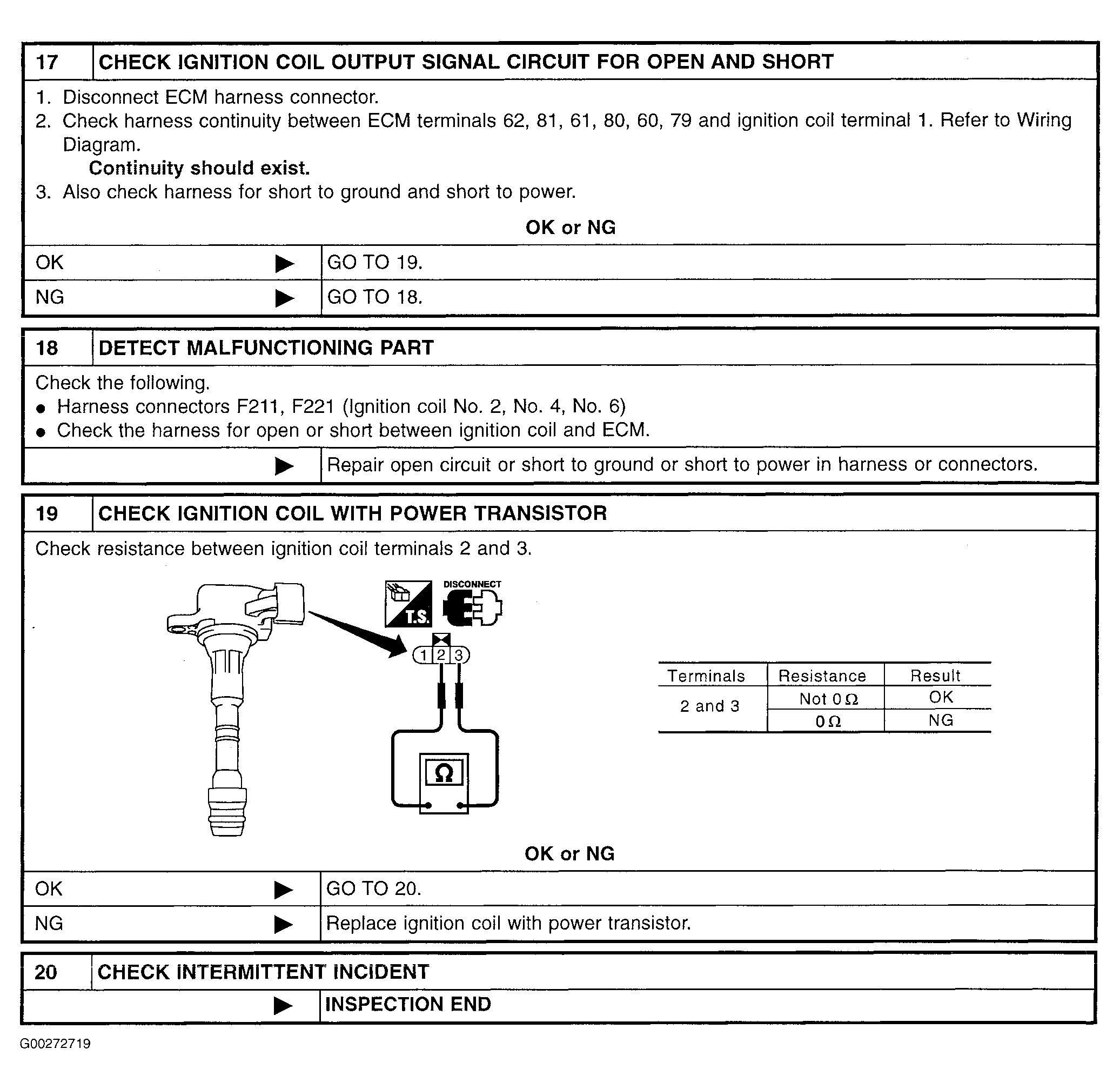

Fig 10: Ignition Signal Circuit System & Component Testing Procedure (Pathfinder - 10 Of 10)

G00272719

Courtesy of NISSAN MOTOR CO., U.S.A.
