Door Switch Check

CHECK DOOR SWITCH INPUT SIGNAL
With CONSULT-II

Check door switches ("DOOR SW-ALL") in "DATA MONITOR" mode with CONSULT-II.

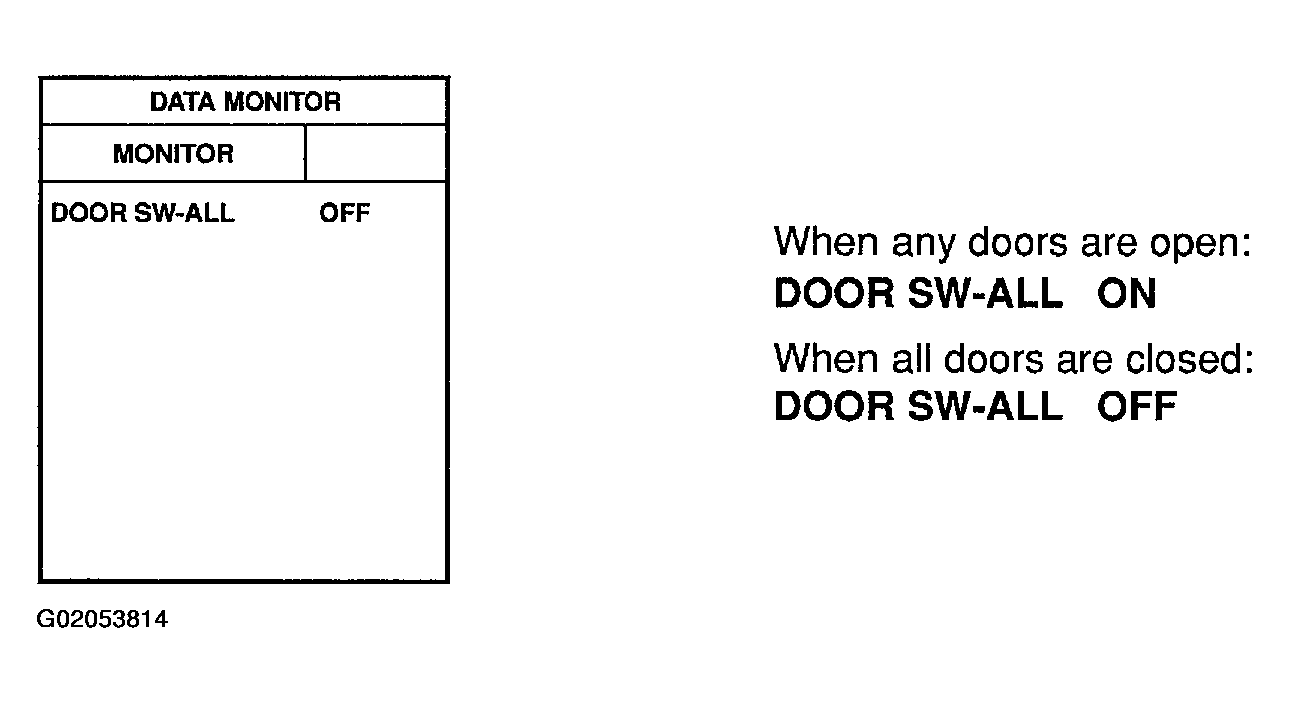

Fig 1: Checking Door Switches Door SW-ALL In Data Monitor Mode With CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

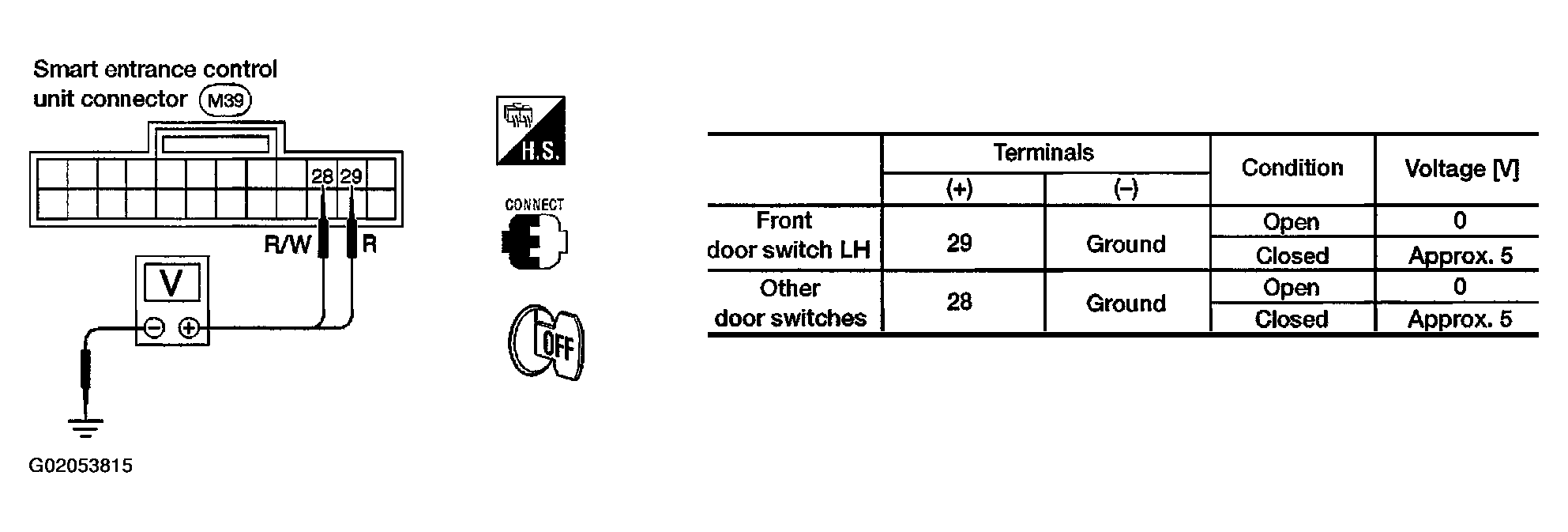

Check voltage between smart entrance control unit harness connector terminals 28 or 29 and ground.

Fig 2: Checking Voltage Between Smart Entrance Control Unit Harness Connector Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to Figure and Figure .

OK or NG
1. OK : Door switch is OK.
2. NG : GO TO 2.
CHECK DOOR SWITCH
1. Disconnect door switch harness connector.
2. Check continuity between door switch terminals.

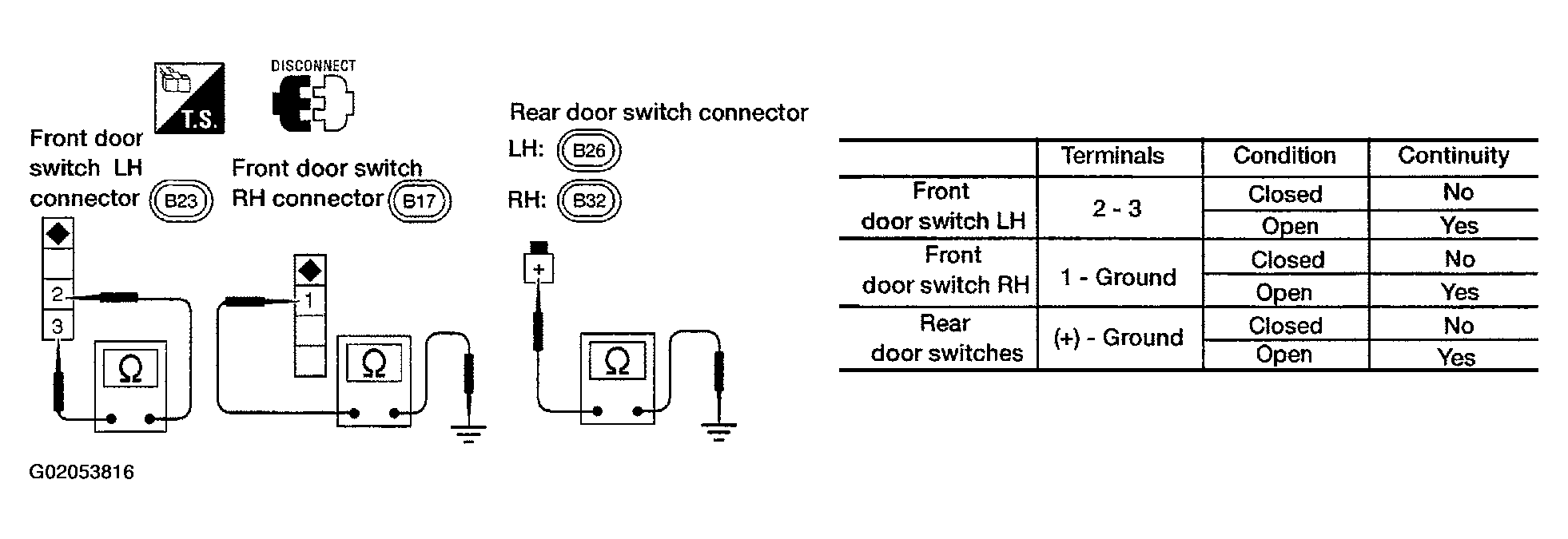

  Fig 3: Checking Continuity Between Door Switch Terminals
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : Check the following:
  - Door switch ground circuit or door switch ground condition
  - Harness for open or short between smart entrance control unit and door switch
2. NG : Replace door switch.
