Front LH Door Unlock Sensor Check

CHECK FRONT LH DOOR UNLOCK SENSOR INPUT SIGNAL
With CONSULT-II
1. Select "DATA MONITOR" mode in "INT LAMP" with CONSULT-II.
2. Check front LH door unlock sensor ("LOCK SIG DR") in "DATA MONITOR" mode.

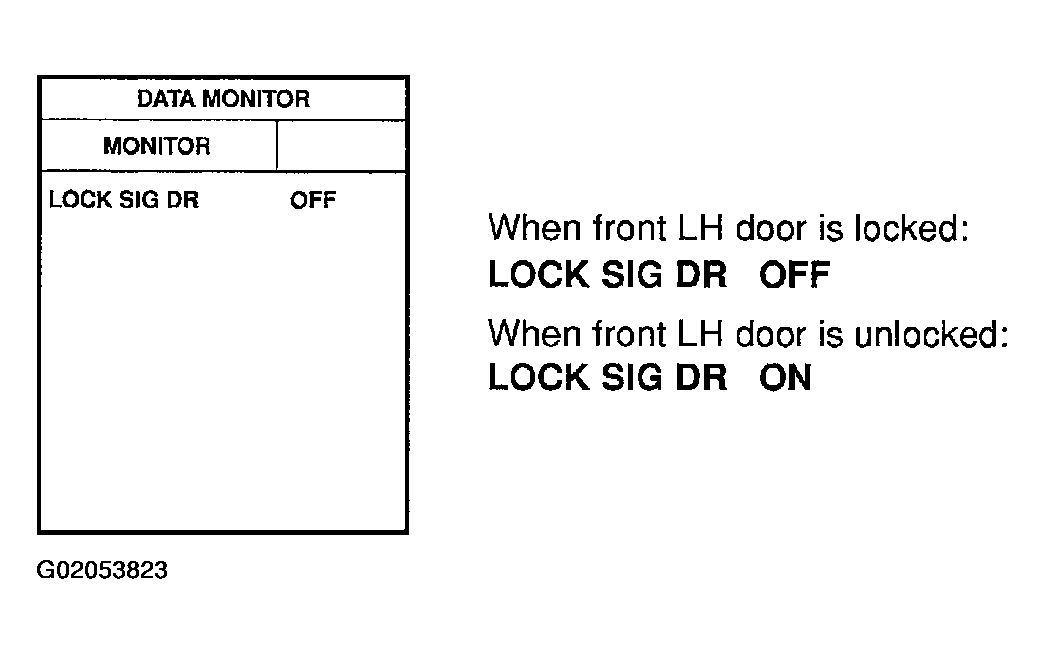

  Fig 1: Checking Front LH Door Unlock Sensor LOCK SIG DR In Data Monitor Mode
  Courtesy of NISSAN MOTOR CO., U.S.A.
Without CONSULT-II

Check voltage between smart entrance control unit harness connector terminal 36 and ground.

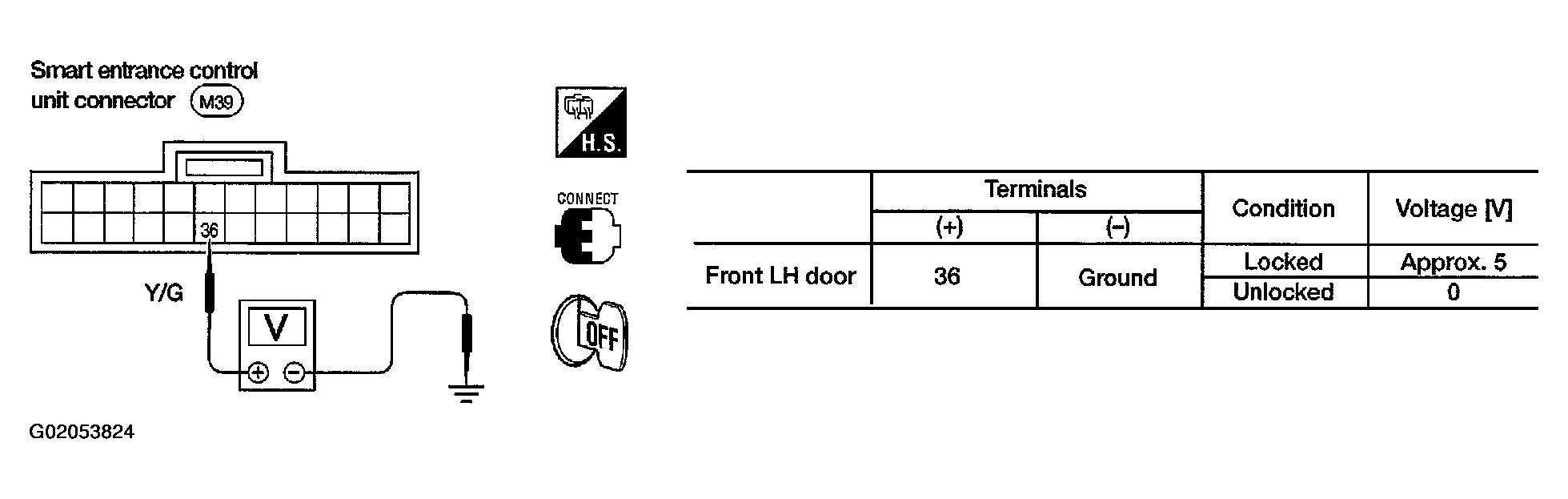

Fig 2: Checking Voltage Between Smart Entrance Control Unit Harness Connector Terminal 36 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to Figure and Figure .

OK or NG
1. OK : Door unlock sensor is OK.
2. NG : GO TO 2.
CHECK FRONT LH DOOR UNLOCK SENSOR
1. Disconnect front LH door unlock sensor harness connector.
2. Check continuity between door unlock sensor terminals.

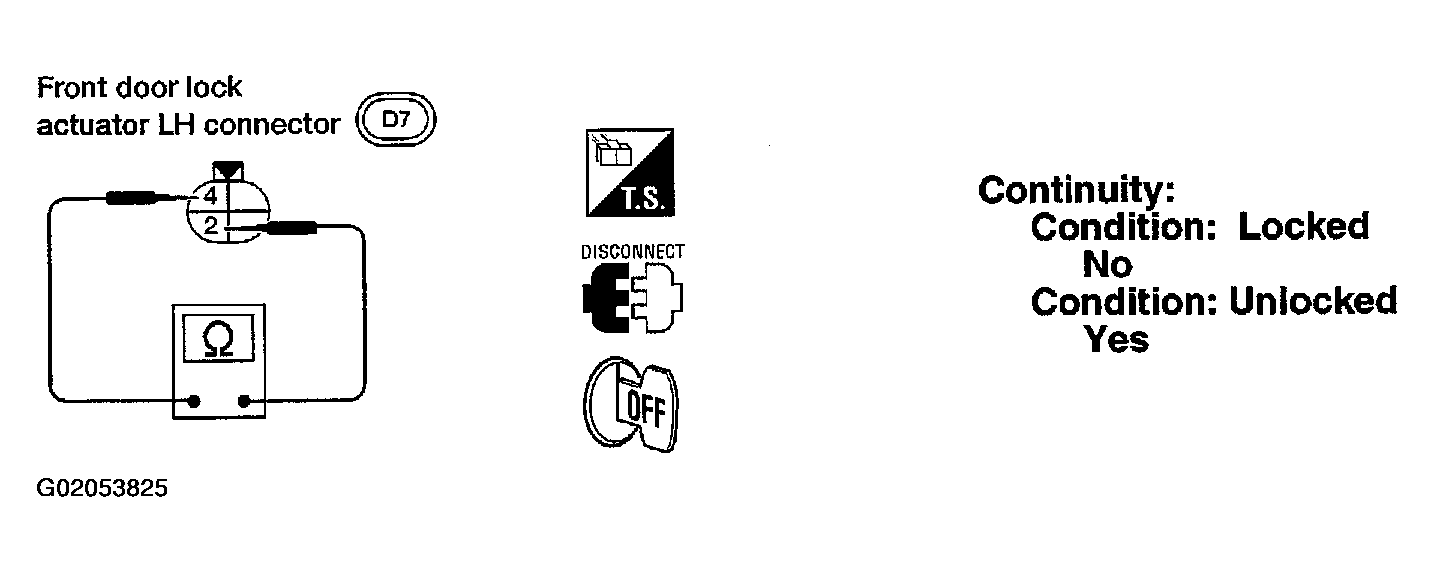

  Fig 3: Checking Continuity Between Door Unlock Sensor Terminals
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : Check the following:
  - Door unlock sensor ground circuit
  - Harness for open or short between smart entrance control unit and door unlock sensor
2. NG : Replace door unlock sensor.
