Abs Actuator & Control Unit Ground

Turn ignition Off. Using DVOM, check continuity between chassis ground and actuator motor ground connector terminals No. 16 (Black wire) and No. 19 (Black wire). See Fig 1 and Fig 2 . If continuity does not exist, repair circuit between actuator motor and ground.

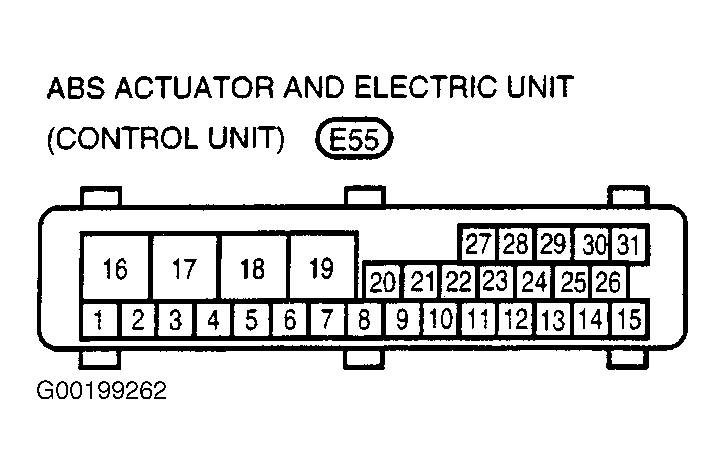

Fig 1: Identifying ABS Actuator & Control Unit Harness Connector Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

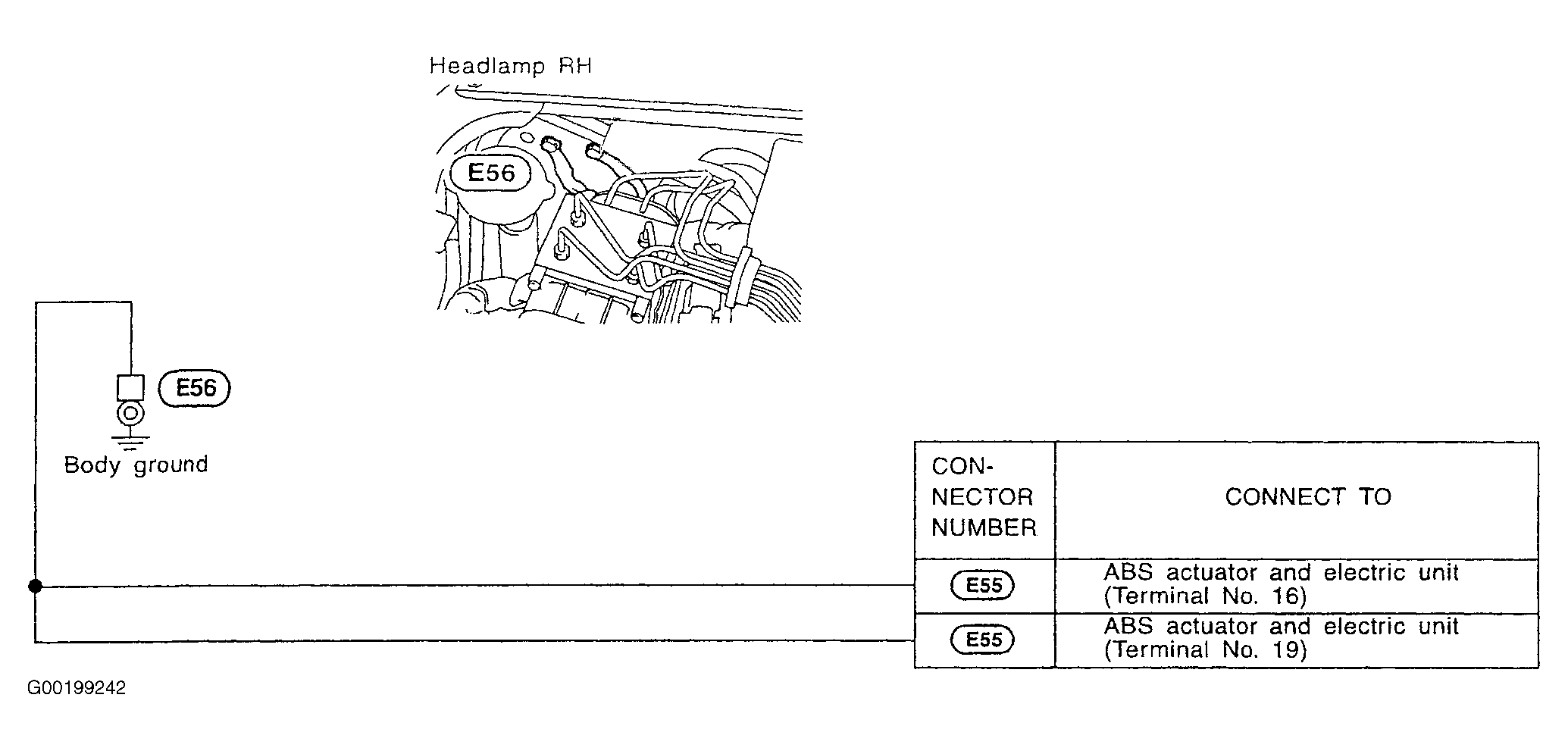

Fig 2: Identifying ABS Actuator Motor Ground Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.
