Abs Warning Lamp Check

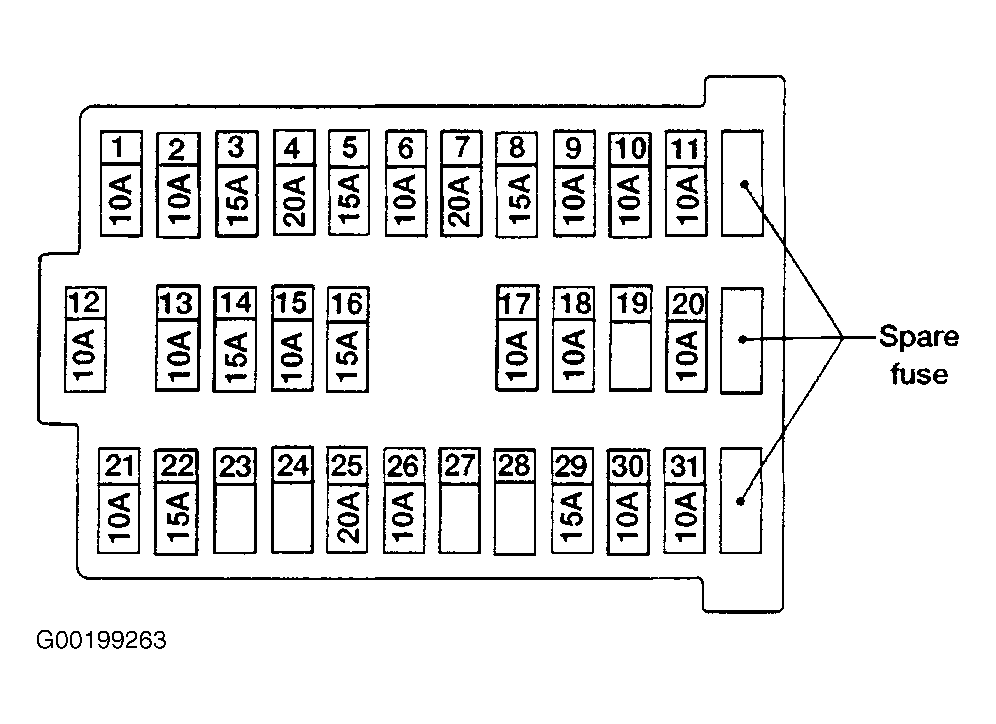

- Turn ignition on, with engine off. If ABS warning lamp illuminates, go to next step. If ABS warning lamp does not illuminate, check ABS warning lamp fuse No. 30 (10-amp), bulb and warning lamp circuit. ABS warning lamp fuse No. 30 (10-amp) is located in the fuse block on lower left side of instrument panel in passenger compartment. See Fig 1
and Fig 2
. Repair or replace as necessary.
- Start engine. If warning lamp goes out, go to next step. If ABS warning lamp stays on, see SELF-DIAGNOSTICS
.
- Drive vehicle at speeds greater than 20 MPH for at least one minute. Check ABS warning light. If warning lamp is off, system is okay. If ABS warning lamp stays on, see SELF-DIAGNOSTICS
.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
