Removal And Installation: QG18DE: Removal

  1. Disconnect the negative battery terminal.
  2. Remove the front/right-side engine undercover.
  3. Remove the drive belt.
  4. Disconnect the A/C compressor harness connector.
  5. Remove the four A/C compressor mounting bolts.
  6. Slide the A/C compressor forward and support it.
  7. Remove the two generator lower mounting bolts.

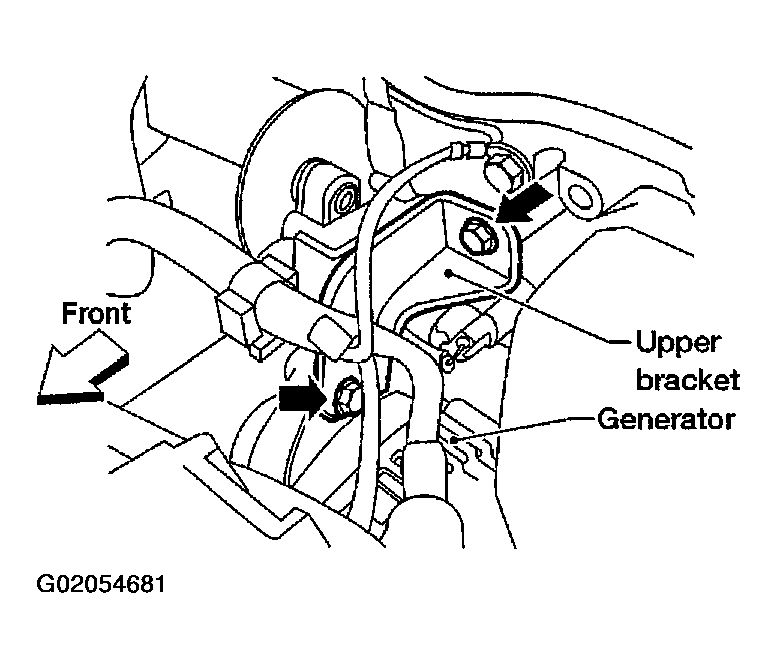

    Fig 1: Removing Mounting Bolts
    G02054681Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Disconnect the generator harness connectors.
  9. Remove the generator upper bracket.
  10. Remove the generator.
