Removal And Installation: SR20DE: Installation

To install, reverse the removal procedure.

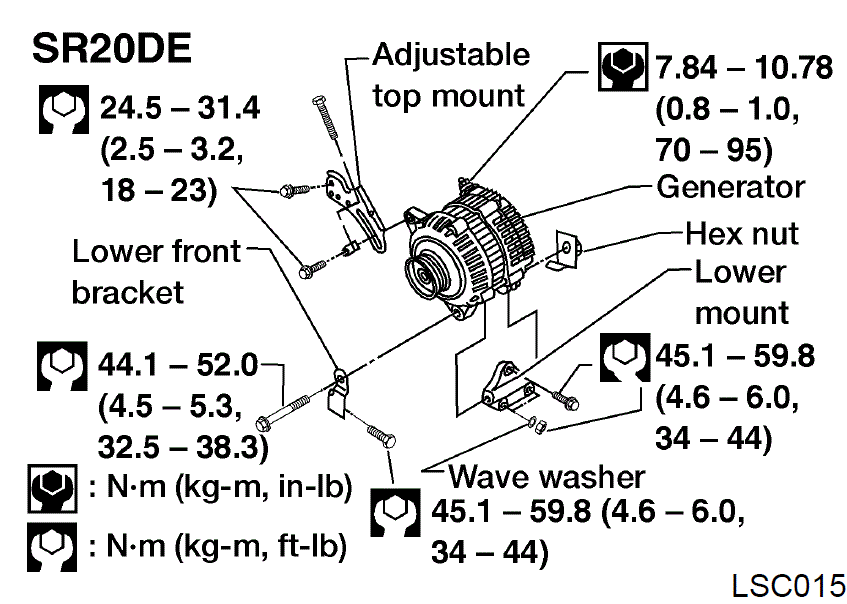

Fig 1: Installing Generator (SR20DE)
G00558871Courtesy of NISSAN MOTOR CO., U.S.A.
