Removal And Installation: SR20DE: Removal

  1. Disconnect the negative battery cable.
  2. Remove the generator adjustable top mount.
  3. Disconnect the generator harness connectors.
  4. Remove the front/right-side splash undercover.
  5. Remove the drive belt.
  6. Disconnect the A/C compressor harness connector.
  7. Remove the 4 A/C compressor mounting bolts.
  8. Slide the A/C compressor forward and support it.
  9. Remove the generator lower mount bolt and nuts.
  10. Remove the generator lower front bracket bolt.
  11. Slide the generator out and remove.

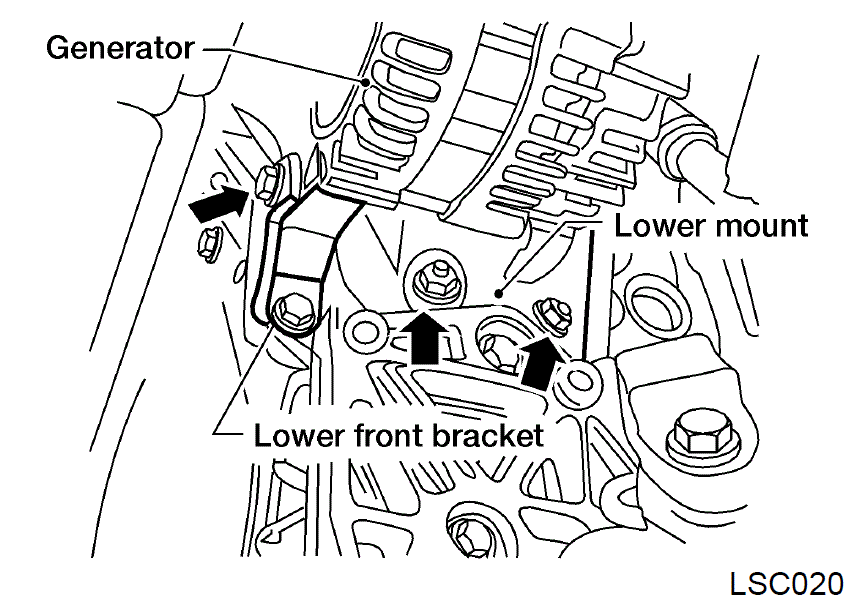

    Fig 1: Removing Generator Lower Bracket
    G00558870Courtesy of NISSAN MOTOR CO., U.S.A.
