Retrieving Diagnostic Trouble Codes: Notes

Turn ignition off. Connect scan tool to DLC located under left side dash panel. See Fig 1. Turn ignition on. Enter program desired on scan tool screen.

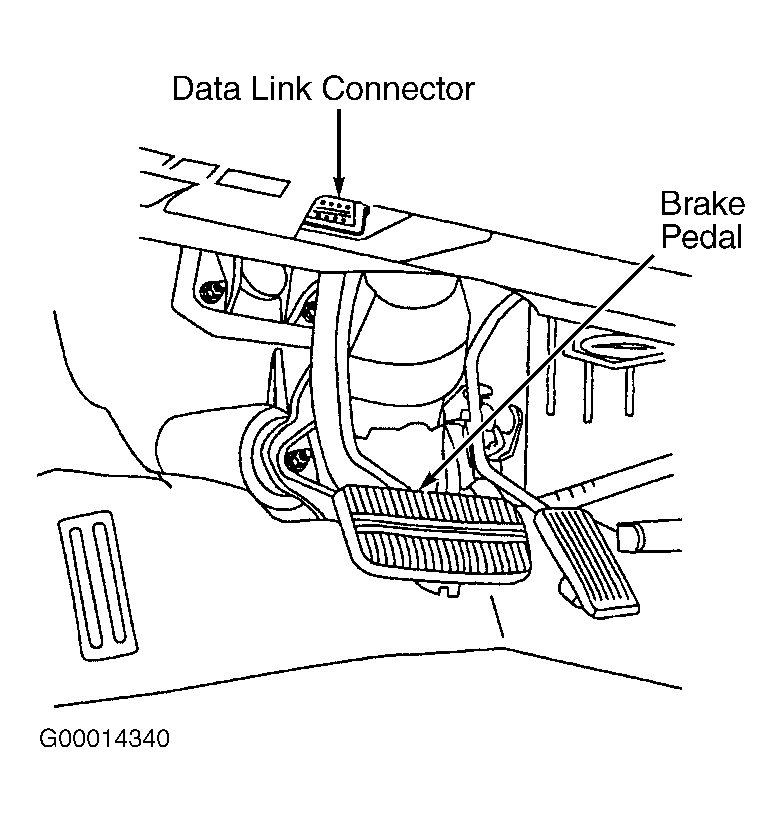

Fig 1: Locating Data Link Connector

Courtesy of NISSAN MOTOR CO., U.S.A.

An OBD-II scan tool complying with SAE J1978 has the following mode functions. For further information, see appropriate operation manual supplied by scan tool manufacturer.
