Component Locations

Use illustrations for component locations. See Fig 1-Fig 38 .

Fig 1: Identifying Engine Performance Component Locations (Altima 2.5L - 1 Of 4)

G00154042

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Engine Performance Component Locations (Altima 2.5L - 2 Of 4)

G00154043

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Engine Performance Component Locations (Altima 2.5L - 3 Of 4)

G00154044

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Engine Performance Component Locations (Altima 2.5L - 4 Of 4)

G00154045

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Engine Performance Component Locations (Altima 3.5L - 1 Of 6)

G00154046

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Engine Performance Component Locations (Altima 3.5L - 2 Of 6)

G00154047

Courtesy of NISSAN MOTOR CO., U.S.A.

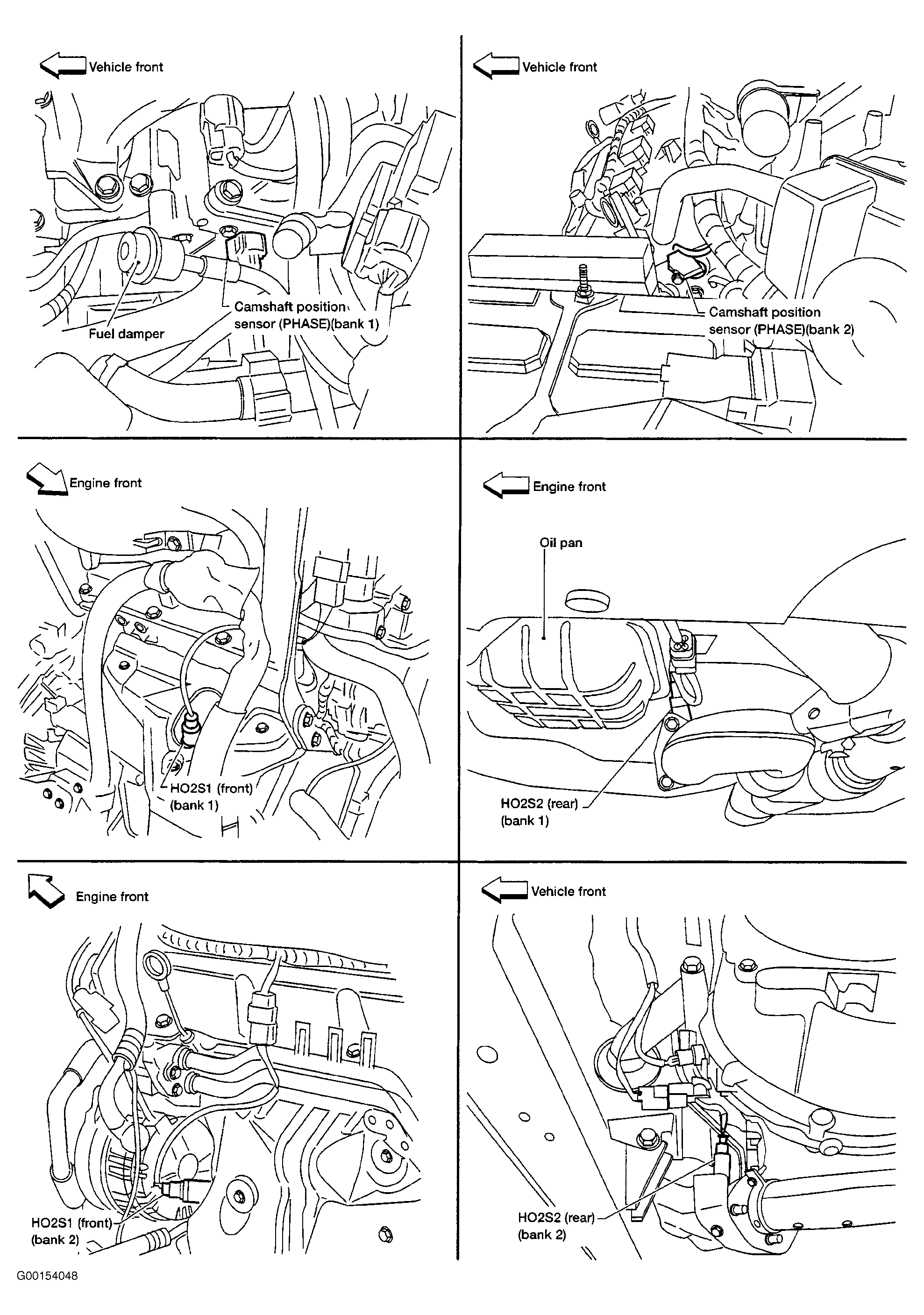

Fig 7: Identifying Engine Performance Component Locations (Altima 3.5L - 3 Of 6)

G00154048

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Identifying Engine Performance Component Locations (Altima 3.5L - 4 Of 6)

G00154049

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Engine Performance Component Locations (Altima 3.5L - 5 Of 6)

G00154050

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Engine Performance Component Locations (Altima 3.5L - 6 Of 6)

G00154051

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Engine Performance Component Locations (Frontier 2.4L & Xterra 2.4L)

G00051938

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Engine Performance Component Locations (Frontier 3.3L & Xterra 3.3L - 1 Of 2)

G00051939

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Engine Performance Component Locations (Frontier 3.3L & Xterra 3.3L - 2 Of 2)

G00154068

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Engine Performance Component Locations (I35 & Maxima - 1 Of 4)

G00154052

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Identifying Engine Performance Component Locations (I35 & Maxima - 2 Of 4)

G00154053

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Engine Performance Component Locations (I35 & Maxima - 3 Of 4)

G00154054

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Identifying Engine Performance Component Locations (I35 & Maxima - 4 Of 4)

G00154055

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 18: Identifying Engine Performance Component Locations (Pathfinder & QX4 - 1 Of 4)

G00051953

Courtesy of NISSAN MOTOR CO., U.S.A.

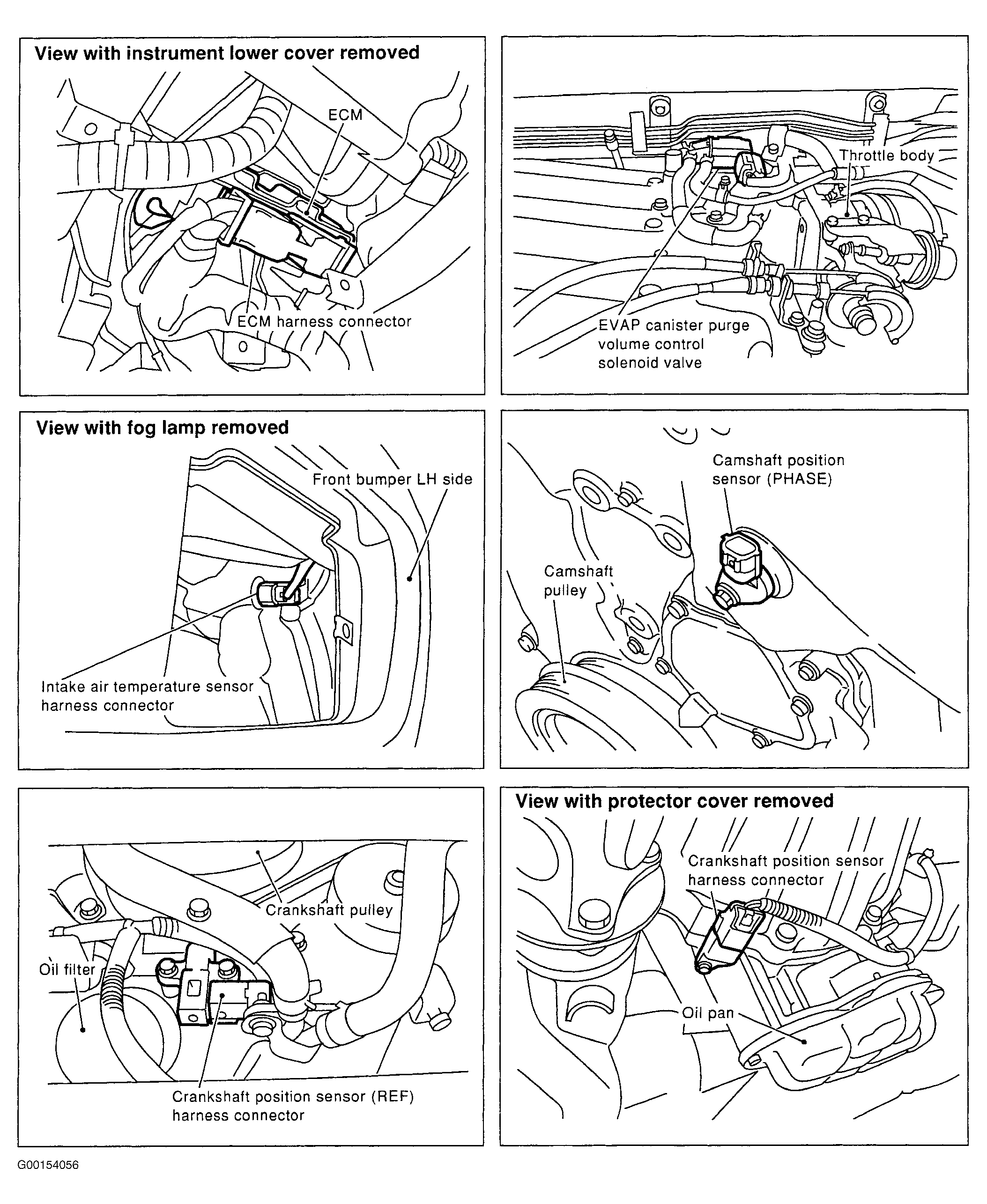

Fig 19: Identifying Engine Performance Component Locations (Pathfinder & QX4 - 2 Of 4)

G00154056

Courtesy of NISSAN MOTOR CO., U.S.A.

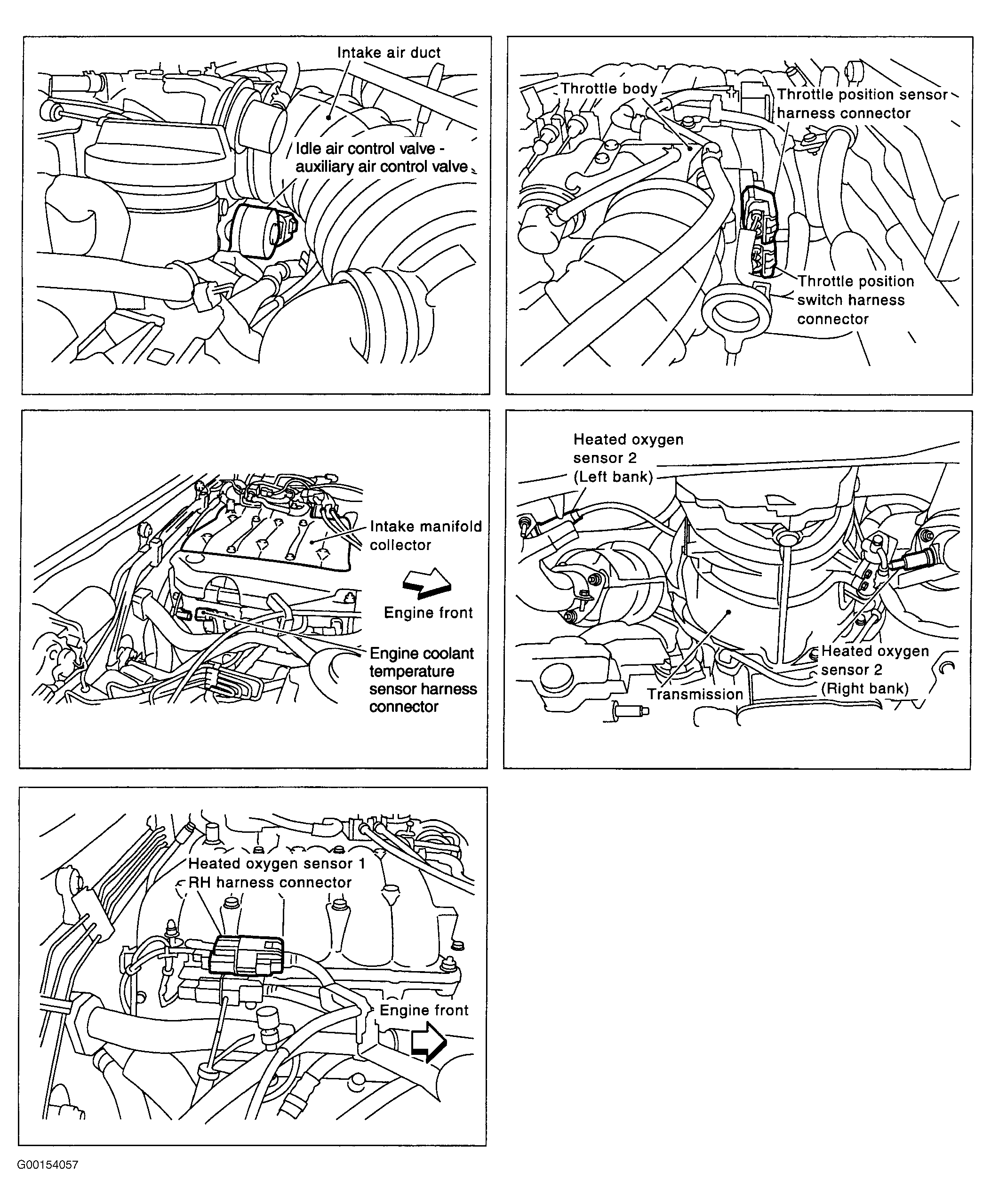

Fig 20: Identifying Engine Performance Component Locations (Pathfinder & QX4 - 3 Of 4)

G00154057

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 21: Identifying Engine Performance Component Locations (Pathfinder & QX4 - 4 Of 4)

G00154058

Courtesy of NISSAN MOTOR CO., U.S.A.

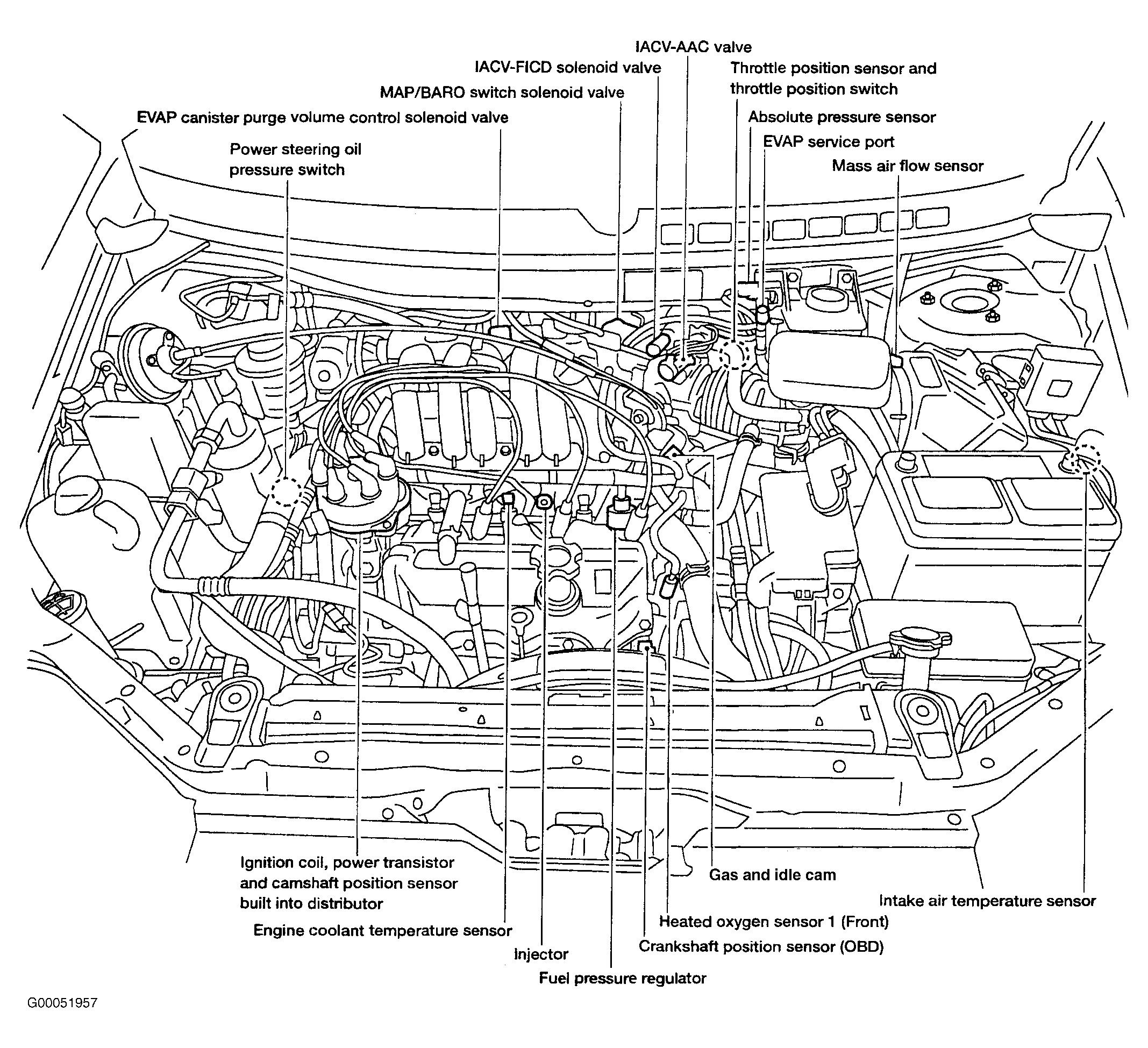

Fig 22: Identifying Engine Performance Component Locations (Quest - 1 Of 2)

G00051957

Courtesy of NISSAN MOTOR CO., U.S.A.

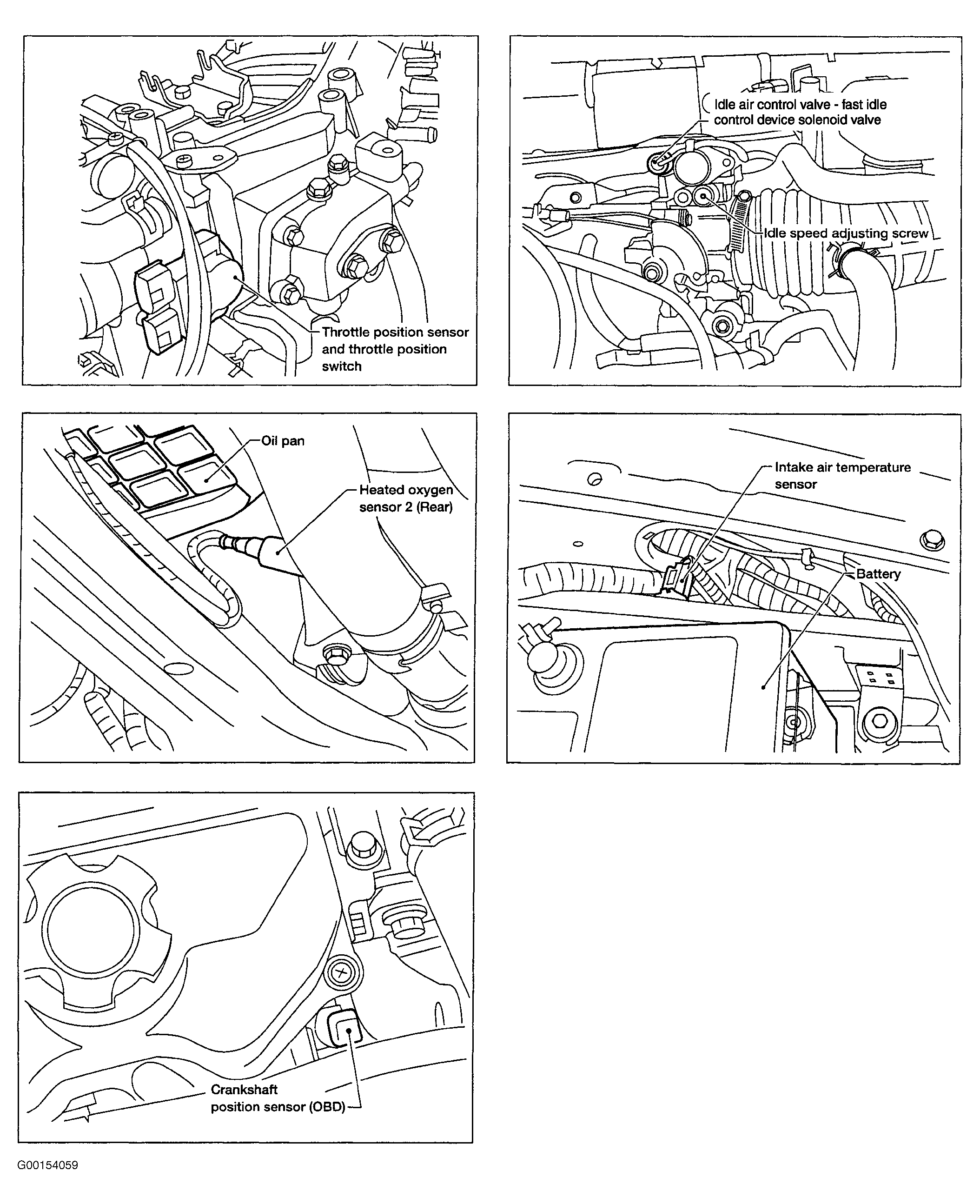

Fig 23: Identifying Engine Performance Component Locations (Quest - 2 Of 2)

G00154059

Courtesy of NISSAN MOTOR CO., U.S.A.

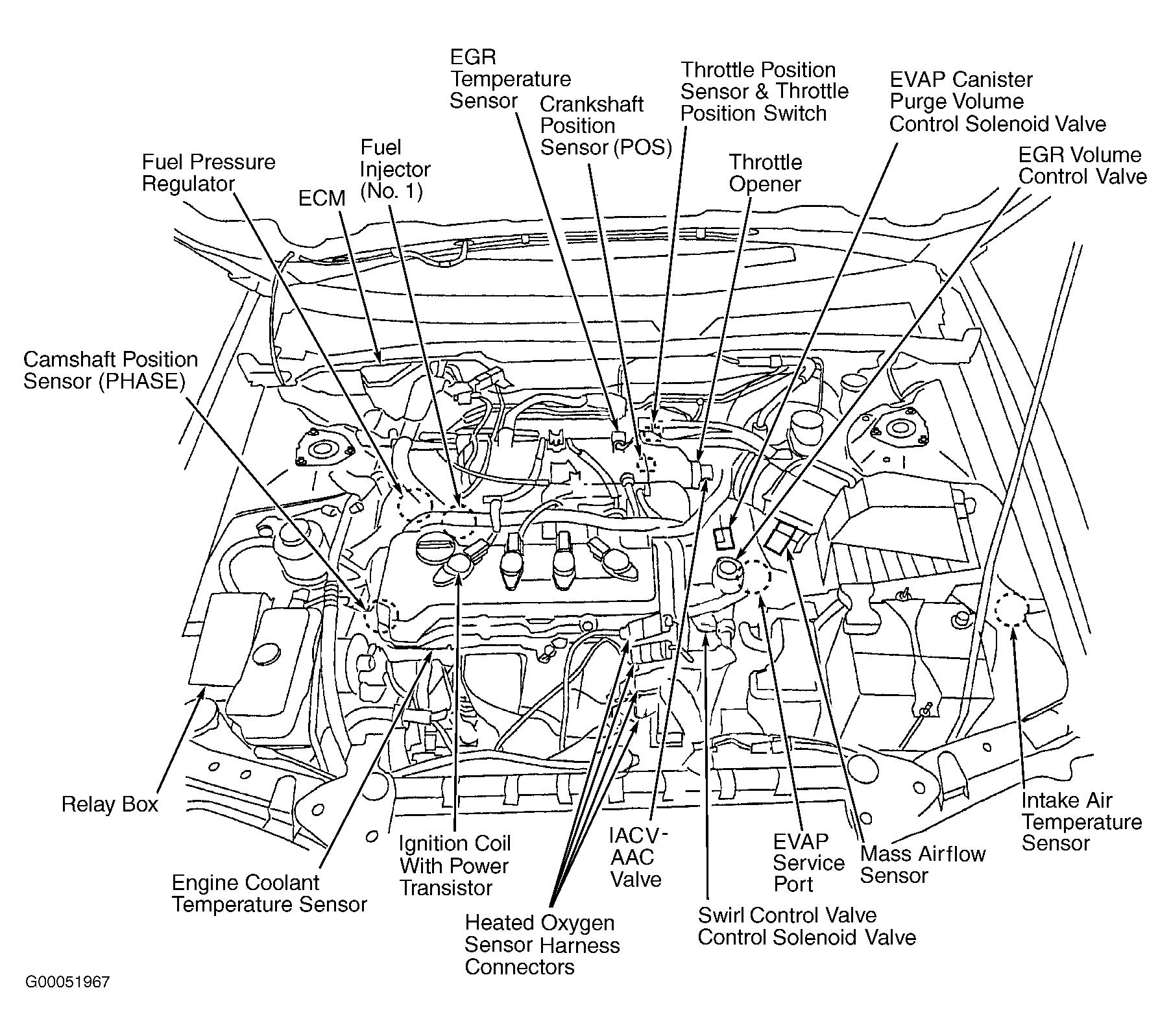

Fig 24: Identifying Engine Performance Component Locations (Sentra 1.8L - 1 Of 5)

G00051967

Courtesy of NISSAN MOTOR CO., U.S.A.

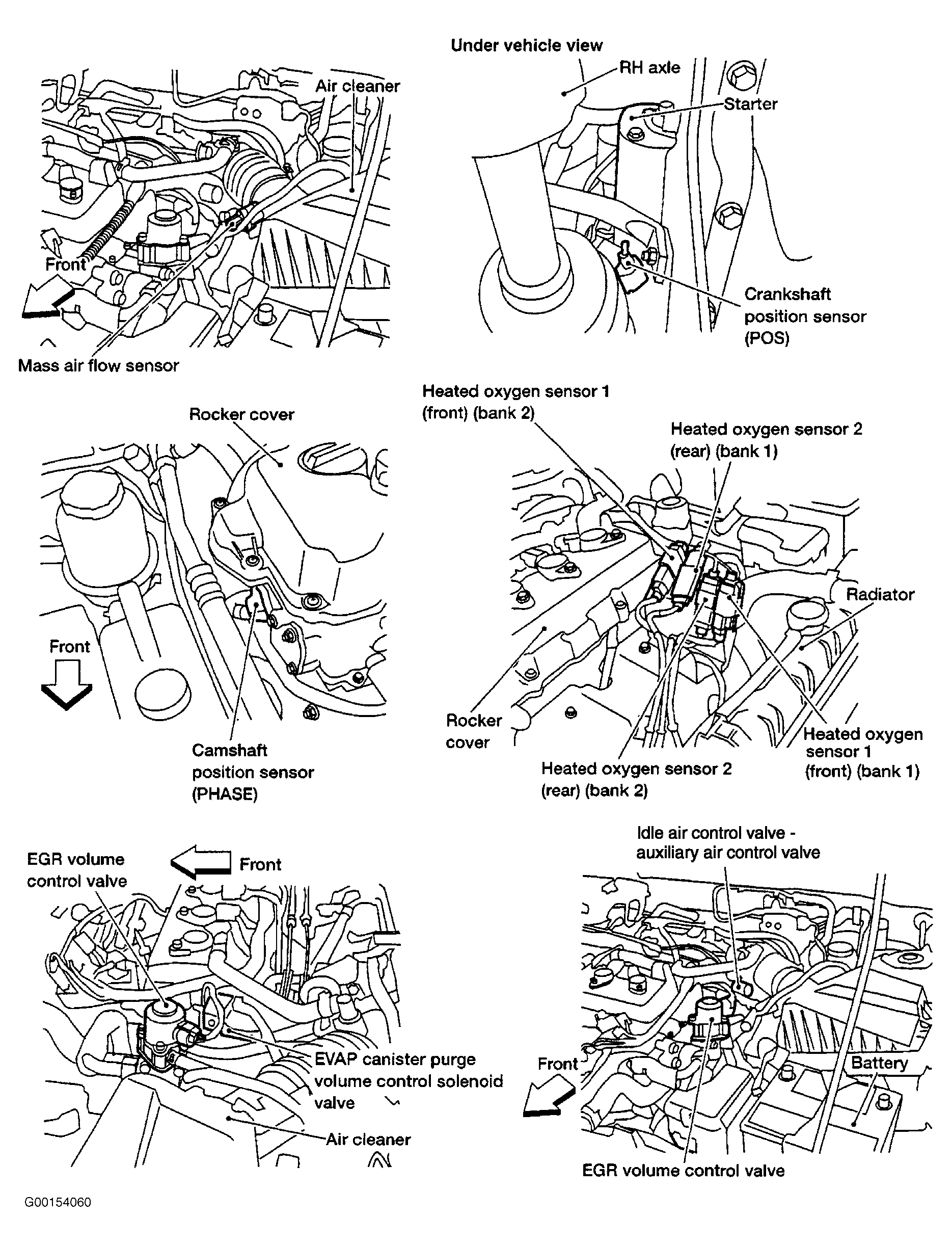

Fig 25: Identifying Engine Performance Component Locations (Sentra 1.8L - 2 Of 5)

G00154060

Courtesy of NISSAN MOTOR CO., U.S.A.

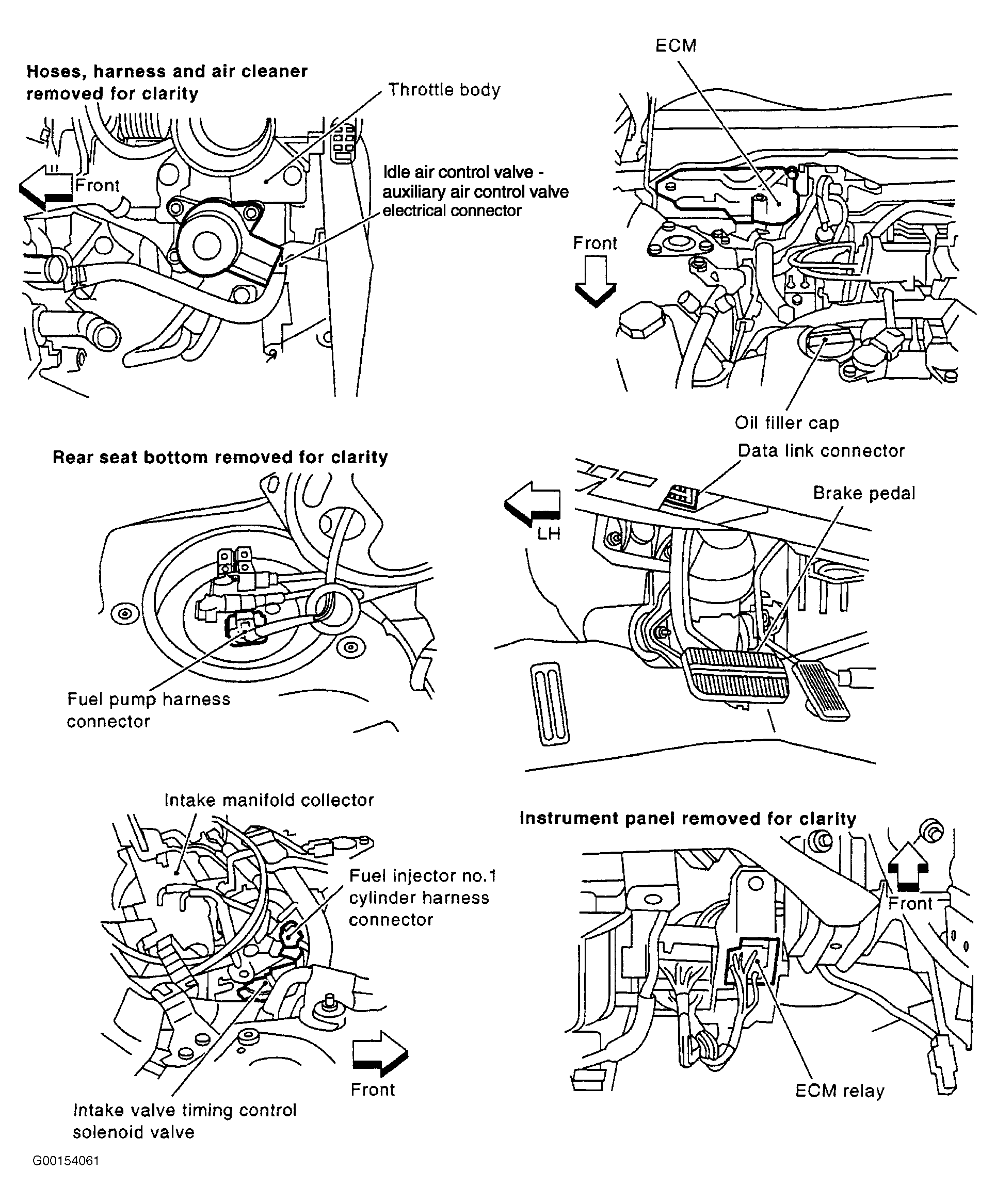

Fig 26: Identifying Engine Performance Component Locations (Sentra 1.8L - 3 Of 5)

G00154061

Courtesy of NISSAN MOTOR CO., U.S.A.

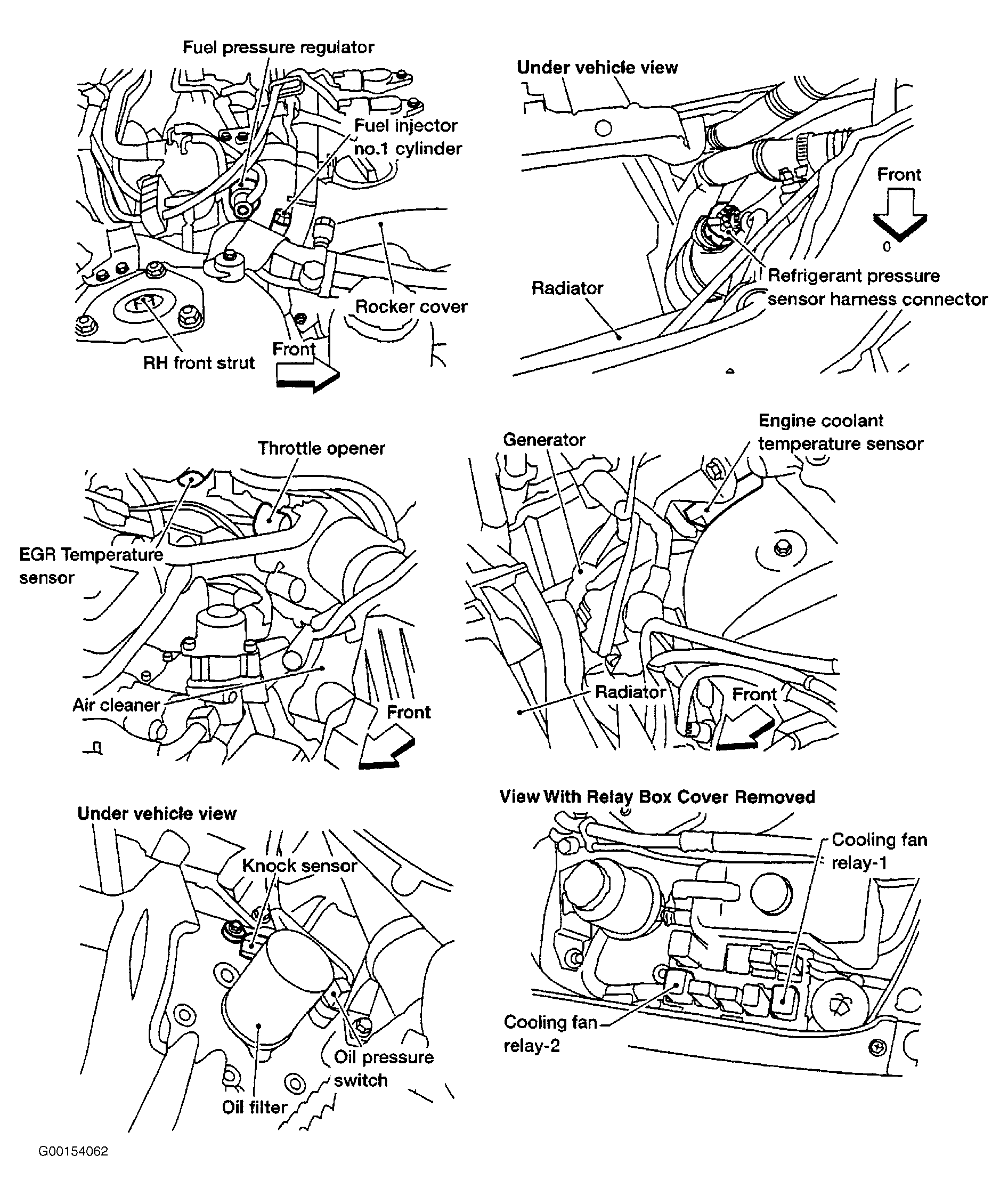

Fig 27: Identifying Engine Performance Component Locations (Sentra 1.8L - 4 Of 5)

G00154062

Courtesy of NISSAN MOTOR CO., U.S.A.

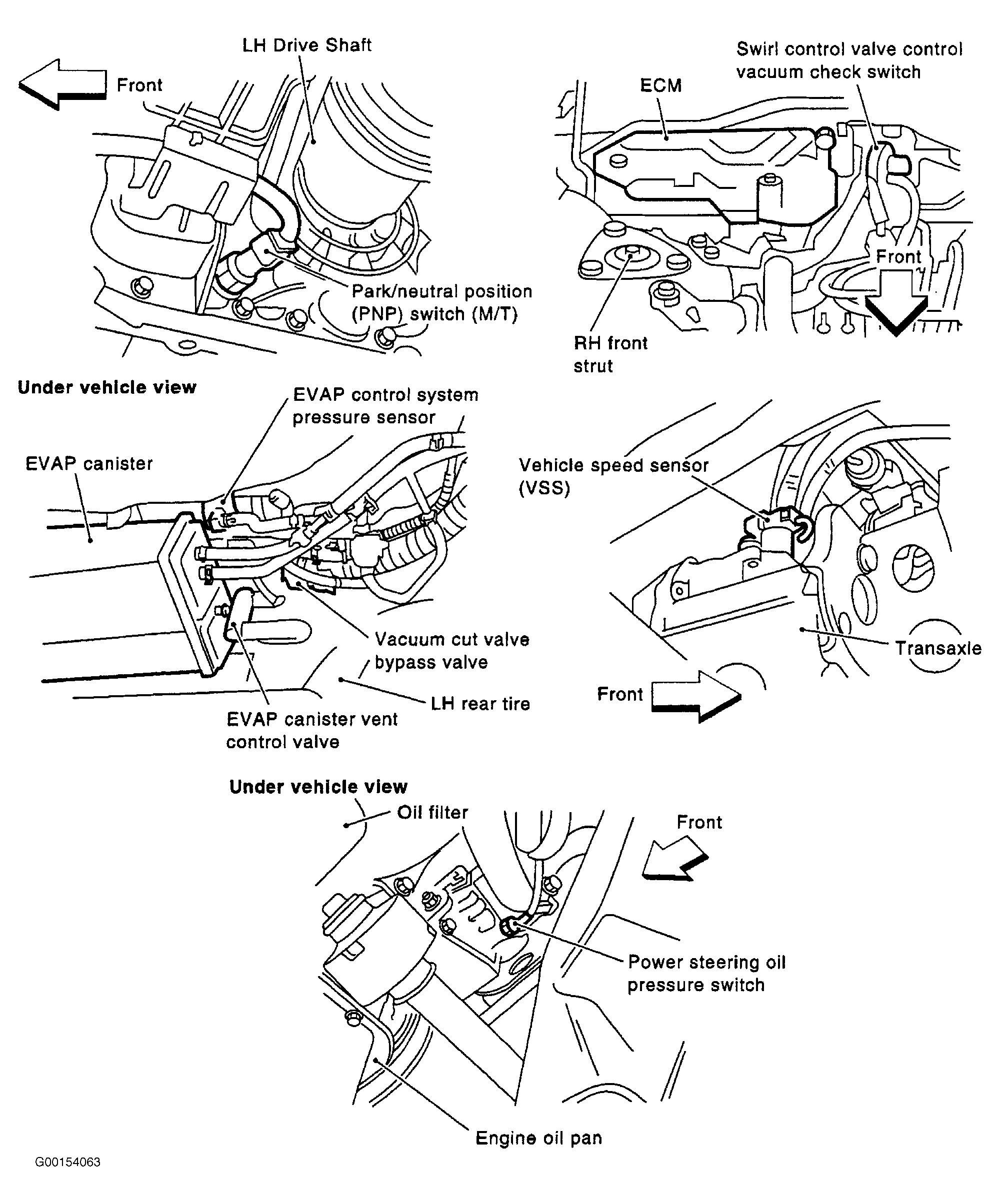

Fig 28: Identifying Engine Performance Component Locations (Sentra 1.8L - 5 Of 5)

G00154063

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 29: Identifying Engine Performance Component Locations (Sentra 2.5L - 1 Of 4)

G00154064

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 30: Identifying Engine Performance Component Locations (Sentra 2.5L - 2 Of 4)

G00154065

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 31: Identifying Engine Performance Component Locations (Sentra 2.5L - 3 Of 4)

G00154066

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 32: Identifying Engine Performance Component Locations (Sentra 2.5L - 4 Of 4)

G00154067

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 33: Locating EVAP System Components Under Vehicle View (Altima)

G00015122

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 34: Locating EVAP System Components Under Vehicle View (Frontier & Xterra)

G00051937

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 35: Locating EVAP System Components Under Vehicle View (I35 & Maxima)

G00051947

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 36: Locating EVAP System Components Under Vehicle View (Pathfinder & QX4)

G00154017

Courtesy of NISSAN MOTOR CO., U.S.A.

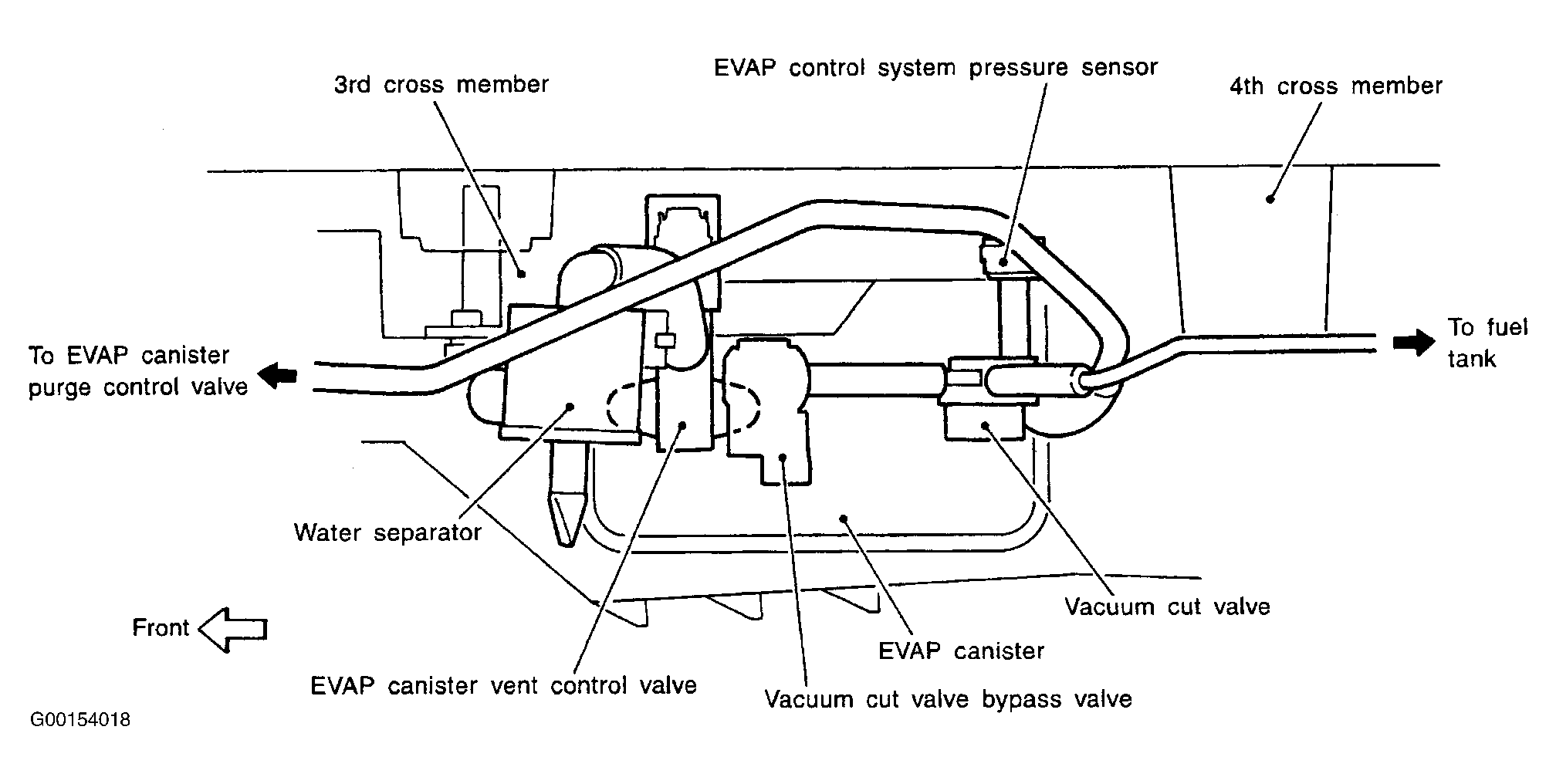

Fig 37: Locating EVAP System Components Under Vehicle View (Quest)

G00154018

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 38: Locating EVAP System Components Under Vehicle View (Sentra)

G00051966

Courtesy of NISSAN MOTOR CO., U.S.A.
