Wiring Diagram --- INF/D ---

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For references in wiring diagrams to PG-POWER, see POWER DISTRIBUTION or GROUND DISTRIBUTION .

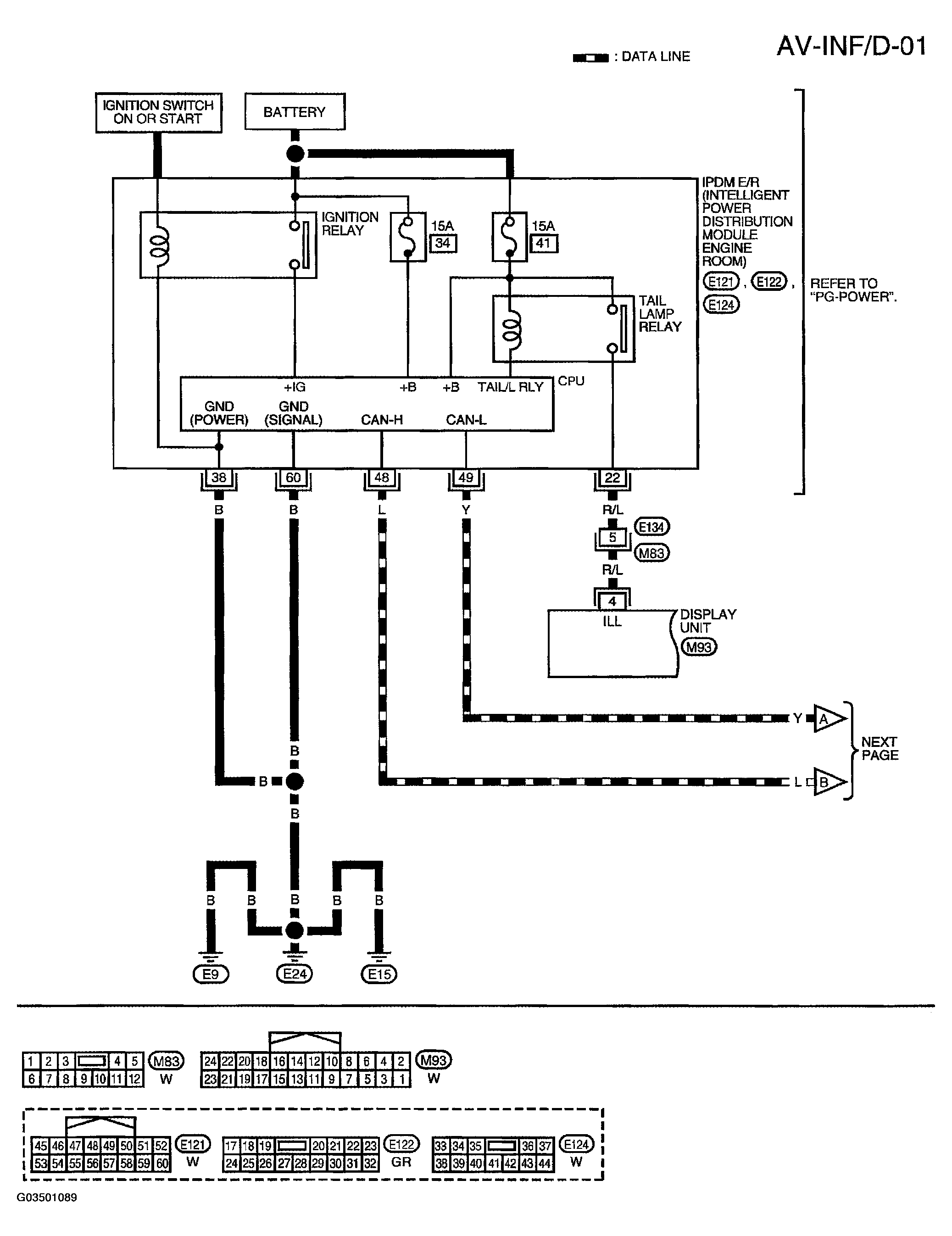

Fig 1: Wiring Diagram - INF/D AV-INF/D-01

G03501089

Courtesy of NISSAN MOTOR CO., U.S.A.

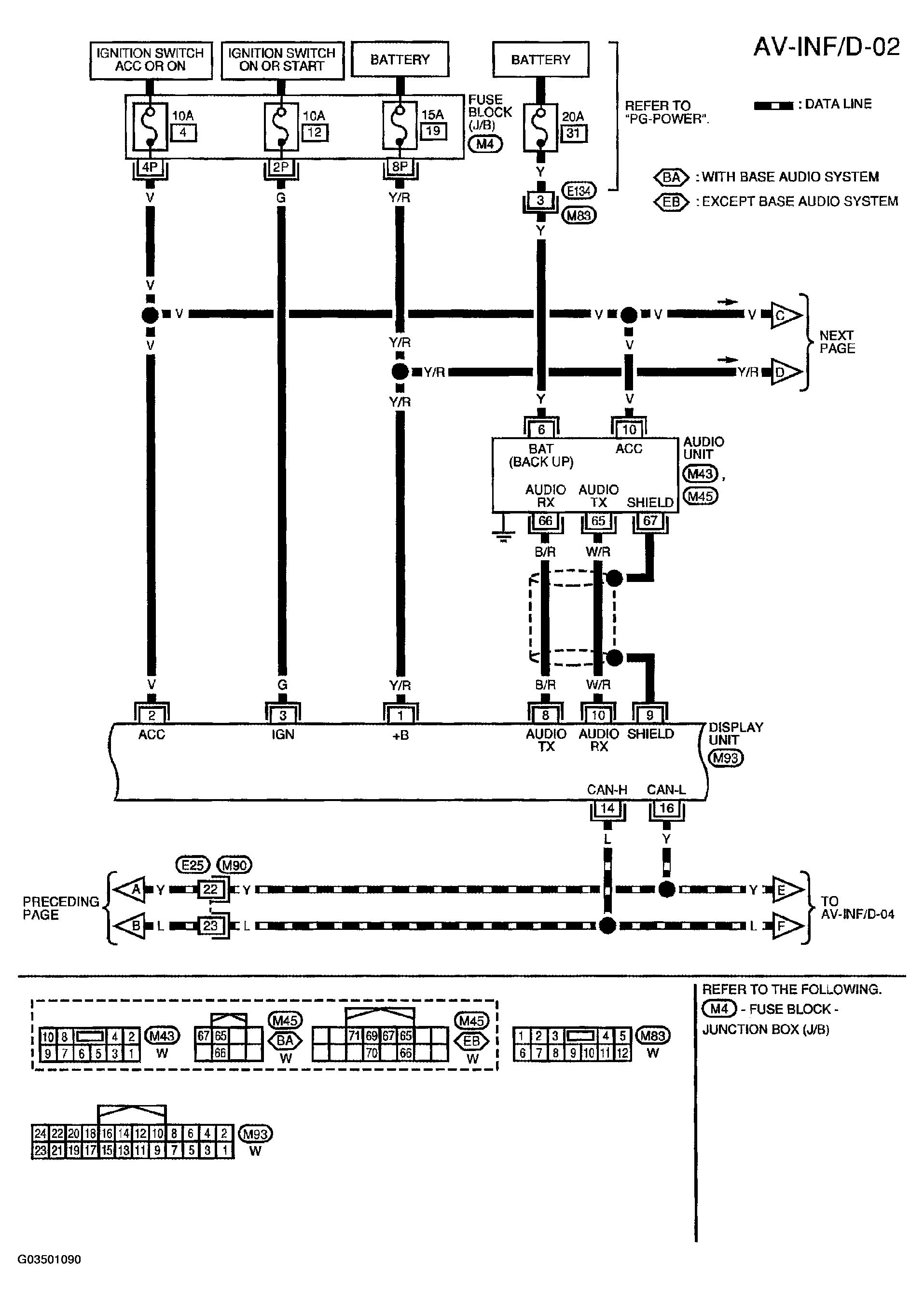

Fig 2: Wiring Diagram - INF/D AV-INF/D-02

G03501090

Courtesy of NISSAN MOTOR CO., U.S.A.

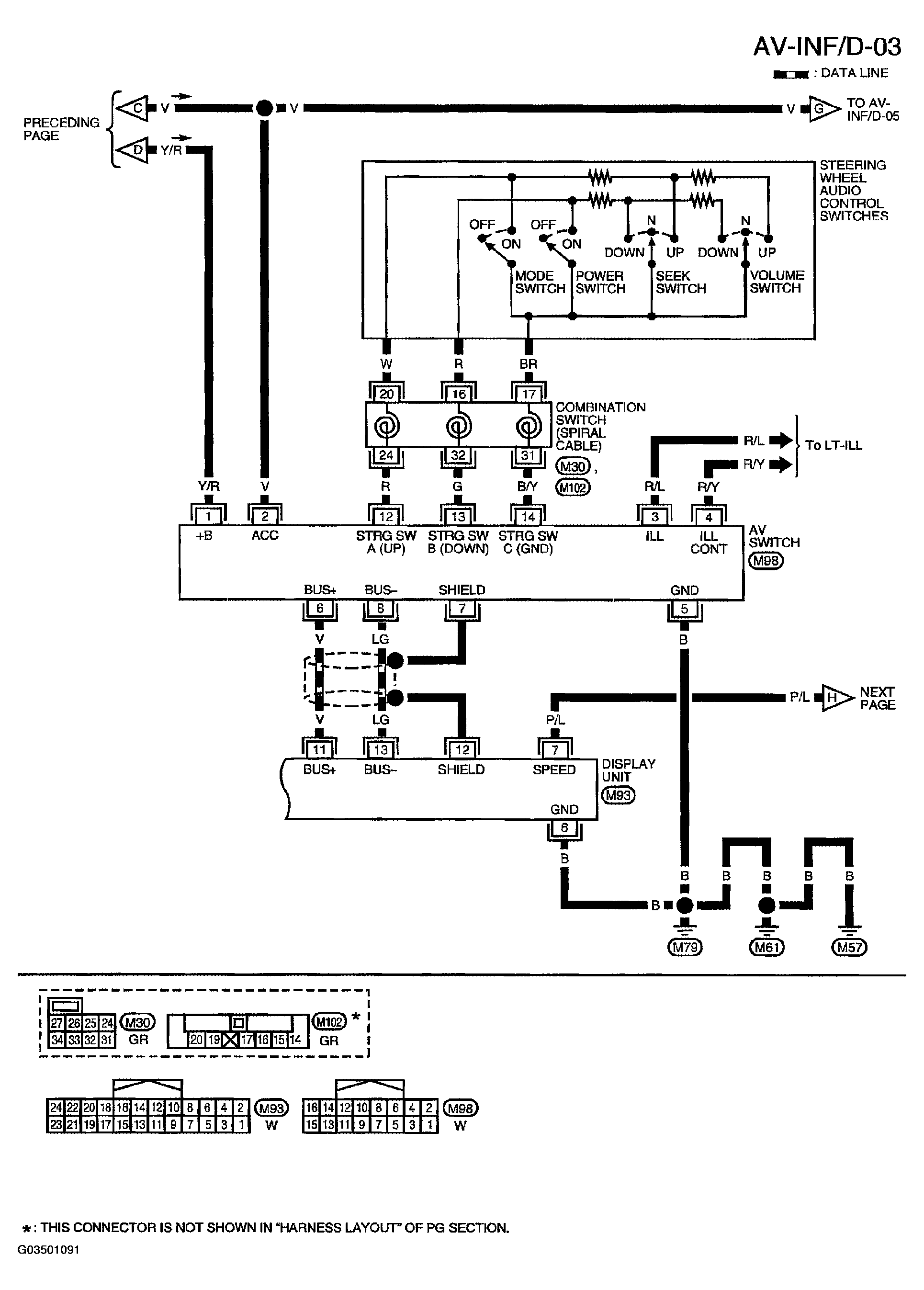

Fig 3: Wiring Diagram - INF/D AV-INF/D-03

G03501091

Courtesy of NISSAN MOTOR CO., U.S.A.

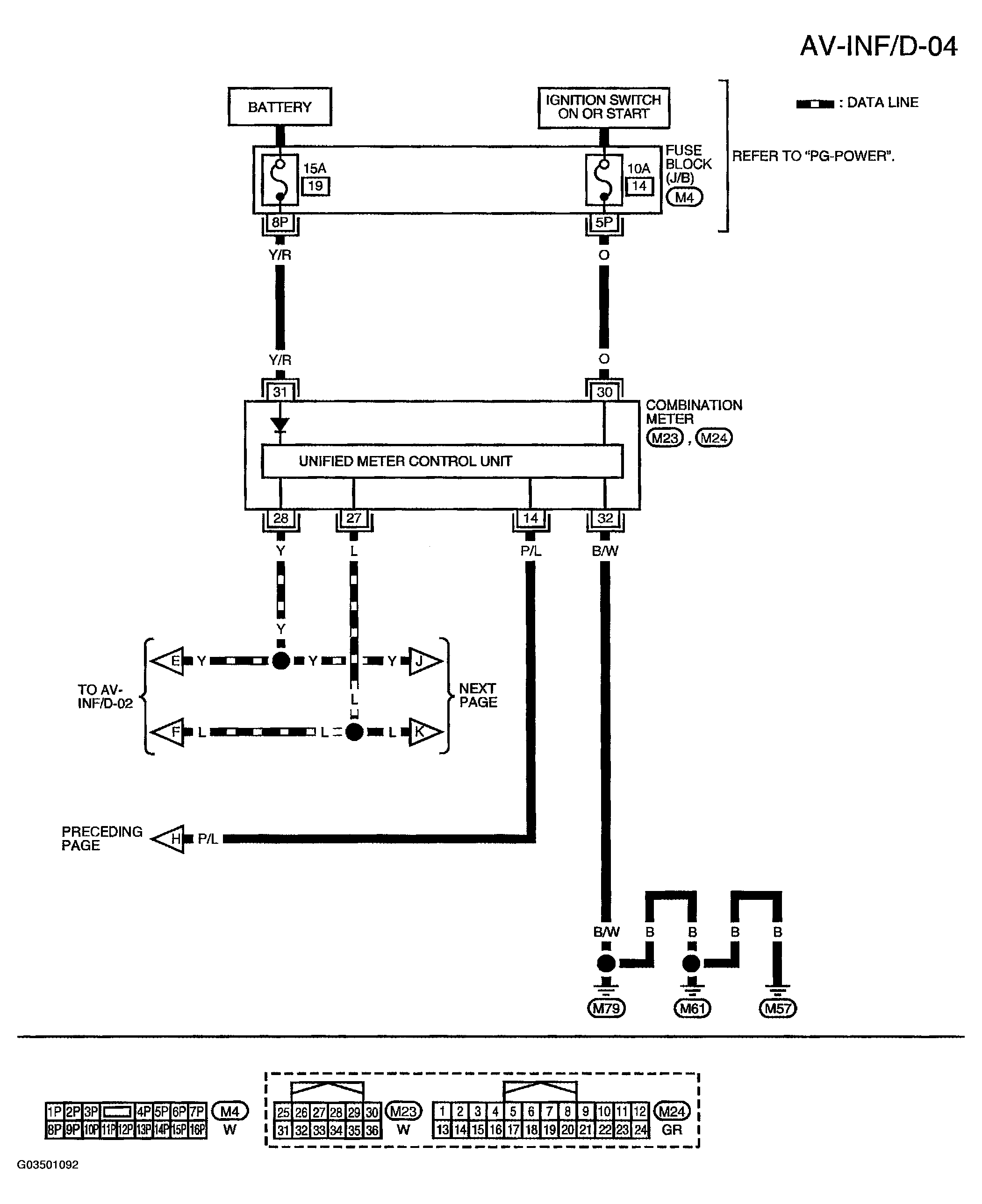

Fig 4: Wiring Diagram - INF/D AV-INF/D-04

G03501092

Courtesy of NISSAN MOTOR CO., U.S.A.

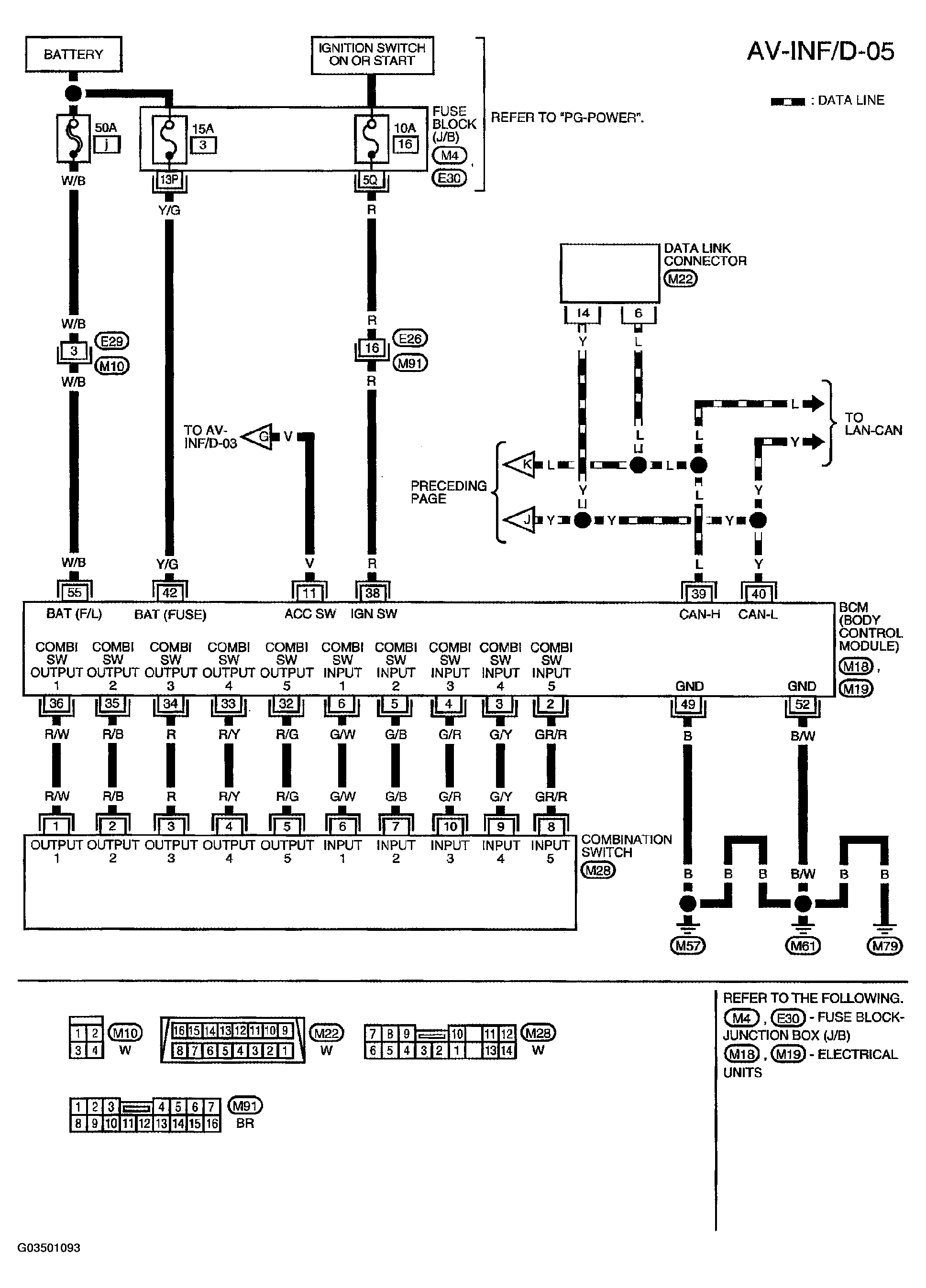

Fig 5: Wiring Diagram - INF/D AV-INF/D-05

G03501093

Courtesy of NISSAN MOTOR CO., U.S.A.
